Introduction

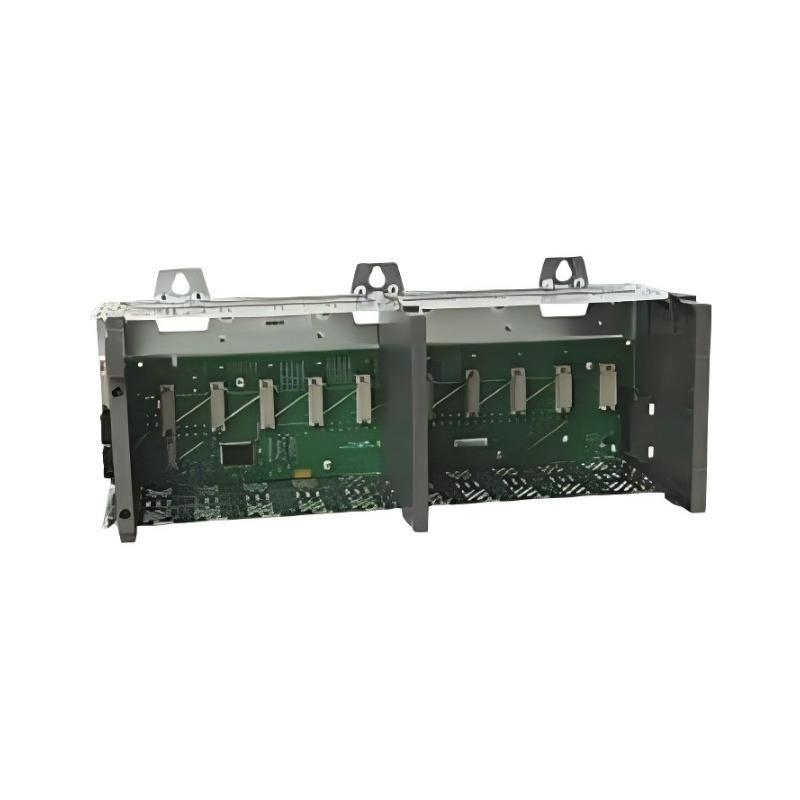

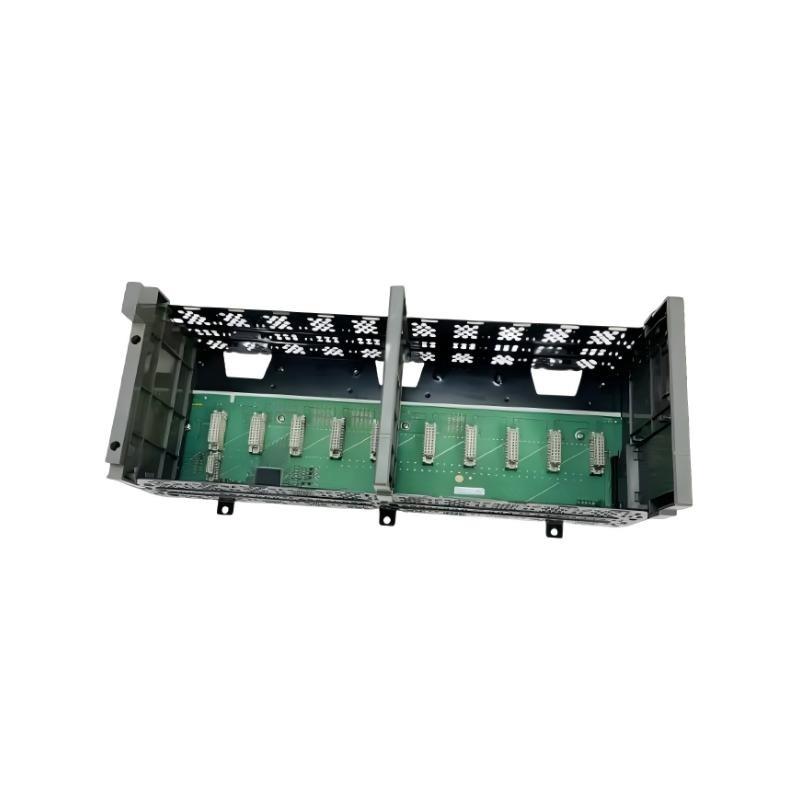

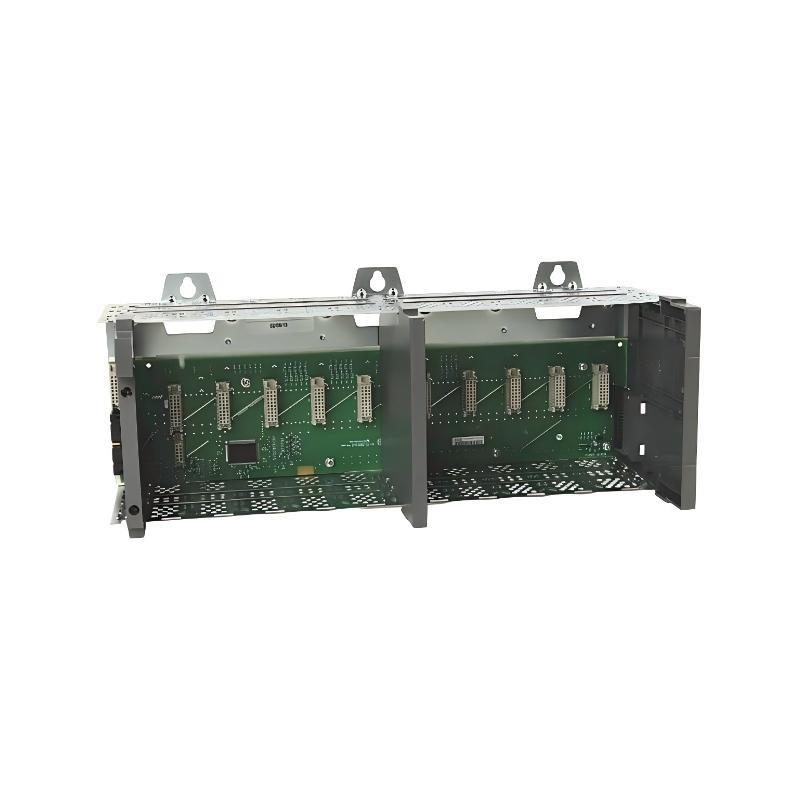

The Allen Bradley 1746-A10 is a 10-slot chassis module designed for the SLC 500 automation platform. From an engineer’s standpoint, this chassis is the structural backbone / an SLC system—supplying mechanical support, power distribution paths, and backplane signal integrity for CPU modules, I/O cards, and communication interfaces. In field deployments, the 1746-A10 is known for robust build quality, stable backplane performance and long-term reliability in demanding industrial environments.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | 1746-A10 |
| Module Type | 10-Slot Chassis Module |
| Compatible Platform | Allen Bradley SLC 500 |
| Slots 可用 | 10 slots (supports CPU, I/O, communication, specialty modules) |
| Backplane Current Capacity | 支持s SLC standard and enhanced power supplies |
| Power Supply Compatibility | 1746-P1 / P2 / P3 / P4 series |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to +85°C |
| Enclosure Rating | Suitable for industrial control cabinets |
| Dimensions (W × H × D) | ≈ 355 mm × 168 mm × 145 mm (chassis body, typical installation size) |
| 重量 | ≈ 2.3 kg |
Applications
-
Medium-scale SLC 500 automation systems requiring multiple I/O and communication modules
-
Machine control applications with distributed I/O and local high-density signals
-
Legacy system expansions where SLC 500 chassis remain in operation
-
Process control panels with mixed digital, analog, and specialty modules
-
Production equipment upgrades needing established SLC backplane stability
Advantages
-
Room for system expansion with 10 available slots, ideal for mid-sized automation systems
-
Stable backplane operation, ensuring reliable module communication and low signal noise
-
Mechanical rigidity designed to withstand cabinet vibration and long-term service
-
Flexible power supply options, allowing integration with several SLC power 件s
-
Straightforward maintenance, thanks to accessible layout and modular design
-
优秀 compatibility, supporting the entire SLC 500 module ecosystem
