产品介绍

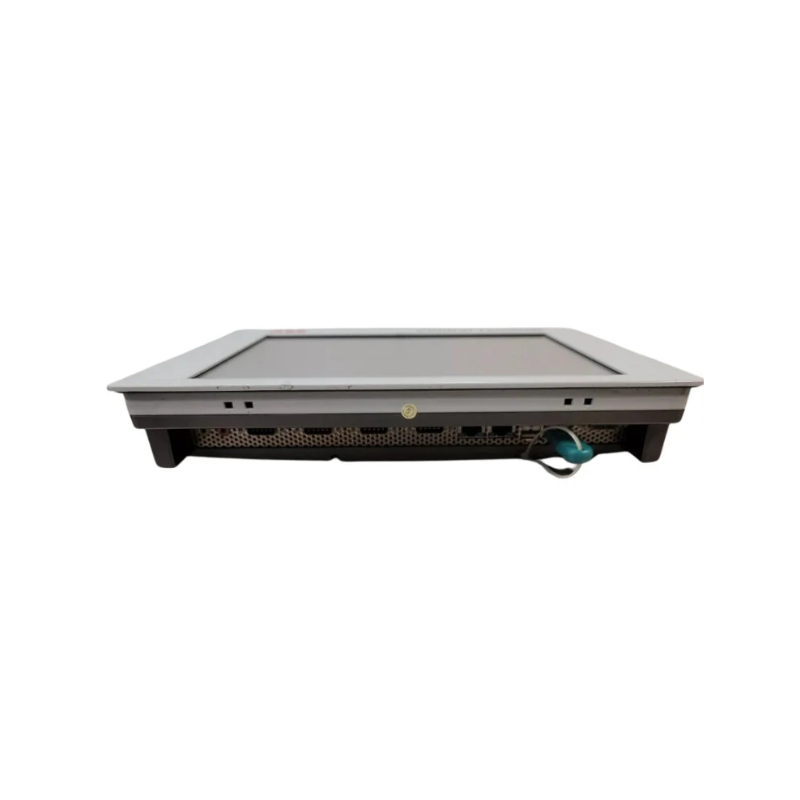

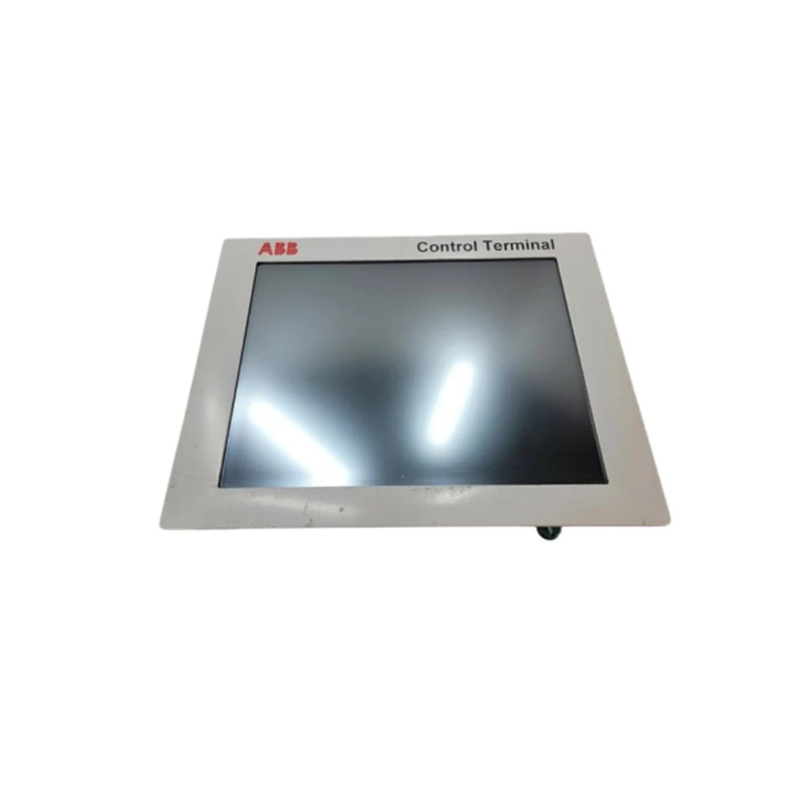

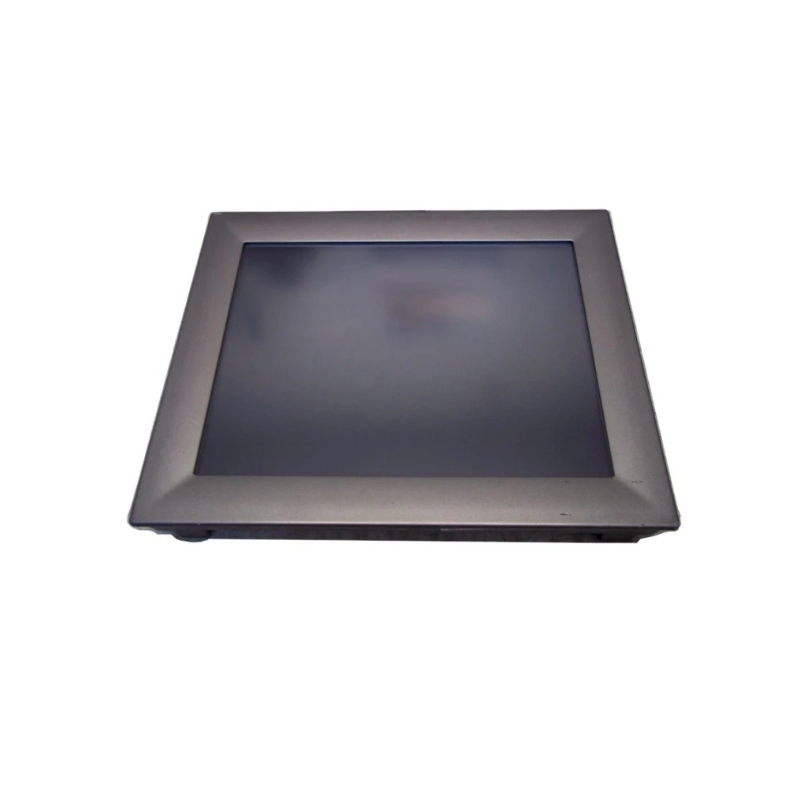

The ABB TPC-1570H 3BHE031734R1112 is an industrial-grade touchscreen control panel designed for high-performance Human-Machine Interface (HMI) applications within demanding automation environments. As part / ABB’s TPC series, this rugged panel computer combines a fanless design with a bright 15-inch TFT LCD touchscreen, /fering reliable and intuitive interaction between operators and industrial control systems. Built for longevity and robust operation, the TPC-1570H is widely integrated into process control, factory automation, and power generation systems, particularly within ABB’s DCS platforms such as Symphony Plus and Freelance.
Product Advantages
-
Rugged Industrial Design: Resistant to vibration, shock, and temperature fluctuations; ideal for harsh environments.
-
Fanless Cooling System: Reduces mechanical failure, increases lifespan, and supports silent operation.
-
High-Resolution Touchscreen: 15-inch TFT LCD with responsive touch capability for precise operator control.
-
Versatile Connectivity: Multiple I/O ports including USB, Ethernet, RS-232/422/485 for wide compatibility.
-
ABB System Integration: Seamless operation with ABB’s automation solutions such as AC800M, Freelance, and Symphony Plus.
-
Mounting Flexibility: Panel-mounted design supports easy and stable installation in control cabinets.
-
Energy Efficient: Low power consumption with high operational reliability.
-
IP65 Front Protection: Ensures protection against dust and water, suitable for washdown or outdoor applications.
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Number | TPC-1570H |
| ABB 零件号 | 3BHE031734R1112 |
| Touchscreen Type | 5-wire Resistive Touch |
| Processor | Intel Atom E3826, Dual Core 1.46 GHz |
| RAM | 2 GB DDR3L |
| Storage | 32 GB mSATA SSD |
| Operating System 支持 | Windows Embedded Standard 7/10 |
| Communication Ports | 2x Ethernet, 2x COM, 4x USB, 1x VGA |
| Power Supply | 24 VDC (±20%) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Front Panel Protection | IP65 |
| Mounting Type | Panel Mount |
| Dimensions | 380 x 300 x 60 mm |
| 重量 | 6.5 kg |
| Certification | CE, FCC, UL, RoHS |
Applications
-
Power Plants: Used in control rooms and field operator panels for turbine, generator, and substation monitoring.
-
Process Automation: Ideal for chemical, oil & gas, and pharmaceutical facilities requiring visual process interfaces.
-
Manufacturing: Deployed on factory floors for machine-level control, diagnostics, and maintenance access.
-
DCS/SCADA Systems: Integrated into ABB systems such as Symphony Plus and Freelance for real-time operator visualization.
-
Marine and Transportation: Used in engine rooms and navigation systems where vibration resistance is crucial.
-
HVAC and Building Management: Monitors and controls building automation infrastructure.
Installation Instructions
-
Panel Cutout: Ensure a cutout matching the device’s panel dimensions (refer to datasheet for exact values).
-
Mounting: Use the panel mounting kit provided; insert the panel into the cutout and fasten using supplied clamps.
-
Power Connection: Connect to a stable 24 VDC power supply.
-
I/O Wiring: Connect Ethernet, serial ports, and USB as required for communication with PLCs, controllers, or sensors.
-
OS Setup: Pre-installed operating system should be configured to match your control architecture.
-
Commissioning: Power on the system and conduct functional tests via ABB’s control s/tware tools.
Compatible / Associated 型号s
-
AC800M Controller Series
-
Freelance 800F Control System
-
PM564-T PLC
-
CP600 Series HMIs
-
PM861AK02 Controller
-
AC500-eCo Series
6 Same Series or Related 型号s
| 型号 | 描述 |
|---|---|
| TPC-1251H | 12.1″ HMI panel with Intel Atom CPU |
| TPC-1571H | 15″ HMI with higher processor version |
| TPC-1870H | 18.5″ display with multi-touch capability |
| PPC-3150 | ABB panel PC with extended interfaces |
| CP620-WEB | ABB CP600 series web HMI |
| TPC-1270H | 12.1” panel with resistive touch |
6 Popular ABB 型号s (Same 品牌)
| 型号 | 描述 | Display Size | 重量 | Voltage |
|---|---|---|---|---|
| CP620-WEB | ABB Web-based HMI panel | 7” | 1.1 kg | 24 VDC |
| PM564-T | Programmable Logic Controller | – | 0.9 kg | 24 VDC |
| PM861AK02 | High-speed CPU module | – | 0.85 kg | 24 VDC |
| AC800M CI854AK01 | Pr/ibus communication interface | – | 0.3 kg | 24 VDC |
| CP620-WEB-10 | 10.4” touchscreen for industrial use | 10.4” | 1.6 kg | 24 VDC |
| TPC-1571H | Advanced version / TPC-1570H with upgrades | 15” | 4.6 kg | 24 VDC |
FAQ (10 De-AI-Style Questions & Answers)
Q1: What makes the TPC-1570H suitable for industrial environments?
A1: It features a rugged design, IP65 front protection, and operates in wide temperature ranges, making it durable in harsh conditions.
Q2: Can this HMI be used with non-ABB systems?
A2: Yes, it supports standard communication protocols, allowing integration with third-party controllers and systems.
Q3: Does the panel support multi-touch?
A3: No, the TPC-1570H uses a resistive touchscreen that supports single-point touch, suitable for glove operation.
Q4: What operating systems are supported?
A4: It supports Windows Embedded Standard 7 and Windows 10 IoT Enterprise.
Q5: How is it powered?
A5: It runs on a 24 VDC power supply with a tolerance / ±20%.
Q6: Is the device fan-cooled or fanless?
A6: It has a fanless design for silent operation and improved reliability.
Q7: Can it be used outdoors?
A7: The front panel is IP65-rated, allowing limited outdoor use if properly enclosed.
Q8: How do I mount the device?
A8: It is designed for panel mounting using clamps included with the product.
Q9: Does it support Ethernet communication?
A9: Yes, it includes dual Ethernet ports for network connectivity and redundancy.
Q10: Is there s/tware pre-installed?
A10: It typically comes with a pre-installed OS; ABB-specific HMI or SCADA s/tware can be installed based on project needs.
