Product Introduction

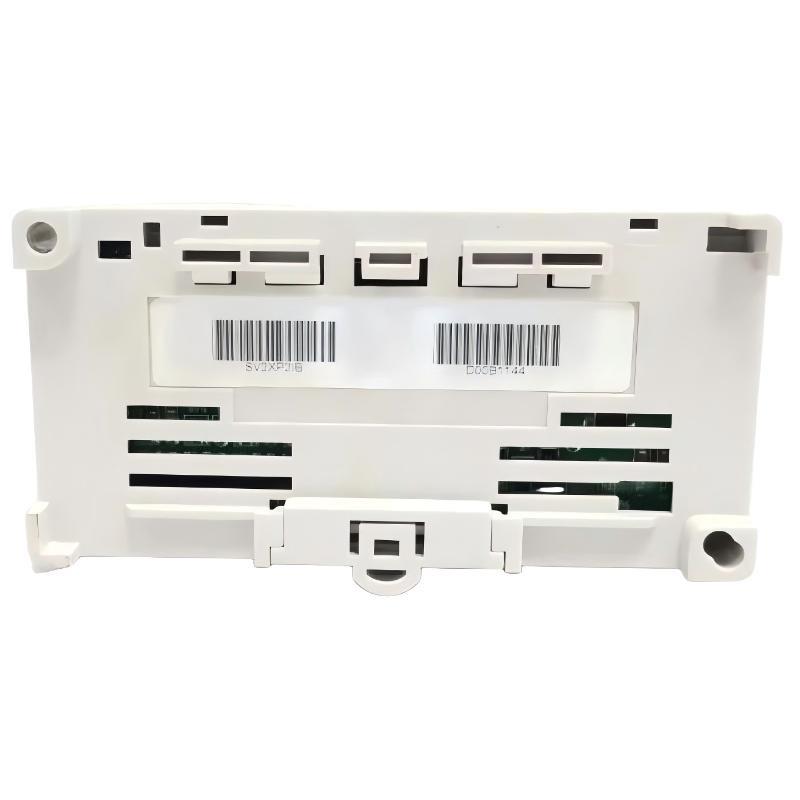

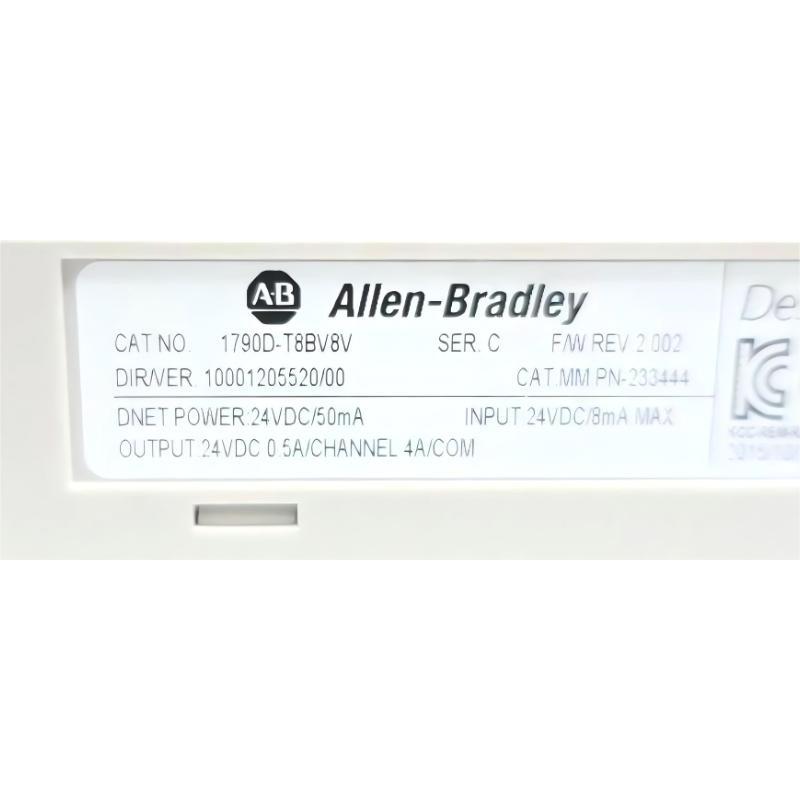

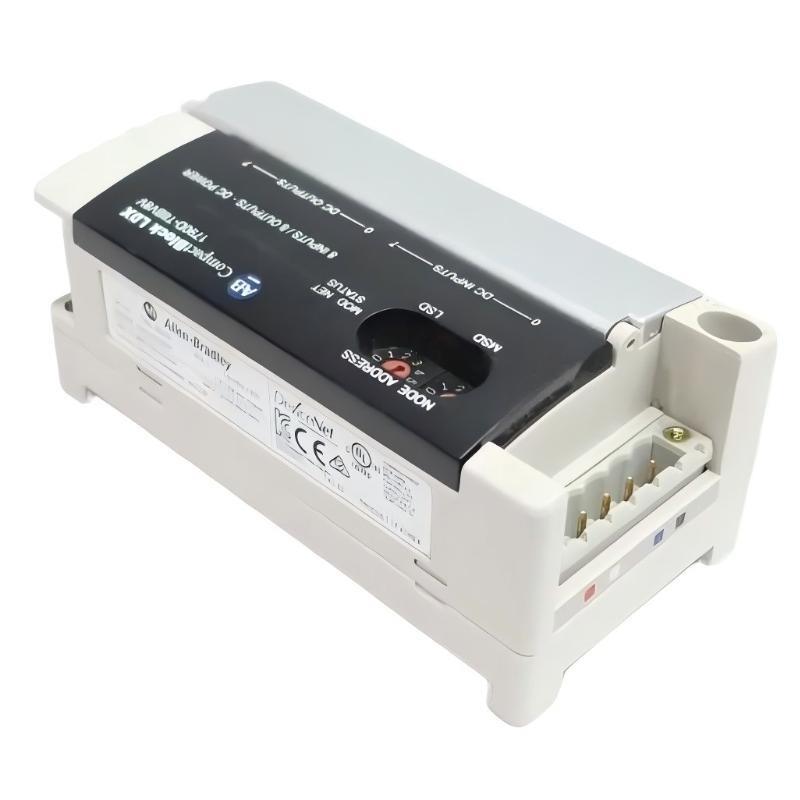

The Allen-Bradley 1790D-T8BV8V DeviceNet Digital Base Terminal Block is a compact distributed I/O base module designed for DeviceNet-based industrial automation systems. Developed by Rockwell Automation under the Allen-Bradley brand, the module is part / the CompactBlock LDX family and is intended for machine-level signal acquisition and control.
The module integrates 8 universal digital input channels and 8 digital output channels within a compact housing. The universal inputs allow connection with a wide variety / industrial sensors and switches, while the digital outputs provide 24 VDC sinking output control for actuators and field devices.
Designed for distributed automation architectures, the 1790D-T8BV8V allows sensors and actuators to be connected close to the equipment being controlled. This approach helps reduce field wiring complexity and improves system installation efficiency. The module uses screw-clamp terminal connectors, providing secure wiring and simplifying maintenance in industrial environments.
With its compact mechanical design and integrated I/O functionality, the module is well suited for automation systems where space efficiency and reliable digital signal handling are essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Product 型号 | Allen-Bradley 1790D-T8BV8V |
| Product Type | DeviceNet Digital Base Terminal Block |
| Digital Inputs | 8 Universal Inputs |
| Digital Outputs | 8 Channels |
| Output Type | Current Sinking |
| Supply Voltage | 24 VDC |
| Communication Protocol | DeviceNet |
| Input Signal Type | Digital Universal Input |
| Connector Type | Screw-Clamp Terminal Connector |
| Mounting Method | Panel Mount |
| Enclosure Rating | IP20 |
| Application Environment | Industrial automation systems |
| Dimensions | 104 × 42 × 52 mm |
| 重量 | 0.1 kg |
Applications
• Machine Automation Systems
Used to collect digital signals from sensors while providing output control for actuators in automated machinery.
• Packaging and Processing Equipment
Handles input detection signals and output control functions in packaging and production equipment.
• Material Handling Systems
Monitors conveyor sensors and controls field devices such as solenoids and indicator lamps.
• Distributed DeviceNet Networks
Serves as a field-level I/O module within DeviceNet-based automation architectures.
• OEM Industrial Equipment
Installed in machine control panels where compact distributed I/O modules are required.
• Factory Automation Lines
Used to manage signal detection and output control in automated assembly and manufacturing processes.
Advantages
• Integrated Digital I/O Capability
Provides both input monitoring and output control functions within a single compact module.
• Compact Installation Design
Small mechanical footprint makes the module suitable for installation in limited panel space.
• DeviceNet Network Compatibility
支持s DeviceNet communication for efficient distributed control system integration.
• Flexible Sensor Connectivity
Universal input channels allow connection with different types / industrial sensors.
• Reliable Industrial Construction
Designed for stable operation in demanding factory automation environments.
• Easy Installation and Maintenance
Screw-clamp connectors simplify wiring and provide secure electrical connections.
