Product Overview

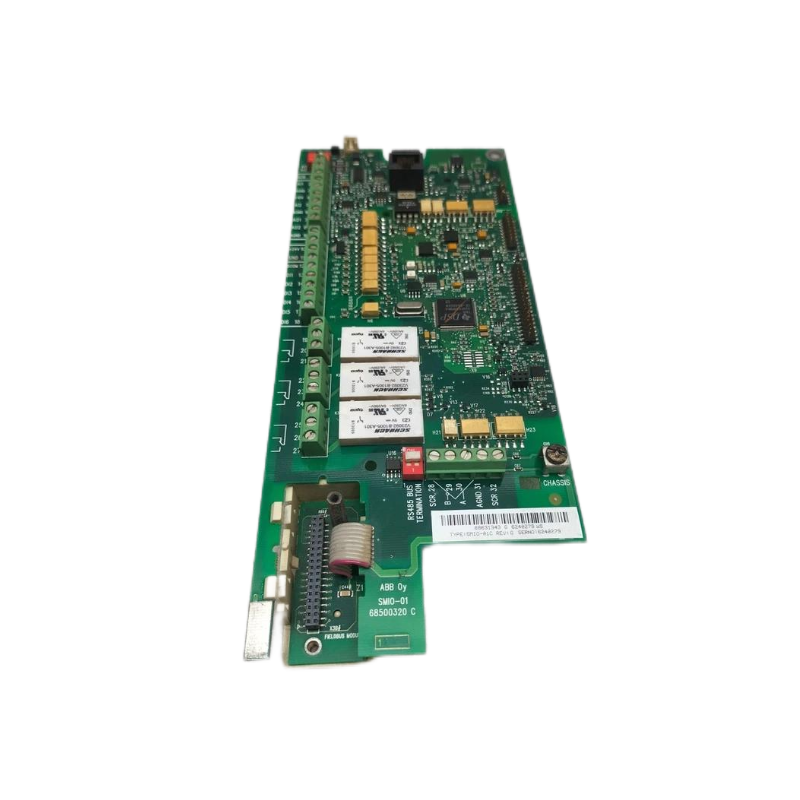

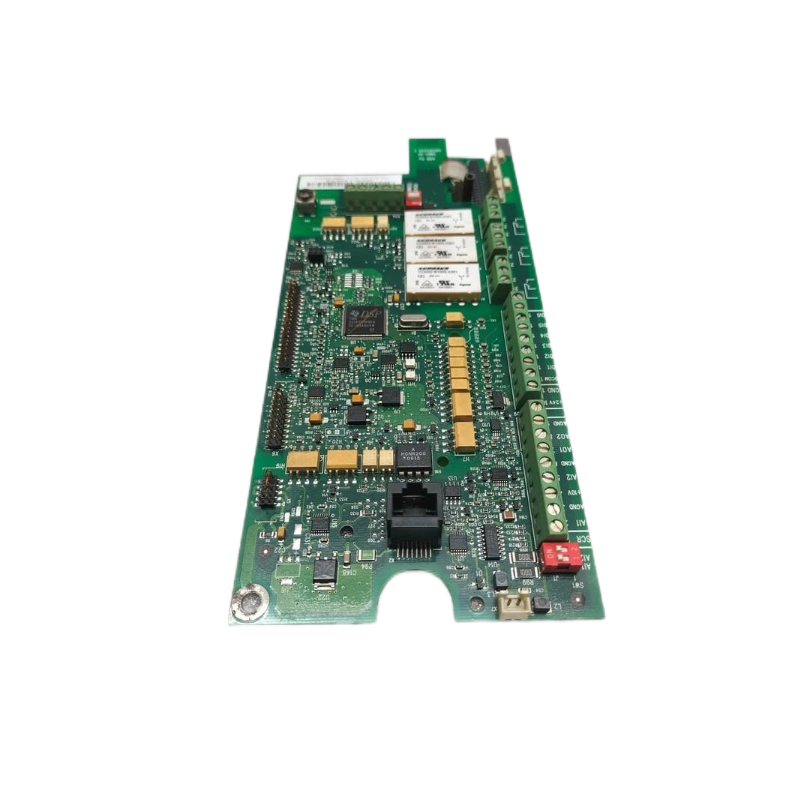

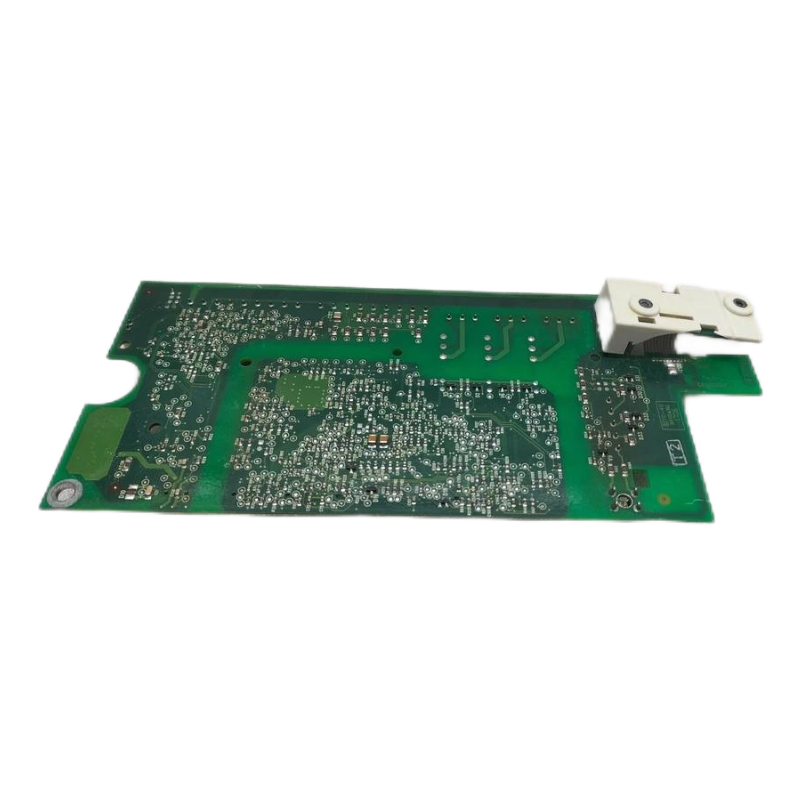

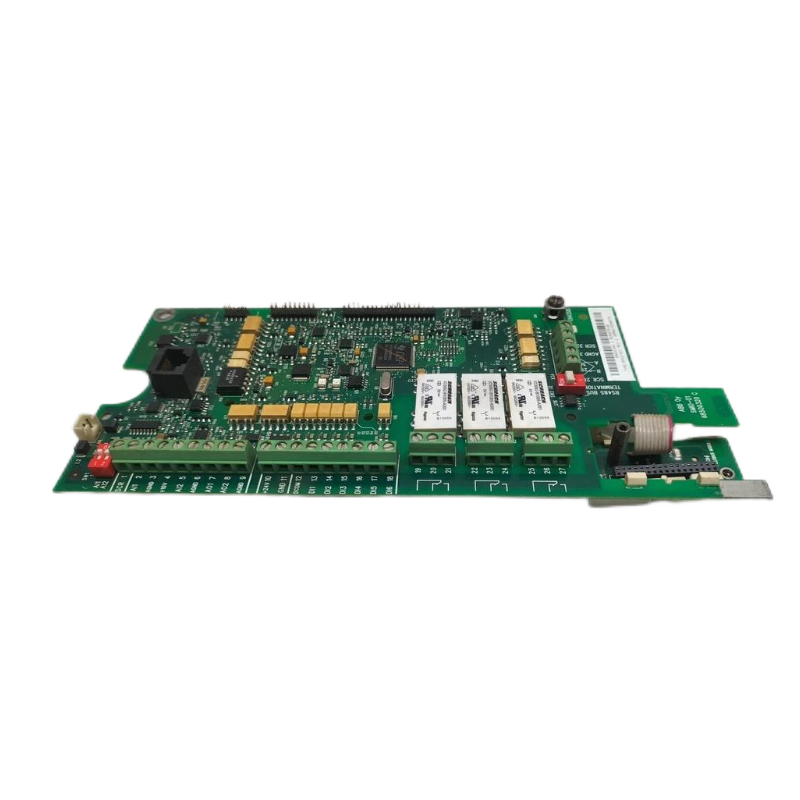

The ABB SMIO-01C 68500320E Inverter Accessories is an advanced signal and control interface module designed to expand and optimize the functionality / ABB inverter systems. As part / ABB’s modular inverter accessory range, the SMIO-01C provides additional I/O (Input/Output) capability, facilitating seamless integration with field devices, external control equipment, and automation platforms.
This module is specifically engineered for demanding industrial environments where robust signal interfacing, system flexibility, and reliable performance are critical. With its compact design, high insulation standards, and easy installation, the SMIO-01C enhances the adaptability and scalability / ABB inverter systems across various industries.
Key Features
-
Dedicated I/O expansion module for ABB inverter systems
-
Provides additional digital and analog input/output points
-
Facilitates communication between inverters and field devices
-
High electrical insulation for enhanced safety and signal integrity
-
Compact, space-saving design for simplified cabinet integration
-
Plug-and-play installation with ABB drives and control systems
-
Integrated diagnostic LEDs for real-time status monitoring
-
Robust construction suitable for harsh industrial environments
-
支持s system customization and flexible control solutions
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ABB SMIO-01C Inverter Accessories |
| 型号 Number | 68500320E |
| Application | I/O expansion for ABB inverter systems |
| Compatible Systems | ABB inverters and control platforms |
| 支持ed Signal Types | Digital Inputs/Outputs, Analog Inputs/Outputs |
| Digital Input Channels | 8 configurable digital inputs |
| Digital Output Channels | 6 configurable digital outputs |
| Analog Input Channels | 2 differential analog inputs |
| Analog Output Channels | 2 analog outputs |
| Communication Interface | Integrated with ABB inverter architecture |
| Insulation Class | High-grade industrial electrical insulation |
| Environmental Protection | IP20 standard |
| Diagnostics | LED indicators for signal status and fault detection |
| Power Supply Requirement | 24 V DC typical |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Certifications | CE, RoHS, UL (regional variations apply) |
| Dimensions | 250 × 150 × 100 mm |
| 重量 | 0.118 kg |
Industry Applications
The ABB SMIO-01C 68500320E Inverter Accessories module is utilized across various industries where enhanced inverter control and reliable I/O interfacing are required:
-
Metals & Mining: Signal interfacing for motor control in crushers, conveyors, and mills
-
Pulp & Paper: Expanded control capabilities for paper machine inverters
-
Marine & Offshore: Reliable signal connections for propulsion and auxiliary inverter systems
-
Oil & Gas: Enhanced control for pumping systems and /fshore platform drives
-
Power Generation: I/O expansion for inverter-controlled generator and turbine equipment
-
Industrial Automation: Flexible integration for automated production lines and machinery
Product Advantages
-
Expanded I/O Capability: Increases system flexibility with additional digital and analog connections
-
Reliable Signal Management: Ensures stable signal transmission between inverters and field devices
-
Plug-and-Play Integration: Designed for seamless compatibility with ABB inverter platforms
-
Compact and Space-Efficient: Simplifies installation within control panels
-
Enhanced Safety: High electrical insulation ensures operational safety and signal integrity
-
Rugged Industrial Design: Withstands harsh environmental conditions, including vibration and temperature extremes
-
Real-Time Diagnostics: LED indicators assist with quick fault identification and troubleshooting
-
System Customization: 支持s tailored control solutions for diverse industrial processes
常见问题 (FAQ)
1. What is the primary function / the ABB SMIO-01C module?
It expands the I/O capabilities / ABB inverter systems, providing additional digital and analog inputs/outputs for system integration.
2. Is the SMIO-01C compatible with all ABB inverter models?
It is designed for specific ABB inverter platforms. Compatibility should be verified based on the inverter model.
3. What types / signals does the SMIO-01C support?
It supports digital inputs/outputs and analog inputs/outputs, suitable for interfacing with field devices and control systems.
4. How many I/O points does the module /fer?
The module provides 8 digital inputs, 6 digital outputs, 2 analog inputs, and 2 analog outputs.
5. Is installation complex?
No, it features a compact design and plug-and-play connection for simplified installation.
6. Does the module include diagnostic features?
Yes, integrated LED indicators provide real-time status monitoring and fault detection.
7. What environmental protections are in place?
The module meets IP20 standards and includes high electrical insulation for safe operation.
8. Can it be used in high-temperature environments?
Yes, it operates reliably within a temperature range / -25°C to +70°C.
9. What are the physical dimensions and weight?
It measures 250mm × 150mm × 100 mm and weighs approximately 0.118 kg.
10. In which industries is the SMIO-01C commonly used?
It is widely used in metals, pulp and paper, oil and gas, marine, power generation, and automation industries.
