Product Overview

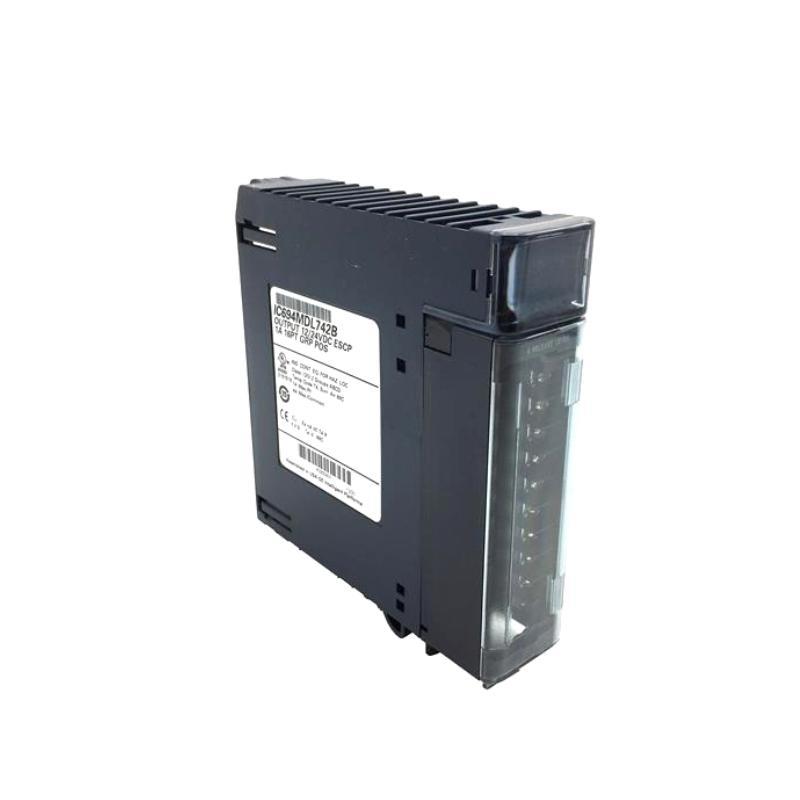

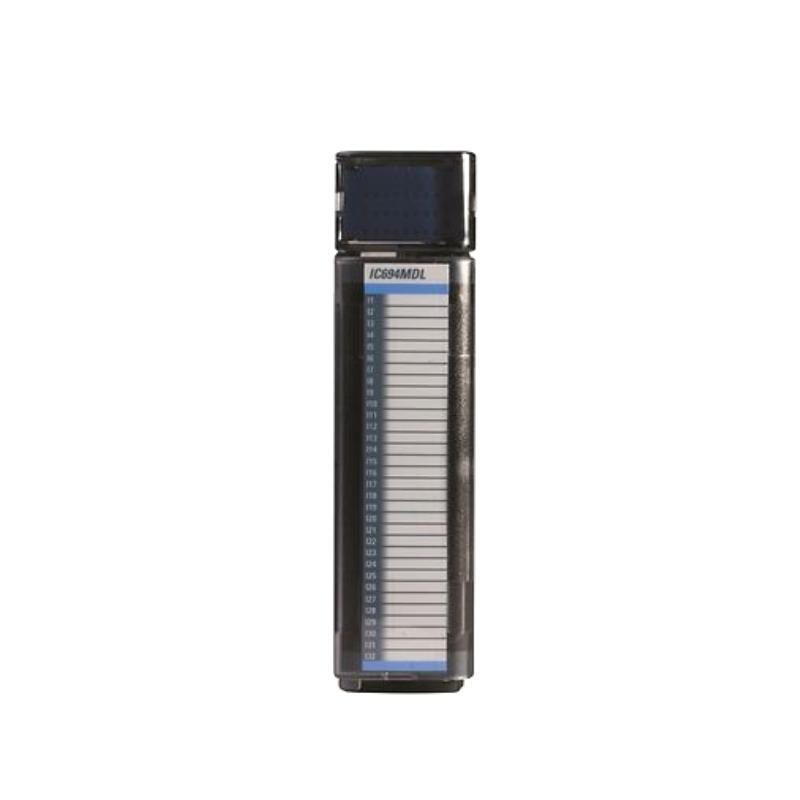

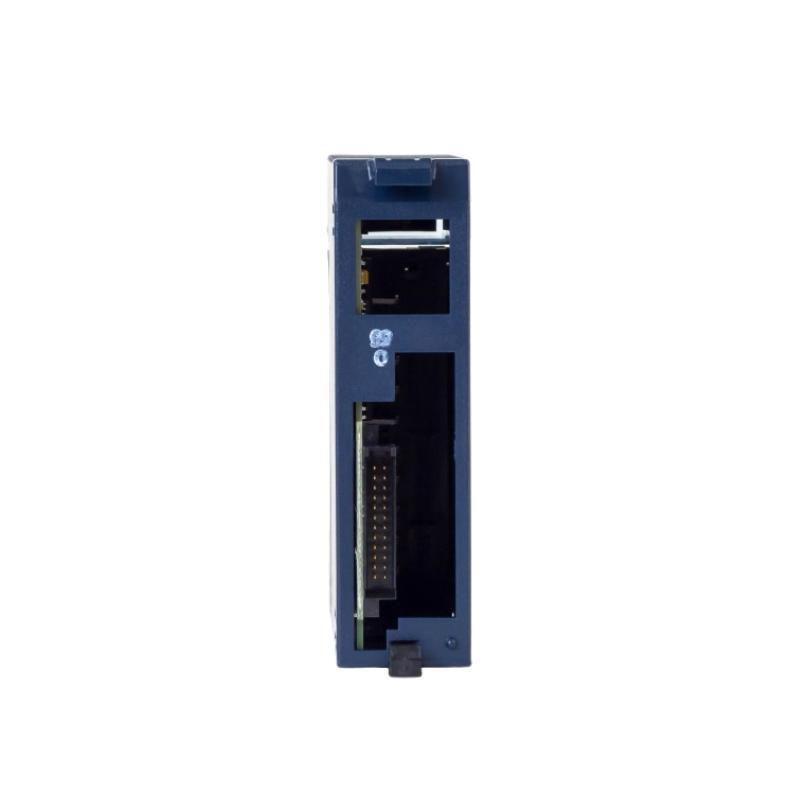

The IC694MDL742C module delivers 16 discrete output points arranged in two groups / eight. It operates at 12/24V DC and supports a maximum current / 1 Amp per point. The module is equipped with electronic short circuit protection (ESCP) to safeguard against overcurrent conditions. Its design facilitates easy integration into PACSystems RX3i PLCs, making it suitable for various industrial applications.
Technical Specifications
| Parameter | Specification |
| 零件号 | IC694MDL742C |
| Output Points | 16 (2 groups / 8) |
| Output Voltage | 12/24V DC |
| Output Current | 1 Amp per point |
| Logic Type | Positive Logic |
| Protection | Electronic Short Circuit Protection (ESCP) |
| Isolation | Galvanic Isolation |
| Dimensions (W x H x D) | 34 x 145 x 140 mm |
| 重量 | 0.349 kg |
| Mounting | Panel or DIN Rail |
| Certifications | UL, UL HAZLOC, CE, ATEX Zone 2, ABS, BV, DNV, GL, KRS, LR |
Applications
The IC694MDL742C module is versatile and can be employed in various industrial scenarios, including:
-
Process control systems
-
Manufacturing automation
-
Safety and monitoring systems
-
Industrial machinery control
-
Energy management systems
Advantages
The IC694MDL742C /fers several benefits that enhance its suitability for industrial applications:
-
High Reliability: Robust design ensures consistent performance in demanding environments.
-
Safety Features: Incorporates ESCP to protect against short circuits and overcurrent situations.
-
Flexible Integration: Compatible with PACSystems RX3i PLCs, facilitating seamless system integration.
-
Compact Design: Space-saving dimensions allow for efficient use / control panel space.
-
Compliance: Meets various international standards and certifications, ensuring broad applicability.
Latest News Headline
As / February 1, 2019, Emerson completed the acquisition / Intelligent Platforms from General Electric, integrating the PACSystems RX3i series, including the IC694MDL742C module, into Emerson’s automation solutions portfolio.
常见问题 (FAQs)
-
Is this module suitable for applications with fast switching requirements?
Yes, the IC694MDL742C is designed for quick response times and is well-suited for high-speed switching operations in industrial automation environments. -
Can the module be used in harsh industrial environments?
Absolutely. With features like electronic short circuit protection and compliance with international certifications (UL, CE, ATEX Zone 2), the module performs reliably even in demanding settings. -
How does the IC694MDL742C handle overcurrent situations?
The built-in Electronic Short Circuit Protection (ESCP) actively protects each output point from damage by immediately disabling outputs that exceed current limits. -
Is it possible to mix this module with other voltage types in the same rack?
Yes, the PACSystems RX3i series supports flexible I/O configurations, so modules with different voltage ranges can coexist in the same rack, provided proper grounding and wiring are observed. -
What happens if one / the output channels fails?
In the case / a failure, only the affected point is disabled. The rest / the outputs remain fully functional, which helps reduce downtime. -
Does the module support diagnostics or error reporting?
Yes, the module provides status indicators for each output point and system-level diagnostics via the PLC, making it easy to identify and isolate faults. -
How are field devices connected to the module?
Field wiring is connected via a removable terminal block, making installation, maintenance, and replacement fast and straightforward. -
Is external power required to operate the outputs?
Yes, the outputs require an external 12/24V DC power supply. The module does not internally generate this voltage. -
Are the outputs isolated from the backplane and each other?
The outputs are isolated from the backplane, enhancing safety and reducing the risk / electrical noise affecting the PLC system. -
What’s the best practice for ensuring long-term reliability / this module?
Use appropriate fusing, avoid exceeding current ratings per point, ensure proper ventilation in the control panel, and conduct periodic visual inspections to check for wear or loose connections.
