产品介绍

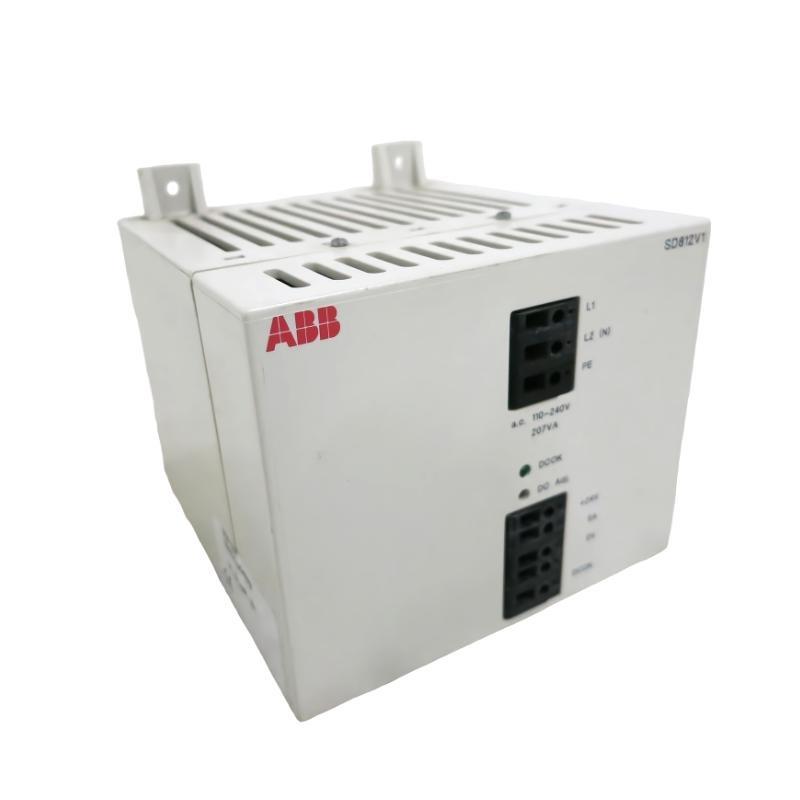

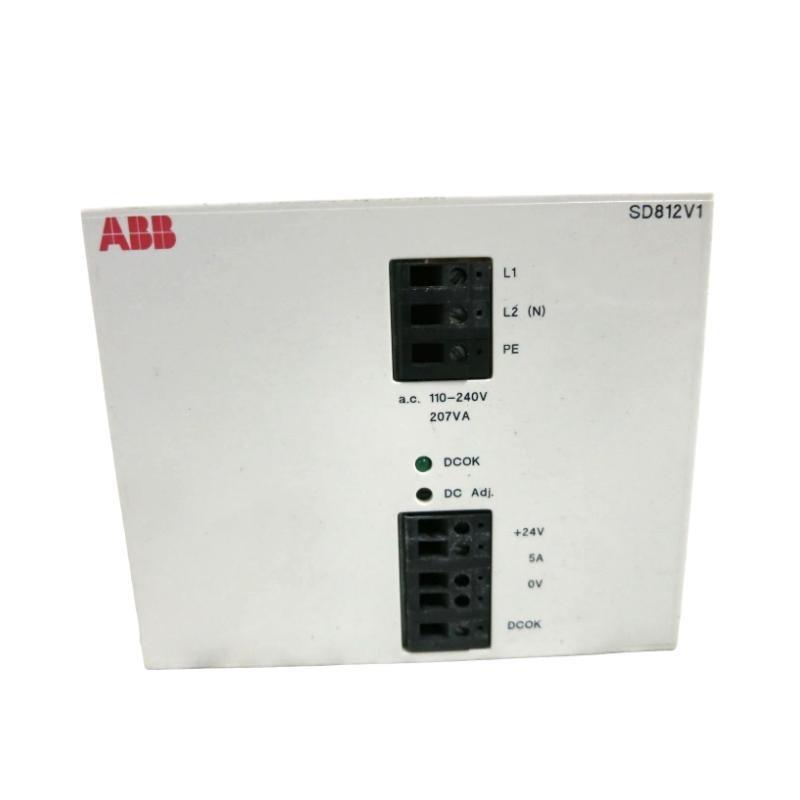

The ABB SD812V1 (零件号: 3BSC610045R2) is an industrial-grade DC power supply module designed for use within ABB’s Symphony Plus, 800xA, and other control system environments. Engineered to deliver stable and efficient power to sensitive automation and control components, the SD812V1 plays a critical role in ensuring uninterrupted operation / Distributed Control Systems (DCS) and associated modules.
This power supply is designed for high reliability, featuring overload protection, output regulation, and diagnostic capabilities. It converts incoming AC power into clean 24V DC output, essential for powering CPUs, I/O modules, interface 件s, and communication processors. With its compact DIN-rail mountable design, the SD812V1 is ideal for space-constrained control cabinets and modular automation architectures.
As part / ABB’s trusted automation product family, this module meets international safety and EMC standards, making it well-suited for use in energy, utility, oil & gas, manufacturing, and infrastructure applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Power Supply Module |
| 型号 | SD812V1 |
| 零件号 | 3BSC610045R2 |
| 制造商 | ABB |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Output Voltage | 24 VDC (regulated) |
| Output Current | Up to 5 A |
| Power Output | 120 W |
| Efficiency | > 85% |
| Ripple & Noise | < 100 mVpp |
| Protection Features | Overload, overvoltage, short-circuit, thermal shutdown |
| LED Indicators | Status LED for output and diagnostics |
| Mounting Type | DIN rail |
| System Compatibility | Symphony Plus, Freelance, 800xA, INFI 90 |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Cooling Method | Natural convection (fanless) |
| Ingress Protection | IP20 |
| Certifications | CE, UL, cULus, RoHS, IEC 61010-1 |
| Dimensions (W × H × D) | 55 × 130 × 125 mm |
| 重量 | 1.25 kg |
Product Applications
The ABB SD812V1 is a highly versatile power supply that ensures reliable operation / various industrial automation and DCS components. Its robust design and protective features make it suitable for:
-
Power Generation Facilities – For powering PLCs, RTUs, and redundant DCS modules in turbines and auxiliary systems.
-
Oil & Gas Platforms – Ensures uninterrupted power for control logic, safety barriers, and communication 件s in remote environments.
-
Substation Automation – Delivers stable DC power to relays, control panels, and SCADA interface modules.
-
Process Industries – Ideal for powering ABB I/O systems, control processors, and operator terminals in continuous production environments.
-
Water Treatment Plants – Supplies regulated power to pump controls, instrumentation, and monitoring systems.
-
Manufacturing & Industrial Automation – 支持s reliable DC power for robotics, servo drives, HMIs, and field I/O interfaces.
Product Advantages
-
Reliable 24V DC Output: Delivers highly regulated and noise-free DC output critical for industrial automation.
-
Protection Features: Built-in overload, short-circuit, and overtemperature protection prevent damage to sensitive electronics.
-
Compact Design: Small DIN-rail-mountable form saves valuable panel space.
-
Global Certifications: Approved for use in regulated industries with CE, UL, and RoHS compliance.
-
Silent Operation: Passive convection cooling allows quiet, maintenance-free performance.
-
Quick Diagnostics: LED status indicators provide visual feedback on operational status.
-
Long Service Life: Designed with industrial-grade components for high MTBF and reliability.
-
Flexible Voltage Input: Wide AC input range enables use in various countries and industrial grids.
-
Plug-and-Play Integration: Seamless compatibility with ABB DCS systems and modular automation setups.
常见问题 (FAQ)
-
What does the SD812V1 power supply do?
It provides a stable and regulated 24V DC output to power ABB control modules and I/O systems in industrial applications. -
Is the SD812V1 compatible with the Symphony Plus system?
Yes, it is fully compatible with Symphony Plus, 800xA, and other ABB automation platforms. -
Can it be mounted on a DIN rail?
Yes, the SD812V1 is DIN-rail mountable, which simplifies cabinet installation. -
What protection features are built into the SD812V1?
It includes overload, short-circuit, overvoltage, and overtemperature protections to ensure system safety. -
What is the rated output power / this module?
The 件 delivers up to 120W / DC power at 24V and up to 5A / current. -
Does it have any status indicators?
Yes, it features LED indicators to display output and fault status for easy diagnostics. -
Can this power supply be used in outdoor cabinets?
The module itself is IP20-rated and should be enclosed in a properly rated cabinet for outdoor use. -
Is it suitable for redundant power configurations?
Yes, multiple SD812V1 modules can be used in parallel or with redundancy modules to ensure fault-tolerant power delivery. -
Is fan-based cooling required?
No, the SD812V1 uses natural convection cooling and operates silently without a fan. -
How does the 件 behave during input voltage fluctuations?
The wide input voltage range (100–240 VAC) and regulation circuitry maintain a consistent 24V DC output.
Related or Compatible ABB 型号s
| 型号 | 描述 | Output Voltage / Current | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| SD811 | Compact 24V power supply | 24V / 2.5A | 45 × 130 × 125 | 0.6 kg |
| SD822 | High-output version / SD812V1 | 24V / 10A | 75 × 130 × 125 | 1.0 kg |
| SD820 | Dual-output power supply | 24V / 5A x2 | 90 × 130 × 125 | 1.2 kg |
| CP620 | ABB HMI power-compatible supply | 24V / 3A | 55 × 125 × 120 | 0.7 kg |
| SD813 | Enhanced protection model with remote alarm | 24V / 5A | 55 × 130 × 125 | 0.85 kg |
| SD800 | Basic 24V power module for ABB Freelance DCS | 24V / 2A | 45 × 120 × 110 | 0.5 kg |
Popular ABB Automation 型号s
| 型号 | 描述 | 分类 | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| AC500 PM595 | High-end programmable logic controller | PLC Controller | 142 × 186 × 75 | 0.95 kg |
| REF615 | Feeder protection relay for distribution systems | Protection Relay | 230 × 175 × 150 | 2.1 kg |
| CP600-Pro HMI | Industrial HMI with advanced features | Human-Machine Interface | 214 × 158 × 50 | 1.0 kg |
| DCS880 | DC drive with safety and regeneration features | DC Drive | 300 × 460 × 250 | 12.5 kg |
| IRC5 Controller | Modular controller for ABB industrial robots | Robotics Control | 600 × 500 × 300 | 45 kg |
| ACS880-01 | Variable frequency drive with wide power range | Drive | 297 × 420 × 237 | 9.5 kg |
