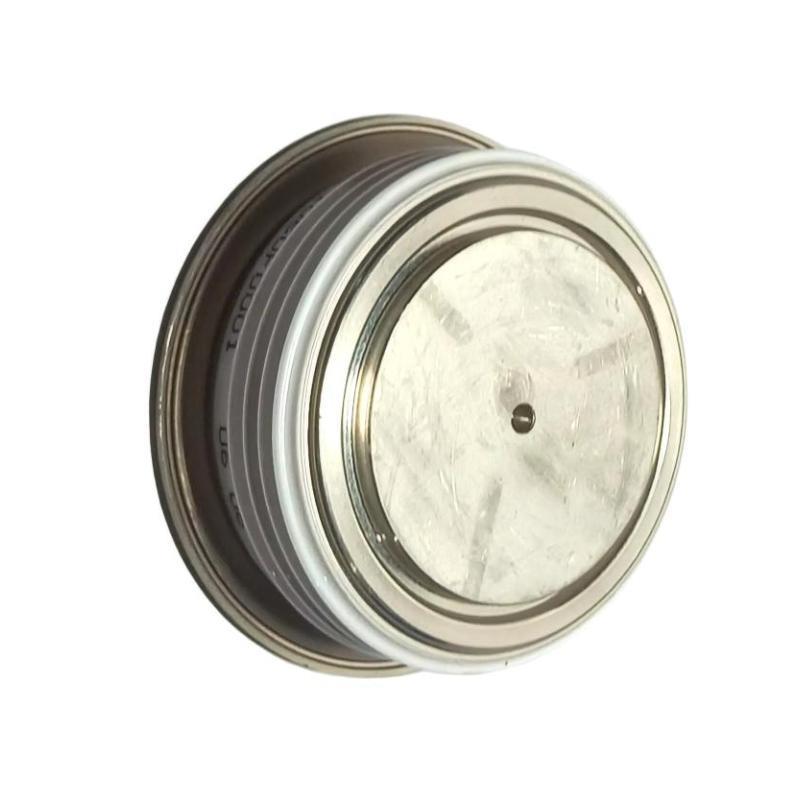

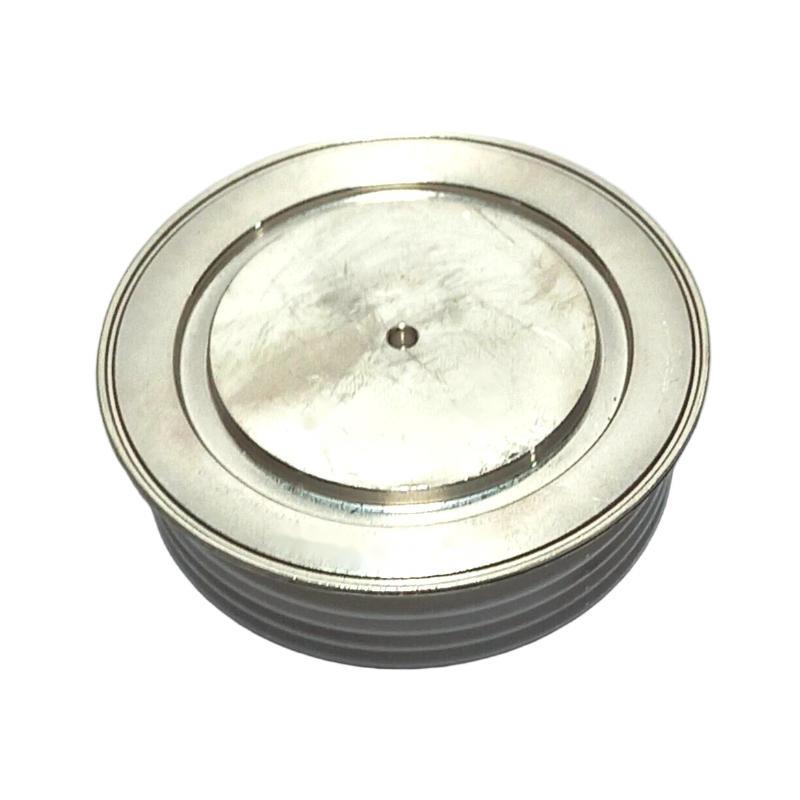

The ABB 5SDD1060F0001 3BHL001863P0001 Diode is a high-performance power semiconductor device designed for industrial applications that require efficient rectification and reliable current handling. This diode is part / ABB’s industrial-grade power electronics series, optimized for high-current rectification, minimal voltage drop, and stable operation under fluctuating electrical loads.
The device is constructed with high-quality silicon and robust packaging, allowing it to withstand harsh industrial conditions, including electrical stress and thermal cycling. With a diameter / 50 mm and weight / 0.45 kg, the diode combines compactness with high power capacity, making it suitable for integration into power converters, drives, and industrial rectifier modules. It is engineered to deliver consistent performance in high-demand applications such as AC/DC conversion, motor drives, and renewable energy systems.
Technical Specifications
| Parameter | 描述 |
|---|---|
| Product Name | ABB 5SDD1060F0001 3BHL001863P0001 Diode |
| Device Type | Power diode |
| Maximum Reverse Voltage (V_R) | 1.8 kV |
| Forward Current (I_F) | 600 A |
| Forward Voltage Drop (V_F) | 1.2 V typical at rated current |
| Reverse Recovery Time (t_rr) | 5 µs typical |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -40°C to +150°C |
| Thermal Resistance (Junction to Case) | 0.3 °C/W |
| Cooling Method | Forced air or conduction cooling recommended |
| Material | High-quality silicon with ceramic and metal encapsulation |
| Mounting Type | Flange or module mounting compatible |
| Diameter | 50 mm |
| 重量 | 0.45 kg |
Product Applications
The ABB 5SDD1060F0001 diode is used in a variety / industrial and high-power applications where reliable rectification and fast switching are critical.
Applications include:
-
Industrial Rectifiers: Conversion from AC to DC for power modules.
-
Variable Frequency Drives (VFDs): Rectifier stage in motor speed and torque control.
-
Renewable Energy Systems: DC conversion in solar inverters and wind turbines.
-
HVDC and Medium Voltage Applications: High-current rectification for transmission systems.
-
Industrial Power Supplies: Stable DC supply for control and auxiliary systems.
-
Uninterruptible Power Supplies (UPS): Ensures clean and reliable DC output for critical loads.
Product Advantages
The ABB 5SDD1060F0001 diode provides high reliability, efficiency, and robust operation in industrial power systems.
Advantages include:
-
High Current Handling: 支持s continuous forward currents up to 600 A.
-
Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
-
Fast Switching Capability: Short reverse recovery time allows rapid response in power circuits.
-
Robust Construction: Designed to withstand thermal and electrical stress.
-
Thermal Efficiency: Low thermal resistance enables effective heat dissipation.
-
Versatile Mounting: Compatible with flange and module installation in industrial setups.
-
Wide Temperature Operation: Reliable performance from -40°C to +125°C.
-
Industrial Compatibility: Suitable for drives, rectifiers, and renewable energy systems.
-
Stable Performance: Ensures minimal voltage fluctuations and consistent operation.
-
Maintenance-Free Operation: Designed for long-term reliability in high-demand industrial environments.
FAQ
-
What is the maximum reverse voltage for this diode?
The ABB 5SDD1060F0001 diode supports a maximum reverse voltage / 1.8 kV, suitable for high-voltage industrial applications. -
What is the maximum continuous forward current?
It can handle up to 600 A continuously, allowing high-current rectification in power modules. -
What is the typical forward voltage drop?
The diode exhibits a typical forward voltage drop / 1.2 V at rated current, reducing conduction losses. -
How fast is the diode’s switching capability?
The reverse recovery time is typically 5 µs, enabling rapid response in high-frequency rectifier circuits. -
What is the operating temperature range / the diode?
It operates reliably from -40°C to +125°C in harsh industrial environments. -
What cooling methods are recommended?
Forced air or conduction cooling is recommended to maintain optimal thermal performance. -
Is the diode suitable for renewable energy applications?
Yes, it can be used in solar inverters and wind turbines for efficient DC conversion. -
What mounting options are available for this diode?
It supports both flange and module mounting for flexible industrial integration. -
What is the thermal resistance / the diode?
The junction-to-case thermal resistance is 0.3 °C/W, ensuring efficient heat dissipation. -
Can this diode be used in VFDs and industrial drives?
Yes, it is ideal for the rectifier stage in variable frequency drives and industrial motor control systems.
