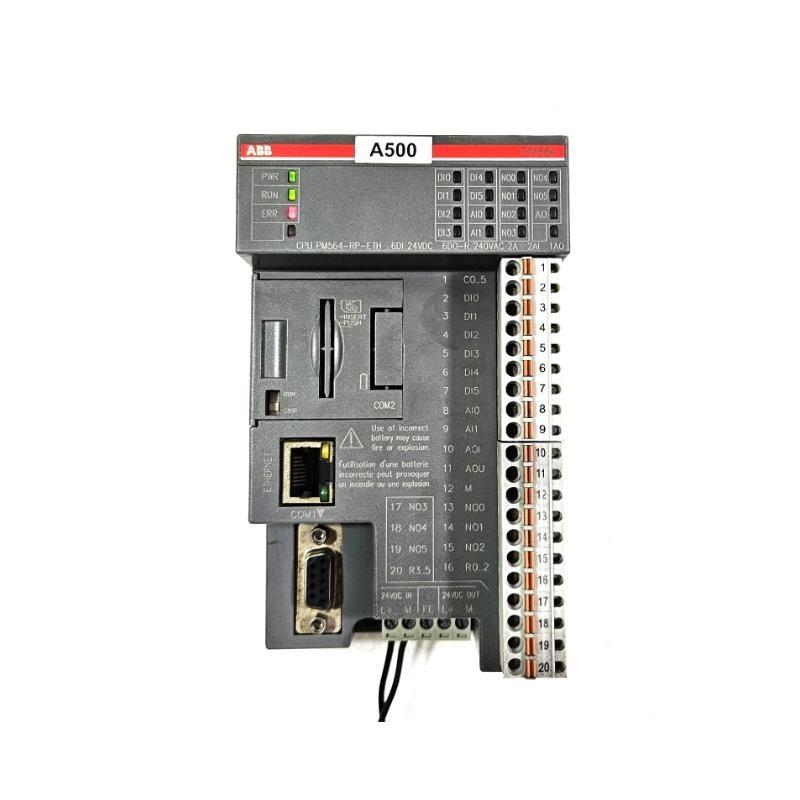

ABB PM564-RP-ETH 1SAP121000R0071 AC500 Programmable Logic Controller
The ABB PM564-RP-ETH is a compact, robust PLC in the AC500-eCo series. It features relay outputs, analog I/Os, Ethernet communication, and a 24V DC power supply. Designed for industrial automation, it combines reliability, flexibility, and ease / integration for control tasks.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | ABB PM564-RP-ETH |
| 零件号 | 1SAP121000R0071 |
| CPU | Freescale ARM 32-bit, 50 MHz |
| Program Memory | 128 kB Flash EPROM |
| Data Memory | 10 kB VAR + 1 kB RETAIN + 1 kB %RB |
| Power Supply | 24 V DC |
| Current Consumption (typ.) | 120 mA |
| Digital Inputs | 6 |
| Digital Outputs | 6 Relay |
| Analog Inputs / Outputs | 2 AI / 1 AO |
| Communication Interfaces | Ethernet, RS-485 COM1 |
| Mounting | Horizontal / Vertical |
| Dimensions | 74 × 135 × 82 mm |
| 重量 | 0.295 kg |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Degree / Protection | IP20 |
Applications
-
Industrial automation and control
-
Machine building and packaging lines
-
HVAC and energy management systems
-
Process monitoring and distributed I/O networks
-
Remote monitoring and maintenance
Advantages
-
Compact design suitable for limited space installations
-
Integrated Ethernet interface for modern communication
-
Relay outputs for direct control / loads
-
支持s standard IEC 61131-3 programming languages
-
High electromagnetic compatibility and robust construction
-
Easy installation with DIN rail or screw mounting
FAQ
Q1: What is the power supply voltage / the PM564-RP-ETH?
A1: It operates on 24 V DC.
Q2: How many digital inputs and outputs are available?
A2: It provides 6 digital inputs and 6 relay digital outputs.
Q3: Does the controller support Ethernet communication?
A3: Yes, it has an onboard Ethernet interface.
Q4: What is the memory size / the CPU?
A4: The CPU has 128 kB program memory.
Q5: Can it be mounted vertically?
A5: Yes, both horizontal and vertical mounting are supported.
Q6: Is the 件 suitable for high-vibration environments?
A6: Yes, it meets IEC 60068-2-6 and IEC 60068-2-27 standards for vibration and shock.
Q7: What type / processor is used?
A7: It uses a 32-bit Freescale ARM processor running at 50 MHz.
Q8: Does it include analog I/Os?
A8: Yes, it features 2 analog inputs and 1 analog output.
Q9: What programming languages are supported?
A9: Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Sequential Function Chart (SFC), Structured Text (ST), and Continuous Function Chart (CFC).
Q10: What is the IP rating / the device?
A10: The device has an IP20 protection rating.
Recommended Related 型号s
| 型号 | 零件号 | Key Features |
|---|---|---|
| PM564-RP | 1SAP121000R0001 | Same as PM564-RP-ETH without Ethernet |
| PM564-TP-ETH | 1SAP120900R0071 | Transistor outputs, Ethernet |
| PM564-TP | 1SAP120900R0001 | Transistor outputs, no Ethernet |
| PM554-RP-ETH | 1SAP120600R0071 | Smaller model, relay outputs, Ethernet |
| PM556-TP-ETH | 1SAP121200R0071 | Larger memory, transistor outputs |
| PM566-TP-ETH | 1SAP121500R0071 | 512 kB memory, transistor outputs |
Popular ABB PLC 型号s
| 型号 | 零件号 | Key Features |
|---|---|---|
| PM573-ETH | 1SAP131100R0270 | AC500 standard PLC with Ethernet |
| PM582-ETH | 1SAP150100R0274 | Advanced CPU, high memory |
| PM595-ETH | 1SAP120500R0001 | High-end CPU, dual core |
| PM556-TP-ETH | 1SAP121200R0071 | Compact, Ethernet, large memory |
| PM554-RP | 1SAP120700R0001 | Compact, relay outputs |
| PM564-RP-ETH | 1SAP121000R0071 | Compact, relay outputs, Ethernet |
