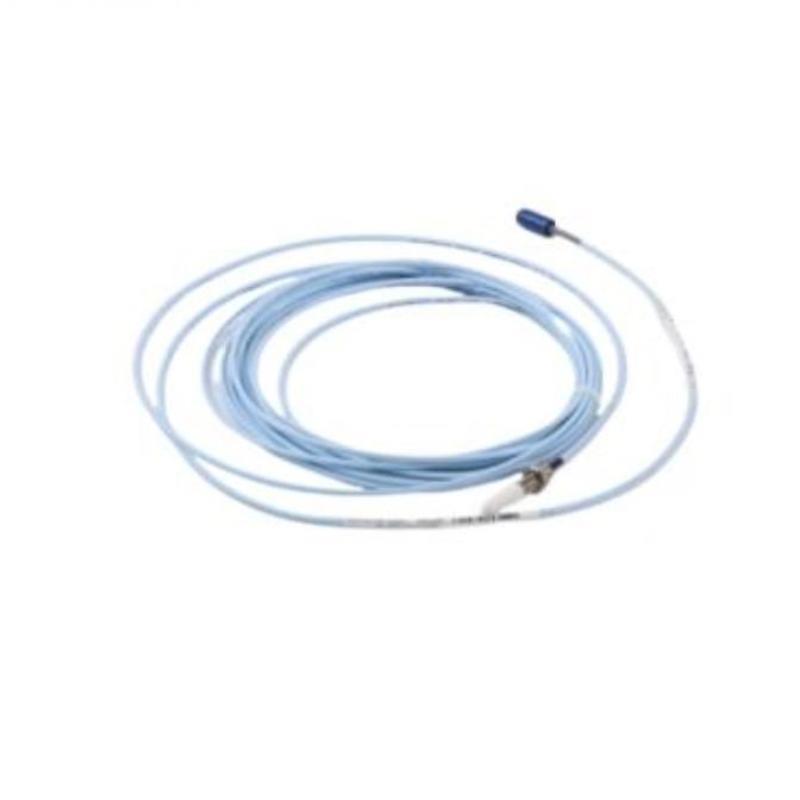

The Bently Nevada 330910-00-10-50-02-05 3300 NSv Proximity Probe is a high-precision eddy-current sensor designed for real-time monitoring / rotating machinery. This probe is a critical component in condition monitoring systems, providing accurate measurements / shaft displacement, vibration, and position in industrial equipment. Engineered for demanding environments, it ensures reliable operation under high-speed, high-temperature, and high-vibration conditions, making it ideal for turbines, compressors, generators, and other critical rotating machinery.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 Number | 330910-00-10-50-02-05 |
| Sensor Type | Eddy-Current Proximity Probe |
| Total Length | 5 m |
| 重量 | 0.15 kg |
| Probe Tip Diameter | 8 mm |
| Cable Type | Shielded, twisted pair |
| Operating Temperature Range | -40°C to 120°C |
| Maximum Vibration Resistance | 50 g |
| Output Signal | AC voltage or DC voltage (per 3300 NSv system) |
| Gap Range | 0.25 mm – 2.54 mm |
| Material | Stainless Steel Tip, PTFE-coated Cable |
| Mounting Type | Threaded or Flange Mount |
Product Applications
-
Continuous monitoring / critical rotating machinery in power generation plants
-
Vibration and shaft displacement measurement for turbines, compressors, and pumps
-
Industrial gas and steam turbines monitoring
-
Generator rotor and motor shaft condition monitoring
-
状态-based maintenance and predictive diagnostics in oil & gas, petrochemical, and heavy industries
Product Advantages
-
High accuracy and repeatability for precise shaft displacement and vibration readings
-
Wide operating temperature range suitable for harsh industrial environments
-
Durable stainless steel probe tip and PTFE-coated cable for chemical and abrasion resistance
-
Fully compatible with Bently Nevada 3300 Series monitoring systems
-
Robust against high vibration, electrical noise, and transient conditions
-
Simplifies predictive maintenance programs and reduces unexpected downtime
FAQ
Q1: Can this probe be used with other monitoring systems outside the 3300 NSv series?
A1: It is optimized for 3300 NSv systems. Using it with other systems may require signal conditioning and could affect measurement accuracy.
Q2: What is the recommended probe-to-shaft gap for optimal operation?
A2: The standard operating gap range is 0.25 mm to 2.54 mm. Exceeding this range can compromise accuracy and signal stability.
Q3: How should the probe cable be routed to minimize noise interference?
A3: The cable should be kept away from high-power lines and sharp bends; shielded twisted pair configuration helps reduce electrical noise.
Q4: What is the effect / shaft surface finish on probe readings?
A4: Smooth, conductive surfaces provide the most stable signals. Rough or pitted surfaces may cause signal fluctuations.
Q5: Is the probe tip susceptible to mechanical damage during installation?
A5: The stainless steel tip is robust but can be damaged if excessive force or improper tools are used during mounting.
Q6: Can this probe operate in environments with strong electromagnetic interference (EMI)?
A6: Yes, the shielded cable design and differential signal help mitigate EMI, but proper grounding is essential.
Q7: What is the output signal type / the probe?
A7: It provides an AC voltage or conditioned DC voltage compatible with the 3300 NSv system input modules.
Q8: How does temperature variation affect probe performance?
A8: Within the -40°C to 120°C range, the probe maintains calibration. Extreme temperatures outside this range may alter sensitivity.
Q9: Can multiple probes be used simultaneously on a single machine?
A9: Yes, multiple probes can monitor multiple points, but care must be taken to avoid cable interference and maintain proper spacing.
Q10: Is there a recommended maintenance schedule for the probe?
A10: Regular inspection for cable integrity, probe tip wear, and mounting tightness is recommended, typically coinciding with system calibration checks.
