产品介绍

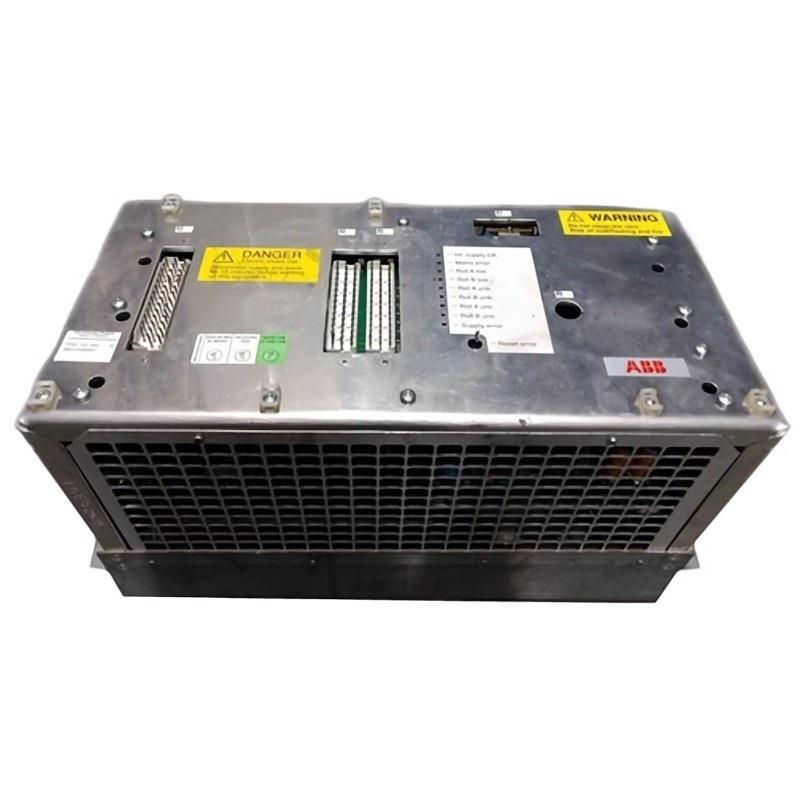

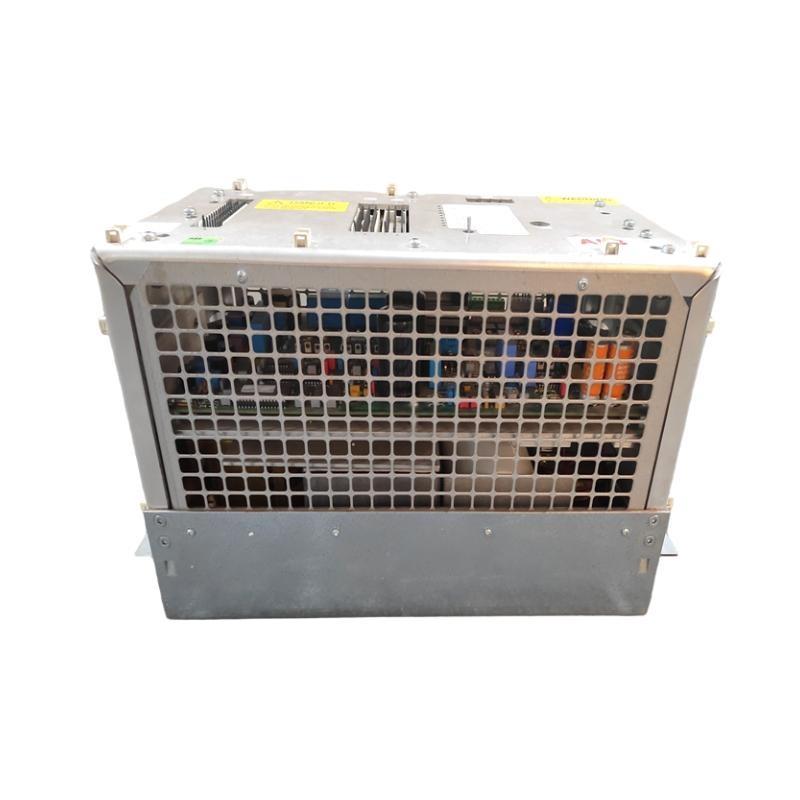

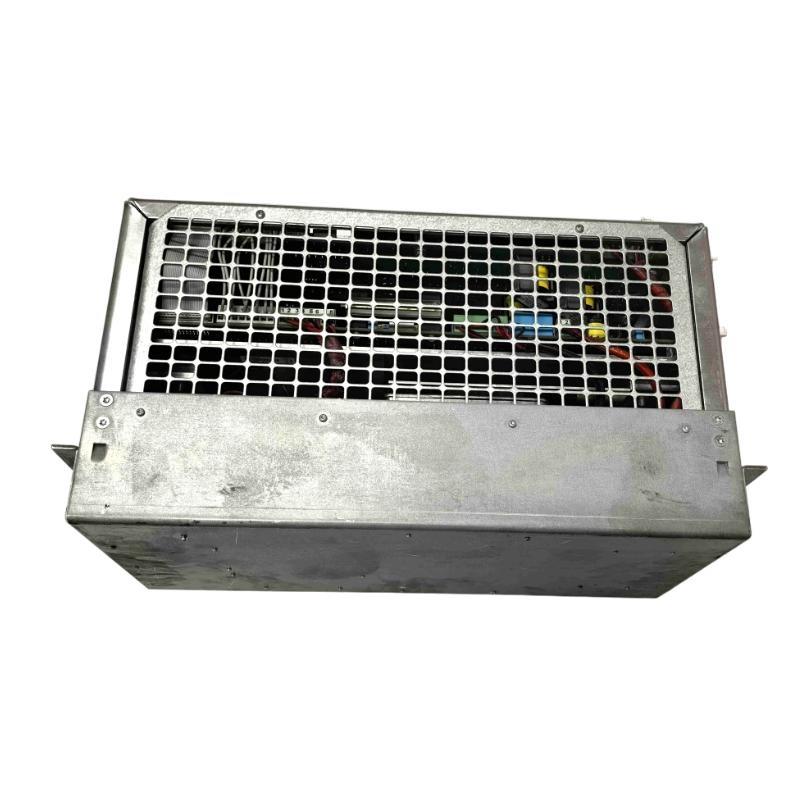

The ABB PFSA103C 3BSE002488R1 Tension Controller is an advanced industrial control module specifically designed to regulate and maintain precise web tension in continuous production processes. This product belongs to ABB’s high-performance Freelance and AC 800F automation family, combining superior control accuracy with robust design for heavy-duty industrial applications.
The PFSA103C tension controller plays a vital role in systems that involve continuous materials—such as paper, plastic film, metal foil, textiles, or cables—by ensuring optimal tension levels throughout the manufacturing line. It monitors process parameters and dynamically adjusts control outputs to maintain constant tension, improving product quality, process stability, and machine efficiency.
With ABB’s proven expertise in motion and process automation, the PFSA103C integrates seamlessly into distributed control systems (DCS) and programmable automation controllers (PAC), /fering precise control loops, diagnostics, and communication with higher-level systems. Its rugged design ensures reliable operation in environments with high vibration, electrical noise, and temperature variation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Tension Controller |
| 型号 Number | PFSA103C |
| Product Code | 3BSE002488R1 |
| Function | Automatic control and regulation / material web tension |
| Control Type | Closed-loop PID control |
| Input Signal Type | Analog (voltage or current) |
| Input Signal Range | 0–10 VDC / 4–20 mA configurable |
| Output Signal Type | Analog output for actuator or drive control |
| Output Signal Range | 0–10 VDC / 4–20 mA |
| Supply Voltage | 24 VDC nominal |
| Power Consumption | Approx. 6.5 W |
| Communication Interface | Fieldbus / System backplane (Freelance DCS) |
| Control Accuracy | ±0.1% / full-scale output |
| Response Time | <10 ms typical |
| Galvanic Isolation | Isolated between I/O and system circuits |
| Ambient Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Cooling Method | Natural convection |
| Mounting Type | Plug-in module for system rack |
| Protection Class | IP20 (module), IP54 (installed in cabinet) |
| Dimensions (W × H × D) | 230 × 120 × 50 mm |
| 重量 | 2.3 kg |
| Compliance | CE, RoHS, EN 61131-2, IEC 61010-1 certified |
Applications
The ABB PFSA103C 3BSE002488R1 Tension Controller is used in a variety / automation and production environments where maintaining precise tension is critical for process stability and product quality. It supports continuous process industries and complex machine control systems. Key applications include:
-
Paper Manufacturing – Controls tension / paper webs during winding, rewinding, and slitting operations.
-
Plastic Film Production – Ensures uniform film thickness and prevents stretching or tearing during extrusion and rolling.
-
Metal Foil Processing – Maintains consistent foil tension during rolling or laminating, reducing material deformation.
-
Textile Industry – Controls thread or fabric tension during weaving, coating, or winding.
-
Cable and Wire Production – Provides stable tension for cable drawing, winding, and insulation processes.
-
Printing and Packaging Lines – Keeps web tension constant to maintain print registration and alignment accuracy.
-
Conveyor and Reel Systems – Used for automated reel handling and feed control in continuous transport processes.
Its high control precision and fast response make it an indispensable component in automated material-handling systems, ensuring process uniformity and product excellence.
Advantages
-
High Control Precision – Advanced closed-loop PID control delivers ±0.1% tension accuracy.
-
Fast Dynamic Response – Rapid signal processing enables real-time compensation for load or speed fluctuations.
-
Wide Signal Compatibility – Accepts both voltage and current input/output ranges for flexible integration.
-
Robust Industrial Design – Resistant to vibration, temperature extremes, and EMI interference.
-
Modular and Compact Construction – Fits easily into ABB system racks, saving panel space.
-
Galvanic Isolation – Protects control electronics and field equipment from electrical disturbances.
-
Easy Configuration – Compatible with ABB engineering tools for simple setup and tuning.
-
Enhanced System Reliability – Integrated fault monitoring and diagnostic functions support predictive maintenance.
-
Energy Efficiency – Optimized electronic design ensures low power consumption and minimal heat dissipation.
-
Long-Term Stability – Calibrated to maintain performance over extended operational periods.
FAQ
-
What is the main purpose / the ABB PFSA103C module?
It is designed to control and maintain the tension / moving materials such as paper, film, or metal foil in automated production lines. -
Which control systems are compatible with the PFSA103C?
It integrates seamlessly with ABB’s Freelance DCS and AC 800F automation systems. -
What type / control method does it use?
The PFSA103C operates on a closed-loop PID control algorithm for high precision tension regulation. -
What input and output signals does it support?
It supports analog voltage (0–10 V) and current (4–20 mA) inputs and outputs. -
How does the module achieve isolation between field and system circuits?
It provides full galvanic isolation between its input, output, and internal system circuits. -
Can it respond to rapid process changes?
Yes, it has a typical response time / less than 10 milliseconds, ideal for dynamic industrial processes. -
Does the PFSA103C require external cooling?
No, it is designed with natural convection cooling, ensuring stable operation without fans. -
Can it interface with drive systems or actuators?
Yes, it provides analog control outputs for interfacing with motor drives, brakes, or pneumatic actuators. -
What kind / protection is included in this module?
The module features overvoltage, reverse polarity, and short-circuit protection on all I/O lines. -
How is the controller configured or calibrated?
Configuration and calibration can be done using ABB’s Freelance engineering tools, allowing precise parameter tuning.
Related or Series 型号s
| 型号 | 描述 | Function | Compatibility | 重量 |
|---|---|---|---|---|
| PFSA101C 3BSE002486R1 | Tension Controller | Basic web tension control | Freelance / AC 800F | 0.46 kg |
| PFSA102C 3BSE002487R1 | Tension Controller | Dual-loop tension control | Freelance DCS | 0.47 kg |
| PFSA103C 3BSE002488R1 | Tension Controller | High-precision tension control | Freelance DCS | 0.48 kg |
| PFSA104C 3BSE002489R1 | Tension Controller | Multi-zone coordinated control | AC 800F | 0.50 kg |
| PFSA105C 3BSE002490R1 | Tension Controller | Redundant system version | Freelance DCS | 0.52 kg |
| PFSA106C 3BSE002491R1 | Tension Controller | Extended I/O and diagnostics | AC 800F | 0.53 kg |
Popular ABB 型号s
| 型号 | 描述 | Type | Application | 重量 |
|---|---|---|---|---|
| 07KT98C GJR5253100R3260 | Processor Module | CPU | Advant Controller 400 | 0.65 kg |
| 07AC91 GJR5252300R0101 | Communication Module | Interface | System Networking | 0.60 kg |
| 07DC92 GJR5252200R0101 | Digital Output Module | Output | Process Automation | 0.58 kg |
| 07AI91 GJR5251600R0101 | Analog Input Module | Input | Signal Acquisition | 0.55 kg |
| PFBO161 3BSE000460R1 | Panel 单位 | Interface | Operator Panel Integration | 0.85 kg |
| 07BT62R1 GJV3074353R1 | Power Supply Module | Power | System Power Supply | 0.70 kg |
