Product Overview

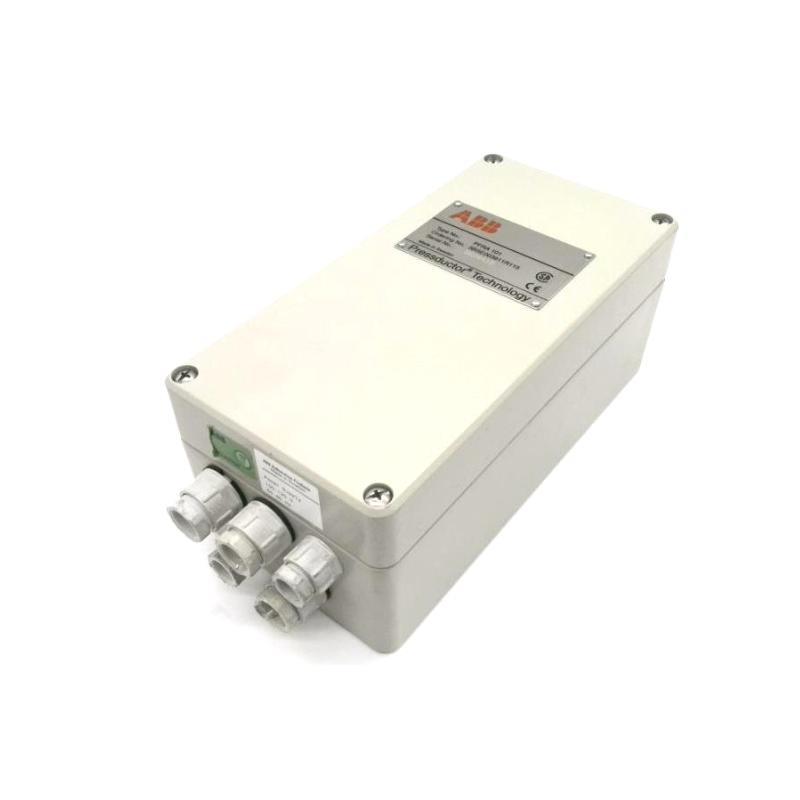

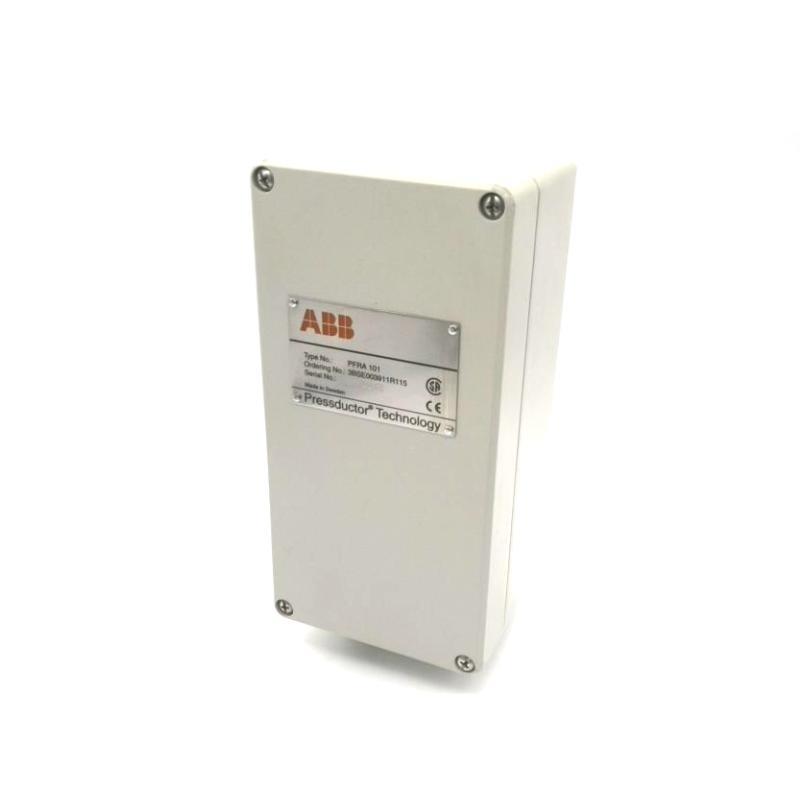

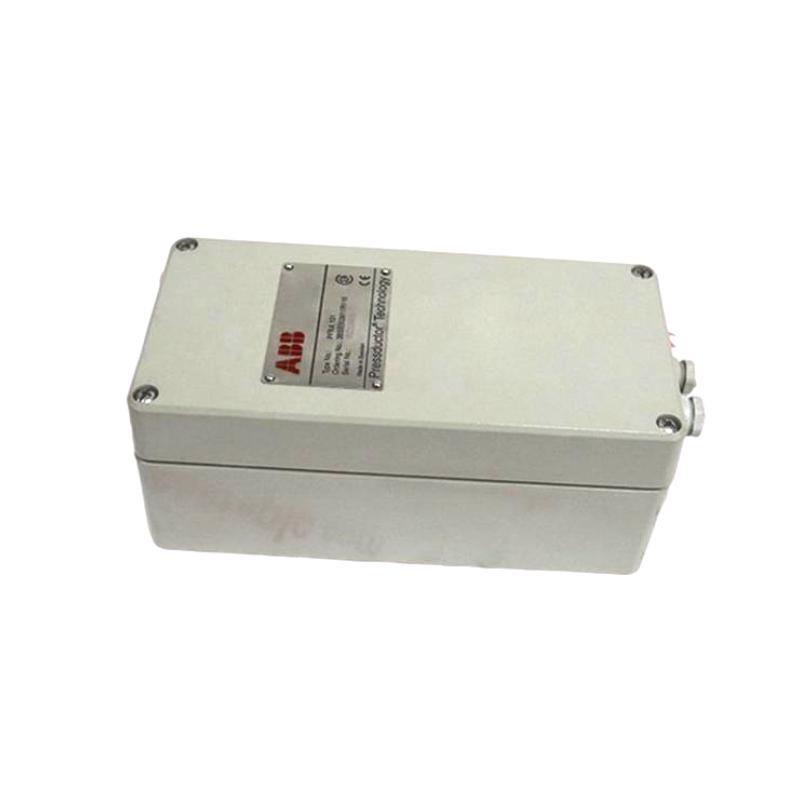

The ABB PFRA101 3BSE003911R230 is a Pressductor Control 单位 designed to work seamlessly with ABB’s Pressductor load cells. This control 件 is engineered to provide precise tension measurement and control in various industrial applications, ensuring optimal performance and reliability. Its robust construction and compatibility with 230V AC power supply make it suitable for demanding environments.
产品规格
| Specification | Details |
| 型号 Number | PFRA101 |
| Ordering Code | 3BSE003911R230 |
| Voltage Compatibility | Prepared for 230V AC operation |
| 重量 | 3.31 kg |
| Dimensions | 127 x 279 x 102 mm |
| Country / Origin | Sweden |
| Product Type | Control 单位 |
| Compatible Load Cells | ABB Pressductor Load Cells |
| Mounting | Panel Mount |
Applications
-
Paper Industry: Ensuring consistent tension in paper machines and winders.
-
Textile Industry: Maintaining proper tension in fabric processing and winding operations.
-
Plastic and Rubber Processing: Controlling tension during extrusion and winding processes.
-
Printing Industry: Managing web tension in printing presses for high-quality output.
Advantages
-
High Accuracy: Provides precise tension measurement, enhancing product quality.
-
Robust Design: Built to withstand harsh industrial environments.
-
Easy Integration: Compatible with existing ABB Pressductor load cells and systems.
-
Reliable Performance: Ensures consistent operation, reducing downtime.
-
Low Maintenance: Designed for long-term use with minimal maintenance requirements.
常见问题 (FAQ)
1. What types / ABB Pressductor load cells are compatible with the PFRA101 件?
The PFRA101 is designed to work with PFTL101A series Pressductor load cells, including models ranging from 2 kN to 200 kN. Compatibility is factory-tested to ensure accurate tension control.
2. Does the PFRA101 require any special setup or calibration before use?
Yes, proper calibration is essential. The 件 includes adjustment functions for zero balancing and gain settings, which must be fine-tuned during commissioning to match the connected load cell and application.
3. What kind / output signals does the PFRA101 provide for integration into control systems?
The 件 typically /fers standard analog outputs such as 0–10 V or 4–20 mA, depending on configuration, allowing easy integration into DCS, PLC, or standalone tension control loops.
4. Is there a built-in display or user interface on the PFRA101?
No, the PFRA101 does not include a built-in display. Configuration is performed via terminals or remote interface modules, and signal values must be monitored through the connected control system.
5. What are the installation requirements for the PFRA101 regarding enclosure or panel space?
While the exact dimensions are not specified publicly, the 件 is panel-mountable and typically requires a standard 19-inch rack or similar enclosure with adequate ventilation. Always consult ABB technical documents for cut-out and clearance specifications.
6. Can the PFRA101 operate in high-vibration or electrically noisy environments?
Yes, the PFRA101 is designed with industrial-grade shielding and robust circuitry to handle electromagnetic interference (EMI) and mechanical vibrations commonly found in manufacturing plants.
7. How does the PFRA101 handle signal drift or temperature-related fluctuations?
The 件 includes internal temperature compensation and signal filtering features to ensure stable readings, even when operating under fluctuating environmental conditions.
8. Is redundant power supply support available in the PFRA101 design?
No, the PFRA101 is designed for a single 230V AC input. Users seeking redundancy must implement external dual-power modules or uninterruptible power systems (UPS).
9. What kind / maintenance does the PFRA101 require during its operational life?
The 件 is largely maintenance-free under normal conditions. However, it’s recommended to inspect wiring terminals annually, verify calibration, and ensure no corrosion or physical damage to connectors.
10. Can firmware or functional updates be applied to the PFRA101?
No firmware update capability is provided. The PFRA101 is a hardware-based analog controller, so any changes to functionality require hardware replacement or upgrading to newer ABB digital 件s.
Related 型号s
| 型号 Number | 描述 |
| PFRA101 3BSE003911R115 | Control 单位 prepared for 115V AC |
| PFTL101A-2.0kN | Load Cell with 2.0kN capacity |
| PFTL101A-5.0kN | Load Cell with 5.0kN capacity |
| PFTL101A-10.0kN | Load Cell with 10.0kN capacity |
| PFTL101A-20.0kN | Load Cell with 20.0kN capacity |
| PFTL101A-50.0kN | Load Cell with 50.0kN capacity |
| PFTL101A-100.0kN | Load Cell with 100.0kN capacity |
| PFTL101A-200.0kN | Load Cell with 200.0kN capacity |
