产品介绍

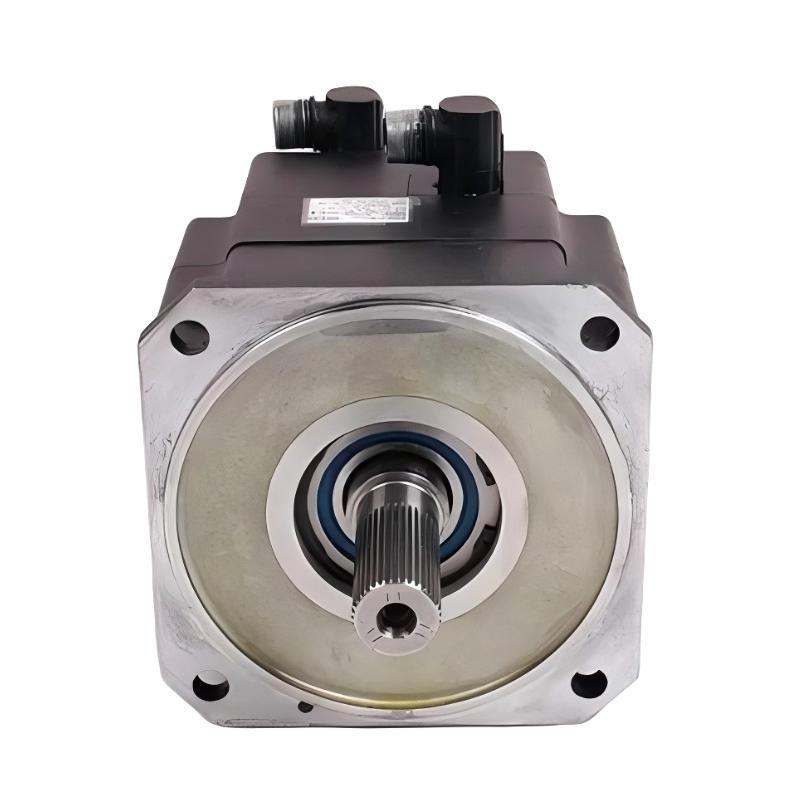

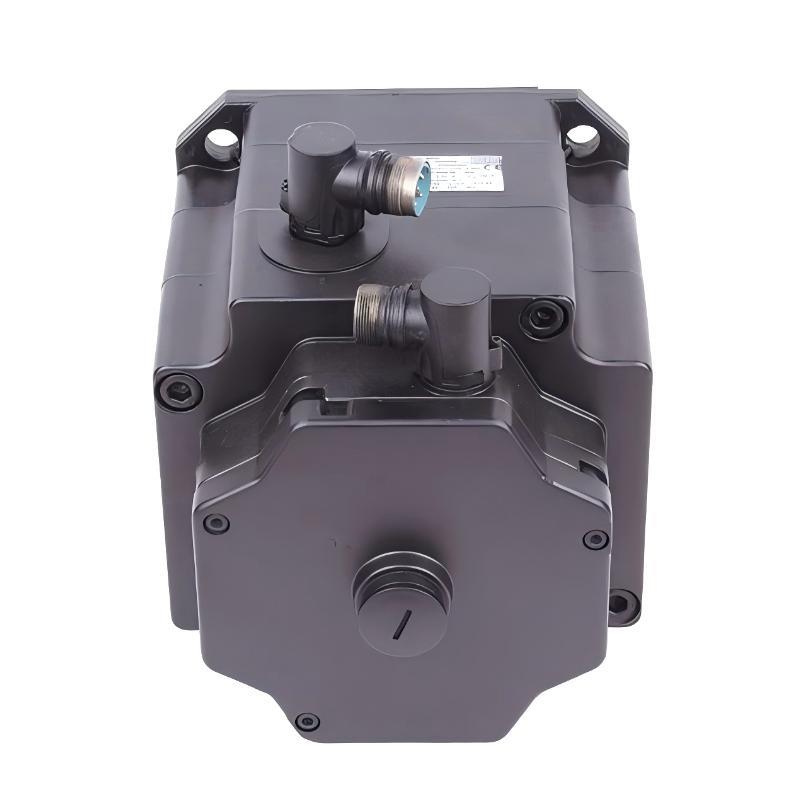

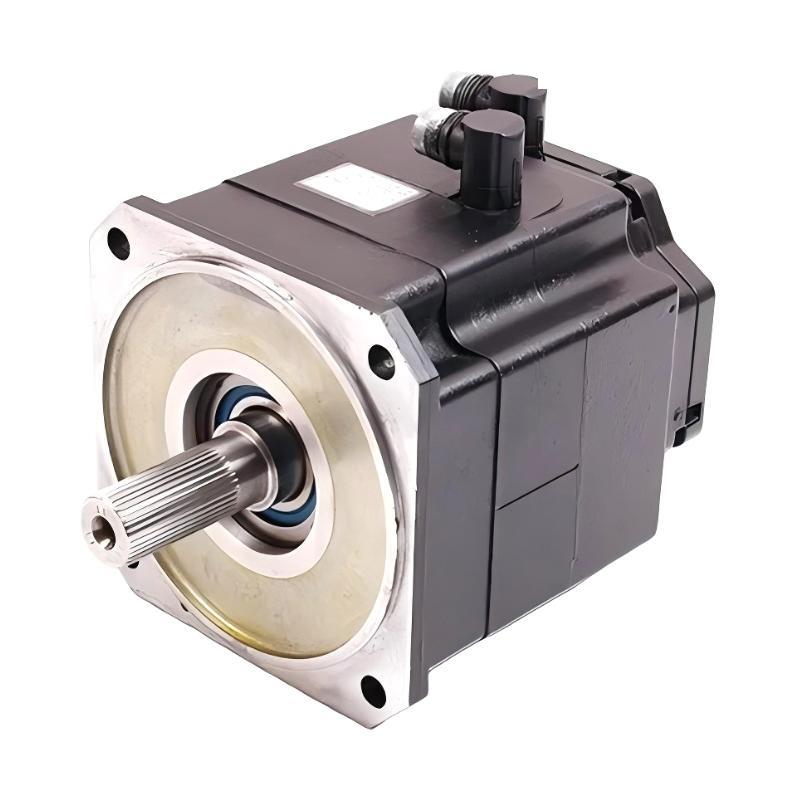

The ABB (KUKA) 1FK6100-8AF71-1ZZ9-ZS09 69-225-463 is a high-reliability brushless AC servo motor engineered for articulated robotic systems and precision industrial automation. Designed for stable torque output and consistent dynamic response, this motor supports demanding robotic axis applications where repeatability and motion accuracy are critical.
With a reinforced mechanical frame and optimized electromagnetic structure, the motor ensures smooth rotation, reduced vibration, and efficient energy conversion. The ZS09 configuration indicates a customized mechanical and electrical interface adapted for specific KUKA robotic installations, allowing seamless integration into multi-axis motion systems.
Its industrial protection rating and durable construction make it suitable for continuous duty operation in manufacturing environments requiring stable performance and long-term reliability.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | 1FK6100-8AF71-1ZZ9-ZS09 69-225-463 |
| 制造商 | ABB (KUKA) |
| Motor Type | Brushless AC Servo Motor |
| Rated Power | 3.77 kW |
| Rated Voltage | 156 VAC |
| Rated Current | 9.5 A |
| Rated Speed | 3000 RPM |
| Maximum Speed | 4200 RPM |
| Protection Rating | IP65 |
| Cooling Method | Natural Convection |
| Encoder Type | High-Resolution Incremental Encoder |
| Mounting Type | Flange Mount |
| Insulation Class | Class F |
| Operating Temperature | –10°C to +40°C |
| Dimensions | 320 × 100 × 220 mm |
| 重量 | 24.94 kg |
Applications
• Robotic Joint Drive Systems:
Provides stable torque and precise positioning for articulated robotic arms across multiple axes.
• Automated Welding Systems:
Ensures smooth and consistent rotational control during welding cycles with variable loads.
• Material Handling Automation:
支持s palletizing, pick-and-place operations, and conveyor synchronization tasks.
• Precision Assembly Lines:
Delivers repeatable motion accuracy in automated fastening and component placement processes.
• Machine Tool Auxiliary Motion:
Integrates with CNC machinery for rotary tables, tilting 件s, and controlled positioning axes.
Advantages
• Balanced Power Output:
3.77 kW output combined with 9.5 A rated current ensures efficient torque delivery under continuous operation.
• Optimized Speed Range:
Rated at 3000 RPM with a maximum / 4200 RPM for controlled acceleration and smooth deceleration.
• Industrial-Grade Protection:
IP65 rating protects against dust ingress and water exposure in factory environments.
• Robust Mechanical Design:
Heavy-duty housing and balanced rotor structure minimize vibration and enhance operational stability.
• Reliable Thermal Performance:
Natural convection cooling supports stable temperature control without external cooling devices.
• High Positioning Accuracy:
Integrated encoder feedback enables precise closed-loop motion control.
