产品介绍

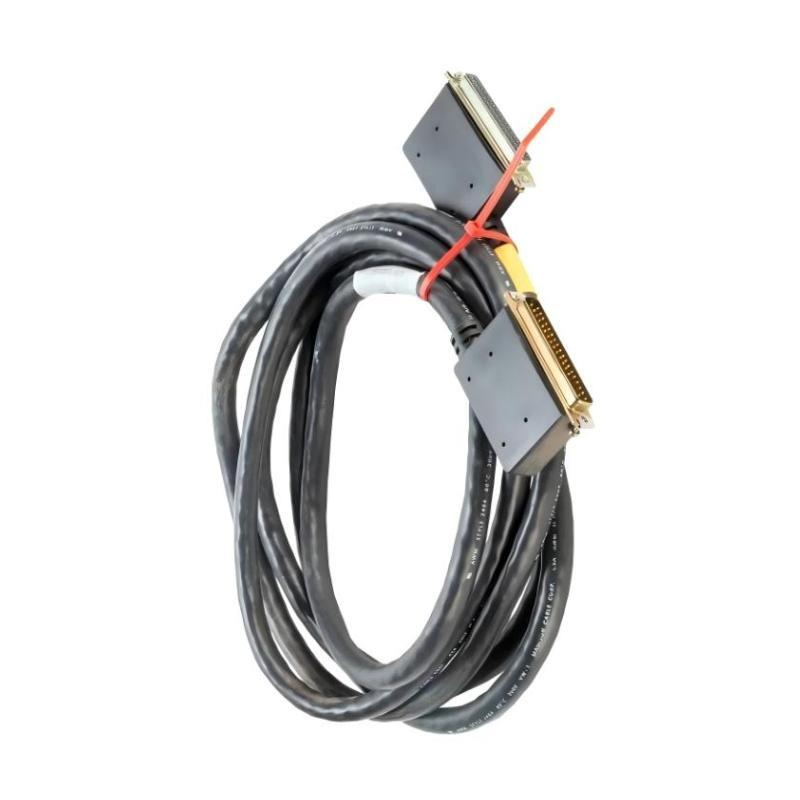

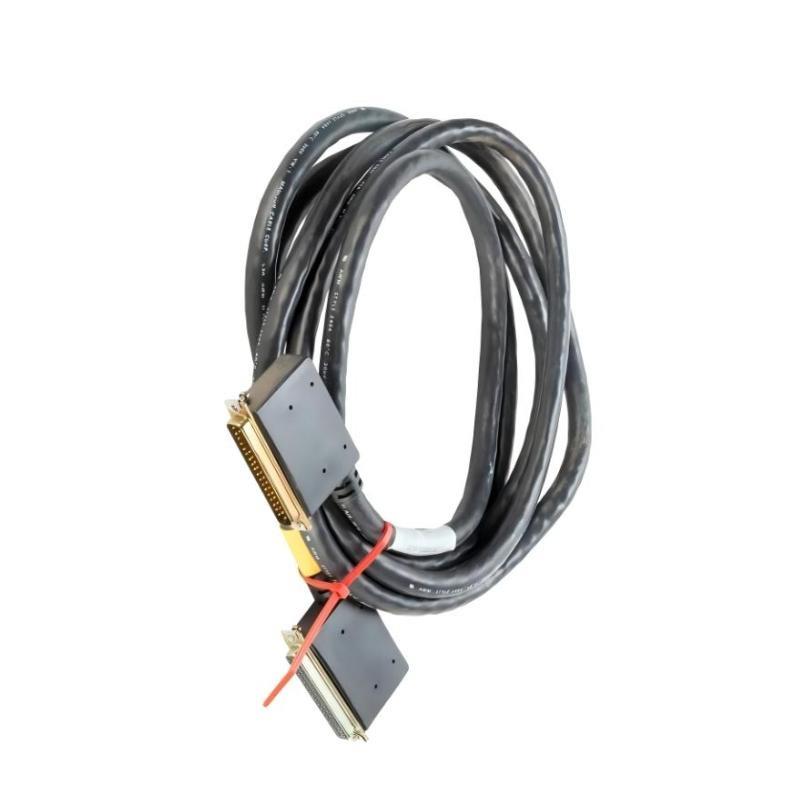

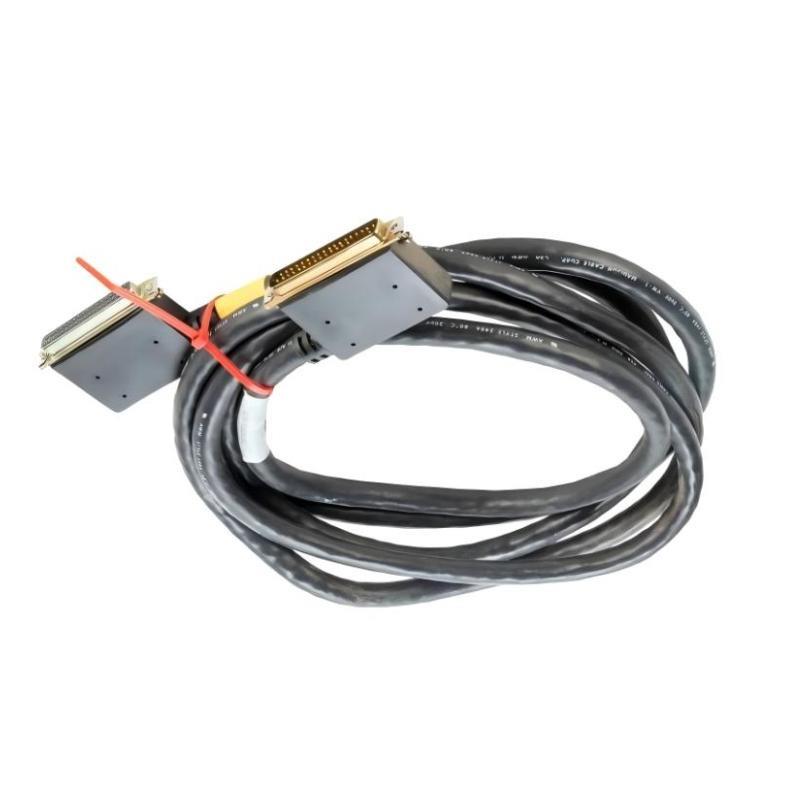

The GE IC697CBL803 Cable is a high-quality industrial cable designed for the GE Fanuc Series 90-70 PLC systems. This cable is primarily used for connecting modules, interface cards, and peripheral devices within PLC racks. It ensures reliable electrical transmission and signal integrity, supporting high-performance communication and control tasks in automated industrial environments.
The IC697CBL803 cable is engineered for robust industrial usage. With a standard length / 3 feet and durable insulation, it supports stable voltage and signal transmission under typical operating conditions. Its design allows flexible routing within control panels while maintaining performance, making it ideal for modular PLC systems where space and organization are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | IC697CBL803 |
| Type | Industrial Connection Cable |
| Compatible Systems | GE Series 90-70 PLC Modules |
| Cable Length | 3 ft (0.91 m) |
| Cable Type | Shielded multi-core cable |
| Rated Voltage | 125 VDC |
| Maximum Current | 10 A |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95% non-condensing |
| Connector Type | Standard Series 90-70 PLC connector |
| 运输 重量 | 3 kg |
| Environmental Protection | Shielded jacket for interference protection |
| Mounting | Flexible routing within PLC racks |
Applications
The IC697CBL803 Cable is commonly used in industrial automation where short, reliable interconnections are required between PLC components. Typical applications include:
-
Module Interconnection: Linking CPU, power supply, and interface modules within Series 90-70 racks.
-
Drive Interface Connections: Connecting drive interface modules to control or I/O systems.
-
Short Cable Runs: Providing high-quality connections in compact control panels where longer cables are unnecessary.
-
Automation and Material Handling Systems: Ensuring signal and power integrity in conveyor, robotic, or assembly systems.
-
Process Control: 支持ing reliable connections in chemical, petrochemical, or manufacturing process control installations.
Advantages
-
High Reliability: Shielded design ensures minimal interference and consistent electrical performance.
-
Compact Length: 3 ft length is ideal for short, organized connections inside PLC racks.
-
Industrial Durability: Designed to withstand standard industrial temperatures, humidity, and vibration.
-
Easy Installation: Standard connectors simplify module-to-module connections without modification.
-
支持s Modular Expansion: Facilitates flexible rearrangement or addition / modules within control systems.
-
Stable Power and Signal Transmission: Ensures reliable operation / critical PLC components.
FAQ
-
What is the primary function / the IC697CBL803 cable?
It provides reliable electrical and signal connections between modules within the Series 90-70 PLC system. -
What is the rated voltage for this cable?
The cable is rated for 125 VDC operation, suitable for standard PLC module power requirements. -
What is the maximum current the cable can carry?
The IC697CBL803 supports up to 10 A without performance degradation. -
Is this cable compatible with all Series 90-70 PLC modules?
Yes, it is designed for use with standard Series 90-70 modules, including CPUs, power supplies, and interface modules. -
What is the operating temperature range for this cable?
It operates reliably between 0°C and 60°C in typical industrial environments. -
Does the cable provide protection against electrical interference?
Yes, it has a shielded jacket to minimize electromagnetic interference and maintain signal integrity. -
Can this cable be used in tight panel layouts?
Yes, its 3 ft length and flexible design make it suitable for compact control panel installations. -
What type / connectors does the IC697CBL803 use?
Standard Series 90-70 PLC connectors are used for easy, secure installation. -
Is this cable suitable for high-vibration environments?
Yes, the reinforced shielded construction ensures stable performance under mechanical vibration. -
Can this cable be used for modular expansion / PLC racks?
Yes, it allows flexible addition or rearrangement / modules without replacing existing wiring.
Related 型号s (Same Series / Similar Type)
| 型号 Number | Type | Key Feature | 重量 |
|---|---|---|---|
| IC697CBL801 | PLC Connection Cable | Shielded, short connection | 2.8 kg |
| IC697CBL802 | PLC Connection Cable | Flexible, interference-resistant | 2.9 kg |
| IC697CBL804 | PLC Connection Cable | Compact, short-length industrial cable | 3.0 kg |
| IC697CBL805 | PLC Connection Cable | Reinforced jacket for vibration resistance | 3.2 kg |
| IC697CBL806 | PLC Connection Cable | Standard connector, multi-core shielded | 3.1 kg |
| IC697CBL807 | PLC Connection Cable | Short industrial cable for Series 90-70 | 3.3 kg |
Popular 型号s (Same 品牌)
| 型号 Number | Type | Key Feature | 重量 |
|---|---|---|---|
| IC697PWR710 | Power Supply Module | 120/240 VAC input, 50 W | 1.2 kg |
| IC697CBL700 | Power Supply Extension Cable | Flexible, customizable length | 3 kg |
| IC697BEM763 | Drive Interface Module | DLAN/DLAN+ communication | 0.79 kg |
| IC697BEM771 | Bus Controller Module | Central DLAN/DLAN+ hub | 0.85 kg |
| IC697CPU780 | CPU Module | High-performance Series 90-70 CPU | 0.9 kg |
| IC697BEM710 | Bus Transmitter Module | Interfaces PLC with remote I/O systems | 0.85 kg |
