Product 描述

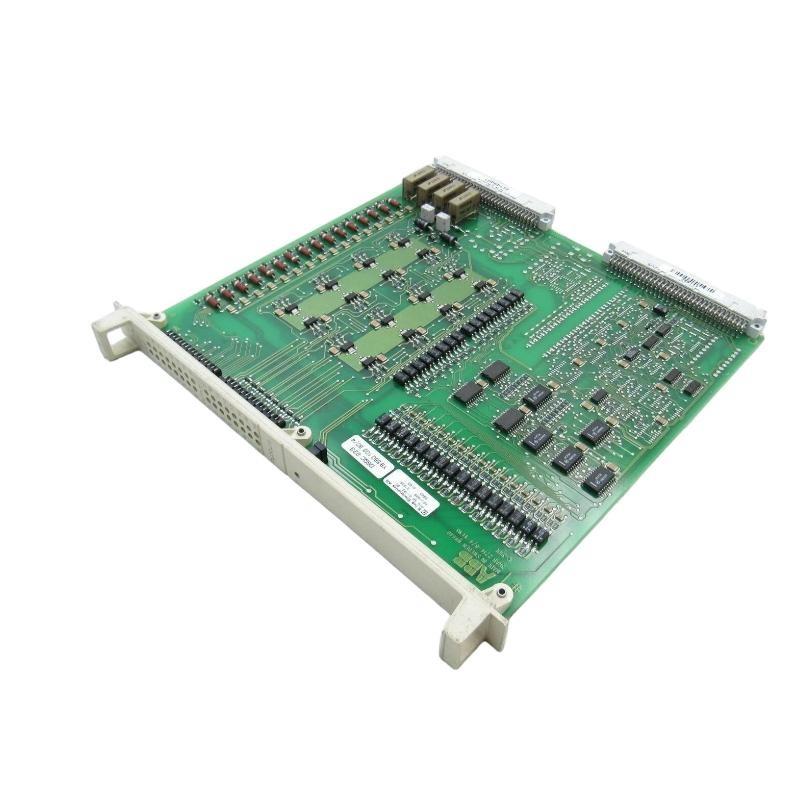

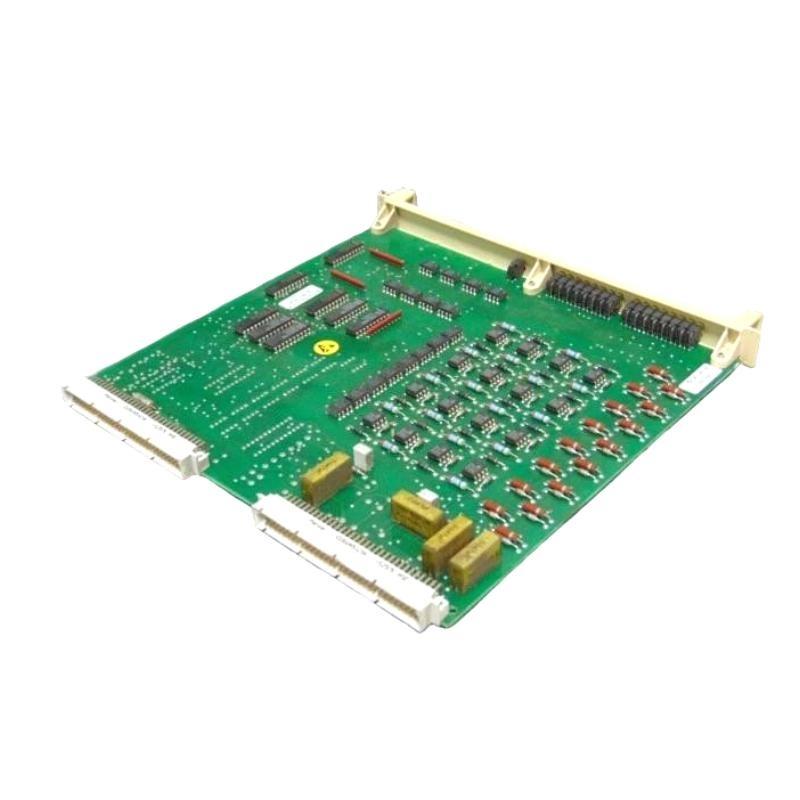

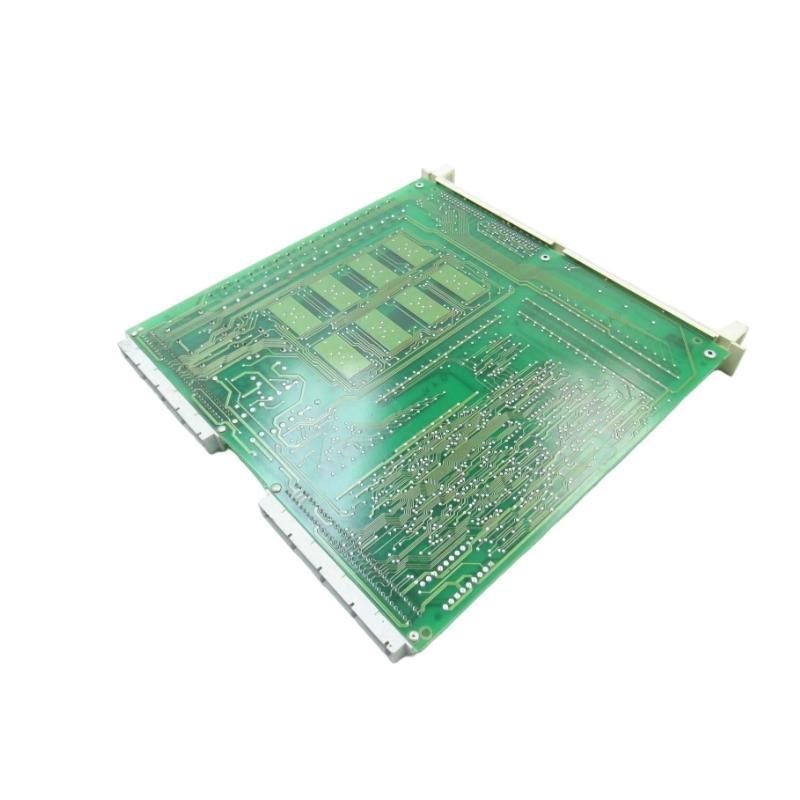

The ABB DSQC 223 YB560103-BD is a Digital Input/Output (I/O) board designed for ABB’s S4 robotic control systems, particularly within IRB 6400 series robots. It provides opto-isolated 16 digital inputs and 16 digital outputs, ensuring reliable communication with peripheral devices. The DSQC 223 integrates smoothly into the backplane / the robot controller and is equipped with onboard status LEDs for each I/O channel.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Code | DSQC 223 YB560103-BD |
| Function | Digital I/O (16 inputs / 16 outputs) |
| Input Type | Opto-isolated, 24 VDC typical |
| Output Type | Opto-isolated, 24 VDC typical |
| Voltage Range | 20–30 VDC |
| LED Indicators | Input/Output status, Initialization status |
| Mounting Type | Backplane slot in S4 controller |
| Dimensions | 100 x 50 x 25 mm |
| 重量 | 0.2 kg |
Applications
-
IRB 6400 industrial robot systems
-
Automated production lines
-
Interfacing sensors, actuators, and relays
-
Packaging and palletizing systems
-
Welding or material handling cells requiring digital I/O expansion
Advantages
-
16 digital inputs and 16 outputs in one compact module
-
Opto-isolation enhances protection against electrical noise
-
Onboard LEDs simplify diagnostics and troubleshooting
-
Seamless integration with ABB S4 control systems
-
Suitable for high-speed industrial automation environments
常见问题 (FAQ)
Q1: What type / signals does the DSQC 223 support?
A1: It supports 24VDC opto-isolated digital input and output signals.
Q2: How many I/O channels does it provide?
A2: It provides 16 digital inputs and 16 digital outputs.
Q3: Does the board include onboard LED indicators?
A3: Yes, it has yellow LEDs for each I/O channel and a red LED for initialization status.
Q4: Can it be used outside ABB S4 systems?
A4: It is designed specifically for ABB S4 systems and may not be compatible with non-ABB systems.
Q5: What is the typical use case for this board?
A5: It is commonly used for digital interfacing with sensors and actuators in robotic control systems.
Q6: Is the board hot-swappable?
A6: No, you must power down the system before replacing or installing the board.
Q7: What does a lit red LED on the board indicate?
A7: It indicates that the board has not successfully completed initialization or has a fault.
Q8: How is power supplied to the I/O board?
A8: Via the backplane slot / the controller, with additional 24VDC supplied internally or externally.
Q9: Are the I/O lines protected against overvoltage?
A9: Yes, they are opto-isolated to provide protection from electrical transients.
Q10: What should I check if all I/Os are non-functional?
A10: Check for proper initialization (red LED /f), correct 24V supply, and proper cabling.
Related or Similar 型号s
| 型号 | Function | Dimensions (mm) | 重量 |
|---|---|---|---|
| DSQC 209 | Analog I/O Board | 100 x 50 x 25 | 0.2 kg |
| DSQC 256A | System Board | 120 x 60 x 30 | 0.25 kg |
| DSQC 239 | Remote I/O Board | 110 x 55 x 30 | 0.22 kg |
| DSQC 315 | Combined Digital & Analog I/O | 100 x 60 x 30 | 0.25 kg |
| DSQC 317 | Memory Board (6 MB) | 100 x 60 x 20 | 0.2 kg |
| DSQC 316 | Main Computer Board | 120 x 60 x 30 | 0.25 kg |
Popular ABB 型号s
| 型号 | Function | Dimensions (mm) | 重量 |
|---|---|---|---|
| DSQC 223 | Digital I/O Board | 100 x 50 x 25 | 0.2 kg |
| DSQC 328 | Analog Servo Drive Board | 120 x 60 x 30 | 0.3 kg |
| DSQC 346G | Axis Computer Board | 100 x 50 x 25 | 0.25 kg |
| DSQC 408 | Teach Pendant | 200 x 100 x 50 | 1.2 kg |
| DSQC 500 | Ethernet Communication Module | 100 x 50 x 25 | 0.2 kg |
| DSQC 679 | Robot Computer Board | 130 x 70 x 30 | 0.3 kg |
