产品介绍

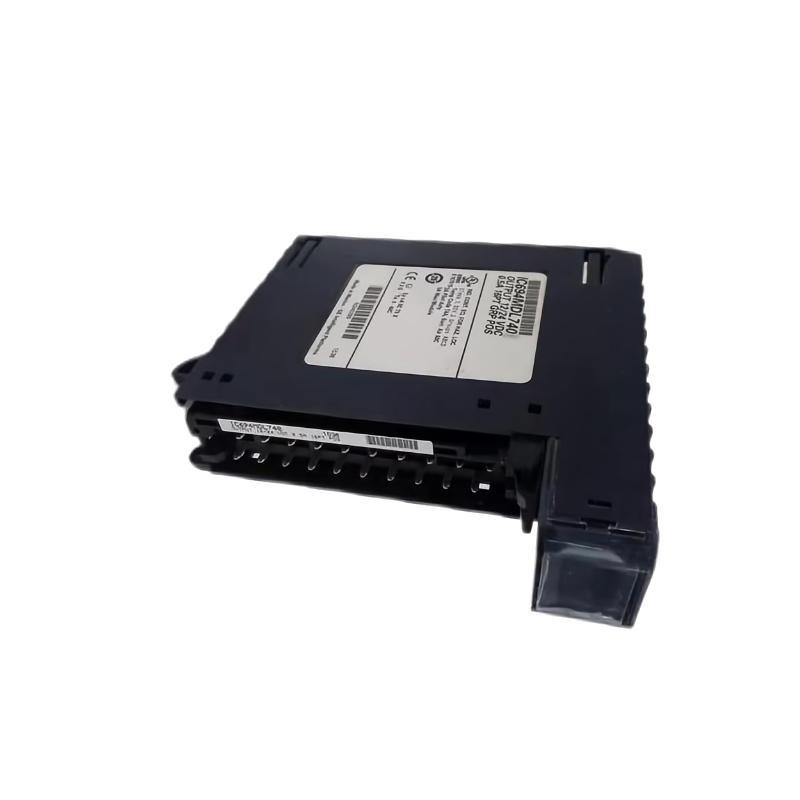

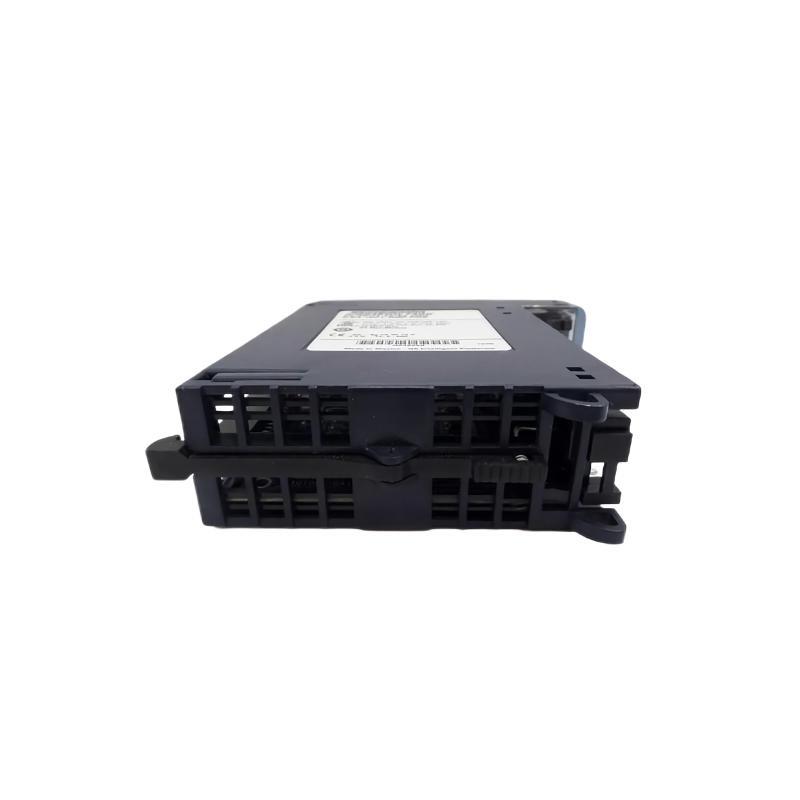

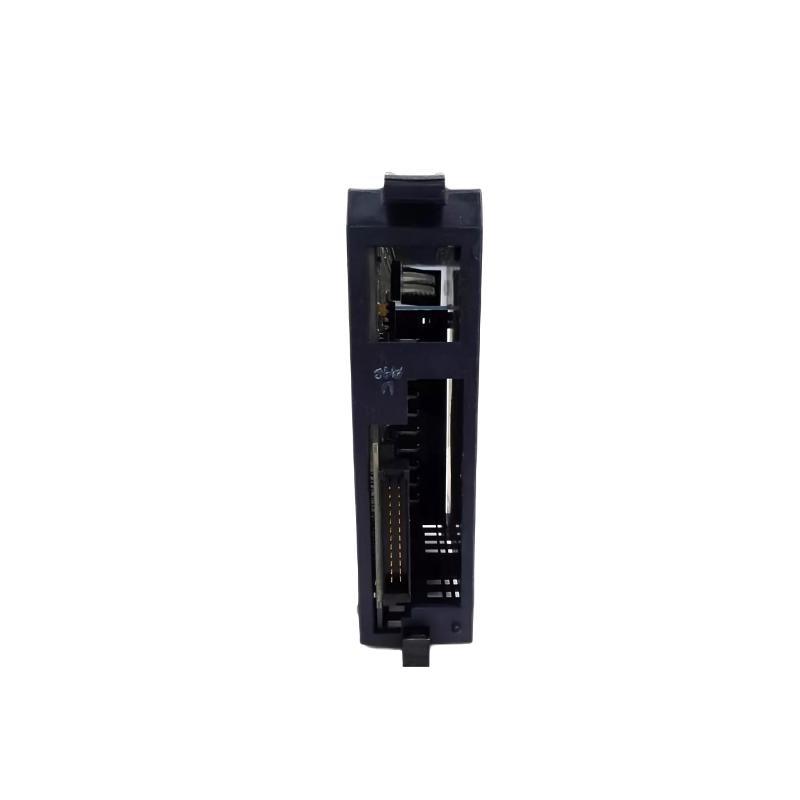

The GE IC694MDL740 is a 16-point positive logic DC voltage output module designed for the PACSystems RX3i series. This module provides 12/24 VDC outputs, delivering 0.5 A per point, and is organized into two groups / eight outputs each. It is engineered to interface with a variety / field devices such as solenoids, relays, and motor starters, making it suitable for diverse industrial applications. The module ensures reliable performance with features like optical isolation and LED indicators for each output point.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | IC694MDL740 |
| Series | PACSystems RX3i |
| Output Type | Positive Logic DC Voltage Output |
| Number / Outputs | 16 (2 groups / 8) |
| Output Voltage Range | 12 to 24 VDC (+20%, -15%) |
| Output Current per Point | 0.5 A |
| Output Current per Module | 2 A |
| Inrush Current | 4.78 A for 10 ms |
| Output Voltage Drop | 0.5 V maximum |
| Off-state Leakage Current | 1 mA maximum |
| On/Off Response Time | 2 ms maximum |
| Power Consumption | 110 mA from 5 VDC backplane |
| Isolation Voltage | 250 VAC continuous; 1500 VAC for 1 minute |
| LED Indicators | Yes, individual for each output |
| Dimensions (H × W × D) | 34 x 145 x 140 mm |
| 重量 | 0.159 kg |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Mounting | DIN Rail or Panel Mount |
| Certifications | CE, UL, CSA |
Applications
-
Manufacturing Automation: Controls actuators, indicators, and other devices in assembly lines.
-
Process Control Systems: Manages outputs in chemical, oil, and gas processing plants.
-
Material Handling: Operates conveyors, sorters, and automated storage systems.
-
Building Automation: Controls lighting, HVAC systems, and security mechanisms.
-
Water and Wastewater Treatment: Manages pumps, valves, and other control elements.
Product Advantages
-
High-Density Output: Provides 16 output points in a compact module, saving panel space.
-
Robust Isolation: Optical isolation ensures protection between field devices and the control system.
-
Flexible Voltage Range: 支持s a wide output voltage range, accommodating various devices.
-
Quick Response Time: Fast on//f response enhances system performance.
-
Diagnostic Indicators: LEDs for each output facilitate easy troubleshooting and maintenance.
常见问题 (FAQ)
-
What is the output voltage range / the IC694MDL740 module?
The module supports an output voltage range / 12 to 24 VDC, with a tolerance / +20% to -15%. -
How many output points does the module have?
It has 16 output points, organized into two groups / eight. -
What is the maximum output current per point?
Each output point can deliver up to 0.5 A. -
Does the module provide any form / isolation?
Yes, it /fers optical isolation with a continuous voltage / 250 VAC and 1500 VAC for 1 minute. -
Are there indicators for output status?
Yes, each output point has an individual LED indicator. -
What is the module’s response time?
The on//f response time is a maximum / 2 milliseconds. -
What is the module’s power consumption?
It consumes 110 mA from the 5 VDC backplane when all outputs are on. -
Can the module be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting. -
What is the operating temperature range?
The module operates within a temperature range / -40°C to +85°C. -
Is the module compatible with other RX3i series components?
Yes, it is designed to integrate seamlessly with other PACSystems RX3i modules.
