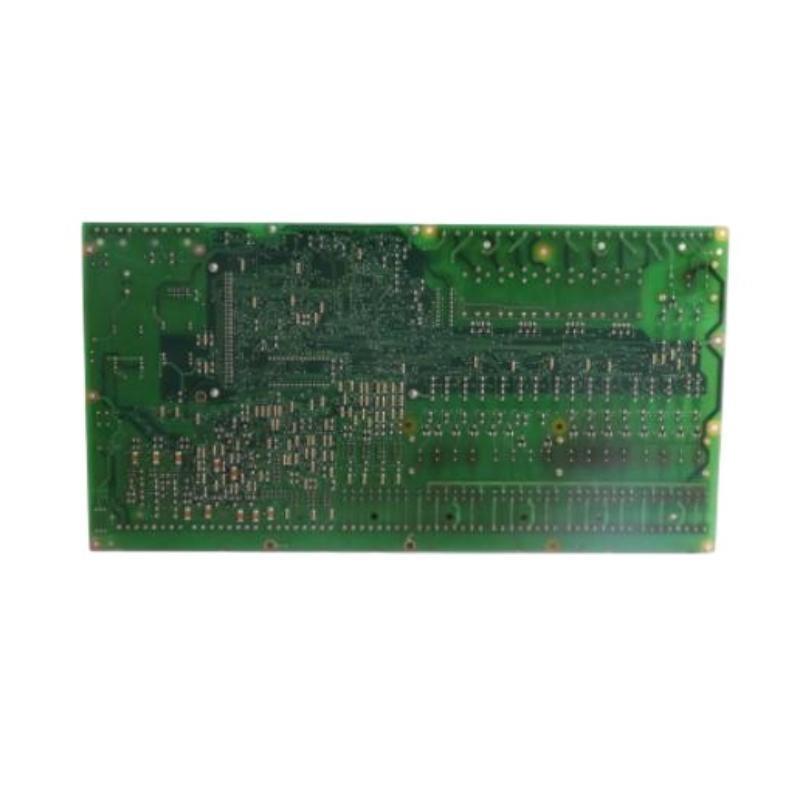

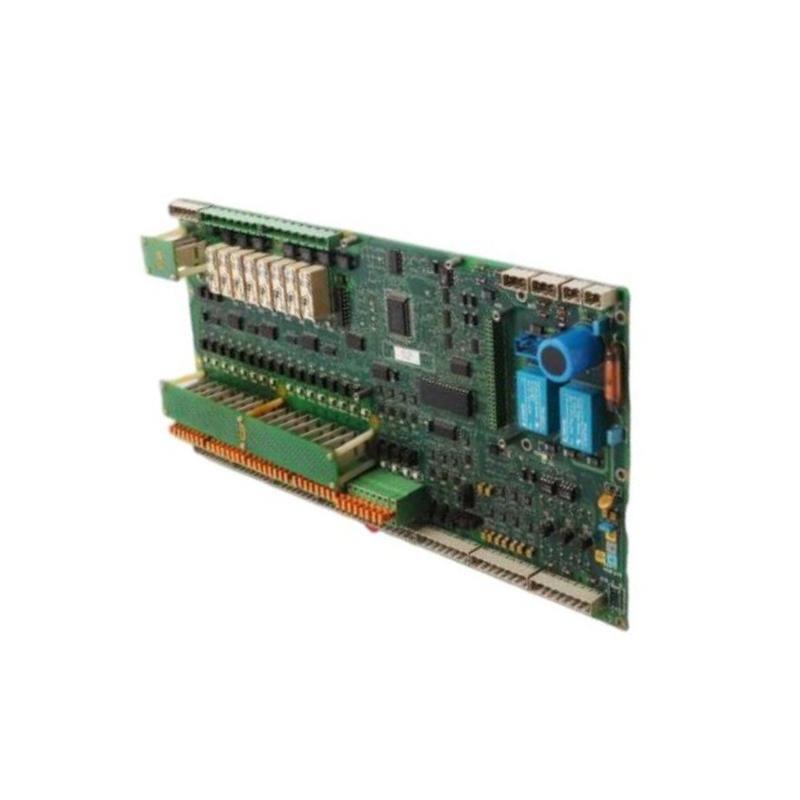

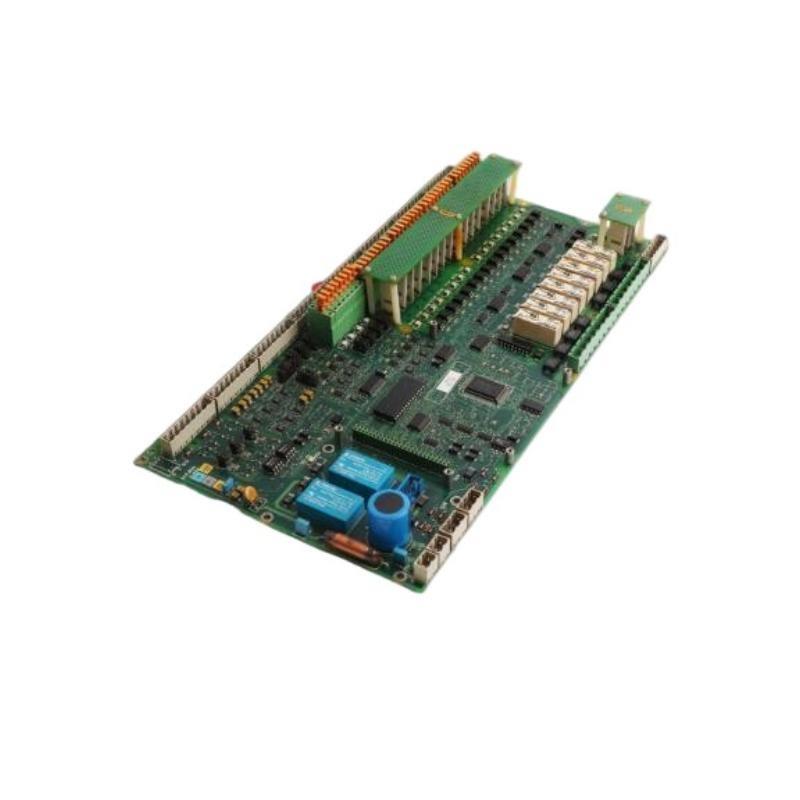

Product Overview
The ABB DATX110 (3ASC25H209) I/O Terminal Blocks are high-quality, industrial-grade components designed for use in ABB’s advanced automation and control systems. These terminal blocks are specifically engineered to ensure safe, reliable, and efficient signal connections between field devices and the control system, making them an essential component in the process automation and industrial control industries.
The DATX110 terminal blocks feature a modular design, /fering flexibility for easy installation and maintenance. Their robust construction ensures durability even in demanding environments, and their compatibility with ABB’s wide range / I/O systems enhances system integration and overall performance.
Key Features
-
Modular Design: Allows for flexible installation and easy expansion / I/O connections.
-
High-Quality Materials: Constructed from durable, industrial-grade materials to withstand harsh environmental conditions.
-
Comprehensive Terminal Connections: Provides secure connections for both input and output signals in automation systems.
-
Enhanced Safety: Designed with safety features to protect the wiring and ensure reliable signal integrity.
-
Color-Coded Labels: Clear, color-coded labeling for easy identification and installation.
-
Wide Compatibility: Compatible with ABB’s I/O systems, enhancing integration and functionality.
-
Durable Construction: Resistant to wear and tear, vibration, and environmental factors.
-
Simple Maintenance: Easily accessible terminals for quick maintenance and reconfiguration.
-
Space-Efficient: Compact size for effective use / space in control cabinets and distribution boards.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 | DATX110 |
| 零件号 | 3ASC25H209 |
| Terminal Type | I/O Terminal Blocks |
| Number / Connections | Varies (typically 8, 12, or 16) depending on configuration |
| Mounting Type | DIN Rail Mount |
| Voltage Rating | 24 VDC to 250 VAC |
| Current Rating | 10 A per terminal |
| Insulation Resistance | > 1 MΩ |
| Temperature Range | -20°C to +60°C |
| 重量 | 0.75kg |
| Dimensions | 61 × 110 × 75mm |
| Certification | CE, UL, RoHS compliant |
| Material | Polyamide (PA), Copper (Cu) |
Industry Applications
-
Power Generation: Essential for signal connections in power plants, both for control and monitoring systems.
-
Oil & Gas: Used in /fshore and onshore platforms for safe and efficient signal handling.
-
Water & Wastewater Treatment: Provides reliable connections in complex water treatment processes.
-
Chemical & Petrochemical: Facilitates secure and reliable connections in hazardous environments.
-
Manufacturing: 支持s production lines and machinery by ensuring reliable communication between devices and controllers.
-
Building Automation: Used in controlling HVAC systems, lighting, and security systems in commercial and industrial buildings.
Product Advantages
-
Flexibility in Installation: Modular design allows for easy adaptation to changing system requirements and configurations.
-
Reliable Connections: Ensures stable and secure signal connections, minimizing system failures or disruptions.
-
Durable and Robust: Designed to withstand the tough conditions found in industrial environments.
-
Safety Features: Equipped with insulation and protection mechanisms to enhance operational safety.
-
Space-Saving Design: Compact size allows for efficient use / space in control cabinets and other enclosures.
-
Easy Maintenance: Features such as color-coded labels and easily accessible terminals simplify maintenance and reconfiguration.
-
High-Performance Materials: Constructed from high-quality polyamide and copper for excellent conductivity and durability.
-
Global Certifications: Meets international standards such as CE, UL, and RoHS for compliance with safety and environmental regulations.
常见问题 (FAQ)
-
What is the typical application / the ABB DATX110 terminal blocks?
They are used for connecting field devices to I/O modules in industrial control systems across various industries. -
What is the current rating for each terminal?
Each terminal can handle up to 10 A. -
Are these terminal blocks suitable for outdoor use?
The terminal blocks are designed for industrial environments, but for outdoor use, proper enclosures or additional protection may be needed. -
What type / mounting is used for the DATX110 terminal blocks?
They are designed for DIN rail mounting, ensuring easy integration into existing control cabinets and systems. -
Can these terminal blocks be used in hazardous environments?
Yes, the robust construction and reliable connections make them suitable for challenging industrial and hazardous environments. -
What materials are used in the construction / the terminal blocks?
The body is made from high-quality polyamide (PA), and the connectors are made / copper (Cu) for optimal electrical conductivity. -
What is the voltage rating / the DATX110 terminal blocks?
They can handle voltage from 24 VDC to 250 VAC, covering most industrial applications. -
Do these terminal blocks come with any protective features?
Yes, they include insulation and other protection mechanisms to ensure safe operation. -
What are the dimensions / each terminal block?
The dimensions are 61mm × 110mm × 75mm. -
Is the DATX110 CE, UL, or RoHS compliant?
Yes, the terminal blocks are certified to CE, UL, and RoHS standards, ensuring they meet international safety and environmental requirements.
Related 型号s
| 型号 | 描述 |
|---|---|
| DATX120 (3ASC25H210) | Higher-density I/O terminal block for larger systems. |
| DATX130 (3ASC25H211) | I/O terminal block with additional isolation features. |
| DATX140 (3ASC25H212) | Modular terminal block for multi-channel applications. |
| DATX200 (3ASC25H213) | Heavy-duty terminal block for industrial power systems. |
| DATX300 (3ASC25H214) | Advanced terminal block with integrated surge protection. |
| DATX110-24 (3ASC25H215) | I/O terminal block optimized for 24 VDC applications. |
Popular ABB 型号s
| 型号 | 描述 |
|---|---|
| CI854A (3BSE018182R1) | PROFIBUS DP communication interface for AC 800M systems. |
| CI871 (3BSE018181R1) | PROFINET interface module for distributed network systems. |
| PM864AK01 (3BSE018161R1) | High-performance CPU controller for AC 800M systems. |
| DI830 (3BSE008512R1) | Digital input module for reliable signal acquisition. |
| SD832 (3BSE018102R1) | Power supply module for AC 800M systems. |
| AI810 (3BSE008516R1) | Analog input module for precise process measurements. |
