Product Overview

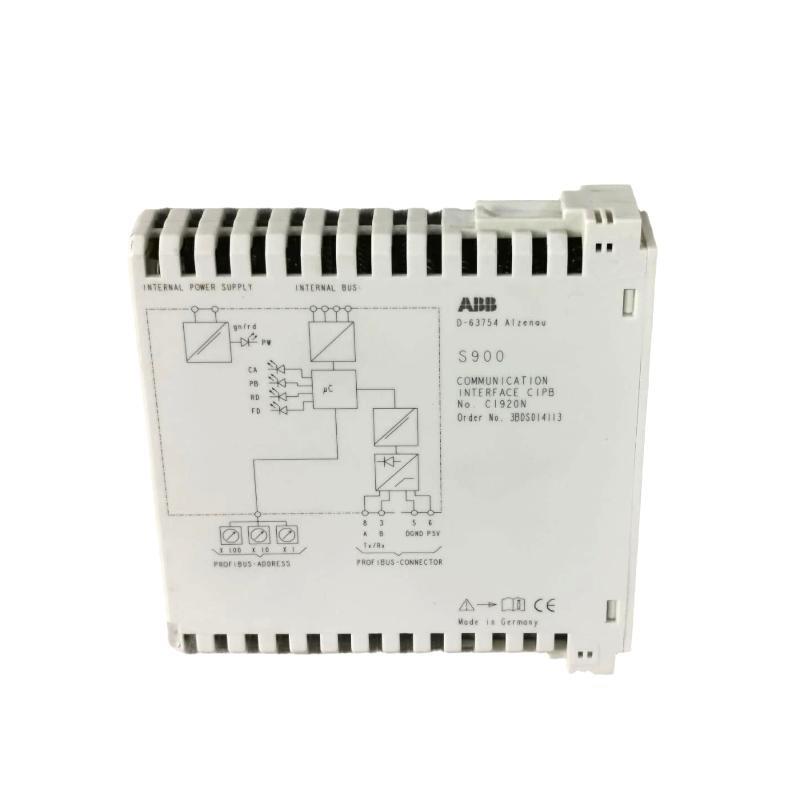

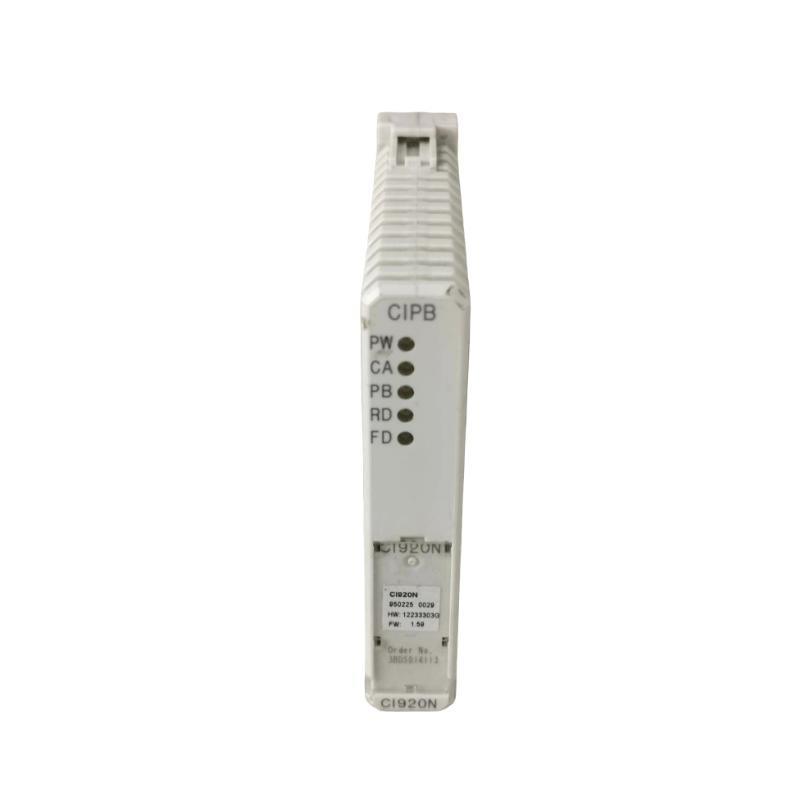

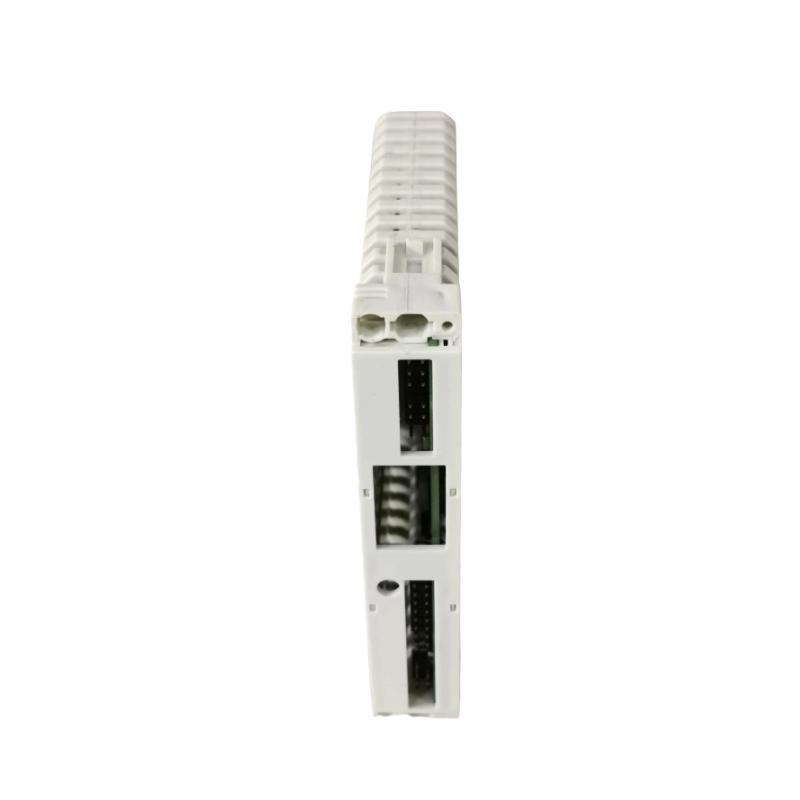

The ABB CI920N 3BDS014113 Communication Interface Module is an essential component / ABB’s advanced industrial automation and control systems. Designed to enable reliable communication between ABB’s process controllers, field devices, and peripheral systems, this module ensures seamless data exchange within complex industrial environments.
The CI920N is built to support a wide range / communication protocols, making it highly versatile and adaptable to different industrial automation needs. It interfaces seamlessly with both local and remote I/O devices, /fering high-speed data transmission and the ability to handle real-time control signals. With its robust construction and high reliability, this module is suitable for deployment in a variety / sectors, including manufacturing, energy, oil and gas, water treatment, and utilities.
This communication interface module plays a vital role in ensuring that automated systems can interact with diverse field devices, ensuring accurate data exchange, control, and monitoring across the entire plant. Its flexibility and ease / integration into ABB’s system platforms make it a crucial component in industrial digitalization and process automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | CI920N 3BDS014113 |
| Module Type | Communication Interface Module |
| System Compatibility | ABB 800xA, AC 800M, Advant |
| Communication Protocols | Modbus, Pr/ibus, Ethernet/IP, OPC |
| Mounting Type | DIN Rail Mount |
| Ports | 2 x Ethernet, 2 x Serial Ports |
| Operating Voltage | 24 VDC ±10% |
| Power Consumption | 6 W (typical) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions (W x H x D) | 20 × 104 × 104 mm |
| 重量 | 0.14 kg |
| EMC Compliance | IEC 61000-6-2, IEC 61000-6-4 |
| Certifications | CE, UL, RoHS, ISO 9001 |
Applications
The ABB CI920N 3BDS014113 Communication Interface Module is used across multiple industries that require robust, high-performance communication systems for automation, control, and monitoring. Its versatile communication capabilities make it ideal for the following applications:
-
Manufacturing Automation: Used in factory automation systems to connect controllers with machines, sensors, and actuators for real-time data monitoring and control.
-
Oil and Gas: Facilitates communication between remote field devices such as pumps, valves, and flow meters in both onshore and /fshore facilities.
-
Water and Wastewater Treatment: Enables seamless communication between sensors, pumps, and control systems to monitor water quality and manage treatment processes effectively.
-
Energy and Utilities: 支持s communication in power plants, substations, and grid management systems for real-time control and monitoring / power generation and distribution.
-
Building Automation: Interfaces with HVAC, lighting, and security systems to centralize control in large-scale building management systems.
-
Transportation Infrastructure: Used to connect remote monitoring and control systems in transportation networks such as railways and airports, providing real-time data access and control.
Key Advantages
-
Versatile Protocol 支持: The CI920N supports a wide variety / communication protocols, including Modbus, Pr/ibus, Ethernet/IP, and OPC, allowing integration with numerous field devices and control systems.
-
Compact and Efficient Design: With its compact DIN rail mountable design, the CI920N saves valuable panel space while maintaining high communication performance.
-
Reliable Performance: Designed to operate in harsh industrial environments, the CI920N /fers reliable performance with built-in redundancy options and strong error detection capabilities.
-
Low Power Consumption: The module operates with a low power consumption / just 6 W, making it energy-efficient and cost-effective.
-
High-Speed Data Transmission: The module supports high-speed data transmission, ensuring timely and accurate communication for real-time control.
-
Easy Integration: The CI920N is designed for simple integration into ABB’s automation systems, reducing installation and setup times.
-
Scalability: The module supports scalable solutions, making it suitable for both small installations and large, complex industrial systems.
-
Environmental Resilience: With a wide operating temperature range / -20°C to +60°C and excellent EMC compliance, the module is built to withstand challenging environmental conditions.
-
Advanced Diagnostics: The CI920N includes comprehensive diagnostic features that allow operators to monitor and troubleshoot the system, ensuring continuous operation.
-
Global Certifications: The module meets international certifications such as CE, UL, RoHS, and ISO 9001, ensuring it meets high-quality standards for global use.
常见问题 (FAQ)
-
What communication protocols are supported by the CI920N module?
The CI920N supports multiple protocols including Modbus, Pr/ibus, Ethernet/IP, and OPC, making it highly adaptable to different industrial networks. -
How is the CI920N mounted in the control panel?
The module is designed for DIN rail mounting, which simplifies installation and saves valuable space in control panels. -
Can the CI920N be used in hazardous environments?
While the module is designed to withstand harsh industrial environments, it is not specifically rated for hazardous locations. For hazardous environments, consult ABB’s explosion-pro/ options. -
What is the maximum number / devices that can be connected to the CI920N?
The number / connected devices depends on the protocol used. For Modbus, up to 32 devices can typically be connected per network segment, while Pr/ibus may support more depending on network configurations. -
What is the power requirement for the CI920N?
The module operates on a 24 VDC power supply with a typical power consumption / 6 W, making it energy-efficient. -
Is the CI920N suitable for use in extreme temperatures?
Yes, the module can operate in a wide temperature range / -20°C to +60°C, making it suitable for use in a variety / industrial environments. -
Can I update the firmware / the CI920N?
Yes, firmware updates can be done through the ABB automation system management s/tware, ensuring the module stays up to date with the latest features and fixes. -
How does the CI920N handle communication errors or disruptions?
The CI920N features advanced diagnostics and error detection capabilities to ensure smooth communication. If any issues arise, the module will report errors through status indicators and network diagnostics. -
Can multiple CI920N modules be used together in a single system?
Yes, multiple CI920N modules can be integrated into a larger control system to expand communication capabilities and connect more devices. -
Is the CI920N compatible with legacy ABB systems?
Yes, the CI920N is compatible with ABB’s legacy control systems, including the Advant and AC 800M series, allowing for easy system upgrades.
Related 型号s (Same Series or Variant)
| 型号 | 描述 | Key Features |
|---|---|---|
| CI910N | Communication Interface for basic Modbus applications | Basic Modbus communication for remote devices |
| CI930N | Ethernet communication interface | High-speed Ethernet interface for large networks |
| CI922N | Pr/ibus communication interface module | 支持s Pr/ibus DP for industrial communication |
| CI940N | Advanced communication interface with HART support | Adds HART protocol for field device integration |
| CI910A | Modbus RTU communication interface | Remote terminal 件 support for Modbus RTU |
| CI935N | Industrial Ethernet module | Dual port Ethernet interface for critical control |
Popular ABB 型号s (Same 品牌)
| 型号 | 描述 | Primary Use Case |
|---|---|---|
| PM810V3 | Power management controller | Energy control and distribution |
| AC800M | Modular process controller | Industrial process automation |
| 800xA | Advanced control and automation system | Integrated control for large-scale systems |
| AC500 PLC | High-performance PLC | Flexible and scalable control solutions |
| 800xA I/O | Distributed I/O system for ABB 800xA | Real-time control and monitoring |
| 3700 | SCADA system for remote monitoring | SCADA solution for supervisory control |
