产品介绍

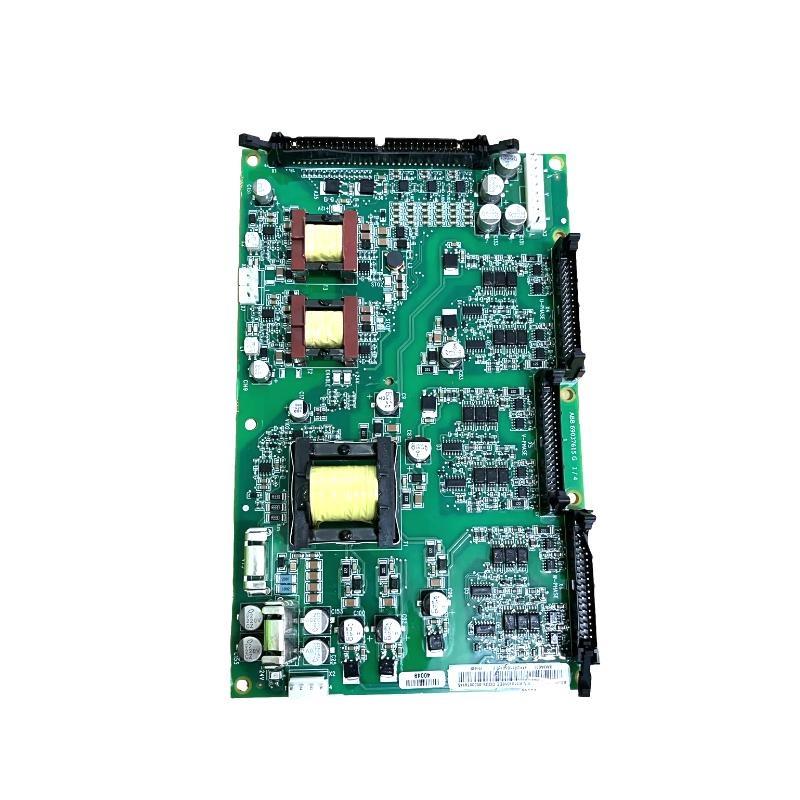

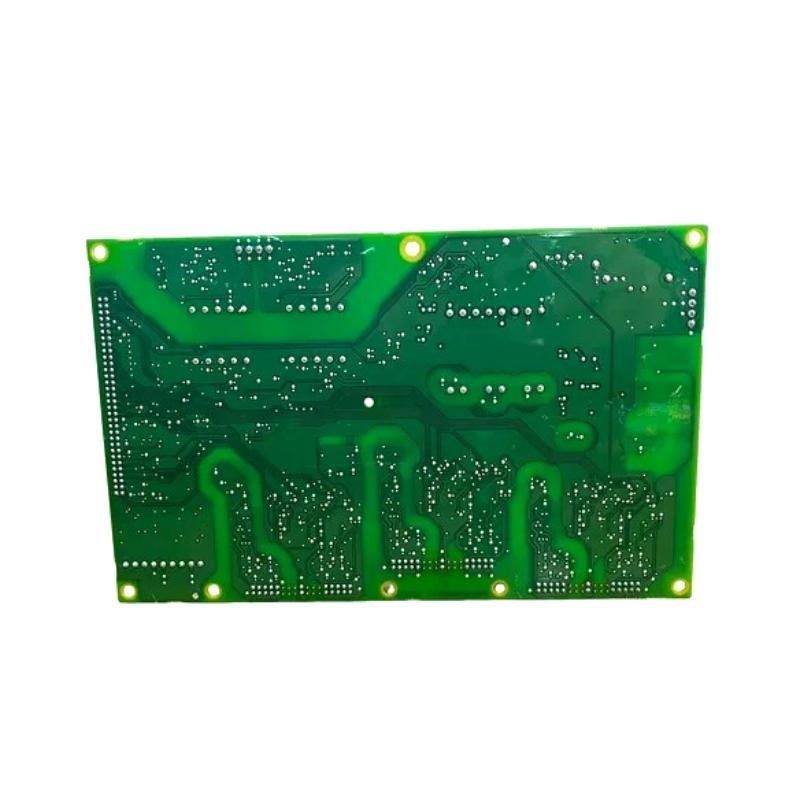

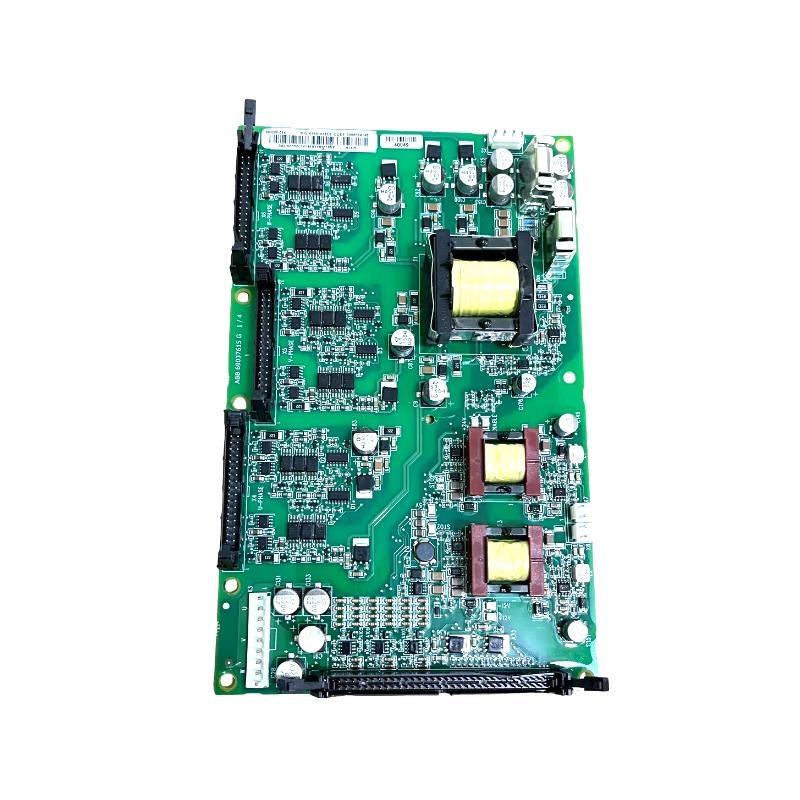

The ABB BGDR-01C Gate Driver Board (3AUA0000074145) is an integral component designed for precise control / IGBT (Insulated Gate Bipolar Transistor) power modules in ABB frequency converters and industrial drives. It provides the essential interface between the control logic / the drive system and the high-power semiconductor switching elements, ensuring accurate timing, isolation, and protection functionalities.
Built with ABB’s renowned engineering excellence, the BGDR-01C is optimized for high-speed switching, thermal stability, and long operational life in harsh industrial environments. It is primarily used in medium to high-power variable frequency drives (VFDs), making it a critical element in industries such as metals processing, marine propulsion, wind turbines, oil & gas, and more.
The BGDR-01C enhances the performance, efficiency, and safety / the entire drive system and is manufactured according to rigorous quality and compliance standards.
产品规格
| Parameter | Value |
|---|---|
| 型号 Number | BGDR-01C |
| Order Code | 3AUA0000074145 |
| Product Type | Gate Driver Board |
| Application | ABB VFDs, Medium-High Power Converters |
| 支持ed Semiconductors | IGBT Modules (ABB-specified) |
| Control Signal Isolation | Optical isolation (photonic couplers) |
| Switching Frequency | Up to 20 kHz |
| Protection Features | Desaturation detection, short-circuit protection, thermal monitoring |
| Operating Voltage | 15 V DC (typical gate drive voltage) |
| Power Supply Range | 12 V – 18 V DC |
| Operating Temperature Range | -25 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% – 95% RH, non-condensing |
| Certifications | CE, RoHS, UL recognized component |
| Shock Resistance | 15 g, 11 ms (IEC 60068-2-27) |
| Vibration Resistance | 2 g, 10–150 Hz (IEC 60068-2-6) |
| PCB Conformal Coating | Yes (protective against dust and moisture) |
| Dimensions (W x H x D) | 22 x 124 x 126 mm |
| 重量 | 0.18 kg |
Product Applications
The ABB BGDR-01C Gate Driver Board is widely used across industrial applications where precise power conversion and motor control are essential:
-
Steel & Metal Processing: Rolling mills, extruders
-
Marine & Offshore: Propulsion systems, thrusters
-
Renewable Energy: Wind turbines, solar inverters
-
Oil & Gas: Compressors, drilling rigs
-
Pulp & Paper: Paper machines, calenders
-
Cement & Mining: Conveyors, crushers
-
Power Generation: Auxiliary motors in power plants
-
Transportation: Railway traction systems
Product Advantages
-
High-speed Gate Control: 支持s fast switching frequencies up to 20 kHz for high-performance IGBT operation.
-
Optical Isolation: Ensures robust isolation between the control side and high-voltage power stage.
-
Comprehensive Protection: Built-in desaturation detection and short-circuit protection safeguard both IGBT modules and the entire drive.
-
Wide Operating Range: Functions reliably in extreme temperatures and humidity conditions.
-
Durable Construction: Conformal-coated PCB enhances protection against dust, moisture, and chemical exposure.
-
Compact Design: Small footprint allows easy integration into drive cabinets.
-
Long Service Life: Designed for reliability in 24/7 industrial applications.
-
Compatibility: Seamlessly integrates with ABB medium and high-power drive platforms.
FAQ
-
What is the role / the BGDR-01C Gate Driver Board in a VFD system?
It translates control signals from the drive controller into gate signals to drive IGBT power modules, while providing isolation and protection. -
What types / semiconductors are supported by the BGDR-01C?
The board is optimized for ABB-specified IGBT modules used in medium and high-power converter systems. -
What protection mechanisms are built into the BGDR-01C?
It features desaturation detection, short-circuit protection, and thermal monitoring for enhanced IGBT safety. -
Is the BGDR-01C suitable for high-speed switching?
Yes, it supports switching frequencies up to 20 kHz, enabling efficient and precise motor control. -
How does the optical isolation benefit the system?
Optical isolation ensures that the control logic remains electrically isolated from the high-voltage power stage, improving safety and noise imm件y. -
Is the BGDR-01C compliant with global certifications?
Yes, it is CE marked, RoHS compliant, and recognized by UL. -
What environmental conditions can the BGDR-01C operate in?
It operates in a temperature range / -25 °C to +70 °C, and in humidity conditions up to 95% RH (non-condensing). -
What is the expected service life / the BGDR-01C?
The board is engineered for long service life in continuous industrial operation environments, typically exceeding 10 years. -
Can the BGDR-01C be used in renewable energy systems?
Yes, it is suitable for wind turbine converters, solar inverters, and other renewable energy platforms. -
What maintenance is required for the BGDR-01C?
Routine visual inspection and occasional cleaning / dust accumulation are sufficient; no active maintenance is required under normal conditions.
