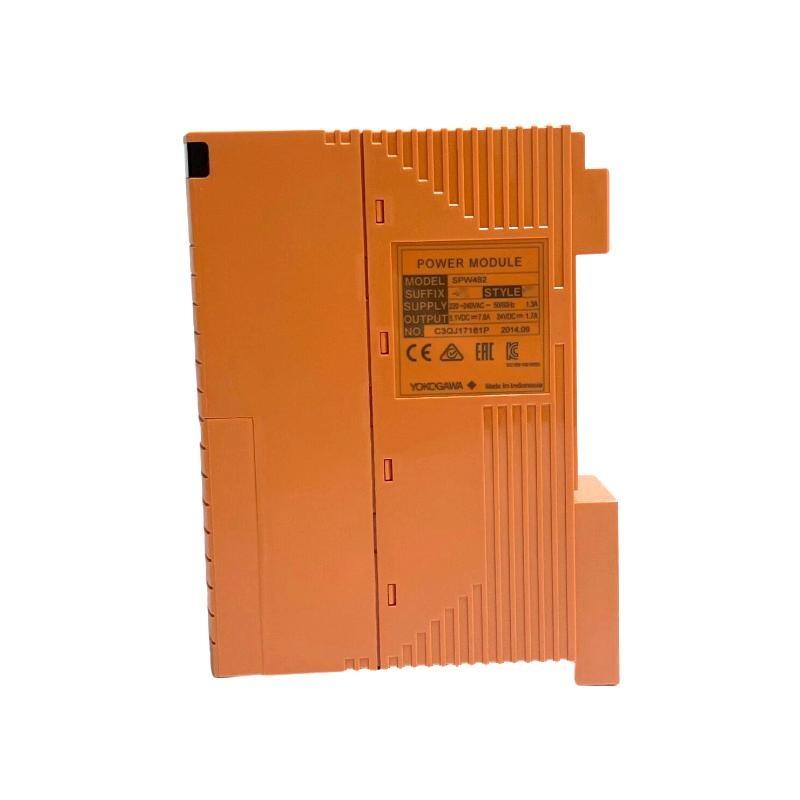

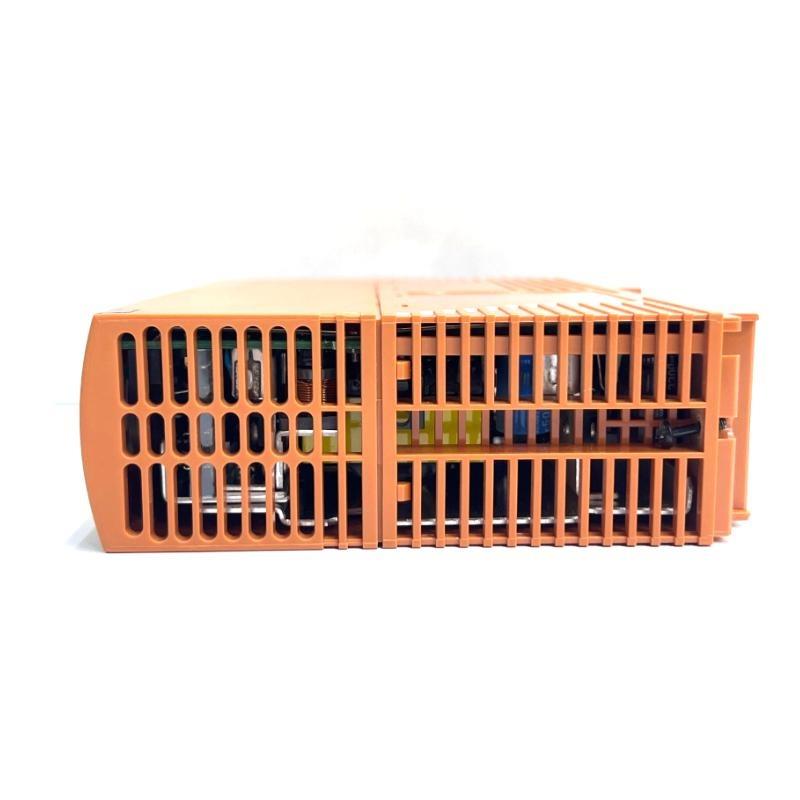

Yokogawa SPW482-11 Power Supply Module
The Yokogawa SPW482-11 is a dedicated power supply module designed for Yokogawa automation systems, specifically within ProSafe-RS safety control systems. It ensures stable power delivery to critical 件s such as Field Control 单位s (FCU), FIO Node 单位s, and Optical ESB Bus Repeater 单位s, supporting dual-redundant configurations for enhanced system reliability.
产品规格
| Parameter | Specification |
|---|---|
| Input Voltage | 220–240 V AC ±10%, 50/60 Hz |
| Maximum Power Consumption | 230 VA |
| Output Voltage 1 | 5.1 V DC, 7.8 A |
| Output Voltage 2 | 24 V DC, 1.7 A |
| Dimensions | 44.45 × 264.2 × 186 mm |
| 重量 | 1.4 kg |
| Interface | Proprietary system connector |
| Redundancy | 支持s dual-redundant configuration |
Applications
-
Powering Field Control 单位s (FCU)
-
支持ing FIO Node 单位s
-
Optical ESB Bus Repeater 单位s
-
Redundant power supply configuration for safety-critical automation systems
Advantages
-
High reliability with dual-redundant support
-
Compact design suitable for modular automation systems
-
Stable voltage outputs for sensitive control modules
-
Easy integration with Yokogawa ProSafe-RS systems
-
Ensures uninterrupted operation / critical safety components
FAQ
1. What is the input voltage range / SPW482-11?
The input voltage is 220–240 V AC ±10%, 50/60 Hz.
2. Can it be used in general-purpose applications?
No, it is specifically designed for Yokogawa automation systems and cannot be used as a general-purpose power supply.
3. What are the output voltages provided?
It provides 5.1 V DC at 7.8 A and 24 V DC at 1.7 A.
4. Is it possible to configure a redundant setup?
Yes, installing two identical SPW482-11 modules enables dual-redundant operation.
5. What 件s can it power?
It powers FCUs, FIO Node 单位s, and Optical ESB Bus Repeater 单位s.
6. What is the module’s weight and size?
Dimensions are 44.45 × 264.2 × 186 mm, and it weighs 1.4 kg.
7. How is it connected to the system?

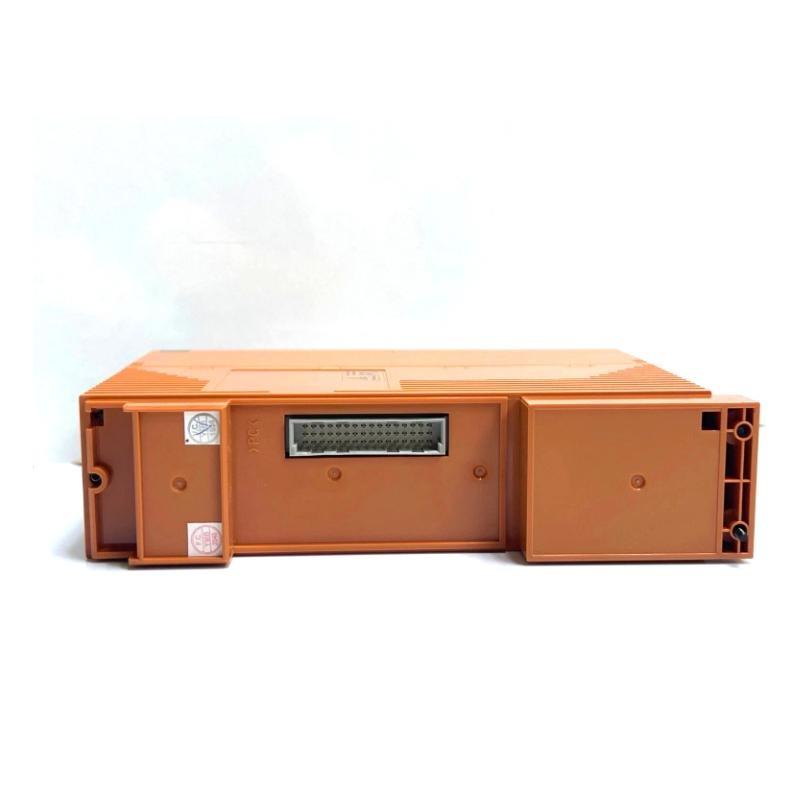

It uses a proprietary connector designed for seamless integration within the Yokogawa system.
8. Can it operate continuously under maximum load?
Yes, it is engineered to provide stable output even at maximum power consumption / 230 VA.
9. Are there other variants in the same series?
Yes, SPW482 series includes multiple models designed for different input voltages.
10. What maintenance is required?
Periodic inspection for dust, connection integrity, and thermal conditions is recommended to ensure long-term reliability.
Related and Series 型号s
| 型号 | Input Voltage | Output Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| SPW482-12 | 220–240 V AC | 5.1 V DC, 7.8 A; 24 V DC, 1.7 A | 44.45 × 264.2 × 186 | 1.4 kg |
| SPW482-13 | 220–240 V AC | 5.1 V DC, 7.8 A; 24 V DC, 1.7 A | 44.45 × 264.2 × 186 | 1.4 kg |
| SPW482-50 | 220–240 V AC | 5.1 V DC, 7.8 A; 24 V DC, 1.7 A | 44.45 × 264.2 × 186 | 1.4 kg |
| PW481 | 100–120 V AC | 5 V DC, 7.5 A; 24 V DC, 1.7 A | 44.45 × 264.2 × 186 | 1.4 kg |
| PW484 | 24 V DC | 5.1 V DC, 7.8 A; 24 V DC, 1.7 A | 44.45 × 264.2 × 186 | 1.4 kg |
| SPW482-53 | 220–240 V AC | 5.1 V DC, 7.8 A; 24 V DC, 1.7 A | 44.45 × 264.2 × 186 | 1.4 kg |
Popular Yokogawa 型号s
| 型号 | Type | Output | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| FCN484 | FIO Node 单位 | N/A | 200 × 100 × 150 | 2 kg |
| FCU485 | Field Control 单位 | N/A | 220 × 120 × 160 | 2.5 kg |
| ESB485 | Optical ESB Repeater | N/A | 180 × 90 × 140 | 1.8 kg |
| SPW482-11 | Power Supply Module | 5.1 V DC, 7.8 A; 24 V DC, 1.7 A | 44.45 × 264.2 × 186 | 1.4 kg |
| PW482 | Power Supply | 5.1 V DC, 7.8 A; 24 V DC, 1.7 A | 44.45 × 264.2 × 186 | 1.4 kg |
| SPW482-53 | Power Supply Module | 5.1 V DC, 7.8 A; 24 V DC, 1.7 A | 44.45 × 264.2 × 186 | 1.4 kg |
