产品介绍

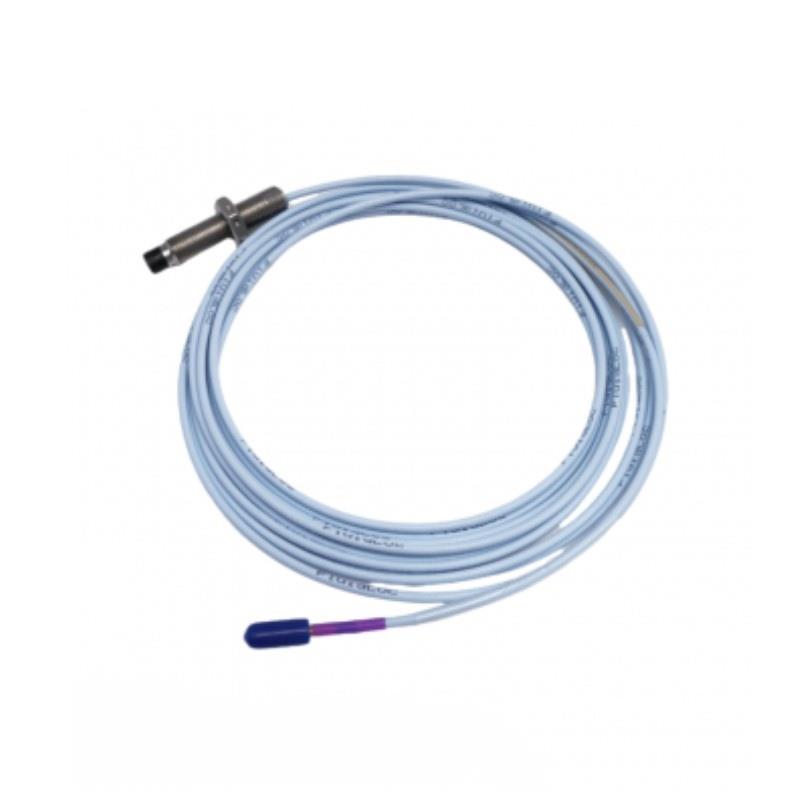

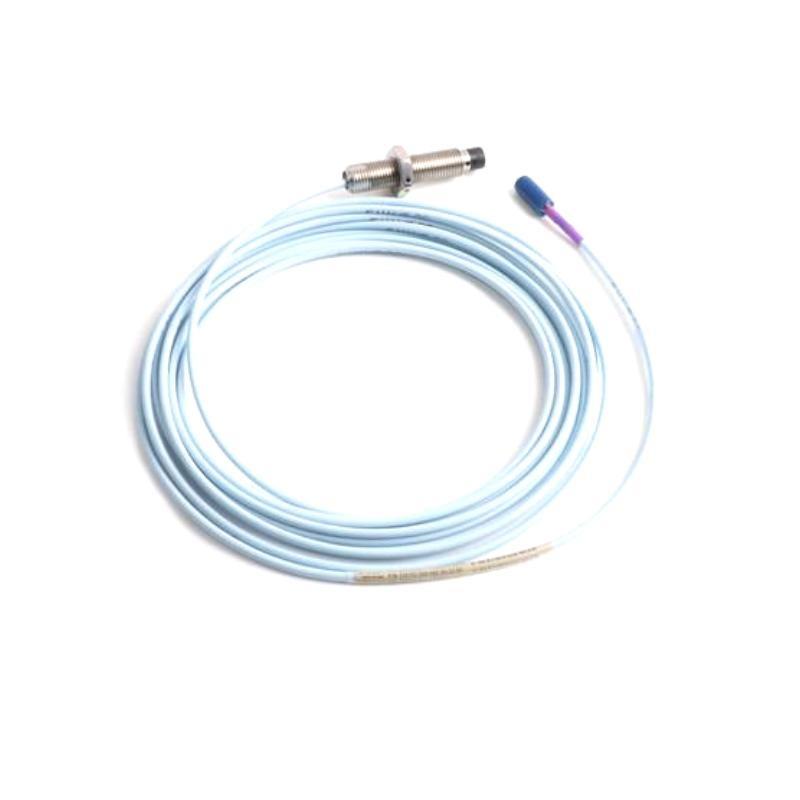

The 330704-000-050-90-02-00 3300 XL 11 mm Proximity Probe is a high-precision vibration and position measurement sensor designed for industrial rotating machinery. It provides accurate monitoring / shaft displacement, enabling early detection / mechanical issues such as misalignment, imbalance, and bearing wear. With robust construction and reliable signal output, the 3300 XL series probes are widely adopted in power generation, oil & gas, and heavy industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | Eddy-Current Proximity Probe |
| Probe Diameter | 11 mm |
| Output Type | Differential voltage |
| Linearity | ≤1% full scale |
| Temperature Range | -40°C to +120°C |
| Cable Type | Shielded coaxial cable |
| Total Length | 9 m |
| 重量 | 0.63 kg |
| Housing Material | Stainless Steel |
| Connector Type | LEMO or equivalent |
| Operating Frequency | DC to 20 kHz |
| Mounting Method | Threaded or clamped |
Applications
-
Monitoring high-speed turbines and generators in power plants
-
Detecting shaft displacement and vibration in pumps and compressors
-
Predictive maintenance / industrial machinery
-
状态 monitoring in petrochemical plants
-
Rotating machinery in mining and heavy industry
-
High-precision alignment verification during installation and commissioning
Advantages
-
High Accuracy: Provides precise displacement measurements with minimal noise interference.
-
Robust Construction: Stainless steel housing ensures durability in harsh industrial environments.
-
Wide Temperature Range: Suitable for extreme operational temperatures from -40°C to +120°C.
-
Reliable Signal Output: Coaxial cable design and differential voltage output minimize signal degradation.
-
Versatile Mounting: Threaded and clamp mounting options enable flexible installation.
-
Early Fault Detection: Enables proactive maintenance, reducing downtime and repair costs.
FAQ
Q1: What is the recommended sensing distance for optimal accuracy?
A1: The standard sensing distance is 1 mm for the 11 mm probe diameter, which provides optimal linearity and signal stability.
Q2: Can the probe operate in high-vibration environments?
A2: Yes, the 3300 XL series is designed to maintain signal accuracy in high-vibration conditions due to its robust housing and cable design.
Q3: What type / signal output does the probe provide?
A3: The probe provides a differential voltage output, compatible with standard vibration monitoring and machinery protection systems.
Q4: Is the probe compatible with existing 3300 XL series monitoring systems?
A4: Yes, it is fully compatible with all standard 3300 XL series modules and controllers.
Q5: Can the cable length be customized?
A5: Standard length is 1 m, but custom cable lengths can be provided based on application requirements.
Q6: What is the frequency response / this probe?
A6: The operating frequency is DC to 20 kHz, allowing accurate measurement / both slow and fast shaft movements.
Q7: How should the probe be mounted for accurate readings?
A7: It can be mounted using threaded fittings or clamps, ensuring stable contact and alignment with the monitored shaft.
Q8: Can the probe operate in wet or corrosive environments?
A8: Yes, the stainless steel housing and sealed construction make it suitable for moderate moisture and industrial fluids.
Q9: Does the probe require calibration?
A9: Yes, initial calibration is recommended to ensure linearity and accuracy across the full sensing range.
Q10: What type / maintenance is required?
A10: Regular inspection / the cable and connector is recommended, but the probe itself is maintenance-free under normal conditions.
Related or Same-Series 型号s
| 型号 Number | Probe Diameter | Sensing Range | Notes |
|---|---|---|---|
| 330704-000-050-90-02-01 | 11 mm | 1 mm | Standard XL series probe |
| 330704-000-050-90-02-02 | 11 mm | 2 mm | Extended range version |
| 330704-000-060-90-02-00 | 12 mm | 1 mm | Higher diameter for larger shafts |
| 330704-000-040-90-02-00 | 10 mm | 1 mm | Compact XL series probe |
| 330704-000-050-90-03-00 | 11 mm | 0.5 mm | High sensitivity probe |
| 330704-000-050-90-04-00 | 11 mm | 3 mm | Long-range measurement |
Popular 型号s from the Same 品牌
| 型号 Number | Probe Diameter | Sensing Range | Notes |
|---|---|---|---|
| 330704-000-030-90-01-00 | 8 mm | 1 mm | Compact industrial probe |
| 330704-000-070-90-02-00 | 14 mm | 2 mm | Heavy-duty XL series |
| 330704-000-050-90-01-00 | 11 mm | 1 mm | Standard XL probe |
| 330704-000-050-90-05-00 | 11 mm | 0.75 mm | High-precision probe |
| 330704-000-060-90-03-00 | 12 mm | 2 mm | Extended range XL probe |
| 330704-000-040-90-01-00 | 10 mm | 1 mm | Compact version |
