Product Overview

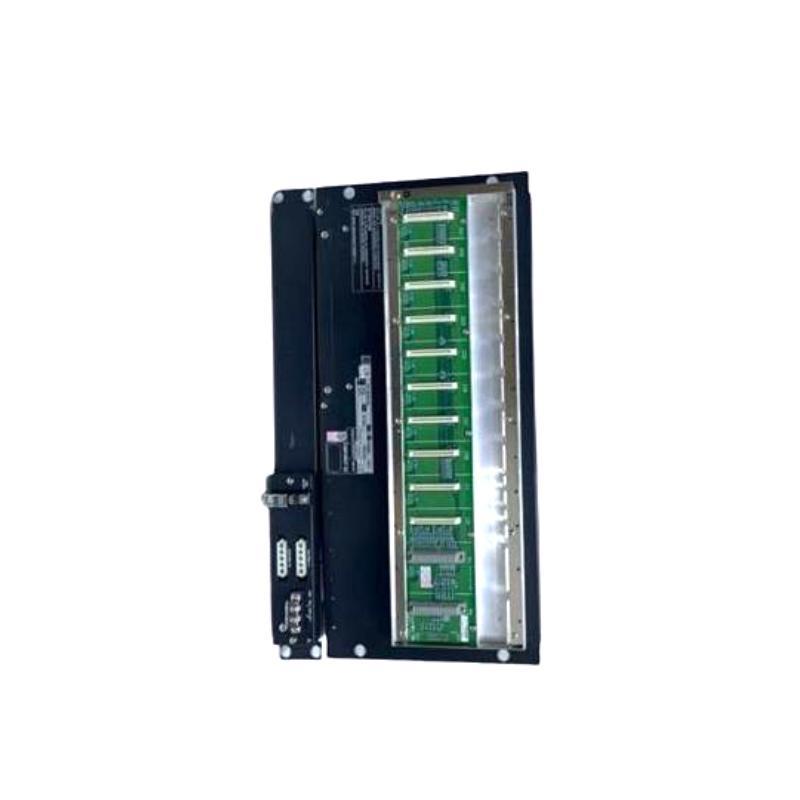

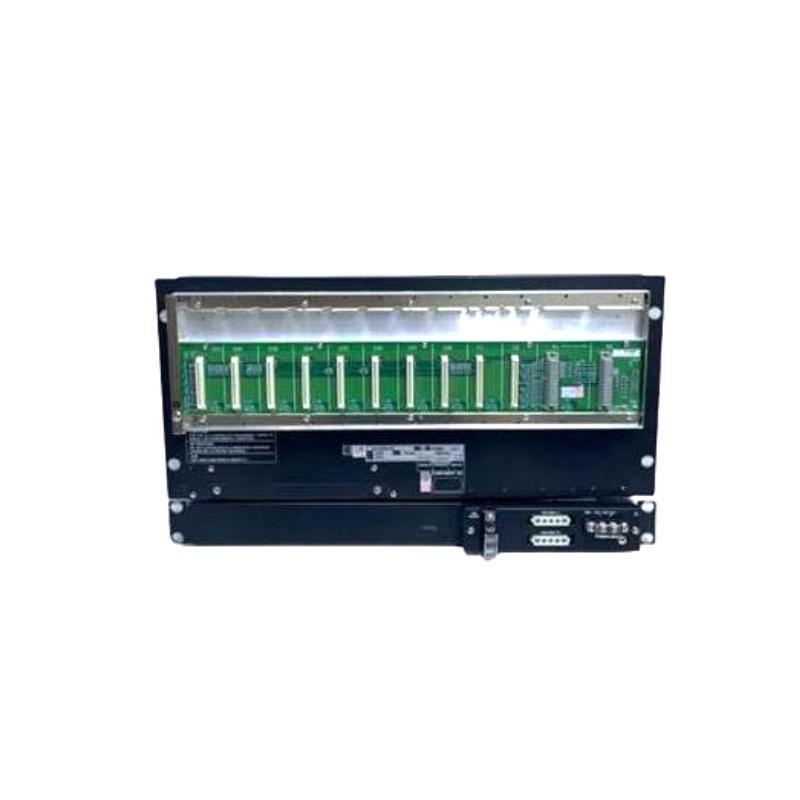

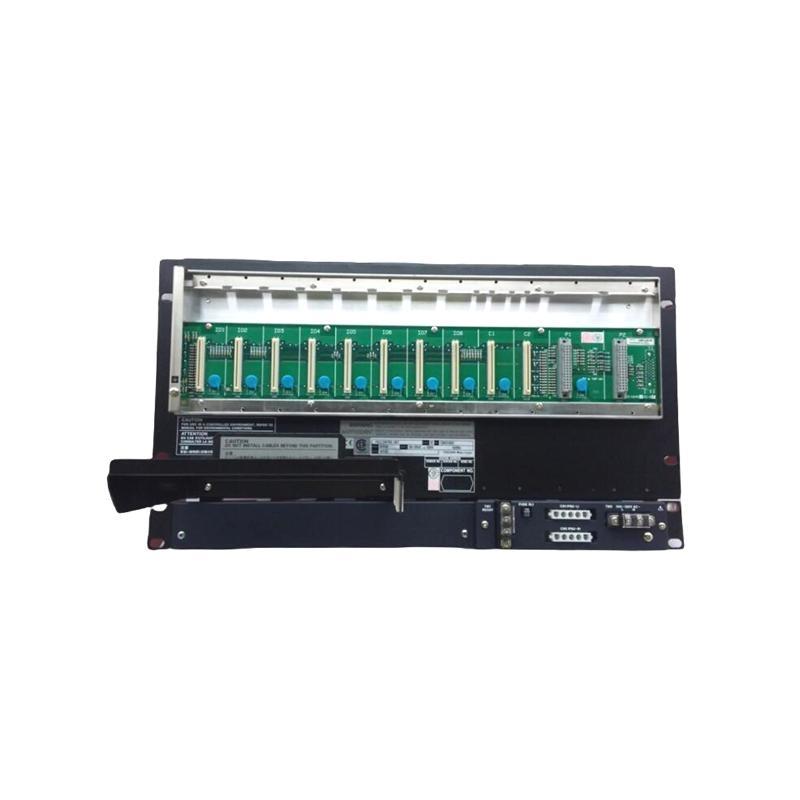

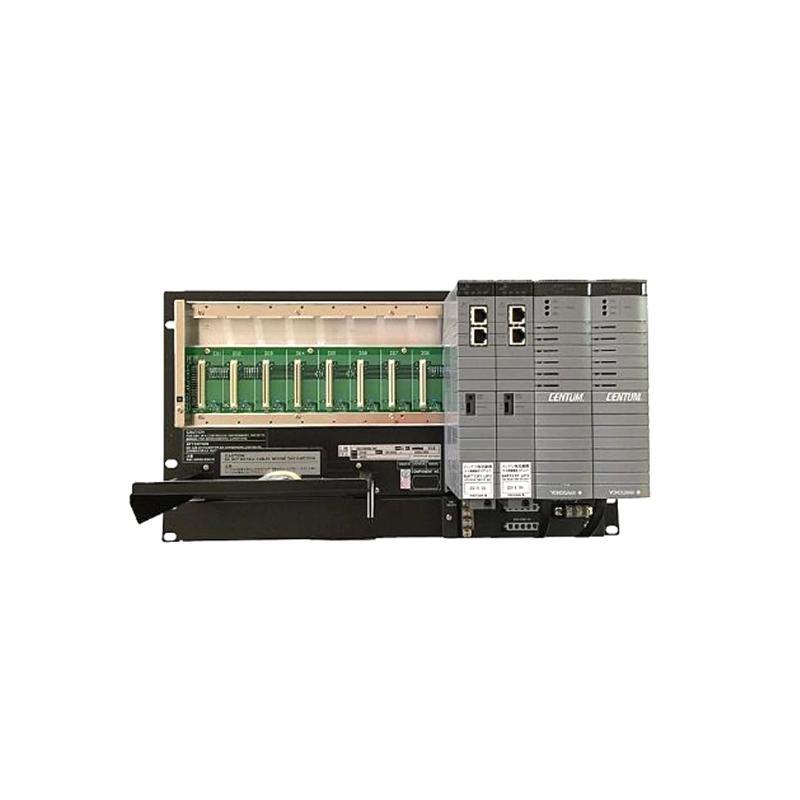

The Yokogawa AFV30D-S41251 is a Duplexed Field Control Unit (FCU) designed for the CENTUM VP distributed control system.
It serves as a critical component in managing and controlling field devices within various industrial automation processes.
With its duplexed architecture, the AFV30D-S41251 ensures high reliability and seamless operation, making it suitable for demanding industrial environments.
Product Specifications:
| Parameter | Description |
|---|---|
| Model Number | AFV30D-S41251 |
| Processor | VR5532 (350 MHz) |
| Main Memory Capacity | 128 MB |
| Memory Protection | Battery backup for main memory with a maximum of 72 hours; Recharge time: Minimum 48 hours |
| Communication Interface | Dual-redundant Vnet/IP Interface |
| Power Supply Options | 100-120 V AC, 50/60 Hz<br>- 220-240 V AC, 50/60 Hz<br>- 24 V DC |
| Power Consumption | 100-120 V AC: 200 VA<br>- 220-240 V AC: 230 VA<br>- 24 V DC: 5.5 A |
| Weight | 8.0 kg |
| Dimensions | 265.9 x 482.6 mm |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| I/O Module Slots | Supports up to 8 I/O modules |
| Node Units Connectable | Maximum of 13 ESB Bus Node Units (ANB10) or Optical ESB Bus Node Units (ANB11) |
| READY Contact Output | 2 terminals (NC, C); Contact points open during FCU failure; Contact rating: 30 V DC, max. 0.3 A |
Product Applications:
The AFV30D-S41251 is utilized across various process industries for automation and control tasks. Its robust design and high reliability make it suitable for applications such as:
-
Chemical Processing: Managing complex chemical reactions and processes.
-
Oil and Gas: Controlling drilling operations, refining processes, and pipeline management.
-
Power Generation: Overseeing operations in thermal, hydroelectric, and nuclear power plants.
-
Water Treatment: Automating water purification and distribution systems.
-
Pharmaceuticals: Ensuring precise control in drug manufacturing processes.
Product Advantages:
-
High Reliability: The duplexed configuration of processor modules and communication interfaces ensures uninterrupted operation, even in the event of a component failure.
-
Scalability: Supports up to 13 node units and 8 I/O modules, allowing for flexible system expansion as operational needs grow.
-
Robust Design: Engineered to withstand harsh industrial environments, with an operating temperature range of 0°C to 60°C.
-
Versatile Communication: Dual-redundant Vnet/IP interfaces facilitate seamless integration with various industrial networks.
-
Comprehensive Diagnostics: Built-in diagnostic and troubleshooting functions enhance system maintenance and reduce downtime.
Recent News Headlines:
-
“Yokogawa Enhances CENTUM VP with Advanced Field Control Unit”
-
“AFV30D-S41251: Revolutionizing Industrial Automation Control”
-
“Yokogawa’s Duplexed FCU Sets New Standards in Process Reliability”
-
“Innovative Field Control Solutions Introduced by Yokogawa”
-
“Yokogawa’s AFV30D-S41251 Gains Industry Recognition for Excellence”
Frequently Asked Questions (FAQ)
-
What is the primary function of the AFV30D-S41251?
-
The AFV30D-S41251 serves as a Duplexed Field Control Unit within Yokogawa’s CENTUM VP distributed control system, managing and controlling field devices in industrial automation processes.
-
-
What are the power supply options available for this unit?
-
The unit supports multiple power supply options:
-
100-120 V AC, 50/60 Hz
-
220-240 V AC, 50/60 Hz
-
24 V DC
-
-
-
How many I/O modules can be installed in the AFV30D-S41251?
-
The unit supports up to 8 I/O modules, allowing for flexible system expansion.
-
-
What is the weight of the AFV30D model?
-
The AFV30D weighs 8 kg.
-
-
What are the dimensions of the AFV30D-S41251?
-
The unit is designed for 19-inch rack mounting, facilitating standard installation in control panels.
-
-
What communication interfaces does the unit support?
-
It features dual-redundant Vnet/IP interfaces for reliable network communication.
-
-
Is the processor module configuration redundant?
-
Yes, the unit supports a dual-redundant configuration for processor modules to enhance reliability.
-
-
How many ESB Bus Node Units can be connected to this FCU?
-
It can connect up to 13 ESB Bus Node Units (ANB10) or Optical ESB Bus Node Units (ANB11).
-
-
What is the operating temperature range of the AFV30D-S41251?
-
The unit operates within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for various industrial environments.
-
-
What is the memory protection feature of this unit?
-
The AFV30D-S41251 includes battery backup for main memory, providing protection during power failures for up to 72 hours, with a recharge time of at least 48 hours.
-
