Product Overview

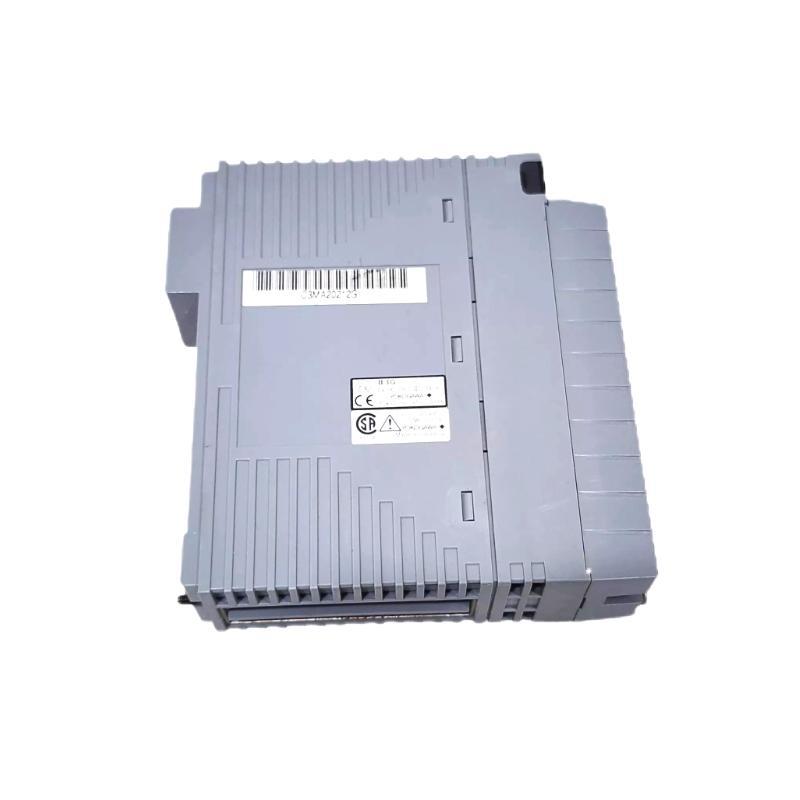

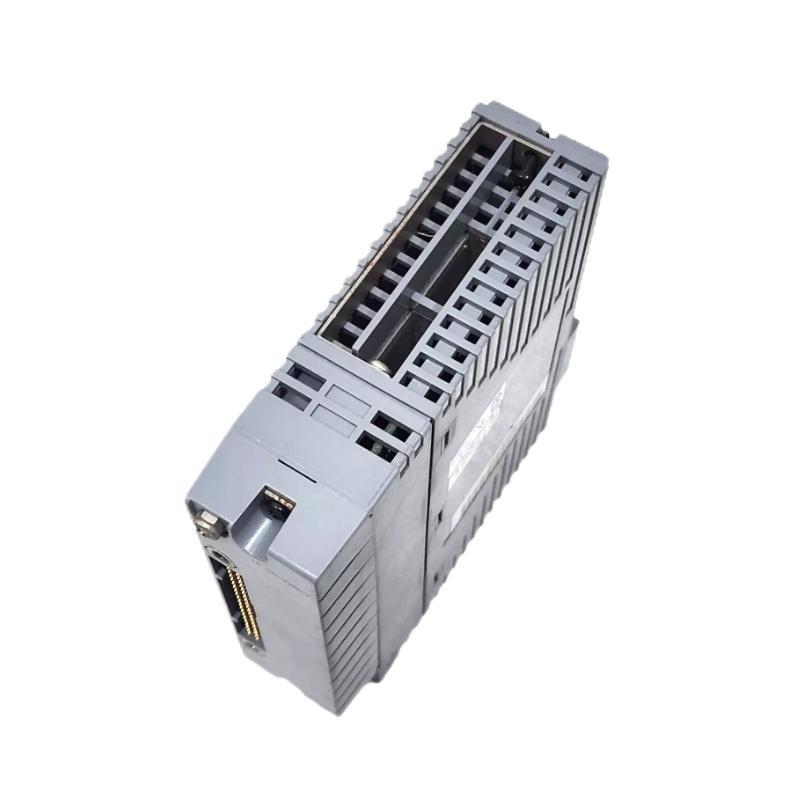

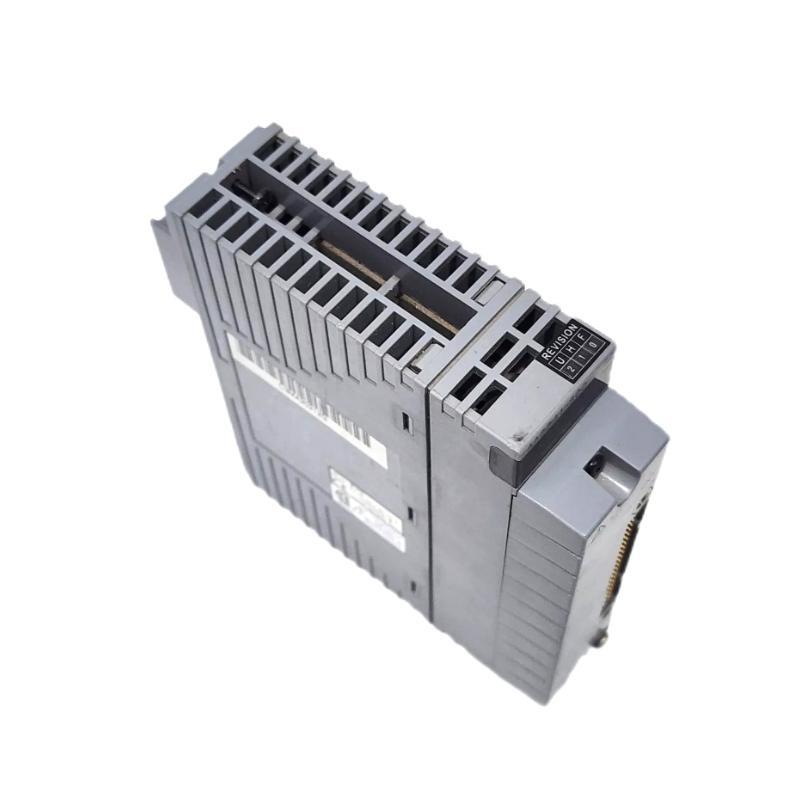

The Yokogawa AAB841-S00 is an analog input/output (I/O) module designed for integration within the Yokogawa CENTUM VP Distributed Control System (DCS). This module facilitates the seamless conversion and transmission of analog signals, enabling effective monitoring and control of various industrial processes. With its robust design and precise signal handling capabilities, the AAB841-S00 is well-suited for applications requiring reliable data acquisition and control.
Product Specifications
Below is a detailed table outlining the specifications of the Yokogawa AAB841-S00 module:
| Specification | Details |
|---|---|
| Model Number | AAB841-S00 |
| Product Type | Analog Input/Output Module |
| I/O Channels | 8-channel input / 8-channel output, non-isolated |
| Input Signal | 1 to 5 V (voltage), 4 to 20 mA (current) |
| Output Signal | 4 to 20 mA |
| Input Voltage Range | 1 to 5 V DC (allowable common mode voltage ±1 V or less) |
| Input Current Range | 4 to 20 mA DC |
| Allowable Input Voltage | ±7.5 V |
| Allowable Input Current | 25 mA |
| Power Supply | 14.8 V to 26.4 V DC |
| Accuracy | Input: ±4 mV; Output: ±48 µA |
| Data Update Period | 10 ms |
| Response Time | Input Step: 100 ms; Output Step: 40 ms |
| Temperature Drift | ±0.1% per 10 °C |
| Maximum Current Consumption | 310 mA (5 V DC); 250 mA (24 V DC) |
| Dimensions (H x W x D) | 107.5×32.8×130 mm |
| Weight | 0.3 kg |
| External Connections | Pressure clamp terminal; KS cable; MIL connector cable |
| HART Communication | Not available |
Product Applications
The Yokogawa AAB841-S00 module is utilized across various industrial sectors, including:
- Process Automation: Managing and controlling complex industrial processes to enhance efficiency and safety.
- Manufacturing: Coordinating machinery and production lines for optimized operations.
- Energy Management: Monitoring and controlling energy distribution systems to ensure reliable power supply.
- Safety Systems: Implementing fail-safe mechanisms in critical applications to prevent accidents and equipment damage.
Product Advantages
The Yokogawa AAB841-S00 module offers several key benefits:
- High Reliability: Designed to operate in demanding industrial environments with minimal downtime.
- Efficient Data Processing: Rapid data update periods and response times ensure timely signal handling.
- Scalability: Supports expansion with additional modules to accommodate growing system requirements.
- Comprehensive Diagnostics: Built-in diagnostic features facilitate quick identification and resolution of issues.
- Compatibility: Seamlessly integrates with Yokogawa’s CENTUM VP DCS and other automation systems.
Latest News Titles
- “Yokogawa Enhances Analog I/O Modules for Industrial Automation”
- “New Features in Yokogawa’s AAB841-S00 Module Boost Performance”
- “Yokogawa’s AAB841-S00 Module Gains Industry Certifications”
- “Industry Leaders Adopt Yokogawa’s Latest Analog I/O Technology”
- “Yokogawa Expands Its Automation Portfolio with New I/O Modules”
Frequently Asked Questions (FAQ)
-
What is the primary function of the Yokogawa AAB841-S00 module?
- It serves as an analog input/output module, facilitating the conversion and transmission of analog signals within industrial automation systems.
-
How many input and output channels does the module support?
- It supports 8 input channels and 8 output channels, all non-isolated.
-
What are the input signal ranges for this module?
- The module accepts voltage inputs of 1 to 5 V and current inputs of 4 to 20 mA.
-
What is the output signal range of the module?
- The output signal range is 4 to 20 mA.
-
What are the power supply requirements for the module?
- It requires a power supply ranging from 14.8 V to 26.4 V DC.
-
What is the accuracy of the input and output signals?
- The input accuracy is ±4 mV, and the output accuracy is ±48 µA.
-
What are the dimensions and weight of the module?
- The module measures 107.5×32.8×130 mm, with a weight of around 0.3 kg.
-
Does the module support HART communication?
- No, HART communication is not available for this module.
-
What is the data update period for the module?
- The data update period is 10 ms.
-
Can the module be used in redundant configurations?
- Yes, the module can be used in dual redundant configurations to enhance system reliability.
Recommended Models for Yokogawa AAB841-S00 Analog Input/Output Module
10 Related Models from the Same Series or Similar Category
| Model Number | Description | I/O Type | Channels | Special Features |
|---|---|---|---|---|
| AAB841-S00 | Analog Input/Output Module | Analog I/O | 8 In / 8 Out | High-accuracy signal processing |
| AAI143-H00 | Analog Input Module | Analog Input | 16 In | High-density input support |
| AAI841-H00 | Analog Input Module (HART) | Analog Input | 16 In | HART communication support |
| AAI835-H00 | High-Level Analog Input Module | Analog Input | 8 In | Supports redundant configurations |
| AAI841-S00 | Isolated Analog Input Module | Analog Input | 8 In | Fully isolated inputs |
| AAI835-S00 | Analog Input Module | Analog Input | 8 In | Compact design, enhanced accuracy |
| AAR181-S00 | Resistance Temperature Detector (RTD) Input Module | Temperature Input | 8 In | Supports multiple RTD types |
| ADV551-P00 | Analog Output Module | Analog Output | 8 Out | Precision signal output |
| AAI543-S00 | Multi-Channel Analog Input Module | Analog Input | 16 In | High-density, high-reliability input |
| ADV151-P50 | Digital Input Module | Digital Input | 32 In | High-speed signal processing |
10 Popular Models from the Yokogawa Brand
| Model Number | Description | Category | Channels | Key Features |
|---|---|---|---|---|
| AAB841-S00 | Analog Input/Output Module | Analog I/O | 8 In / 8 Out | Precise signal processing, industrial-grade |
| AAI135-H00 | Analog Input Module | Analog Input | 8 In | High-resolution input processing |
| ADV551-S00 | Analog Output Module | Analog Output | 8 Out | Precision signal transmission |
| AAI143-H00 | Analog Input Module | Analog Input | 16 In | High-channel density, low-noise design |
| AAI841-S00 | Analog Input Module | Analog Input | 8 In | Fully isolated inputs |
| ADV161-S00 | Digital Output Module | Digital Output | 32 Out | High-speed data transmission |
| AAR145-S00 | Temperature Input Module | Temperature Input | 8 In | RTD and thermocouple compatibility |
| AAI835-S00 | Analog Input Module | Analog Input | 8 In | Compact design, high-accuracy readings |
| ADV151-P50 | Digital Input Module | Digital Input | 32 In | High-speed processing capability |
| SAI533-S00 | Safety Analog Input Module | Safety Input | 8 In | Redundant safety input support |
