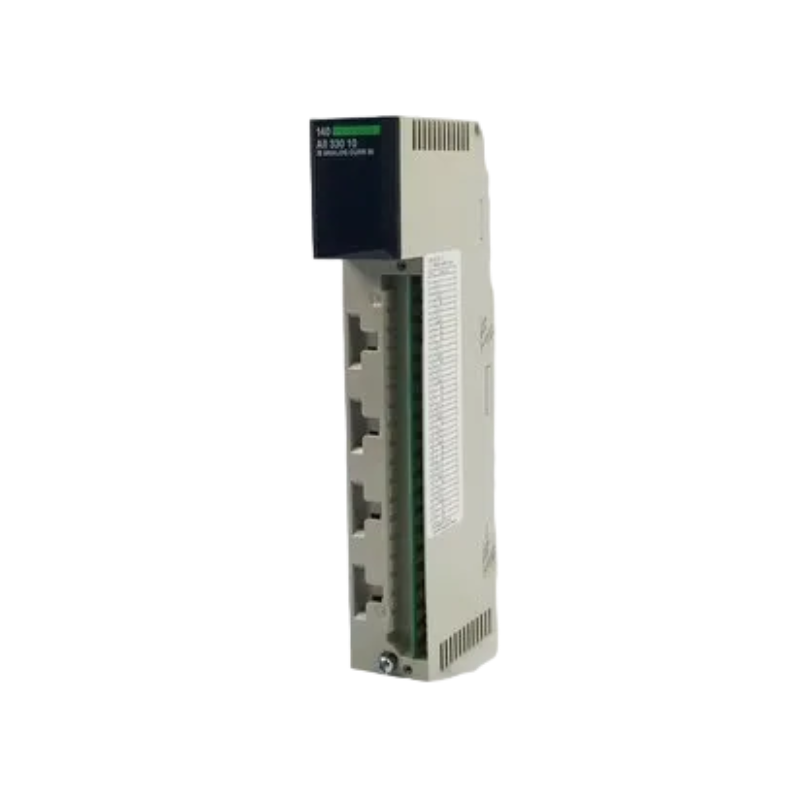

Product Introduction
The Schneider 140AII33010C is a high-performance Modicon Quantum automation controller module designed for industrial automation and control systems. It is part of Schneider Electric’s renowned Modicon Quantum series, known for reliability, scalability, and robust performance in harsh environments. This module serves as a communication interface or specialized I/O module, ensuring seamless integration into complex automation architectures.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 140AII33010C |
| Series | Modicon Quantum |
| Type | Analog Input Module |
| Input Channels | 16 channels (configurable) |
| Input Signal Range | 0-20mA, 4-20mA, ±10V, etc. (software-selectable) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-ground |
| Communication | Backplane via Quantum bus |
| Power Supply | 5V DC (from backplane) |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 50x 165x 310mm |
| Weight | 0.8 kg |
| Certifications | CE, UL, IEC standards |
Applications
The 140AII33010C is widely used in industrial automation scenarios, including:
-
Process Control Systems: Monitoring analog signals (e.g., pressure, temperature, flow rates).
-
Manufacturing Automation: Integration into PLC-based control systems for precision measurement.
-
Energy Management: Data acquisition for power distribution systems.
-
Water/Wastewater Treatment: Sensor signal processing for pumps and valves.
-
Oil & Gas: Harsh-environment applications due to rugged design.
Product Advantages
-
High Precision: 16-bit resolution ensures accurate analog signal conversion.
-
Flexibility: Supports multiple input ranges (current/voltage) with software configuration.
-
Robust Design: Built to withstand industrial environments (wide temperature range, high noise immunity).
-
Seamless Integration: Compatible with Modicon Quantum backplane and Schneider’s Unity Pro software.
-
Scalability: Part of a modular system, allowing expansion with additional I/O modules.
-
Safety Compliance: Meets international standards (CE, UL) for industrial safety.
Frequently Asked Questions (FAQ)
-
What is the purpose of the 140AII33010C module?
It is an analog input module for converting sensor signals (e.g., 4-20mA) into digital data for PLC processing. -
Can this module be used in hazardous environments?
Yes, it is designed for industrial settings but verify specific certifications for hazardous areas. -
How many channels are configurable per module?
16 channels, each independently configurable for current or voltage input. -
What software is required for configuration?
Schneider’s Unity Pro or Control Expert software. -
Is isolation provided between channels?
Yes, channel-to-channel and channel-to-ground isolation is included. -
What is the operating voltage?
5V DC supplied via the Quantum backplane. -
Can it handle high-frequency noise?
Yes, it includes noise filtering for stable performance. -
What is the typical response time?
<10ms per channel (varies based on configuration). -
Is hot-swapping supported?
No, power must be cycled to install/remove the module. -
Where can I find the wiring diagram?
Refer to the Schneider Electric documentation (DOCA0100EN).
