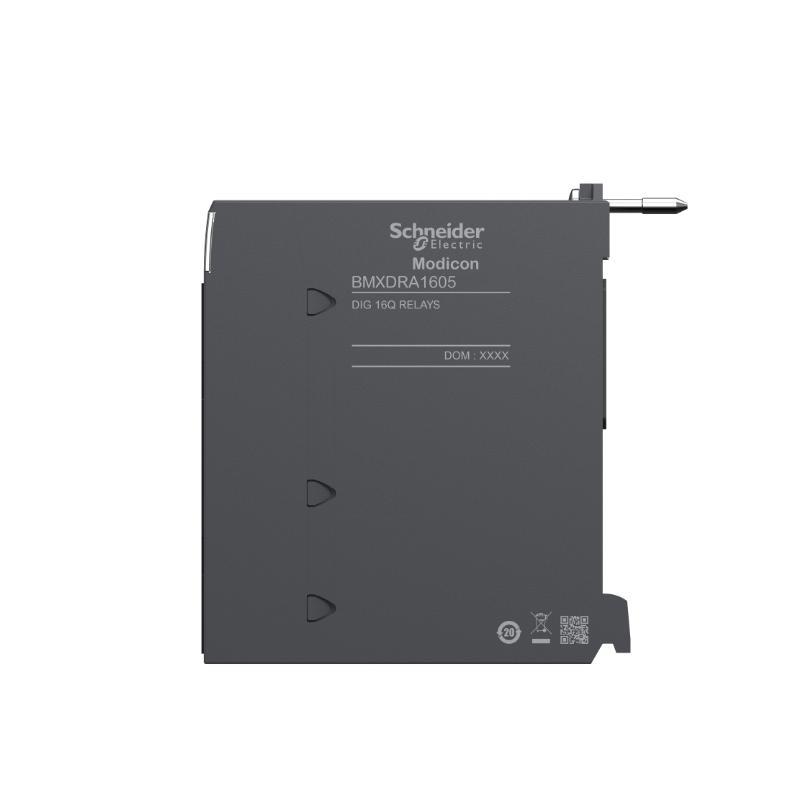

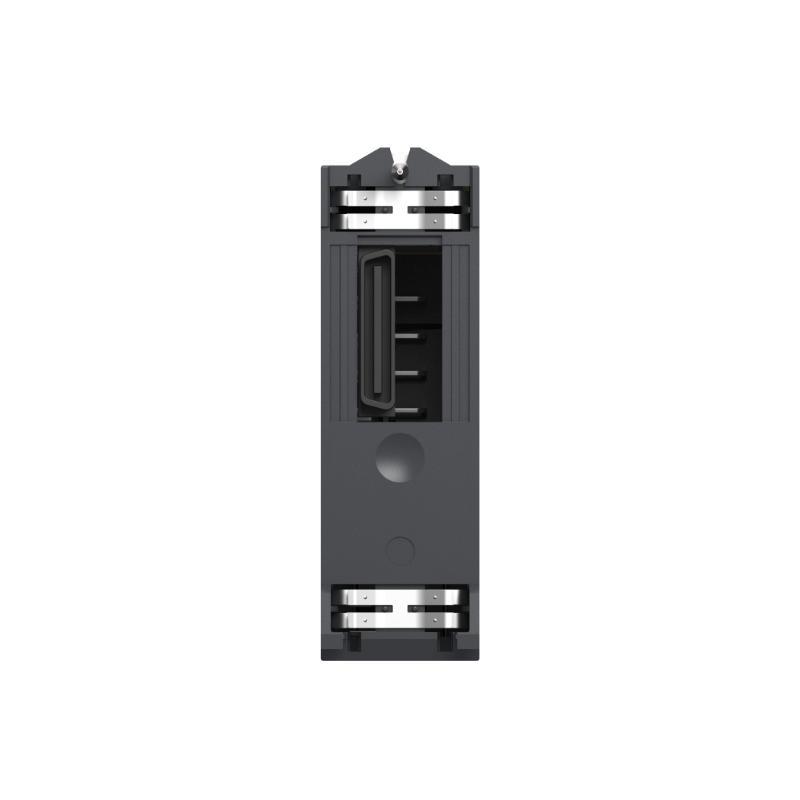

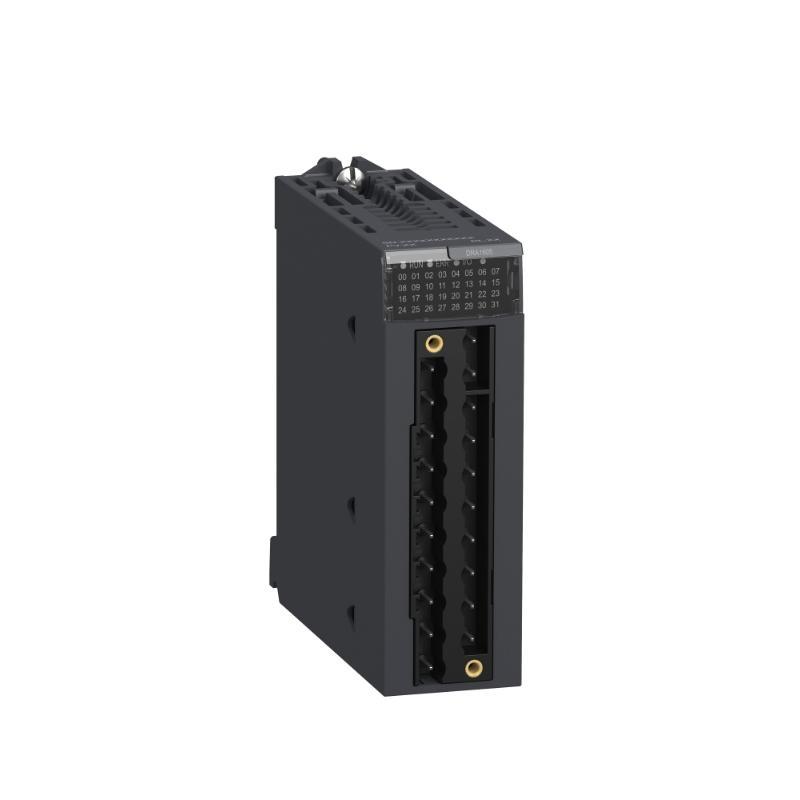

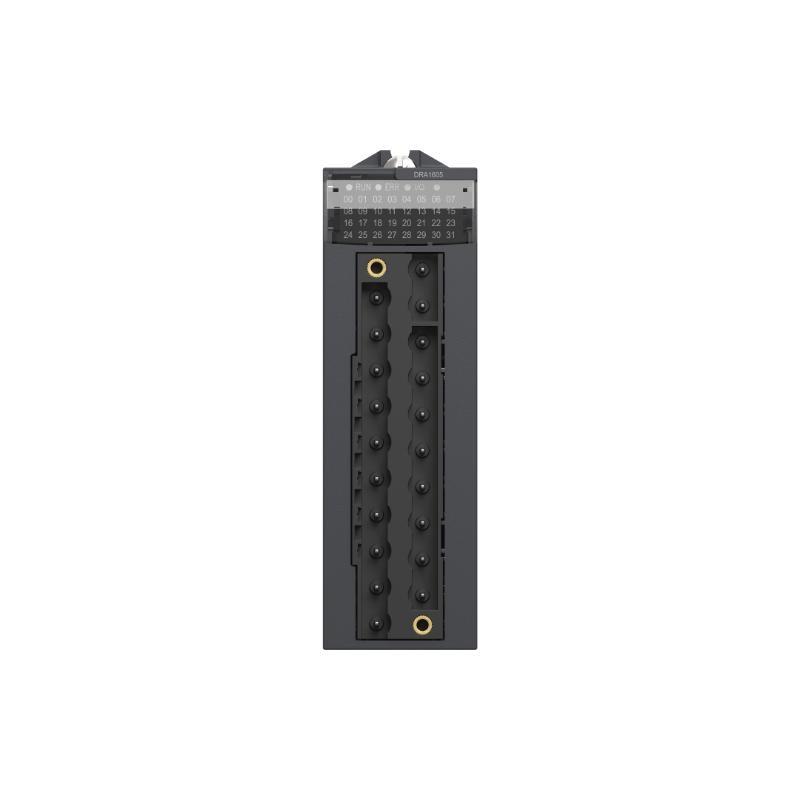

Product Introduction
The Schneider BMXDRA1605 is a 16-channel discrete relay output module designed for use with Modicon X80 I/O systems. This module provides versatile and reliable relay switching for industrial automation applications, supporting both AC and DC loads. It is particularly well-suited for applications requiring high electrical isolation and flexible switching capabilities, such as industrial manufacturing, energy systems, water treatment, and building automation.
Built to meet the demanding requirements of modern industrial control systems, the BMXDRA1605 integrates seamlessly with Modicon M340 and M580 PLCs, providing scalability and efficient control. Its compact design, high relay endurance, and robust build quality make it a preferred choice for engineers and system integrators.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Series | Modicon X80 |
| Model | BMXDRA1605 |
| Type | Discrete Relay Output Module |
| Number of Outputs | 16 (Relay Outputs) |
| Output Type | Normally Open (NO) |
| Operating Voltage | 24VDC / 115-230VAC |
| Maximum Output Current | 2A per output (AC), 2A per output (DC) |
| Response Time | 10 ms (ON), 10 ms (OFF) |
| Relay Type | Electromechanical |
| Electrical Isolation | 2500V between channels and logic ground |
| Status Indicators | LED indicators for each output |
| Wiring Connection | Removable screw terminal block |
| Module Dimensions | 160 x 100 x 35 mm |
| Weight | 0.15 kg |
| Power Consumption | 3.0 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Certifications | CE, UL, CSA, RoHS |
Applications
The Schneider BMXDRA1605 module is used in a variety of industrial automation and control applications, including:
-
Manufacturing Automation – Controls actuators, solenoids, and small motors in production lines.
-
Building Management Systems (BMS) – Operates HVAC controls, lighting systems, and security devices.
-
Water and Wastewater Treatment – Manages pumps, valves, and treatment processes.
-
Power and Energy Systems – Supervises circuit breakers, generators, and load switching.
-
Material Handling and Logistics – Integrates with conveyor belts, robotic arms, and sorting systems.
-
Transportation and Traffic Control – Used in railway signaling, automated toll gates, and traffic light control.
Advantages of Schneider BMXDRA1605
-
Versatile Voltage Support – Works with both DC (24V) and AC (115-230V) loads, increasing application flexibility.
-
High Output Current Capacity – Each output can handle 2A per channel, supporting medium-power loads.
-
Robust Relay Performance – Uses high-quality electromechanical relays for reliable operation and long lifespan.
-
Quick Response Time – With a 10 ms switching speed, it minimizes delay in control applications.
-
Superior Electrical Isolation – 2500V isolation ensures safety and reliability in high-voltage environments.
-
Built-in Status Indicators – Each output is equipped with an LED indicator for easy troubleshooting.
-
Compact and Durable Design – The module is rugged and compact, allowing easy installation in industrial control panels.
-
Seamless PLC Integration – Designed specifically for Modicon M340 and M580 PLCs, ensuring smooth communication.
Latest News and Updates
-
“Schneider Electric Expands Modicon X80 Series with New Relay Output Modules” – Industrial Automation Review
-
“BMXDRA1605: How It’s Revolutionizing Industrial Relay Switching” – Manufacturing Today
-
“Enhancing Energy Efficiency with Modicon X80 Series I/O Modules” – Smart Factory Insights
-
“Top Industrial I/O Modules for 2025: BMXDRA1605 in Focus” – Automation Engineering Magazine
Frequently Asked Questions (FAQ)
-
What is the maximum output current for each channel on the BMXDRA1605?
-
Each output can handle up to 2A for both AC and DC loads.
-
-
Can this module be used for both AC and DC circuits?
-
Yes, the BMXDRA1605 is compatible with 24VDC and 115-230VAC applications.
-
-
What type of relay contacts does this module use?
-
It features Normally Open (NO) electromechanical relays.
-
-
Does this module provide electrical isolation?
-
Yes, the module provides 2500V isolation between output channels and logic ground.
-
-
How does the module indicate output status?
-
Each output is equipped with an LED status indicator for easy monitoring.
-
-
Which PLC systems is this module compatible with?
-
It is fully compatible with Modicon M340 and M580 PLC systems.
-
-
What is the relay switching speed?
-
The module has a 10 ms response time for both ON and OFF states.
-
-
What type of wiring connection does this module use?
-
It uses a removable screw terminal block for secure connections.
-
-
What is the operating temperature range?
-
The module operates between 0°C and 60°C (32°F to 140°F).
-
-
Is the BMXDRA1605 certified for industrial use?
-
Yes, it carries CE, UL, CSA, and RoHS certifications.
-
Related Modicon X80 Series Models
| Model | Number of Outputs | Voltage Range | Max Current per Output | Features |
|---|---|---|---|---|
| BMXDRA0815 | 8 | 24VDC / 115-230VAC | 3A (AC), 2A (DC) | Relay output, NO contacts |
| BMXDDO1602 | 16 | 24VDC | 0.5A | Transistor output module |
| BMXDDO3202 | 32 | 24VDC | 0.1A | High-density digital output |
| BMXDRA1605 | 16 | 24VDC / 115-230VAC | 2A | Relay output with isolated channels |
| BMXAMI0800 | 8 | Analog | N/A | Analog input module |
| BMXCPS2000 | Power Supply | 24VDC | 20W | Modicon X80 power module |
| BMXEIA0100 | Communication Module | Ethernet | N/A | Ethernet/IP connectivity |
| BMXART0414 | 4 | Analog | N/A | Analog output module |
Popular Schneider Electric Models
| Model | Type | Voltage Range | Features |
|---|---|---|---|
| TM241CE24T | Logic Controller | 24VDC | Compact PLC for machine automation |
| TM241C40R | Logic Controller | 100-240VAC | Large I/O PLC with relay outputs |
| ATS48D32Q | Soft Starter | 230-415V | Motor soft start with torque control |
| Altivar 320 | Variable Frequency Drive | 380-480V | AC motor speed control |
| Modicon M580 | PLC Controller | 24VDC | High-performance industrial controller |
| Zelio SR3B101BD | Smart Relay | 12-24VDC | Compact programmable relay |
| LXM32MD72N4 | Servo Drive | 480V | Motion control for automation |
| BMXDDI1603 | Discrete Input Module | 24VDC | 16-channel digital input |
