Product Overview

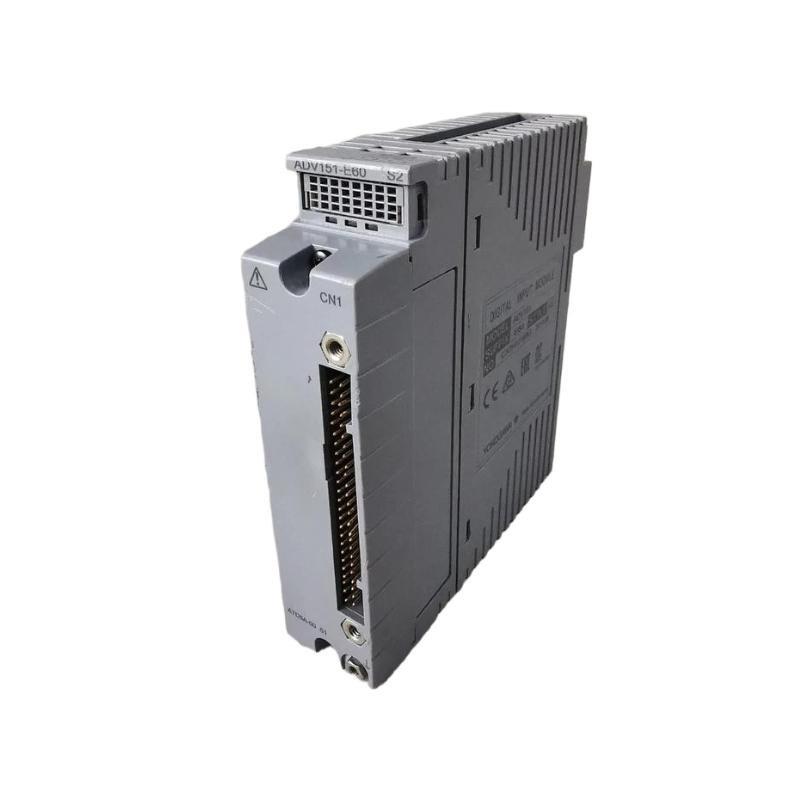

The Yokogawa ADV151-E60 S2 is a 16-channel digital input module designed for high-speed, high-reliability operation within Yokogawa’s CENTUM VP and ProSafe-RS systems. This module accepts discrete signals from field devices such as limit switches, proximity sensors, and pushbuttons. It features robust electrical isolation, diagnostic capabilities, and excellent noise immunity, ensuring consistent performance in demanding industrial environments.
Key Features
-
16-channel digital input (sink/source type)
-
High-speed signal processing suitable for fast control cycles
-
Channel-to-channel and channel-to-ground isolation
-
Input signal status monitoring and diagnostics
-
Hot-swappable design for minimal system downtime
-
Direct integration with CENTUM VP and ProSafe-RS platforms
-
Conforms to IEC, CE, and other international standards
-
Designed for use in safety instrumented applications (SIL-ready)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV151-E60 S2 |
| Module Type | Digital Input Module |
| Number of Channels | 16 isolated digital inputs |
| Input Signal Type | 24 V DC (sink/source type compatible) |
| Input Voltage Range | 18 to 30 V DC |
| Input Current | Approx. 4 mA at 24 V DC |
| Isolation | Channel-to-channel and channel-to-ground |
| Signal Status Detection | Logic 1: ≥ 18 V, Logic 0: ≤ 5 V |
| Response Time | Typically ≤ 2 ms |
| Diagnostics | Line break detection, signal abnormality |
| Hot Swap Capability | Supported |
| Mounting Type | Mounted on FIO base unit |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Certifications | CE, KC, RoHS, SIL (with ProSafe-RS integration) |
Industry Applications
-
Emergency shutdown systems (ESD)
-
Oil and gas processing facilities
-
Power generation and energy management
-
Chemical plant control systems
-
Food and beverage process automation
-
Pharmaceutical manufacturing environments
-
Water and wastewater treatment plants
-
Safety instrumented systems (SIS) with SIL compliance
Frequently Asked Questions (FAQ)
-
What is the purpose of the ADV151-E60 S2 module?
It is used to receive digital input signals (on/off) from field devices such as sensors or switches. -
How many digital input channels does it support?
It has 16 isolated digital input channels. -
What is the voltage range for input signals?
18–30 V DC, with a typical nominal value of 24 V DC. -
Does the module support hot-swapping?
Yes, it can be replaced without shutting down the system. -
What kind of diagnostic features are included?
It supports line break detection and abnormal signal diagnostics. -
Is it compatible with both sinking and sourcing input types?
Yes, the module supports both sink and source configurations. -
Can it be used in SIL-rated applications?
Yes, it is suitable for SIL environments when integrated with ProSafe-RS. -
What is the module’s typical response time?
The response time is typically less than 2 milliseconds. -
Does it require an external power supply?
Power is provided via the FIO base unit. -
Which systems is it designed for?
It is specifically designed for Yokogawa’s CENTUM VP and ProSafe-RS systems.
Related Modules
| Model Number | Description |
|---|---|
| ADV151-P03 | Standard 16-channel Digital Input Module |
| ADV151-E60 S1 | Earlier version of this digital input module |
| ADV561-P00 S2 | 16-channel Digital Output Module |
| AAI143-S03 S1 | 16-channel Analog Input Module |
| ADV141-P00 | 8-channel Digital Input Module |
| AAI543-H00 S1 | 8-channel Analog Output Module (HART) |
Popular Yokogawa Modules
| Model Number | Description |
|---|---|
| AAI143-S53 S1 | 16-channel Analog Input Module (isolated) |
| ADV561-P00 S2 | 16-channel Digital Output Module |
| AAI543-H00 S1 | 8-channel Analog Output Module with HART support |
| ALR121-S53 S1 | Serial Communication Module |
| ALE111-S51 S1 | Ethernet Communication Module |
| AAI543-S00 S1 | 8-channel Analog Output Module (non-HART) |
