Product Introduction

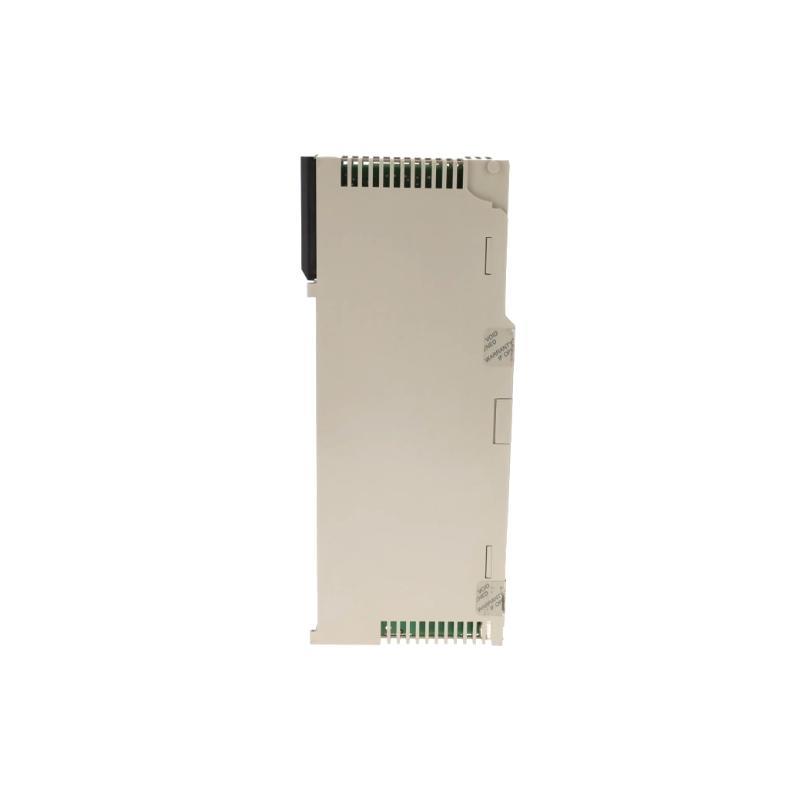

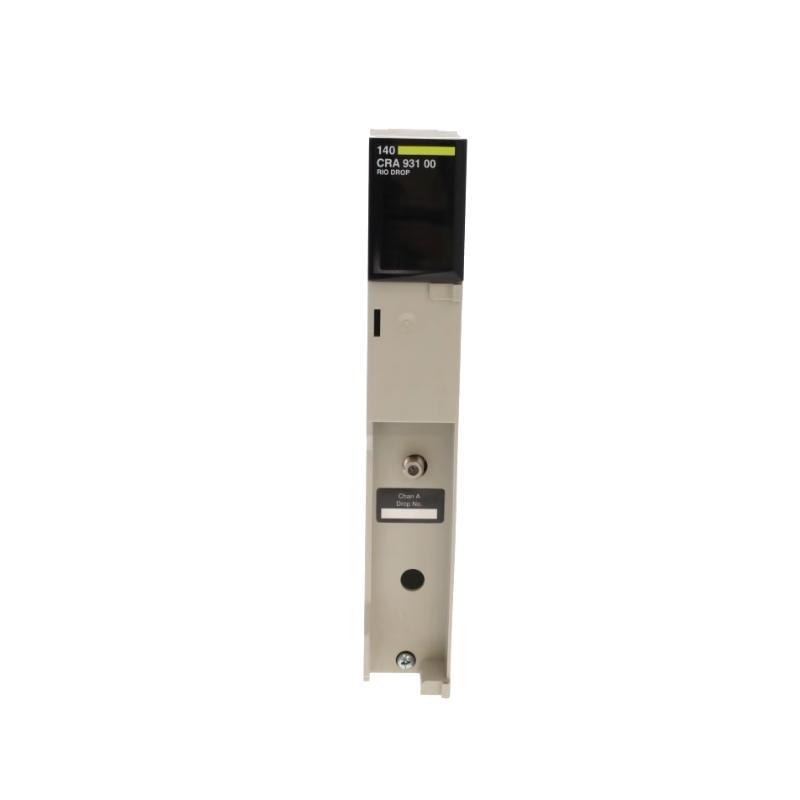

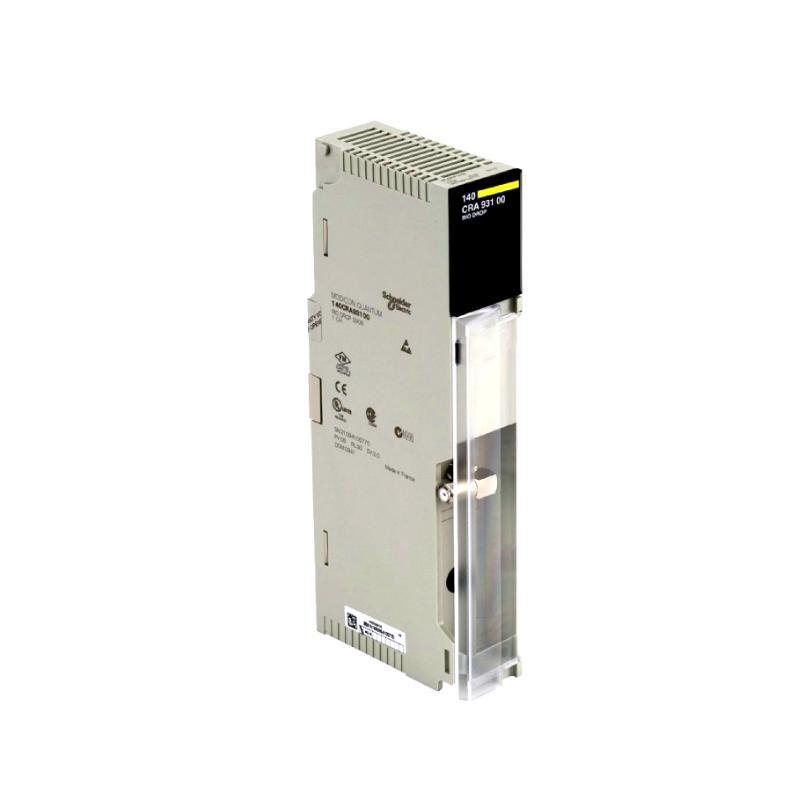

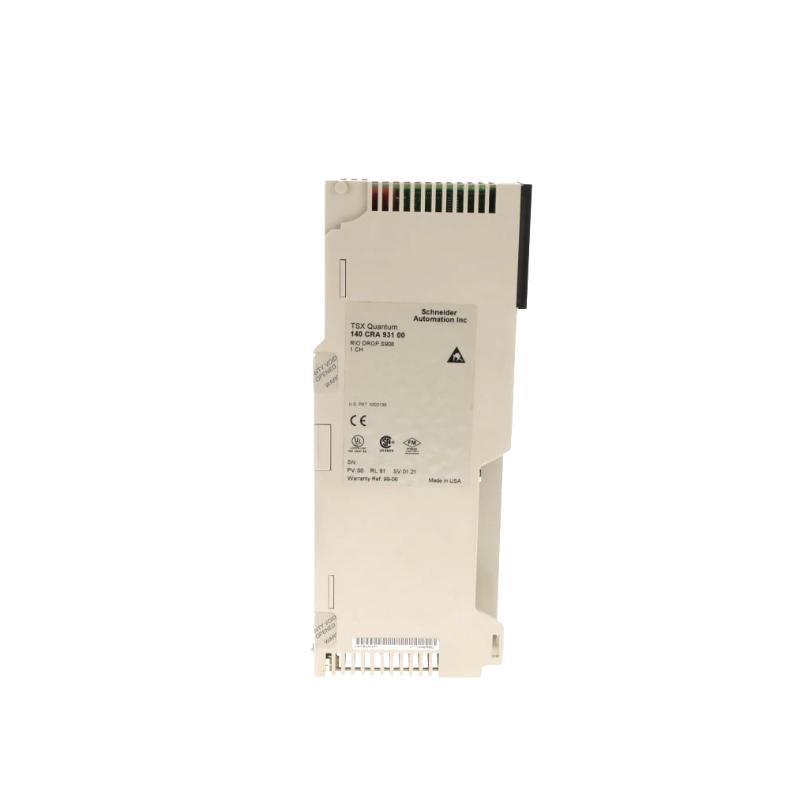

The Schneider Electric 140CRA93100 RIO Drop Adaptor Module is a vital component designed for seamless communication between the field devices and the control system in automation processes. It provides a reliable interface for connecting various devices to the control system through remote I/O. The module is highly flexible and supports a range of communication protocols, ensuring compatibility with different field devices and systems. It’s ideal for use in industrial automation, offering efficient data exchange and improving overall system performance.
Product Specifications
| Specification | Details |
|---|---|
| Model | 140CRA93100 |
| Type | RIO Drop Adaptor Module |
| Communication Protocol | Remote I/O (RIO) |
| Power Supply | 24 V DC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 47 x 165 x 310 mm |
| Weight | 0.509 kg |
| Mounting Type | Rail Mount |
| Input/Output Channels | 16 I/O Channels |
| Compatibility | Modicon Quantum |
| Environmental Protection | IP20 |
| LED Indicators | Yes (Status LEDs) |
Product Applications
The Schneider 140CRA93100 RIO Drop Adaptor Module is primarily used in industrial environments that require integration of field devices with a centralized control system. It is often applied in:
-
Manufacturing Automation: To facilitate real-time data communication between various machines, sensors, and controllers.
-
Process Control: Ensures smooth interaction between field devices and control systems, improving overall plant efficiency and monitoring capabilities.
-
Energy Management Systems: Supports the integration of remote monitoring and control devices to optimize energy usage.
-
Infrastructure Projects: Used in large-scale projects where communication between distributed equipment is necessary.
Product Advantages
-
Scalability: Supports the addition of more I/O modules, enabling easy expansion of systems.
-
Reliability: High-performance components ensure stable operation under varying industrial conditions.
-
Ease of Integration: Seamless compatibility with existing Schneider Electric systems, reducing the complexity of integration.
-
Compact Design: The module’s small form factor makes it easy to install and minimizes space requirements in control panels.
-
Energy Efficiency: Consumes minimal power, making it a cost-effective solution for long-term use.
-
Robust Construction: Designed for use in harsh environments with high protection standards.
FAQ (Frequently Asked Questions)
-
What is the purpose of the Schneider 140CRA93100 RIO Drop Adaptor Module?
-
The module is designed to facilitate communication between field devices and control systems in industrial automation.
-
-
How many input/output channels does the module support?
-
The module supports up to 16 I/O channels.
-
-
What is the operating temperature range of the module?
-
The module operates between -20°C and +60°C.
-
-
What communication protocol does the module use?
-
It uses Remote I/O (RIO) protocol for data communication.
-
-
Is the 140CRA93100 module compatible with other Schneider Electric products?
-
Yes, it is compatible with Modicon Quantum systems and other Schneider Electric controllers.
-
-
How does the module help in automation systems?
-
It enables remote communication with field devices, improving system performance and simplifying data acquisition.
-
-
Can the module be used in outdoor environments?
-
It is not designed for outdoor use, as it has an IP20 rating, which provides protection against dust and moisture but not against direct exposure to water.
-
-
What kind of mounting does the module require?
-
The module can be mounted on a standard rail.
-
-
How does the module handle power requirements?
-
The module operates on a 24 V DC power supply.
-
-
What makes this module energy-efficient?
-
The module is designed to consume minimal power, reducing operational costs over time.
-
Related Models from the Same Series or Similar Series
| Model | Description | I/O Channels | Compatibility |
|---|---|---|---|
| 140CRA93101 | Extended RIO Drop Adaptor Module | 32 I/O Channels | Modicon Quantum |
| 140CRA93102 | High-performance RIO Drop Adaptor with enhanced I/O | 64 I/O Channels | Modicon Quantum |
| 140CRA93103 | Advanced RIO Drop Adaptor with extended range | 48 I/O Channels | Modicon Quantum |
| 140CRA93104 | Modular RIO Drop Adaptor with increased flexibility | 40 I/O Channels | Modicon Quantum |
| 140CRA93105 | RIO Drop Adaptor with added diagnostic features | 16 I/O Channels | Modicon Quantum |
| 140CRA93106 | Compact RIO Drop Adaptor for small-scale systems | 24 I/O Channels | Modicon Quantum |
