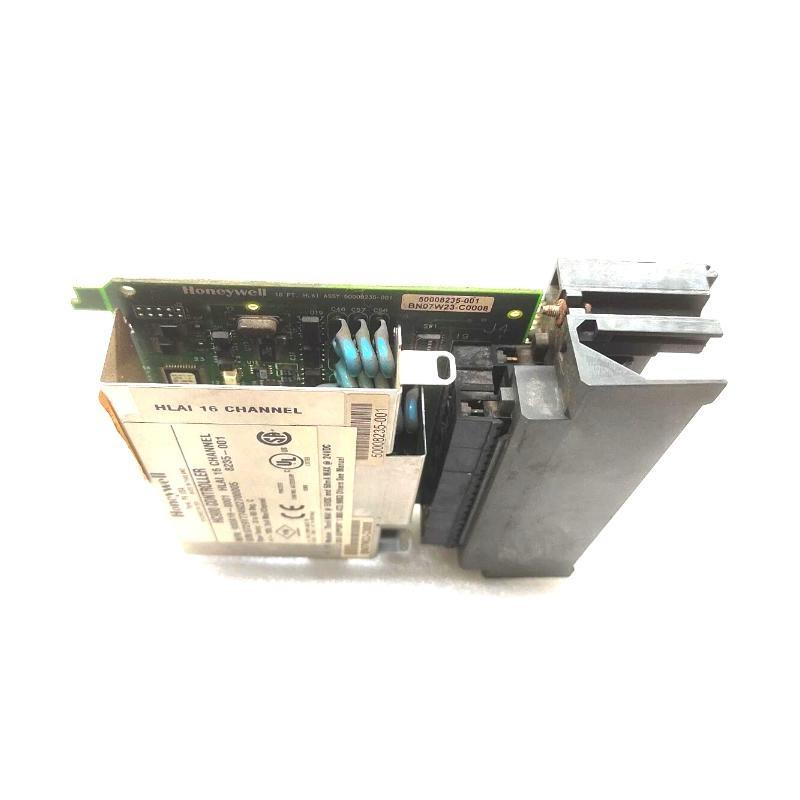

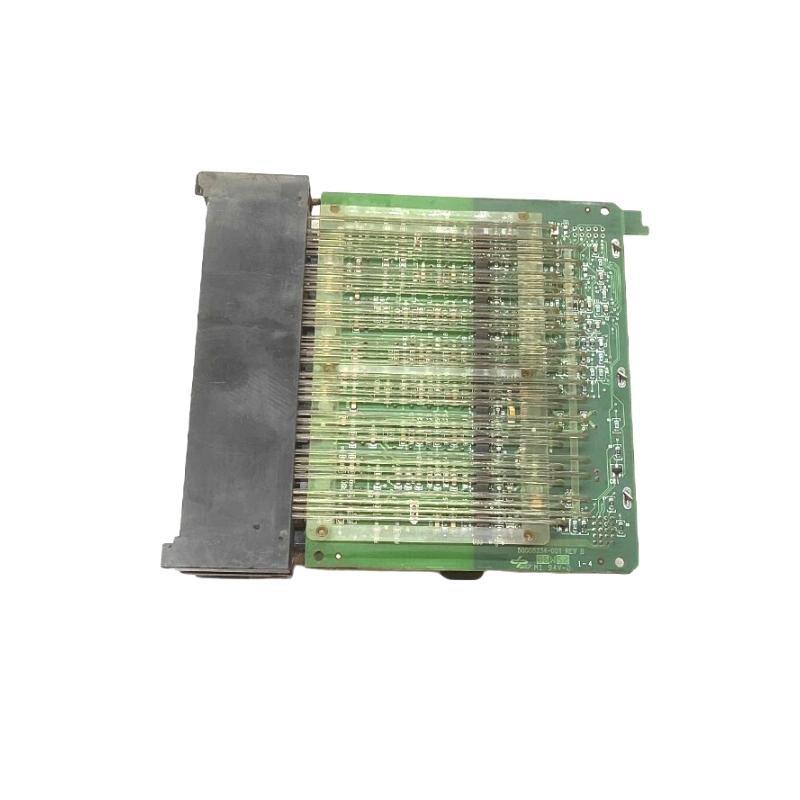

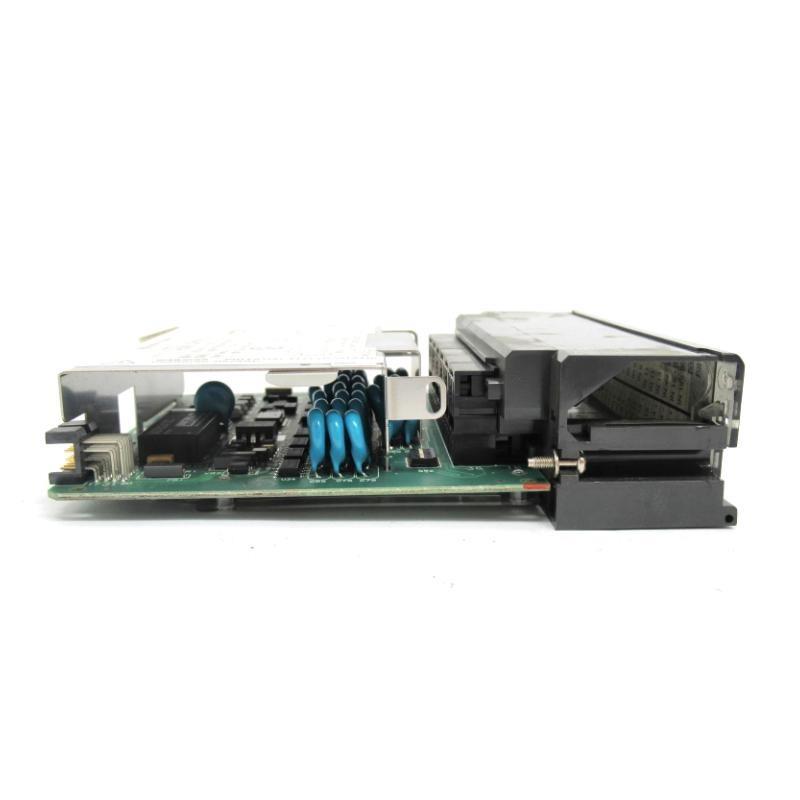

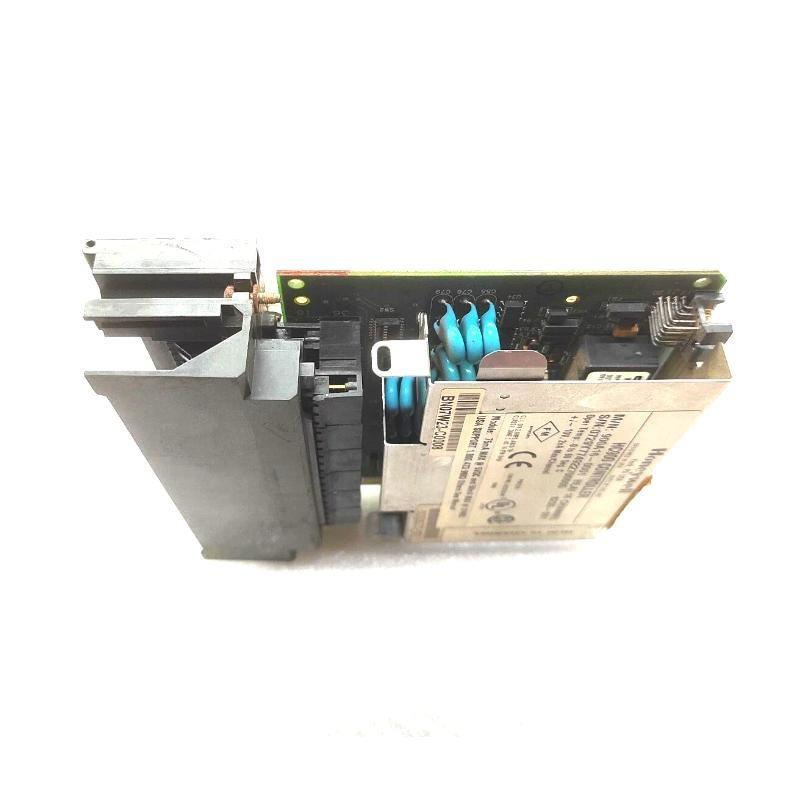

Product Overview
The Honeywell 900A16-0106 is a High-Level Analog Input Module for the ControlEdge HC900 automation system. It supports 16 isolated inputs, each configurable for voltage or current, and is designed for high accuracy, fast update rate, and robust galvanic isolation, making it suitable for critical process monitoring and control applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 900A16-0106 |
| Input Channels | 16 isolated analog inputs |
| Input Types | Voltage (V), Current (mA) |
| Accuracy | ±0.1% of range (factory), ±0.05% (field calibration) |
| A/D Resolution | 15 bits |
| Update Rate | 100 ms per module |
| Input Impedance | >1 MΩ for voltage, 250 Ω for current |
| Isolation | 400 VDC point-to-point, 1 kV to logic |
| Shunt Resistors | Integrated, selectable per channel |
| Status Indicators | Green (OK), Amber (Forced), Red (Fault) |
| Power Requirement (5V) | 75 mA max |
| Power Requirement (24V) | 50 mA max |
| Dimensions (H x W x D) | 137 × 35.6 × 137.16 mm |
| Weight | 0.397 kg |
| Terminal Block | Euro style, 36-position required |
Applications
-
Chemical and pharmaceutical process control
-
Temperature and pressure monitoring in industrial systems
-
Oil & gas pipeline instrumentation
-
Energy plant analog data acquisition
-
Water/wastewater monitoring systems
-
Food and beverage production automation
Product Advantages
-
High Channel Density: 16 analog inputs in a single compact module
-
Universal Configuration: Supports both voltage and current inputs
-
Field Calibration: Each channel supports on-site calibration
-
Reliable Isolation: Enhanced galvanic isolation reduces ground loop issues
-
Quick Replacement: Hot-swappable under power without controller shutdown
-
Integrated Shunt Resistors: No external components required
FAQ
Q1: How many channels does the 900A16-0106 module support?
A1: It supports 16 isolated analog input channels.
Q2: What types of signals are accepted by this module?
A2: It accepts voltage and current signals (V, mA).
Q3: Is the module hot-swappable?
A3: Yes, it can be inserted or removed under power.
Q4: What is the isolation rating?
A4: 400 VDC point-to-point and 1000 VDC to logic.
Q5: What is the module’s default accuracy?
A5: Factory accuracy is ±0.1% of full range; field calibration improves it to ±0.05%.
Q6: Does it require an external shunt resistor for mA inputs?
A6: No, each channel includes an integrated, switchable 250 Ω shunt resistor.
Q7: What terminal block is required?
A7: A Euro style 36-terminal block is needed.
Q8: How frequently does the module update input data?
A8: Every 100 ms per module.
Q9: Can the module detect input faults?
A9: Yes, red status LEDs indicate diagnostic issues.
Q10: Is it compatible with HC900 safety systems?
A10: Yes, it is designed for the HC900 platform and supports failsafe behavior.
