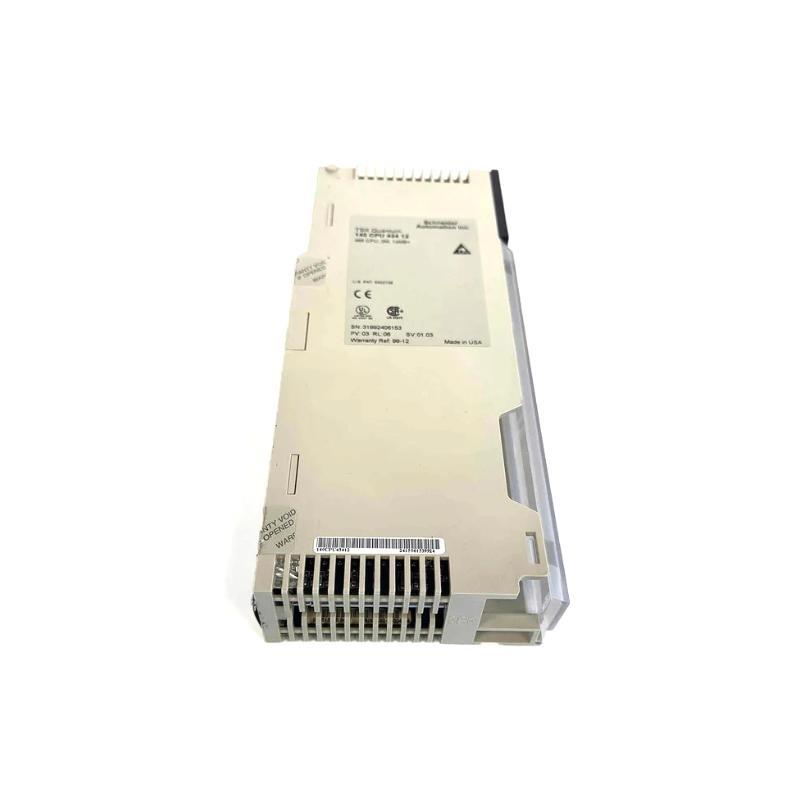

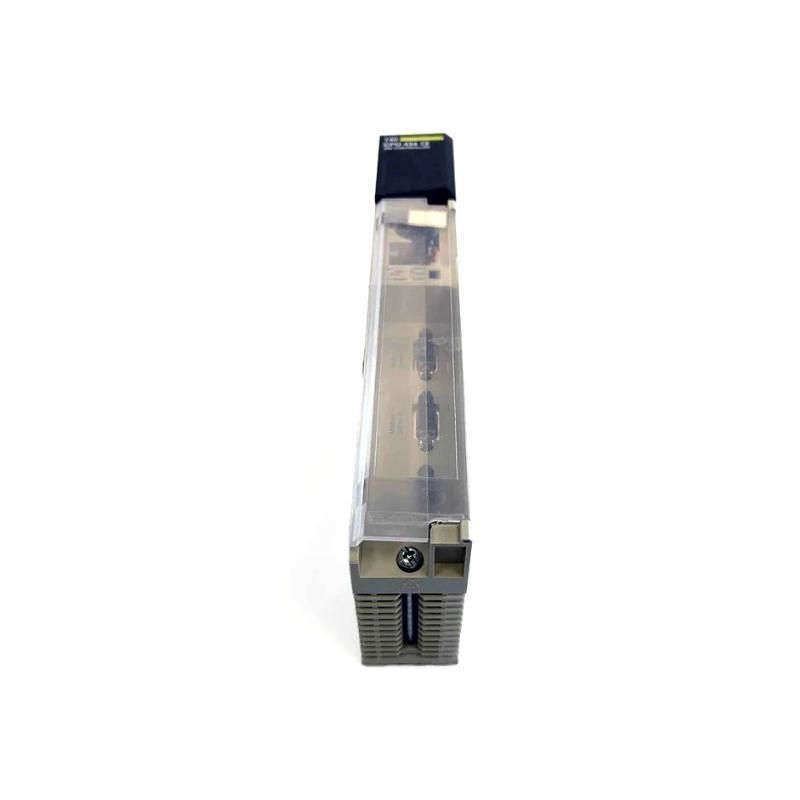

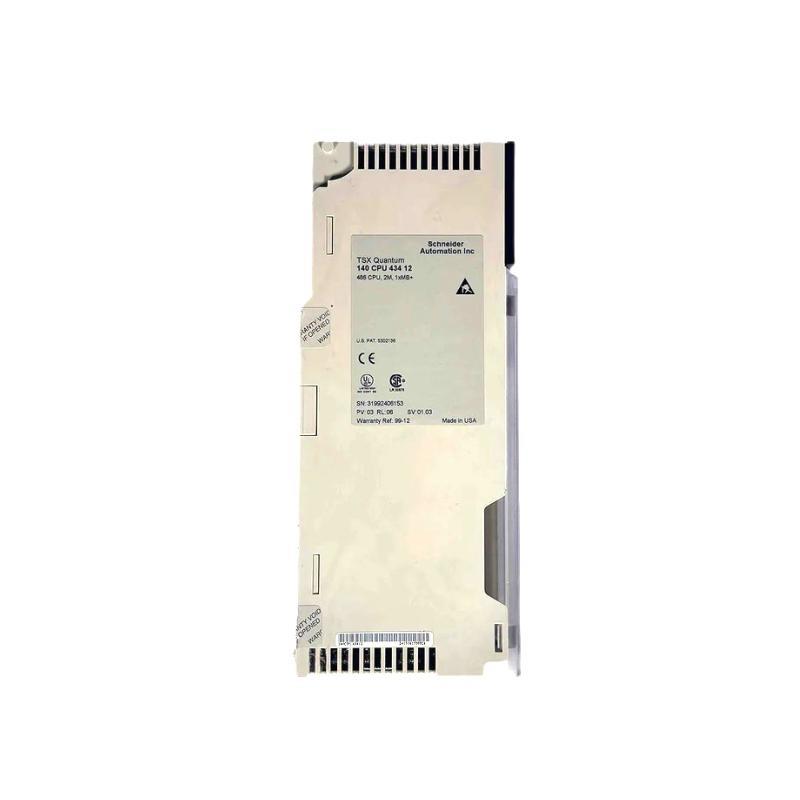

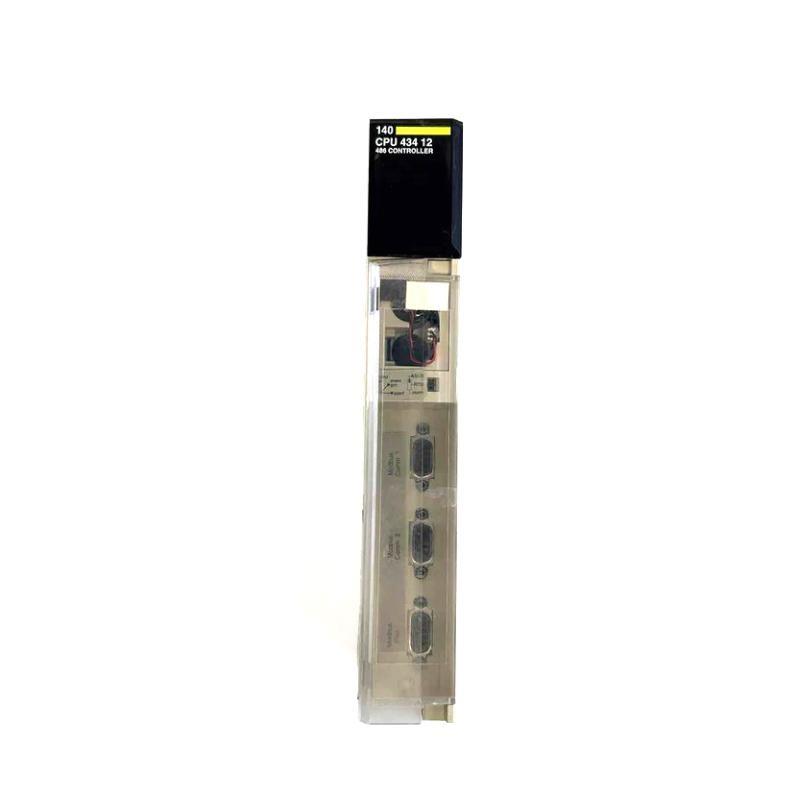

Product Introduction
The Schneider 140CPU43412 Unity Processor is a versatile, high-performance programmable logic controller (PLC) designed for industrial automation and control systems. As part of Schneider Electric’s Modicon Quantum series, the Unity Processor integrates seamlessly into the Modicon platform, offering a robust and scalable solution for various applications. This processor is optimized for applications requiring high-speed control, data processing, and complex communication tasks, making it ideal for industries such as manufacturing, energy, water treatment, and more.
The 140CPU43412 Unity Processor is built to handle demanding control operations, featuring high-speed processing, expanded memory capacity, and advanced communication capabilities. It supports a wide range of I/O configurations, making it suitable for both small and large-scale systems. The Unity Processor’s efficient design and high reliability ensure minimal downtime, helping businesses enhance their operational efficiency.
Product Specifications
The following table summarizes the key specifications of the Schneider 140CPU43412 Unity Processor:
| Specification | Details |
|---|---|
| Model Number | 140CPU43412 |
| Processor Type | Unity Processor |
| Operating System | Unity Pro |
| Memory | 1 MB RAM, 32 MB Flash Memory |
| Processing Speed | 200 ns per instruction cycle |
| CPU Type | Dual-Core Processor |
| I/O Capacity | Supports up to 16,000 I/O points |
| Communication Ports | 2 x Ethernet, 1 x Serial, 2 x USB |
| Power Supply | 24V DC |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (L x W x H) | 103.9 × 40.3 × 250 mm |
| Weight | 0.64 kg |
| Mounting Type | DIN Rail Mountable |
| Protocol Support | Modbus TCP/IP, Modbus RTU, Ethernet/IP |
Applications
The Schneider 140CPU43412 Unity Processor is designed for a wide array of industrial automation applications. Its powerful performance and versatility make it suitable for:
- Manufacturing: Control of automated production lines, assembly systems, and process control in industries such as automotive, consumer goods, and packaging.
- Energy Management: Control and optimization of energy consumption in power plants, substations, and renewable energy systems.
- Water Treatment: Efficient monitoring and control of water and wastewater treatment plants, including pumping stations, filtration systems, and chemical dosing.
- Building Automation: Integration into building management systems for controlling HVAC, lighting, and security systems.
- Oil and Gas: Application in drilling, extraction, and refinery operations for precise control and monitoring of processes.
- Transport and Infrastructure: Control of traffic management systems, railway signaling, and other critical infrastructure operations.
- Industrial Equipment: Monitoring and controlling complex machinery and equipment in a wide range of industries.
Advantages
The Schneider 140CPU43412 Unity Processor offers several advantages that make it an excellent choice for automation and control systems:
- High Performance: With a dual-core processor and fast processing speeds (200 ns per cycle), the Unity Processor delivers real-time control and data processing, ensuring quick response times in dynamic environments.
- Scalability: Supports a large number of I/O points (up to 16,000), making it scalable for small, medium, and large systems. Its flexibility in configuration allows it to meet diverse application requirements.
- Communication Flexibility: Multiple communication ports (Ethernet, USB, and serial ports) and support for various industrial protocols (Modbus, Ethernet/IP) ensure seamless integration with other devices and systems.
- Enhanced Memory Capacity: With 1 MB RAM and 32 MB flash memory, the processor can handle large programs and complex data, making it ideal for advanced applications.
- Ease of Integration: Fully compatible with Schneider Electric’s Unity Pro software, making programming, configuration, and maintenance straightforward and efficient.
- Reliability: Built to operate in harsh industrial environments with an extended temperature range and low power consumption, ensuring consistent performance even under demanding conditions.
- Compact Design: The compact form factor (120 mm x 120 mm x 90 mm) makes it ideal for systems where space is limited.
Latest News Titles
Here are some recent headlines about the Schneider 140CPU43412 Unity Processor:
- “Revolutionizing Industrial Automation: Schneider 140CPU43412 Unity Processor”
- “Schneider Electric’s Unity Processor Drives Innovation in Manufacturing Control”
- “How the Schneider 140CPU43412 Processor Enhances Energy Management Systems”
- “Unlocking Real-Time Control with Schneider 140CPU43412 Unity Processor”
- “The Role of the Schneider Unity Processor in Smart Water Treatment Plants”
- “Schneider Electric Unity Processor: A Game-Changer for Industrial Equipment”
- “Boosting Efficiency and Flexibility in Building Automation with Schneider’s 140CPU43412”
- “Schneider Unity Processor Helps Achieve Optimal Control in Oil and Gas Industry”
- “Improved Industrial System Integration with Schneider 140CPU43412 Processor”
- “Schneider’s 140CPU43412 Unity Processor: Ideal for Complex, Scalable Systems”
Frequently Asked Questions (FAQ)
-
What is the Schneider 140CPU43412 Unity Processor used for?
- It is used in industrial automation systems for controlling and monitoring processes in manufacturing, energy, water treatment, and other industries.
-
What types of communication protocols are supported by this processor?
- It supports Modbus TCP/IP, Modbus RTU, and Ethernet/IP communication protocols.
-
What is the memory capacity of the 140CPU43412?
- The processor has 1 MB of RAM and 32 MB of flash memory for storing programs and data.
-
Can the 140CPU43412 be used in harsh environments?
- Yes, it is designed to operate in temperatures ranging from -10°C to 60°C, making it suitable for harsh industrial environments.
-
How many I/O points can the 140CPU43412 support?
- The processor supports up to 16,000 I/O points, making it scalable for both small and large systems.
-
What is the power supply requirement for the 140CPU43412?
- The processor requires a 24V DC power supply.
-
How is the 140CPU43412 mounted?
- It can be mounted on a DIN rail, providing a secure and convenient installation method.
-
What is the processing speed of the Unity Processor?
- The 140CPU43412 has a processing speed of 200 ns per instruction cycle.
-
Is the 140CPU43412 compatible with other Schneider Electric products?
- Yes, it is fully compatible with Schneider Electric’s Unity Pro software and other products in the Modicon Quantum series.
-
What is the weight of the 140CPU43412 Unity Processor?
- The processor weighs 0.64 kg.
