Product Introduction

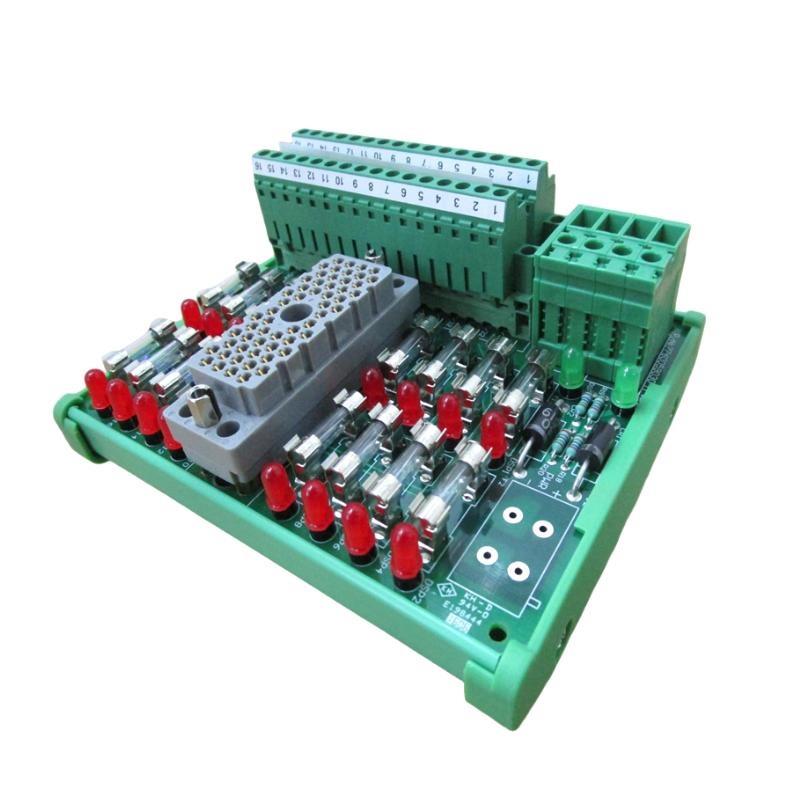

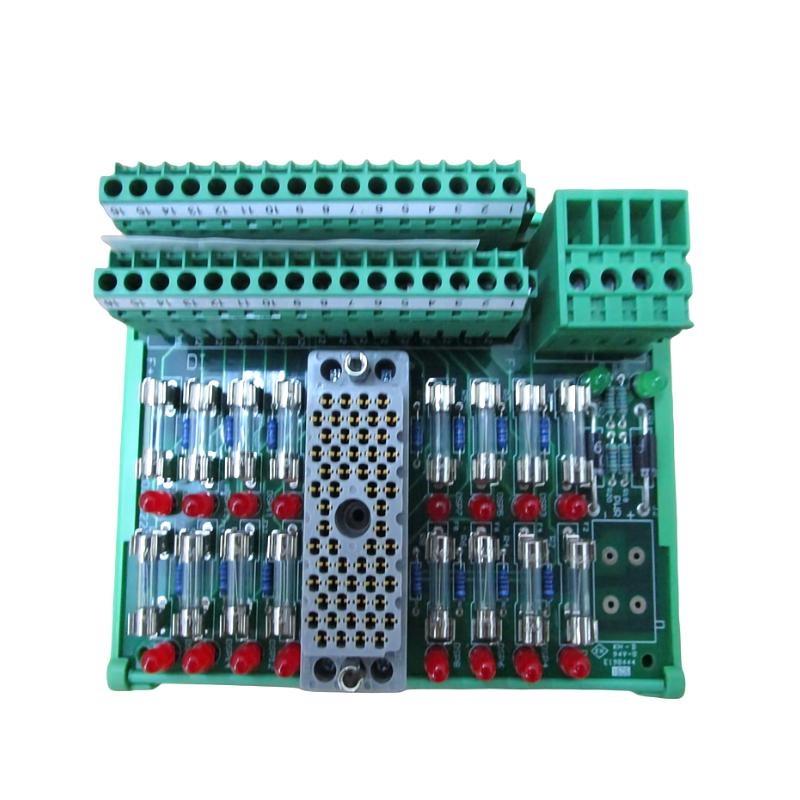

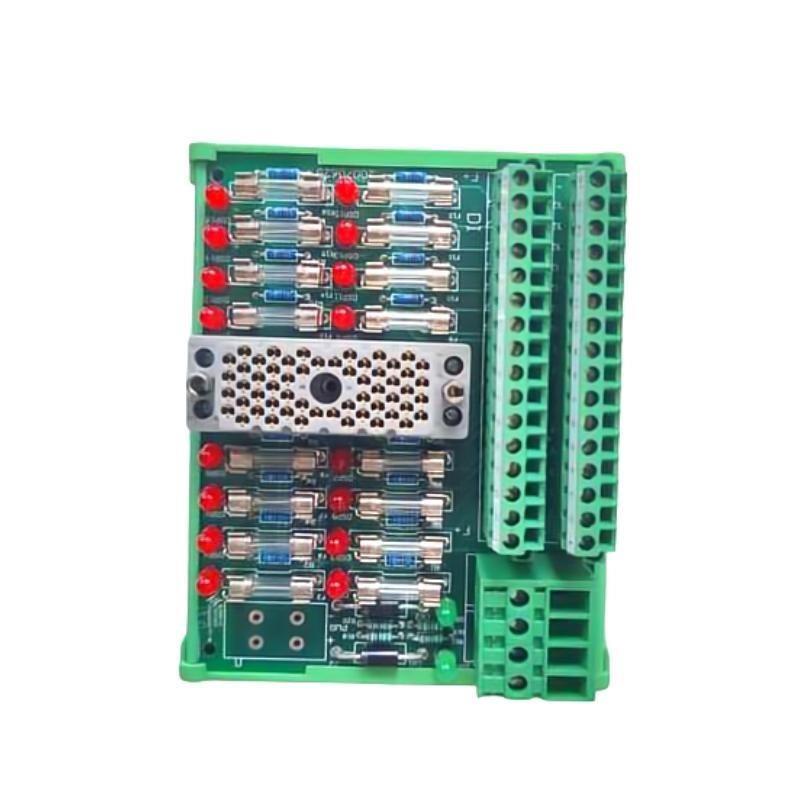

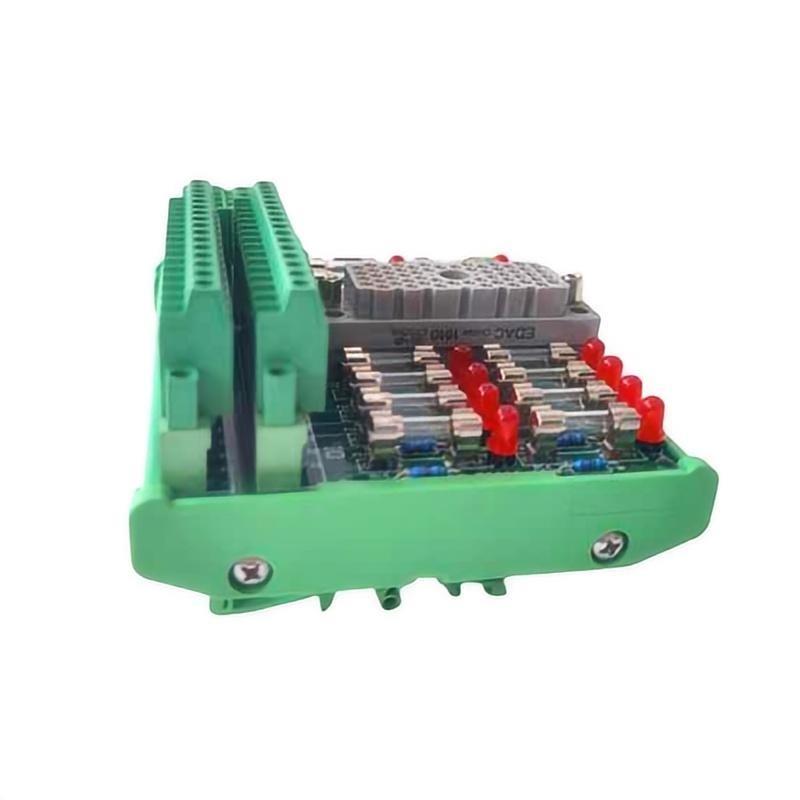

The Triconex 9563-810F Digital Input Termination Panel is a critical interface component within the Triconex safety and control system. It is designed to terminate, organize, and route digital input signals from field devices to Triconex controllers in a reliable and structured manner.
Engineered for high-integrity industrial applications, the 9563-810F panel ensures signal integrity, minimizes wiring errors, and provides clear channel identification. Its design allows for straightforward installation and maintenance while maintaining the high standards required for safety instrumented systems (SIS) in SIL-rated environments. This panel is commonly deployed in oil & gas, petrochemical, power generation, and chemical processing plants.
The 9563-810F supports fast, secure, and deterministic signal routing, ensuring that critical process data is accurately conveyed to the control system for immediate action when required.
Product Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model Number | 9563-810F |
| Product Type | Digital Input Termination Panel |
| Function | Terminates and routes digital input signals to Triconex controllers |
| Number of Channels | 32 digital input channels |
| Signal Type Supported | Discrete ON/OFF signals |
| Input Voltage Range | 24 VDC nominal |
| Input Current | 5 mA typical per channel |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| EMI Protection | Shielded connectors and routed cable trays |
| Compliance | IEC 61508, SIL 3 capable |
| Dimensions | 114.3 ×127 × 107.95 mm |
| Weight | 0.38 kg |
Product Applications
The 9563-810F Digital Input Termination Panel is widely used in industrial automation and safety systems:
-
Oil & Gas – Collects input signals from pressure, flow, and level switches for emergency shutdown and monitoring systems.
-
Petrochemical Plants – Aggregates input signals from multiple process units to interface with Triconex controllers.
-
Power Generation – Routes signals from turbines, generators, and protective relays to the main control system.
-
Chemical Plants – Centralizes digital sensor signals for process safety interlocks.
-
Water & Wastewater Treatment – Gathers input signals from pumps, valves, and monitoring devices for safe control.
-
Pipeline Control – Provides structured input signal termination for SCADA and safety systems.
Product Advantages
-
High Signal Integrity – Maintains accurate digital signal routing with minimal interference.
-
Simplified Installation – Organized wiring channels and labeled terminals reduce installation errors.
-
Scalable Design – Can be used in systems requiring multiple panels for large numbers of digital inputs.
-
SIL 3 Compliant – Meets high safety integrity requirements for critical process applications.
-
Reduced Maintenance Effort – Centralized termination simplifies troubleshooting and system upgrades.
-
Robust Construction – Durable panel and connectors ensure reliable operation in industrial environments.
FAQ
-
What is the maximum number of digital inputs supported?
The 9563-810F supports up to 32 digital input channels. -
Does it support different signal voltages?
The panel is designed for 24 VDC nominal inputs. Other voltages require compatible field signal conditioning. -
Is channel-to-channel isolation provided?
Yes, each input channel is isolated from others to prevent cross-talk. -
Can it be used in SIL 3 applications?
Yes, it is SIL 3 capable and IEC 61508 compliant. -
How is EMI minimized in this panel?
Shielded connectors and proper cable routing reduce electromagnetic interference. -
Are the input channels configurable?
Channels are fixed for digital ON/OFF signals but can be mapped in the controller configuration. -
Can multiple panels be interconnected?
Yes, multiple panels can be connected to expand input capacity for large systems. -
Does the panel require external power?
No, it receives power through the input signals and is passive in nature. -
Is diagnostic information available for input channels?
Diagnostics are available through the connected Triconex controller monitoring each channel. -
Can the panel be installed in harsh industrial environments?
Yes, the robust construction and operating range allow installation in oil & gas, chemical, and power generation facilities.
