Product Overview

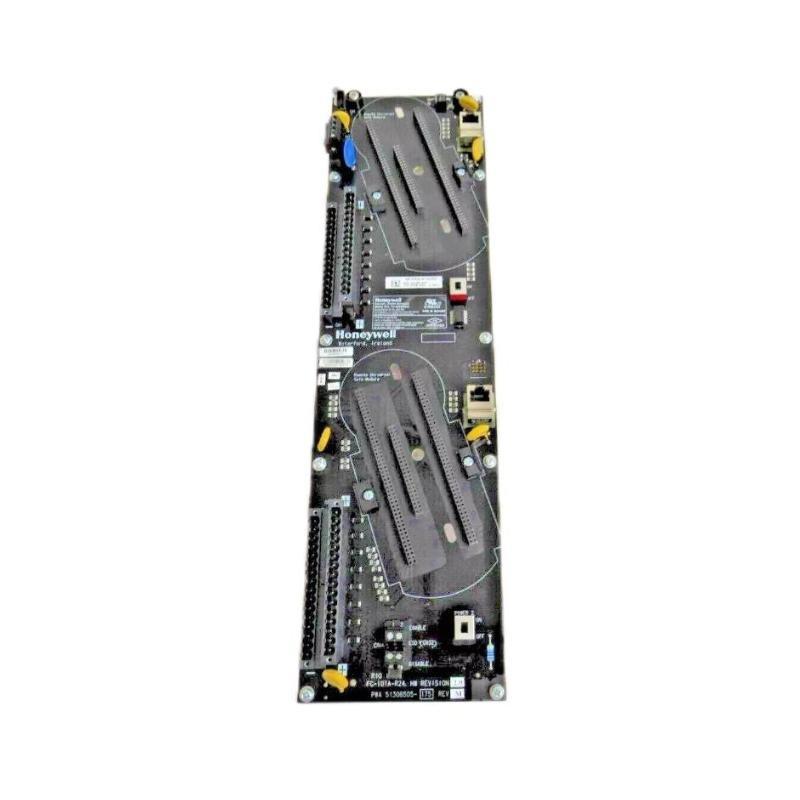

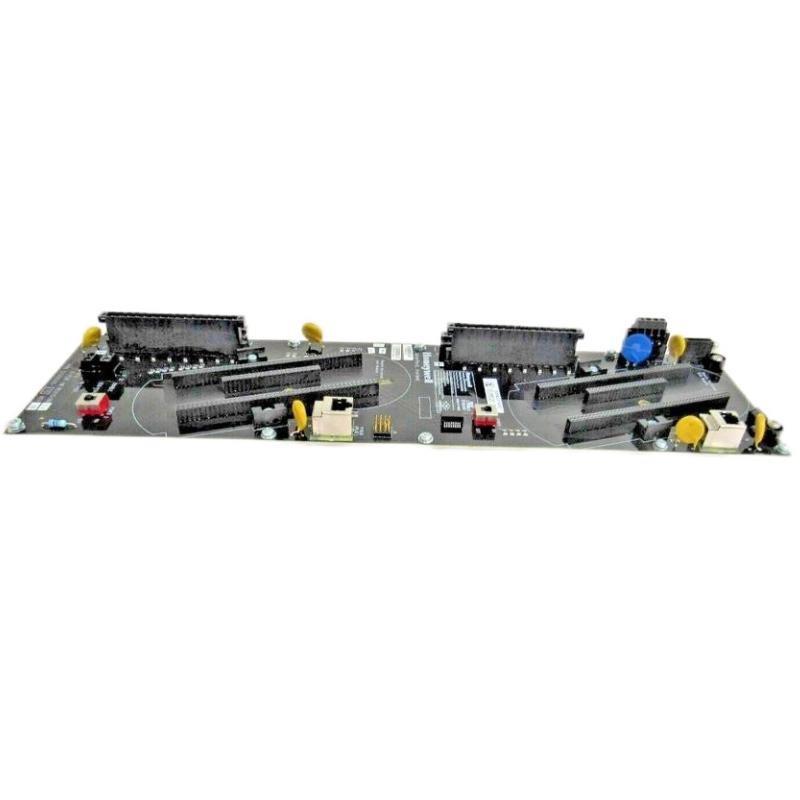

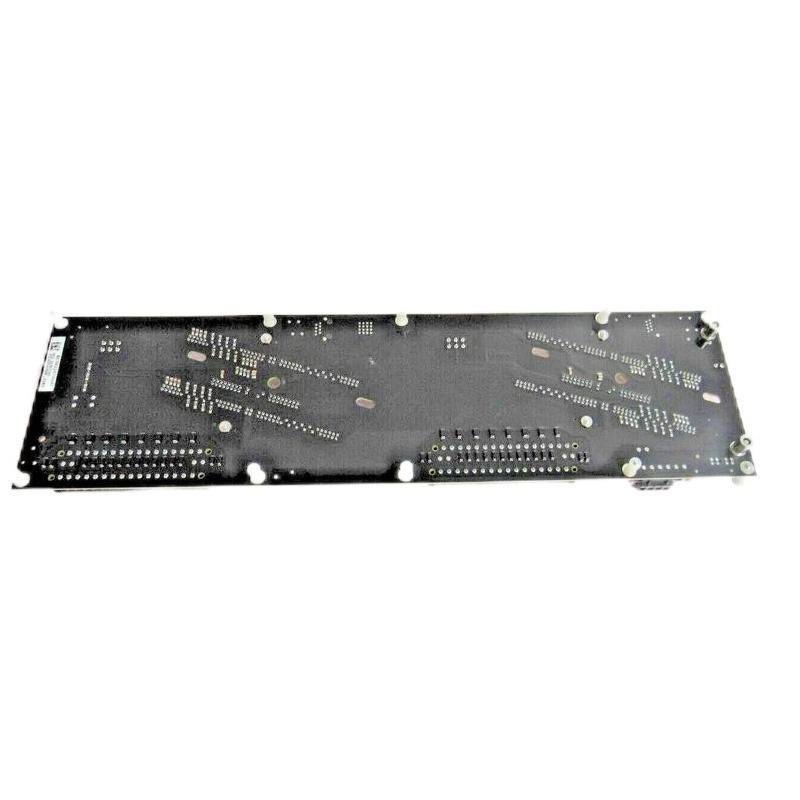

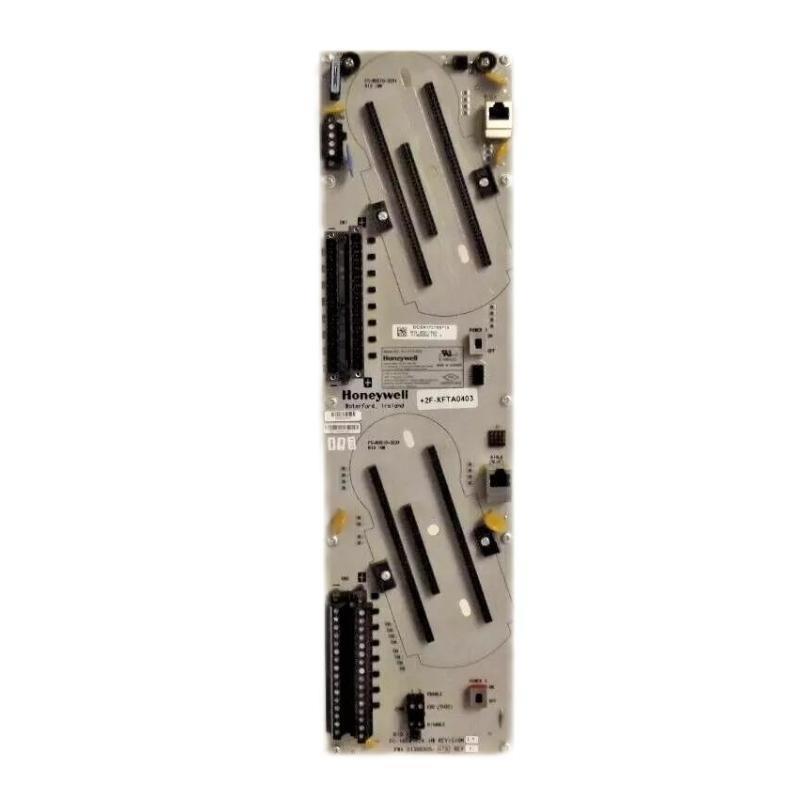

The Honeywell FC-IOTA-R24 51306505-175 is a high-reliability Redundant I/O Termination Assembly (IOTA) designed to support dual-redundant I/O modules in Honeywell’s Fail Safe Controller (FSC) and Safety Manager platforms. It serves as a key interface point for I/O signal wiring, enabling easy termination, distribution, and isolation of signals between field devices and control systems.
This IOTA is designed specifically for high-availability systems, offering dual paths for power and signal redundancy. With its 24-channel configuration, it supports high-density installation while maintaining robust connectivity and diagnostics. Its modular layout and integrated backplane support simplify system integration and expansion in critical process safety applications.
Key Features
-
24-channel Redundant Termination Assembly for high-density wiring
-
Supports Redundant I/O Modules for fault-tolerant systems
-
DIN Rail Mounting with quick-connect options
-
Hot-swappable Compatible with Honeywell I/O modules
-
Simplified Field Termination with labeled screw terminals or connectors
-
Integrated Signal Isolation and short-circuit protection
-
Diagnostics Interface for channel-level status and fault identification
-
Rugged Industrial Design suitable for harsh environments
-
Compatible with Safety Manager and FSC I/O systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FC-IOTA-R24 |
| Part Number | 51306505-175 |
| Product Type | Redundant IO Termination Assembly (IOTA) |
| Channel Count | 24 channels |
| Redundancy | Dual signal and power path support |
| Supported Modules | FSC and Safety Manager I/O modules |
| Terminal Type | Screw terminals or pluggable connectors |
| Field Signal Types | Digital and analog I/O, depending on attached modules |
| Power Distribution | Redundant 24 VDC paths |
| Diagnostics Support | Integrated status monitoring and channel fault detection |
| Hot-Swappable Support | Yes, with compatible I/O modules |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Construction Material | Flame-retardant industrial-grade plastic and metal base |
| Mounting Method | DIN rail or panel-mount |
| Dimensions | 64 x 120.7 x 443.2 mm |
| Weight | 0.57 kg |
| Certifications | CE, UL, CSA, RoHS, SIL 2/3 compliant (when used in certified system) |
Industry Applications
-
Oil & Gas Facilities: Reliable signal interface in redundant safety systems
-
Power Generation Plants: Safe field signal termination for SIS and BPCS applications
-
Petrochemical Plants: I/O wiring termination for ESD, BMS, and F&G systems
-
Water & Wastewater Treatment: High-availability wiring solutions for distributed control
-
Pharmaceutical Manufacturing: Clean and secure terminations in validated environments
-
Pulp and Paper Mills: Robust wiring interface for harsh process conditions
Product Advantages
-
Enhanced System Availability: Redundant architecture eliminates single points of failure
-
Simplified Wiring and Maintenance: Organized termination and labeling reduce errors and downtime
-
Flexible Mounting: Fits into standard DIN rail panels or enclosures
-
Hot-Swappable Ready: Compatible with live replacement of connected I/O modules
-
Diagnostics Integration: Speeds up troubleshooting with fault detection and status LEDs
-
Standardized Design: Ensures compatibility across Honeywell safety and control platforms
-
Compact Footprint: High-density configuration optimizes cabinet space
Frequently Asked Questions (FAQ)
-
Q: What is the primary function of the FC-IOTA-R24?
A: It provides a termination interface between field wiring and Honeywell I/O modules, supporting redundant architectures. -
Q: How many channels does it support?
A: It supports 24 I/O channels in a redundant configuration. -
Q: Is it compatible with all Honeywell I/O modules?
A: It is compatible with most FSC and Safety Manager I/O modules, especially those designed for redundant setups. -
Q: Can it be used in hot-swappable systems?
A: Yes, it fully supports hot-swappable modules, minimizing downtime during replacement. -
Q: What kind of field signals does it support?
A: It supports both analog and digital I/O, depending on the I/O module used. -
Q: How is power managed within the IOTA?
A: It provides redundant 24 VDC distribution to support I/O module power needs. -
Q: Is it certified for use in safety systems?
A: Yes, it is SIL 2/3 compliant when installed within a certified Honeywell system. -
Q: Does it include channel-level diagnostics?
A: Yes, it includes basic diagnostics such as fault detection and status indication. -
Q: What type of terminals does it use?
A: Typically uses screw-type or pluggable connectors for secure and easy field wiring. -
Q: Can I mount it outside a cabinet?
A: It is designed for use within enclosures, with DIN rail or panel-mounting options.
