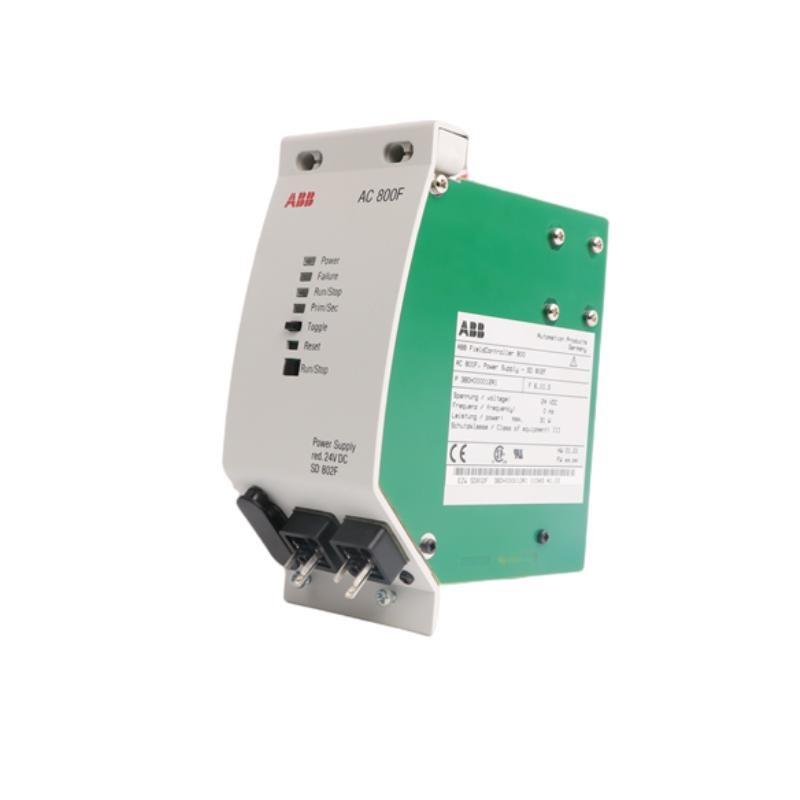

Product Overview: ABB SD802F 3BDH000012R1
The ABB SD802F 3BDH000012R1 is a high-performance industrial module that forms part of ABB’s comprehensive automation and control solutions. Designed to meet the needs of complex industrial applications, it serves as a critical component in ensuring smooth operations, stability, and reliability. This model is used across various industries, including manufacturing, power generation, and process control.
Technical Specifications
Below is a detailed specification table for the ABB SD802F 3BDH000012R1:
| Parameter | Specification |
|---|---|
| Product Type | Industrial Control Module |
| Model | SD802F 3BDH000012R1 |
| Dimensions | 66 x 125 x 155mm |
| Weight | 0.44kg |
| Voltage Rating | 24V DC |
| Operating Temperature | -20°C to 60°C |
| Current Rating | 2A |
| Environmental Protection | IP20 (for dust and water) |
| Input/Output Type | Digital I/O, Analog I/O |
| Communication Protocol | PROFIBUS, Modbus TCP |
Product Applications
The ABB SD802F 3BDH000012R1 is widely used in industries such as:
-
Manufacturing Automation: To monitor and control production lines, ensuring optimal performance.
-
Power Generation: Used for automated control of processes in power plants.
-
Process Control: Employed in managing complex processes such as chemical production and water treatment.
-
Building Management Systems (BMS): Integrating it with HVAC, lighting, and security systems.
Its versatility makes it a valuable tool for any system requiring precise control, monitoring, and automation.
Product Advantages
-
Reliability: The ABB SD802F offers unmatched reliability, ensuring long-lasting performance in critical industrial environments.
-
Flexibility: Capable of supporting a wide range of I/O configurations and communication protocols, such as PROFIBUS and Modbus TCP, making it adaptable to various applications.
-
High Performance: With a robust operating range from -20°C to 60°C and IP20 protection, it performs well in harsh environments.
-
Ease of Integration: The module is designed to easily integrate with existing systems, reducing setup time and operational disruptions.
-
Energy Efficiency: Designed for low power consumption, optimizing energy use in industrial processes.
FAQs (Frequently Asked Questions)
-
What is the primary use of the ABB SD802F 3BDH000012R1?
-
The ABB SD802F is primarily used for industrial automation, providing reliable control and monitoring of systems in various industries such as manufacturing, power generation, and process control.
-
-
What are the input/output capabilities of this model?
-
The SD802F supports both digital and analog I/O, allowing it to interface with a wide range of sensors, actuators, and other devices.
-
-
How can I integrate the ABB SD802F with other systems?
-
The SD802F supports common industrial communication protocols such as PROFIBUS and Modbus TCP, making integration with other control systems straightforward.
-
-
Is this model suitable for outdoor use?
-
No, the SD802F has an IP20 rating, which protects it from dust but does not make it waterproof or suitable for outdoor use.
-
-
What is the operating temperature range of the SD802F?
-
The module operates effectively between -20°C and 60°C, making it suitable for use in a wide range of industrial environments.
-
-
What are the weight and dimensions of the ABB SD802F?
-
The module has a weight of 0.44 kg and dimensions of 66 x 125 x 155mm.
-
-
What kind of protection does the ABB SD802F offer?
-
The module offers IP20 environmental protection, meaning it is protected against dust but not against water.
-
-
Can the ABB SD802F be used in a harsh industrial environment?
-
Yes, with its high durability and wide operating temperature range, it is designed to perform reliably in challenging industrial environments.
-
-
What communication protocols are supported by the ABB SD802F?
-
The SD802F supports PROFIBUS and Modbus TCP, both widely used communication protocols in industrial automation systems.
-
-
How do I install the ABB SD802F?
-
Installation involves mounting the module on a DIN rail, connecting the input/output wiring, and configuring the communication settings according to your system requirements.
-
Recommended Models (Same Series or Related)
Here are 6 models from the same series or related that can be of interest:
| Model | Description | Voltage | I/O Type | Communication Protocol |
|---|---|---|---|---|
| ABB SD803F 3BDH000013R1 | Advanced control module | 24V DC | Digital and Analog | PROFIBUS, Modbus TCP |
| ABB SD804F 3BDH000014R1 | Extended I/O version for complex systems | 24V DC | Digital, Analog, Relay | PROFIBUS, Modbus TCP |
| ABB SD801F 3BDH000011R1 | Entry-level module for basic automation | 24V DC | Digital | Modbus TCP |
| ABB SD805F 3BDH000015R1 | High-performance version | 24V DC | Digital, Analog | Modbus TCP, Ethernet/IP |
| ABB SD810F 3BDH000016R1 | Compact version for small systems | 24V DC | Digital | Modbus RTU |
| ABB SD806F 3BDH000017R1 | Extended range version | 24V DC | Digital, Analog | PROFIBUS, Modbus TCP |
Popular ABB Models (Same Brand)
Here are 6 popular models from ABB with their specifications:
| Model | Specification | Voltage | I/O Type | Communication Protocol |
|---|---|---|---|---|
| ABB CI810 3BDH000018R1 | Compact control unit | 24V DC | Digital, Analog | PROFIBUS, Modbus TCP |
| ABB CI850 3BDH000019R1 | High-capacity I/O module | 24V DC | Digital, Analog | Modbus TCP, Ethernet |
| ABB CI801 3BDH000020R1 | Basic input/output unit | 24V DC | Digital | Modbus TCP |
| ABB CI820 3BDH000021R1 | Multi-purpose control module | 24V DC | Digital, Analog | PROFIBUS, Modbus TCP |
| ABB CI840 3BDH000022R1 | Advanced I/O and processing | 24V DC | Digital, Analog | Modbus TCP, Ethernet/IP |
| ABB CI860 3BDH000023R1 | High-performance processor | 24V DC | Digital, Analog | Modbus TCP, PROFIBUS |
