Product Introduction

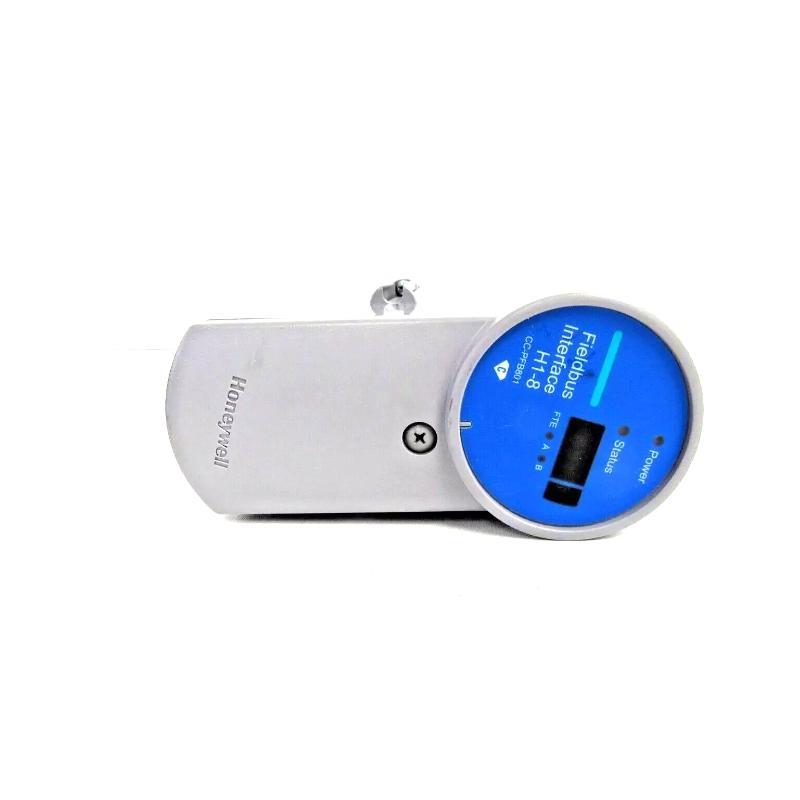

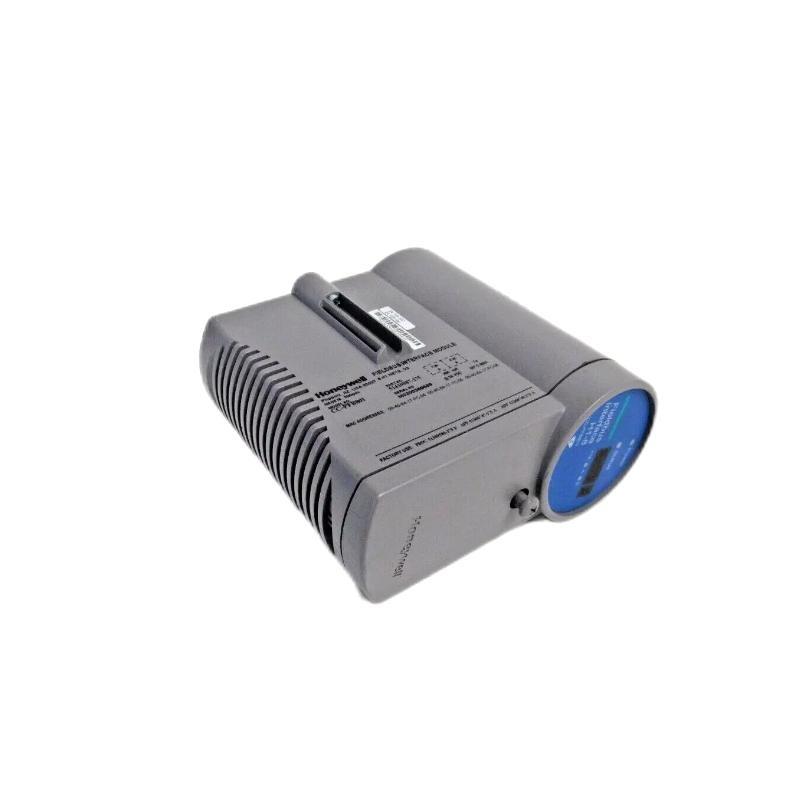

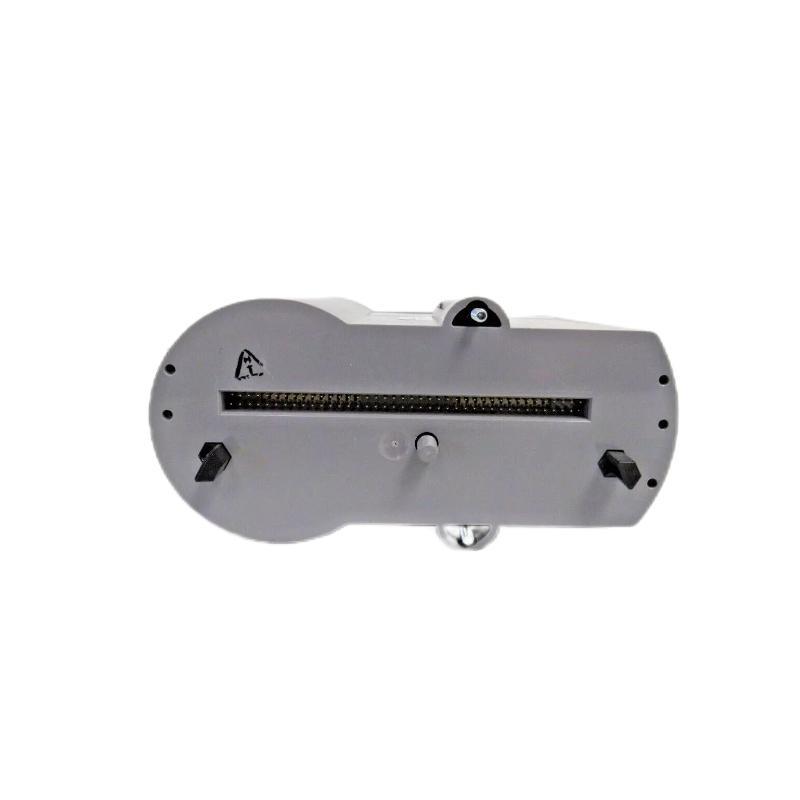

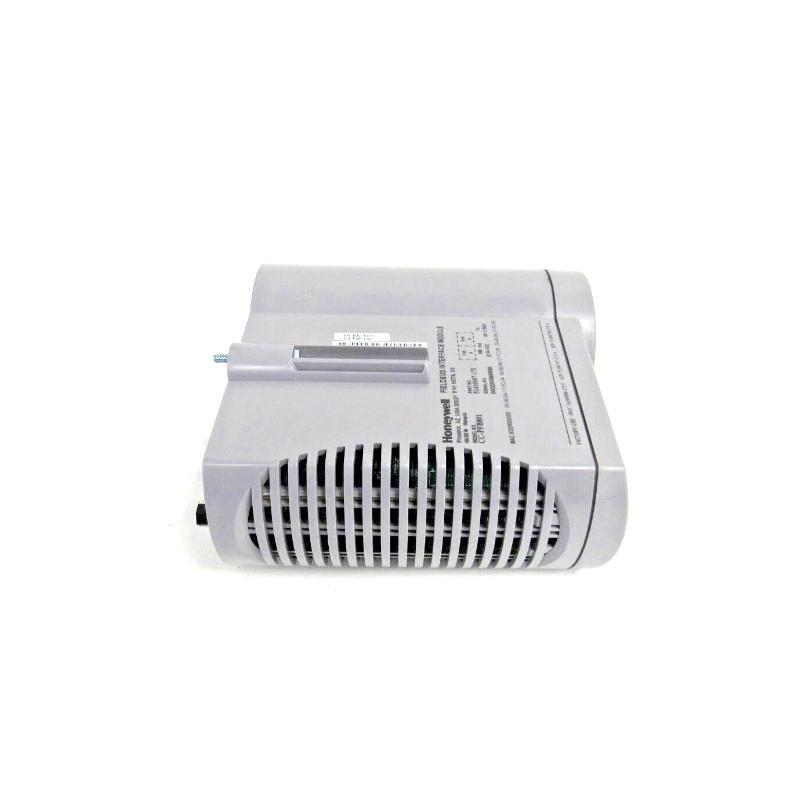

The Honeywell CC-PFB801 51410087-176 Fieldbus Interface Module is a robust communication interface designed to integrate FOUNDATION Fieldbus (FF) networks with Honeywell’s Experion® Process Knowledge System (PKS). As part of the Series C controller family, this module facilitates seamless communication between distributed control systems (DCS) and intelligent field devices, enabling real-time data exchange, enhanced diagnostics, and efficient process control.
With support for multiple H1 FF networks, the CC-PFB801 ensures high-speed data transfer, scalability, and reliability, making it suitable for various industrial applications, including oil and gas, power generation, chemical processing, and more.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | CC-PFB801 |
| Part Number | 51410087-176 |
| Function | FOUNDATION Fieldbus H1 Interface Module |
| Communication Protocol | FOUNDATION Fieldbus H1 |
| Fieldbus Segment Support | Up to 8 H1 networks |
| Max Field Devices | Up to 16 devices per H1 network |
| Baud Rate | 31.25 kbps |
| Power Supply Requirement | 24 VDC, 380 mA |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity | 0% to 95% non-condensing |
| Mounting Method | Installed in Honeywell I/O chassis |
| Dimensions (H x W x D) | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.3 kg |
| Certifications | CE, RoHS |
| Country of Origin | USA |
Product Applications
The CC-PFB801 module is widely utilized across various industries for integrating smart field devices into control systems. Key application areas include:
-
Oil and Gas: Facilitates efficient data communication from remote sensors and actuators in upstream and downstream facilities.
-
Power Generation: Enables real-time monitoring and control of turbines, generators, and auxiliary systems.
-
Chemical Processing: Supports precise control and monitoring of chemical reactions and processes.
-
Water and Wastewater Treatment: Allows for smart monitoring and control of pumps, flowmeters, and analyzers in distributed treatment systems.
-
Pharmaceuticals: Provides real-time access to critical process parameters, ensuring regulatory compliance in batch processes.
-
Food and Beverage: Improves quality control by ensuring synchronized device performance across process lines.
Product Advantages
-
High-Speed Communication: Ensures fast and reliable data transfer between field devices and the control system.
-
Scalability: Supports up to 8 H1 networks, allowing for system expansion as needed.
-
Enhanced Diagnostics: Provides advanced diagnostics, including device status, alarms, and event logging.
-
Robust Design: Built to withstand harsh industrial environments, offering reliable performance and minimal maintenance.
-
Easy Integration: Seamlessly integrates with Honeywell’s Experion PKS engineering tools for streamlined configuration and control logic.
-
Redundancy Support: Capable of redundant configurations for enhanced system reliability.
-
Compliance: Meets international safety and performance standards, including CE and RoHS certifications.
-
Compact Size: Small footprint allows for easy installation in existing systems.
-
Energy Efficient: Low power consumption contributes to overall energy savings.
-
Long Lifecycle Support: Backed by Honeywell’s commitment to lifecycle services, updates, and global technical support.
Frequently Asked Questions (FAQs)
-
Q: What is the primary function of the CC-PFB801 module?
A: It serves as a communication interface between the Experion DCS and FOUNDATION Fieldbus H1 field devices. -
Q: How many H1 networks does the module support?
A: The module supports up to 8 H1 FOUNDATION Fieldbus networks. -
Q: What is the maximum number of field devices per H1 network?
A: Each H1 network can support up to 16 field devices. -
Q: What are the power requirements for the CC-PFB801?
A: The module requires a 24 VDC power supply with a current consumption of 380 mA. -
Q: Can the module operate in redundant configurations?
A: Yes, it supports redundant configurations for enhanced reliability. -
Q: What are the operating temperature limits of the module?
A: The module operates within a temperature range of 0°C to +60°C. -
Q: Is the module compliant with international standards?
A: Yes, it holds certifications such as CE and RoHS. -
Q: What is the weight of the CC-PFB801 module?
A: The module weighs 0.3 kg. -
Q: Where is the CC-PFB801 manufactured?
A: The module is manufactured in USA. -
Q: How is the module mounted within the system?
A: It is installed in a Honeywell I/O chassis.
