Product Introduction

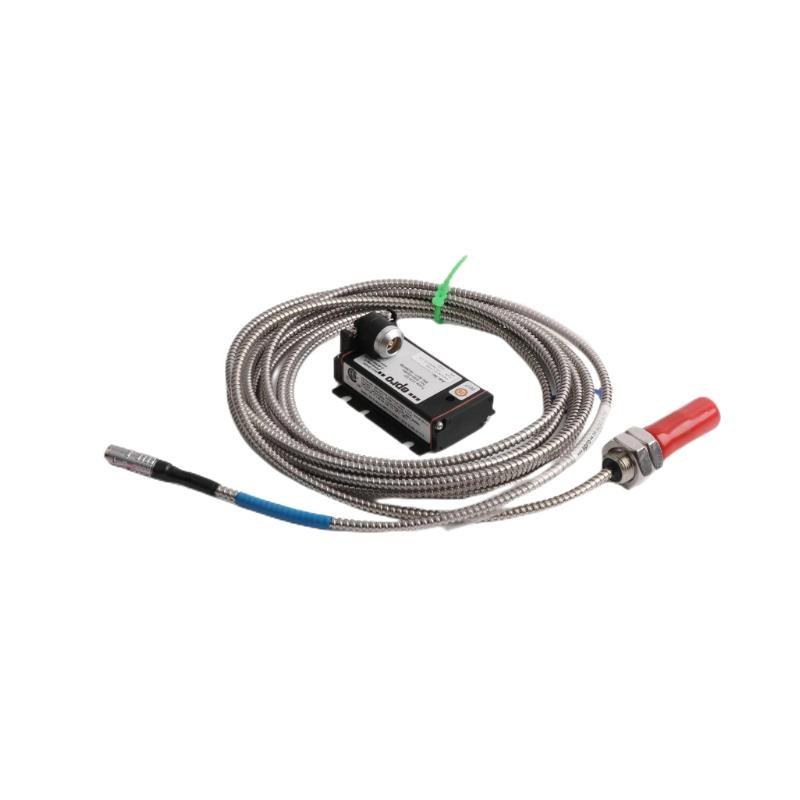

The Epro PR6424/005-030 is a 16mm eddy current sensor designed for precise and non-contact measurement of displacement, position, and vibration in industrial applications. Using eddy current technology, the sensor detects the changes in impedance in its sensor coil caused by the proximity of conductive materials. These changes are then translated into electrical signals that provide highly accurate measurements of the target’s movement or position.
This sensor is suitable for applications in high-speed machinery, vibration monitoring, and position sensing in automated and robotic systems. Its compact 16mm sensor head and lightweight design (0.2 kg) make it ideal for installations where space is limited, and precision is critical. The IP67 protection rating ensures that the sensor is dustproof and water-resistant, making it reliable for use in harsh environments.
The PR6424/005-030 offers both analog voltage and current outputs, making it compatible with a wide range of industrial systems. This versatility ensures that the sensor can be easily integrated into existing equipment for real-time monitoring and control.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | Epro PR6424/005-030 |
| Type | 16mm Eddy Current Sensor |
| Sensor Head Diameter | 16mm |
| Weight | 0.2 kg |
| Measuring Range | 0-10 mm (depends on target material) |
| Output Signal | Analog (voltage or current) |
| Operating Frequency | Up to 2 kHz |
| Target Material | Conductive materials (e.g., metals) |
| Operating Temperature | -20°C to +80°C |
| Protection Rating | IP67 |
Product Applications
The Epro PR6424/005-030 eddy current sensor is widely used in a variety of industrial sectors that require precise, non-contact measurements of displacement, position, and vibration. Here are some of its primary applications:
-
Machine Condition Monitoring: The sensor is commonly used to monitor the health of rotating equipment like motors, turbines, and compressors. It detects misalignment, imbalance, and wear in components, helping to predict failures and reduce downtime.
-
Vibration Monitoring: The PR6424/005-030 is perfect for measuring vibrations in high-speed machinery, such as gearboxes, pumps, and turbines. Early detection of abnormal vibrations helps in preventing catastrophic failures and extending the lifespan of machinery.
-
Position Sensing in Robotics: Used in robotic systems to provide accurate position measurements of robotic arms or other moving parts. This ensures smooth, accurate, and repeatable motion in automated systems.
-
Automotive Manufacturing: The sensor helps measure the position of components in automated automotive production lines, ensuring precision and quality control during assembly.
-
Aerospace: It is used for non-contact measurement of aerospace components like actuators and rotating shafts, where traditional contact sensors could cause interference or damage sensitive equipment.
Product Advantages
-
Non-contact Measurement: The use of eddy current technology allows the sensor to measure without making contact with the target, eliminating wear and tear and increasing the sensor’s lifespan.
-
High Accuracy and Precision: The PR6424/005-030 offers high-precision measurements, ensuring that even small changes in displacement or position are accurately detected.
-
Fast Response Time: With an operating frequency of up to 2 kHz, the sensor can quickly detect rapid movements, making it suitable for high-speed applications such as turbine or motor monitoring.
-
Compact and Lightweight Design: The 16mm sensor head and 0.2 kg weight make it easy to integrate into systems where space is limited, without compromising on performance.
-
Durability and Robustness: The IP67 protection rating ensures that the sensor is dustproof and water-resistant, making it durable enough for use in harsh industrial environments.
-
Wide Temperature Range: The sensor can operate in temperatures ranging from -20°C to +80°C, making it suitable for use in both cold and hot environments.
-
Versatile Output Options: It offers analog voltage or current outputs, allowing it to integrate seamlessly into a variety of industrial control systems and applications.
FAQ
-
How does the Epro PR6424/005-030 sensor work?
-
The sensor works by using eddy current technology to measure changes in impedance caused by the proximity of conductive materials. These changes are then converted into an output signal that represents displacement or position.
-
-
What is the measuring range of the Epro PR6424/005-030?
-
The sensor has a measuring range of 0-10 mm, which may vary depending on the material of the target being measured.
-
-
What types of materials can the Epro PR6424/005-030 sensor detect?
-
The sensor detects conductive materials, primarily metals, in industrial applications.
-
-
What is the output signal of the Epro PR6424/005-030 sensor?
-
The sensor provides analog output signals, either voltage or current, depending on the specific system requirements.
-
-
How fast can the Epro PR6424/005-030 sensor respond to changes in displacement?
-
The sensor operates at frequencies of up to 2 kHz, providing a fast response to changes in displacement or position.
-
-
Can the sensor be used in harsh environments?
-
Yes, the sensor has an IP67 protection rating, making it dustproof and water-resistant, so it can be used in demanding industrial environments.
-
-
What is the operating temperature range of the sensor?
-
The Epro PR6424/005-030 can operate in temperatures from -20°C to +80°C, allowing it to function effectively in a wide range of environmental conditions.
-
-
What are the benefits of using non-contact measurement?
-
Non-contact measurement eliminates the risk of wear and tear on both the sensor and the target, increasing reliability and sensor lifespan, especially in high-speed applications.
-
-
Is this sensor suitable for vibration monitoring?
-
Yes, the PR6424/005-030 is ideal for vibration monitoring in high-speed rotating machinery, such as turbines, pumps, and compressors.
-
-
Can the sensor be used in robotics?
-
Yes, the sensor is widely used in robotic applications for accurate position and displacement sensing, helping ensure smooth and precise movement in automated systems.
-
Related Models from the Same Series
| Model | Description |
|---|---|
| PR6424/005-031 | A variant with extended measuring range up to 15 mm. |
| PR6424/005-032 | Features higher resolution for fine displacement measurements. |
| PR6424/005-033 | Designed for high-frequency vibration monitoring in rotating equipment. |
| PR6424/005-034 | Includes multiple output types for compatibility with various systems. |
| PR6424/005-035 | Offers enhanced protection for operation in extreme environments. |
| PR6424/005-036 | Provides improved signal processing for accuracy in noisy environments. |
Popular Models from Epro
| Model | Description |
|---|---|
| PR6423/003-100 | A high-precision displacement sensor with analog output for industrial use. |
| PR6424/003-101 | Ideal for position and displacement measurement in robotic and aerospace applications. |
| PR6423/003-200 | Designed for vibration sensing in high-speed machinery such as turbines and motors. |
| PR6424/003-150 | Features improved environmental protection for challenging outdoor conditions. |
| PR6424/003-200 | Suitable for real-time monitoring of machinery with high-frequency capabilities. |
| PR6424/003-300 | Offers higher temperature tolerance and is suitable for extreme conditions in manufacturing. |
