Product Introduction

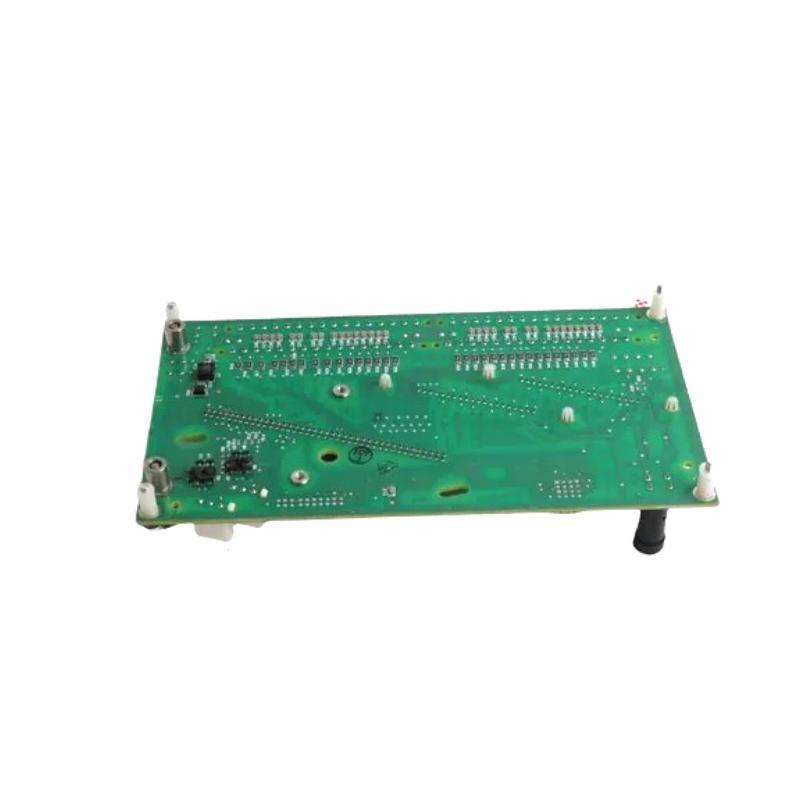

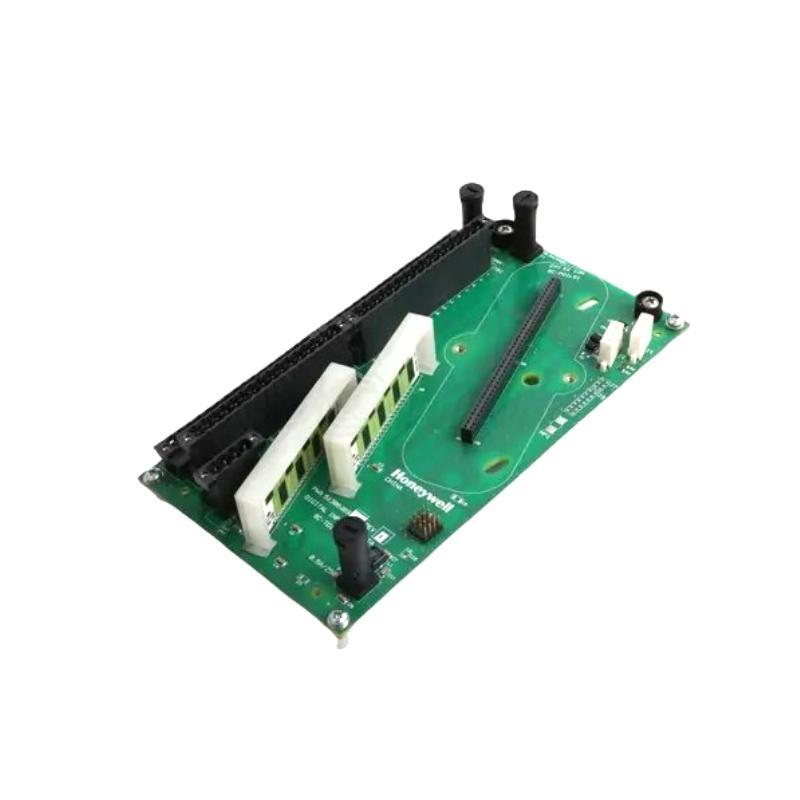

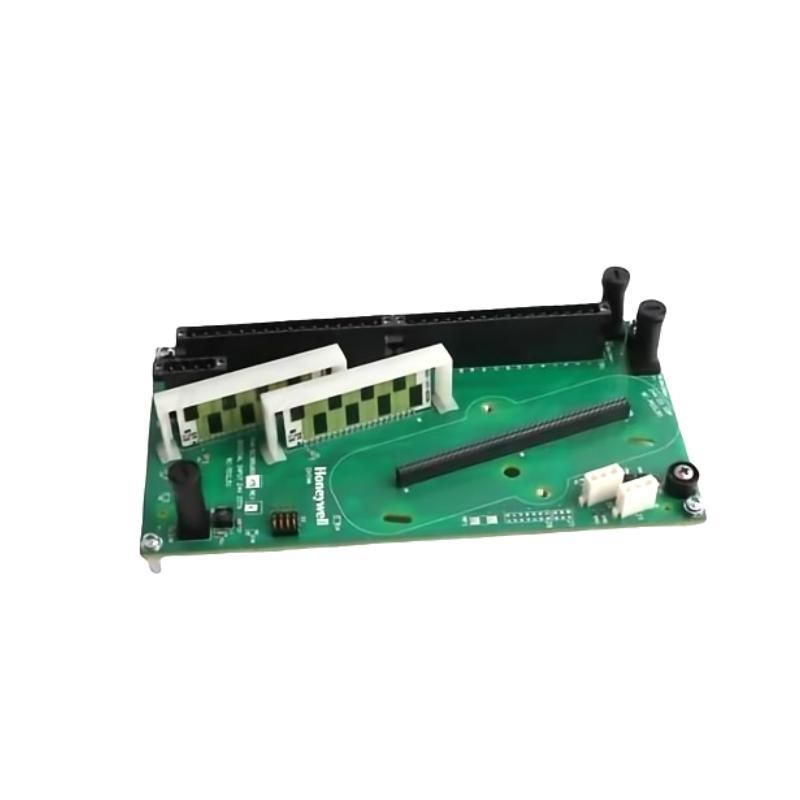

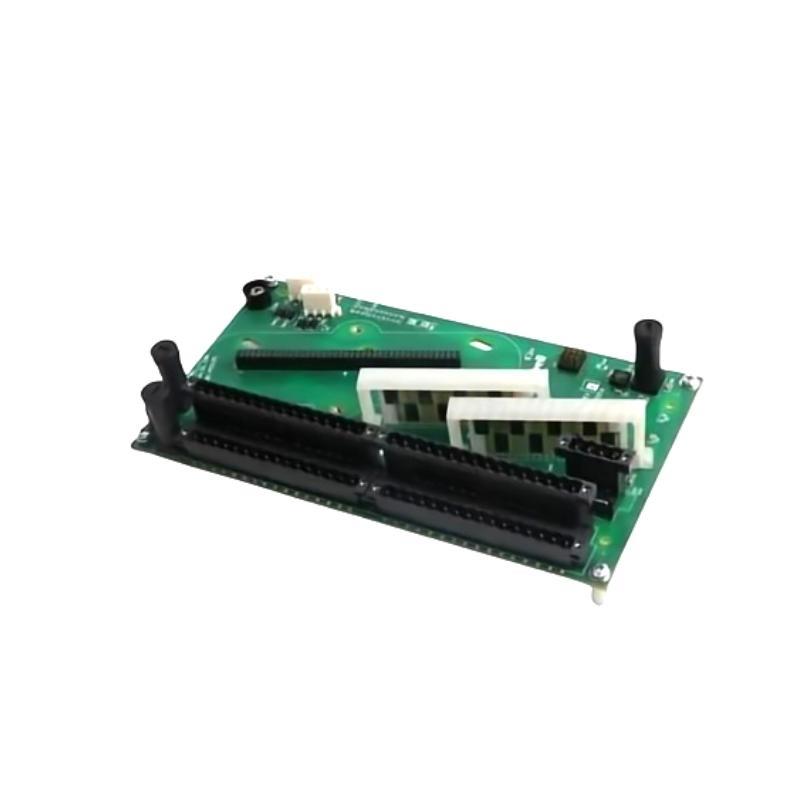

The Honeywell 8C-TAIM01 (51306999-175) is a high-density analog input module designed for use in Honeywell’s Experion Process Knowledge System (PKS) and C300 controller environment. As part of the Series C I/O family, the 8C-TAIM01 provides advanced analog signal acquisition with scalable architecture and high fault tolerance.
This module is engineered to handle multiple analog process signals, such as temperature, pressure, flow, and level, converting them with high accuracy for control and monitoring within critical automation systems. The module utilizes a 16-channel configuration, offering optimal space utilization and reducing the need for additional hardware.
The 8C-TAIM01 is built to deliver precision, flexibility, and reliability, making it an essential component for modern industrial operations across sectors like oil & gas, chemicals, pharmaceuticals, and power generation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8C-TAIM01 |
| Part Number | 51306999-175 |
| Function | Analog Input Module |
| Number of Channels | 16 channels |
| Input Signal Types | 4-20 mA, 0-20 mA (with shunt resistors) |
| Input Type | Single-ended |
| Resolution | 16-bit A/D |
| Accuracy | ±0.05% of full scale |
| Input Impedance | 250 Ω (with internal resistor) |
| Scan Rate | Configurable, typical 100 ms to 1 sec |
| Input Isolation | Channel-to-channel and system-to-channel isolation |
| Redundancy Support | Yes (I/O and communication redundancy) |
| Diagnostics | Built-in self-diagnosis, open wire, over-range detection |
| Operating Voltage | Supplied via Series C backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting | Mounted on IOTA (Input/Output Terminal Assembly) |
| System Compatibility | Experion PKS, C300 Controller, Series C |
| Certifications | CE, UL, CSA, ATEX, IECEx |
| Dimensions (W x H x D) | 50 × 210 × 120 mm |
| Weight | 0.55 kg |
Applications
-
Oil and Gas Refining: Ideal for monitoring flow transmitters, pressure sensors, and temperature loops in distributed field installations.
-
Chemical and Petrochemical Plants: Handles continuous process variables with precision to support advanced process control strategies.
-
Pharmaceutical Manufacturing: Provides accurate input monitoring in critical batch and cleanroom operations.
-
Power Generation: Used for real-time signal acquisition from turbines, boilers, and cooling systems.
-
Water Treatment Facilities: Efficiently collects data from level, turbidity, and pH sensors in treatment tanks and distribution lines.
-
Pulp & Paper: Supports complex process lines by acquiring analog feedback from motors, valves, and chemical dosing units.
Product Advantages
-
High Channel Density: Supports 16 input channels per module, reducing cabinet space and cost.
-
Precision Measurement: 16-bit resolution and ±0.05% accuracy for high signal fidelity in process control.
-
System Integration: Fully compatible with Honeywell’s Experion Series C platform and C300 controller.
-
Advanced Diagnostics: Built-in health checks, signal verification, and open-loop detection ensure operational reliability.
-
Hot-Swappable: Module replacement without shutting down the system minimizes operational disruption.
-
Redundancy Ready: Supports I/O and communication redundancy for high availability in mission-critical applications.
-
Field Proven Reliability: Designed to perform in harsh industrial environments over extended operating cycles.
-
Compact and Modular Design: Easy installation and maintenance with plug-and-play compatibility.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 8C-TAIM01 module?
It is designed to collect and digitize analog process signals such as 4-20 mA current loops for use in a distributed control system. -
How many analog inputs does the module support?
The 8C-TAIM01 supports 16 individual analog input channels. -
Is the 8C-TAIM01 compatible with Honeywell’s C300 controller?
Yes, it is fully integrated into the Series C platform, including the C300 controller. -
Can this module detect sensor wiring faults?
Yes, it features diagnostic functions for open wires, short circuits, and input over-range. -
What is the resolution of the A/D converter used in the module?
It uses a 16-bit analog-to-digital converter for precise signal resolution. -
Does the module support hot-swapping?
Yes, it allows for module replacement while the system is operational. -
What kind of isolation does this module provide?
It offers electrical isolation both between channels and from the system bus. -
What are the typical applications for this module?
It is used in industries such as oil and gas, power generation, chemical, and pharmaceuticals for process monitoring. -
Does the module support redundant configurations?
Yes, both communication and I/O redundancy are supported for critical operations. -
What is the physical size and weight of the module?
The module measures 50 × 210 × 120 mm and weighs around 0.55 kg.
