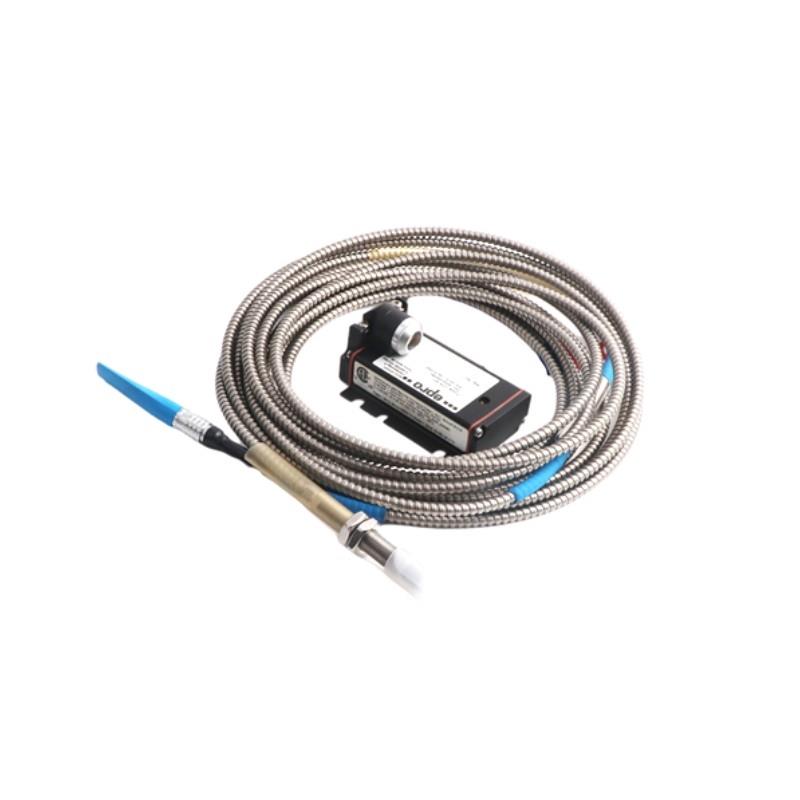

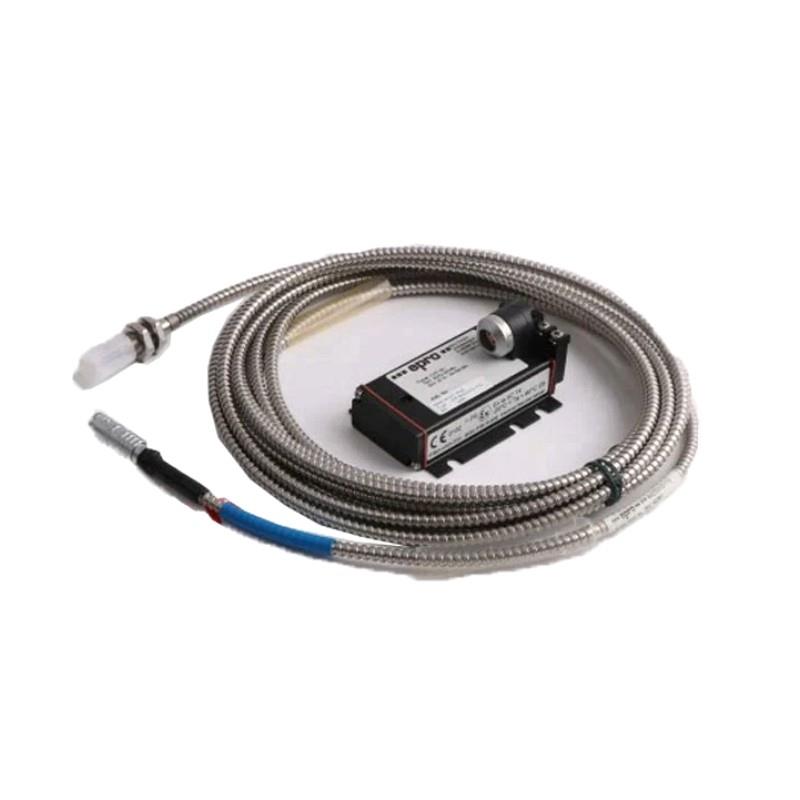

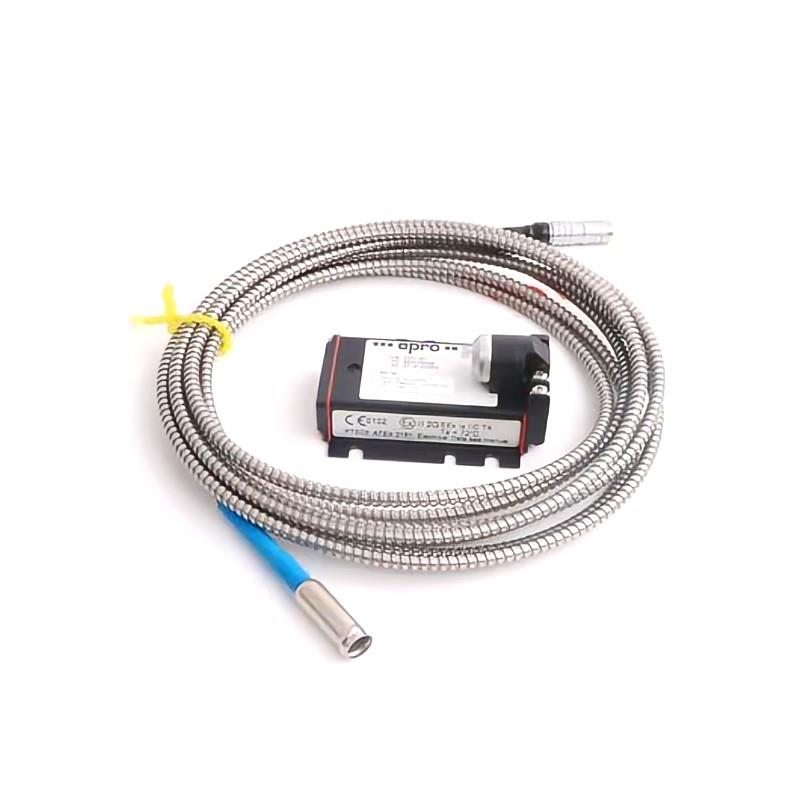

Epro PR6424/006-030 16mm Eddy Current Sensor

Product Introduction

The Epro PR6424/006-030 16mm Eddy Current Sensor is a highly precise and reliable sensor used for non-contact measurement of displacement, position, and proximity. Utilizing the principle of eddy currents, this sensor offers exceptional accuracy, fast response time, and durability, making it ideal for a variety of industrial applications, including vibration monitoring, shaft position sensing, and gap measurement.

Designed for use in challenging environments, the Epro PR6424/006-030 sensor is particularly well-suited for integration into systems that require continuous monitoring of mechanical processes. Its compact and rugged design ensures long-term reliability and performance, even under high-speed and high-temperature conditions.

This sensor operates based on the eddy current principle, which detects changes in the electrical resistance within a conductive material when exposed to a magnetic field. This results in accurate measurement of the distance between the sensor and the target object without any physical contact, making it a vital tool in applications where direct contact measurement is not feasible.

Product Specifications

Product Applications

The Epro PR6424/006-030 16mm Eddy Current Sensor is widely used across a range of industrial and engineering applications where accurate, non-contact displacement and proximity measurements are critical. Some of the primary applications include:

1. Vibration Monitoring: The sensor can be used to monitor the vibration of rotating machinery such as turbines, compressors, and motors. It helps detect early signs of malfunction or wear.

2. Position Sensing: The sensor is ideal for detecting the position of components in high-speed machinery, ensuring precise alignment and operation.

3. Gap Measurement: It is used for measuring gaps between parts, such as the clearance between a rotating shaft and its housing, to ensure the optimal operation of equipment.

4. Industrial Automation: The sensor plays a key role in automated systems where non-contact measurement is needed for precise control of machinery.

5. Rotor Positioning in Motors and Generators: Used to monitor the rotor position in high-speed motors and generators to optimize performance and prevent damage.

6. Proximity Sensing: The sensor can be used to measure the proximity of metallic objects, ideal for ensuring safe distances in automated robotic systems.

7. Quality Control in Manufacturing: This sensor can ensure that critical parts in manufacturing processes are within their specified tolerances, providing feedback for quality assurance systems.

Product Advantages

1. Non-Contact Measurement: The Epro PR6424/006-030 sensor operates without physical contact with the target, eliminating wear and tear issues commonly associated with contact sensors, and allowing for accurate measurements without interrupting the machine’s operation.

2. High Precision: With an accuracy of ±0.05 mm, this sensor ensures highly reliable measurements, which is essential for monitoring machinery performance and maintaining equipment in optimal conditions.

3. Wide Temperature Range: The sensor can operate in harsh environments with temperatures ranging from -40°C to +100°C, making it suitable for use in both industrial and outdoor applications.

4. Robust and Durable Design: Featuring a stainless steel housing and an IP67 protection rating, the sensor is resistant to dust, moisture, and mechanical wear, ensuring long-lasting performance in challenging environments.

5. Fast Response Time: The sensor has a quick response time, which is ideal for dynamic and fast-moving mechanical components such as turbines, pumps, and motors.

6. Versatile Output Options: The sensor provides both analog voltage and current outputs, offering flexibility in integration with various control systems and monitoring devices.

7. Ease of Integration: With a standard 3-meter cable length and threaded mounting, the sensor is easy to install and integrate into existing systems without complex setup.

8. Low Maintenance: The non-contact nature of the sensor, combined with its rugged design, minimizes the need for maintenance, reducing downtime and operational costs.

9. Compact Size: The small form factor of the sensor allows it to fit into tight spaces without compromising on performance.

10. Cost-Effective: Offering a high level of accuracy and durability at a competitive price, the sensor is a cost-effective solution for a wide range of industrial applications.

Frequently Asked Questions (FAQ)

1. What is the measurement range of the Epro PR6424/006-030 Eddy Current Sensor?

   • The sensor has a measurement range of 16 mm.

2. How does the eddy current sensor work?

   • The sensor detects changes in electrical resistance caused by the proximity of a ferromagnetic material, providing non-contact measurements of displacement, position, and proximity.

3. What is the accuracy of this sensor?

   • The sensor offers an accuracy of ±0.05 mm, ensuring high precision in measurements.

4. What temperature range can the sensor withstand?

   • The sensor operates in temperatures ranging from -40°C to +100°C.

5. What types of materials can the sensor detect?

   • The sensor is designed to detect ferromagnetic materials.

6. Is this sensor suitable for use in harsh environments?

   • Yes, with a stainless steel housing and an IP67 protection rating, the sensor is highly durable and can withstand dust, moisture, and physical wear.

7. What type of output does the sensor provide?

   • The sensor provides an analog voltage or current output, offering flexibility for integration with control systems.

8. What is the weight of the sensor?

   • The Epro PR6424/006-030 sensor weighs 0.2 kg.

9. How is the sensor mounted?

   • The sensor can be mounted via a threaded mounting system, making it easy to integrate into various setups.

10. What is the typical cable length for this sensor?

    • The sensor typically comes with a 3-meter cable length, though custom lengths can be available depending on requirements.
