Product Overview

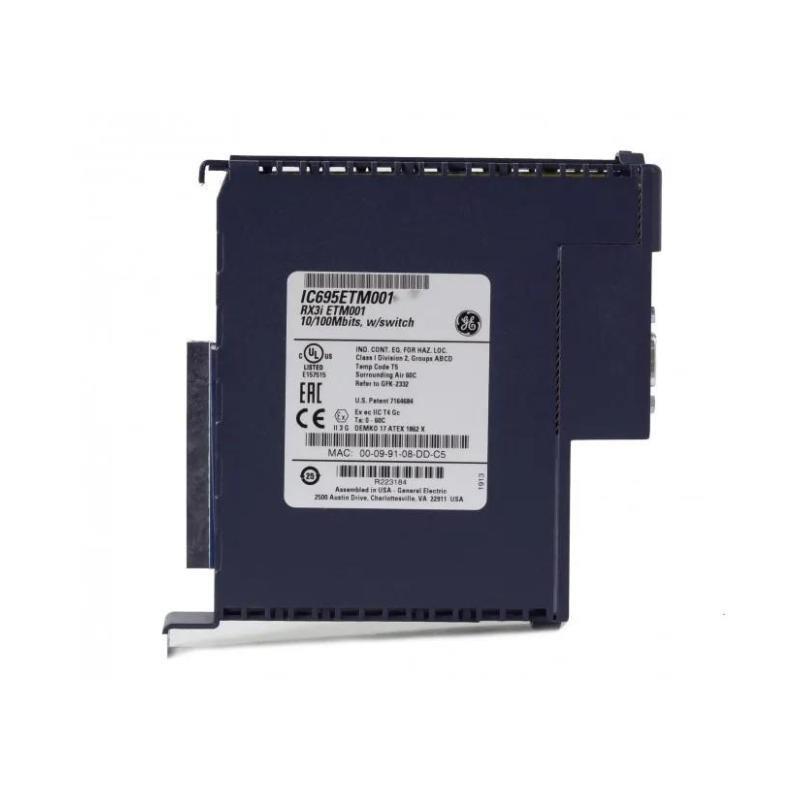

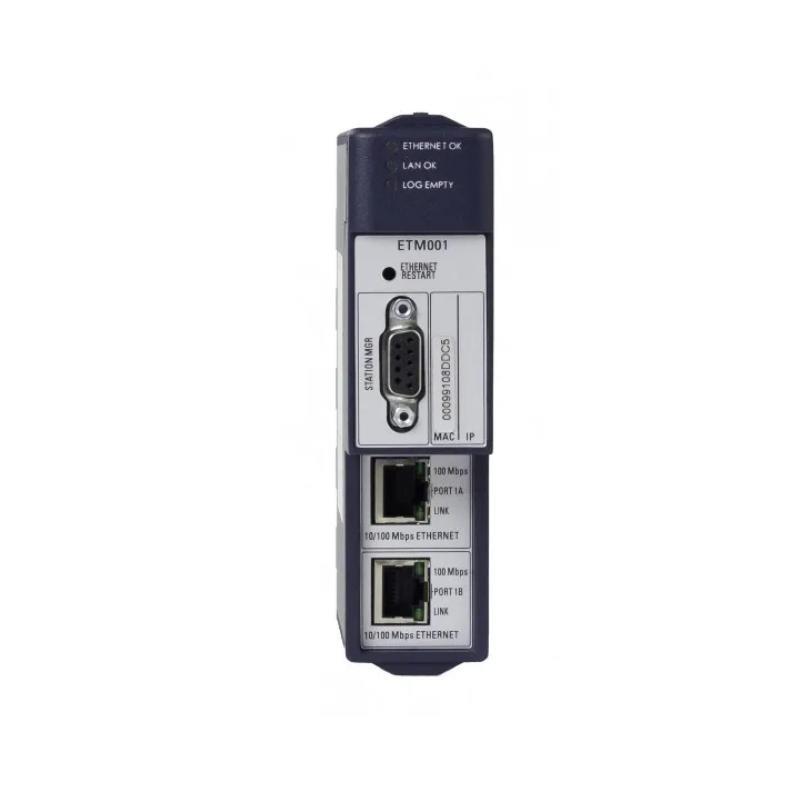

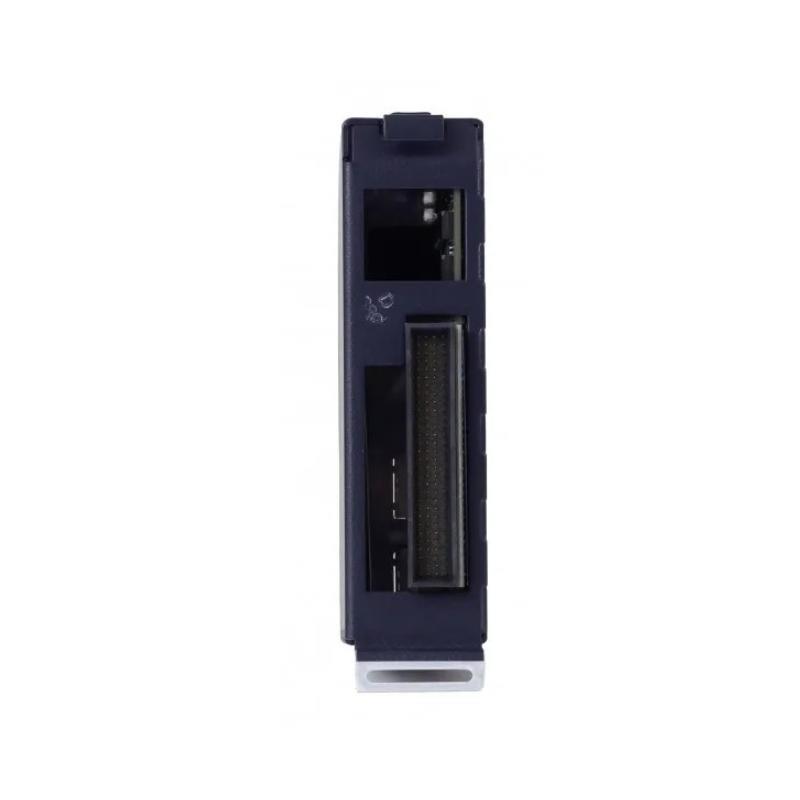

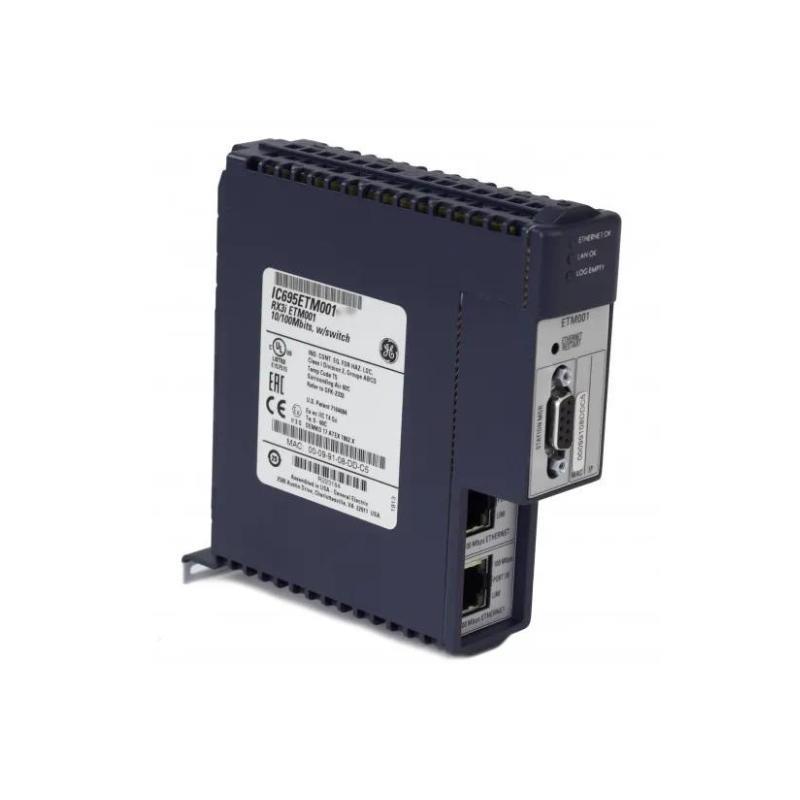

The GE Fanuc IC695ETM001-KAAA is an enhanced Ethernet Interface Module specifically designed for the PACSystems RX3i series. This industrial-grade module provides dual 10/100 Mbps Ethernet ports, supporting real-time communication between the RX3i controller and external devices like HMIs, SCADA systems, engineering workstations, and peer PLCs.
Built for demanding applications, it supports multiple Ethernet protocols including SRTP, Modbus TCP/IP, and Ethernet Global Data (EGD). It features web-based diagnostics, secure configuration options, and redundant port capabilities, making it a key networking component in high-availability control systems.
Key Features
-
Dual 10/100 Mbps Ethernet ports with integrated switching
-
Supports SRTP, Modbus TCP/IP, EGD, and other industrial protocols
-
Secure IP configuration via DIP switches or Proficy Machine Edition (PME)
-
Built-in web server for diagnostics and module status
-
LED indicators for module health and port activity
-
Supports firmware upgrades via Ethernet
-
Hot-swap capable for reduced downtime
-
Seamless integration with GE Fanuc Proficy software environment
-
Designed for harsh industrial conditions with robust isolation and certifications
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Ethernet Interface Module |
| Model Number | IC695ETM001-KAAA |
| System Compatibility | GE Fanuc PACSystems RX3i |
| Ethernet Ports | 2 × 10/100Base-T RJ-45 (auto-negotiating, internal switch) |
| Supported Protocols | SRTP, Modbus TCP/IP, EGD, ICMP, TCP/IP, ARP |
| Max Data Rate | 100 Mbps full duplex |
| Backplane Interface | PCI-style high-speed interface |
| IP Configuration Options | DHCP, Static (via PME or DIP switches) |
| Diagnostics | Built-in web server, PME diagnostics, LEDs |
| LED Indicators | OK, LAN Active, Link Speed, Port Status |
| Power Requirements | 3.3 VDC @ 300 mA (supplied from backplane) |
| Hot Swap Support | Yes |
| Firmware Update | Supported via Ethernet |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 132 x 50.8 x 70 mm |
| Weight | 0.226 kg |
| Certifications | UL, cUL, CE, RoHS |
Industry Applications
The IC695ETM001-KAAA is used extensively in industries that require fast, reliable, and redundant Ethernet communication, including:
-
Process Automation – Seamless connectivity with distributed I/O and peer controllers
-
Power Generation & Utilities – Real-time SCADA and turbine controller integration
-
Oil & Gas – Remote site monitoring and telemetry over Ethernet
-
Water/Wastewater Treatment – Networked PLCs and HMI panels in distributed plants
-
Food & Beverage – Real-time control and data acquisition for traceability
-
Manufacturing – High-speed communication with MES, ERP, and machine controllers
Product Advantages
-
Redundant Ethernet ports ensure high availability and system resilience
-
Multi-protocol support enables flexible integration with third-party systems
-
Integrated diagnostics reduce downtime and simplify troubleshooting
-
Secure IP settings prevent unauthorized changes and enhance cyber protection
-
Firmware upgradeable via Ethernet for long-term maintainability
-
Web server access offers real-time monitoring via standard browsers
-
Hot-swappable module eliminates the need for full system shutdown during replacement
-
Industrial-grade design for long life and reliable operation in harsh environments
Frequently Asked Questions (FAQ)
1. What is the difference between IC695ETM001-KAAA and IC695ETM001-EP?
The KAAA version typically represents a later hardware or firmware revision, but both models share the same core functionality. Check GE documentation for version-specific enhancements.
2. Can this module be used with SCADA software?
Yes, it supports Modbus TCP/IP, SRTP, and EGD, all commonly used with SCADA systems.
3. Are both Ethernet ports active simultaneously?
Yes, the ports operate via an internal switch, allowing device daisy-chaining or redundant network topologies.
4. How do I assign an IP address?
You can configure the IP via DIP switches, DHCP, or using GE Proficy Machine Edition (PME).
5. Does this module support secure communication?
It supports secure configuration options like IP filtering and password-protected access via PME or the web server.
6. What protocols are available for real-time control?
SRTP and EGD provide real-time control, while Modbus TCP/IP is ideal for device integration.
7. Can I use both ports for different subnetworks?
No, both ports share a single IP address and are intended for use on the same Ethernet segment.
8. Is firmware upgradable?
Yes, firmware updates can be performed via Ethernet using the Proficy suite.
9. What is the maximum cable length per port?
Standard Ethernet limits apply: 100 meters (328 feet) per CAT5/6 cable.
10. Is the module suitable for redundant control systems?
Yes, when used with RX3i’s redundant control architecture, it supports network redundancy features.
Related GE Fanuc Networking & Communication Modules
| Model | Description |
|---|---|
| IC695ETM001-EP | Standard RX3i Ethernet Interface Module |
| IC695PNC001 | PROFINET Controller Module |
| IC693CMM321 | Ethernet Comm Module for Series 90-30 |
| IC695CMM002 | RX3i Serial Communication Module (Dual Port) |
| IC695USB001 | USB Interface Module for RX3i Controllers |
| IC695CPE330 | RX3i CPU with integrated Ethernet and serial communication |
Popular GE Fanuc Automation Products
| Model | Description |
|---|---|
| IC695CPU320 | RX3i High-Performance CPU |
| IC695CHS012 | 12-Slot RX3i Universal Backplane |
| IC695PSA140 | 120/240 VAC Power Supply Module |
| IC694MDL645 | 32-Point Digital Input Module |
| IC694ALG391 | 8-Channel Analog Voltage Input Module |
| IC694MDL940C | 32-Point 24VDC Digital Output Module |
