Product Introduction

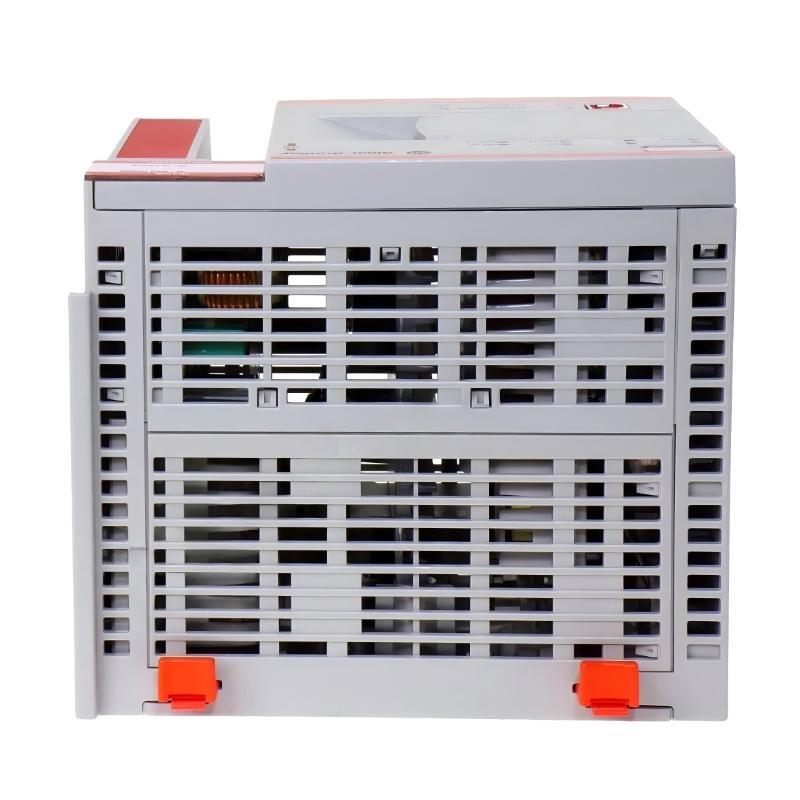

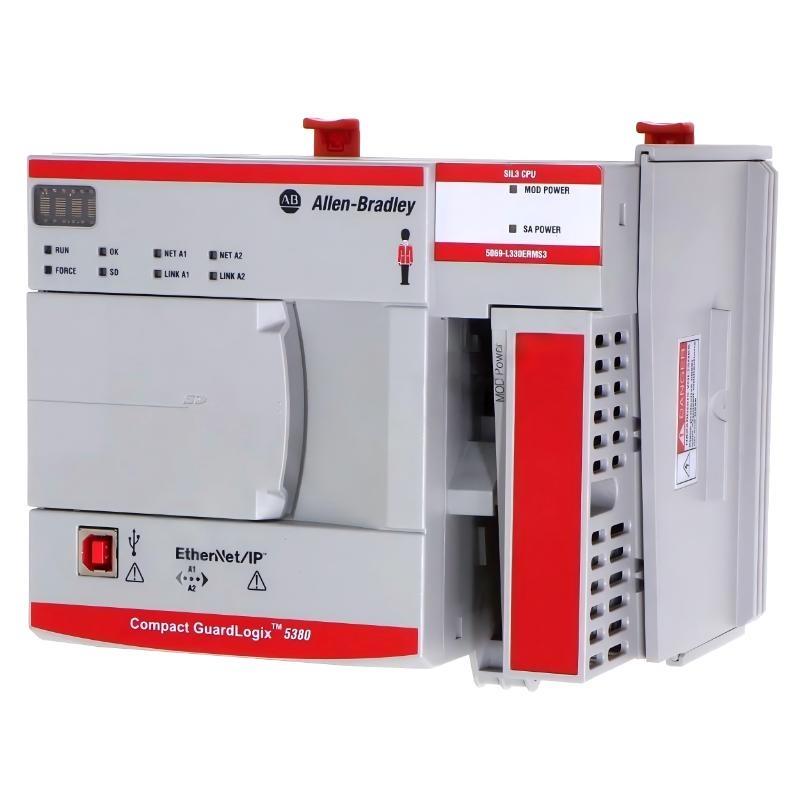

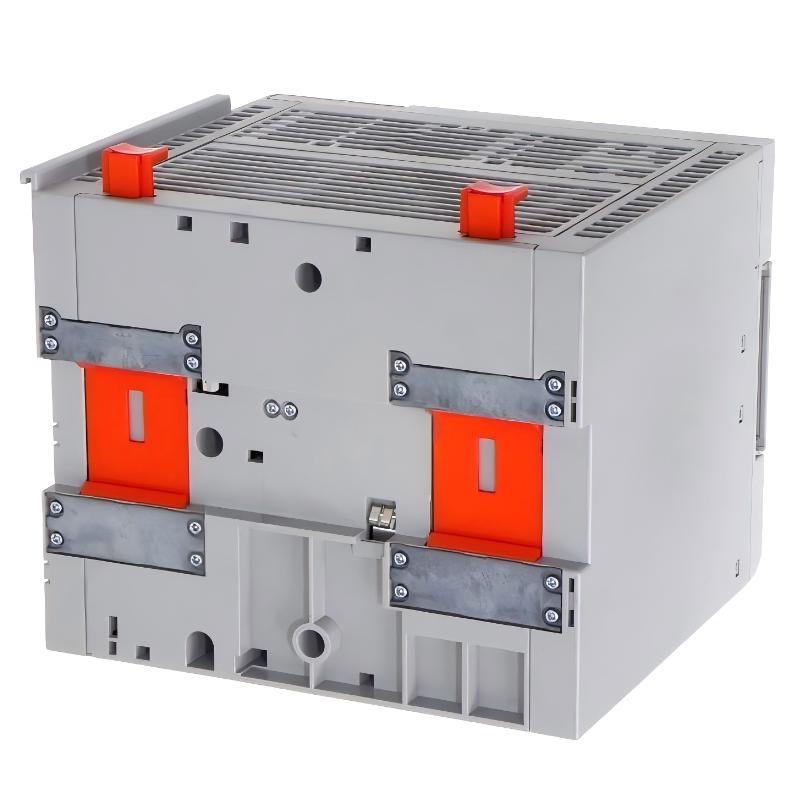

The Allen Bradley 5069-L330ERMS3 CompactLogix 5380 Safety Controller is a high-end safety controller designed for advanced industrial automation systems that demand both high-performance control and certified functional safety. As part of the CompactLogix 5380 family, this model integrates standard control, safety control, and motion capabilities into a single platform, making it suitable for complex and safety-critical applications.
With a safety rating of SIL3 and PL e, the controller is engineered to meet stringent international safety standards. It features 3.0 MB of standard memory and 1.5 MB of dedicated safety memory, enabling clear separation between operational logic and safety-related tasks. This architecture enhances system reliability and simplifies safety validation processes.
The controller supports up to 16 axes of integrated motion, allowing precise coordination across multiple motion devices. It also provides scalability with support for up to 31 local I/O modules and up to 60 EtherNet/IP nodes, ensuring seamless integration into large distributed systems. Its DIN rail mounting design and robust construction make it well suited for demanding industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 5069-L330ERMS3 |
| Series | CompactLogix 5380 |
| Controller Type | Safety Controller (Standard + Safety + Motion Integrated) |
| Safety Rating | SIL3 / PL e |
| Standard User Memory | 3.0 MB |
| Safety Memory | 1.5 MB |
| Integrated Motion | Up to 16 Axes |
| Communication Protocol | EtherNet/IP |
| Maximum Ethernet/IP Nodes | Up to 60 Nodes |
| Local I/O Expansion | Up to 31 Modules |
| Power Supply Voltage | 18–32 VDC |
| Mounting Type | DIN Rail Mount |
| Isolation | Integrated System Isolation |
| Dimensions | 153.5 x 136.81 x 143.71 mm |
| Weight | 1.2 kg |
Applications
• High-End Safety-Critical Systems requiring SIL3 / PL e certified protection in complex automation environments
• Multi-Axis Motion Machinery such as packaging, printing, and robotics with integrated safe motion control
• Automated Production Lines where safety, motion, and logic must operate seamlessly together
• Process Industries with strict safety compliance and distributed control requirements
• OEM Equipment Development for advanced machines requiring high performance and safety integration
Advantages
• Top-Level Safety Certification with SIL3 / PL e compliance for maximum protection in critical applications
• Integrated Control, Safety, and Motion reduces system complexity and hardware requirements
• High Memory Capacity with separate standard and safety memory for efficient program management
• Advanced Motion Capability supporting up to 16 axes for precise and synchronized operations
• Extensive System Scalability with up to 31 local I/O modules and 60 EtherNet/IP nodes
• Robust and Compact Design ensures reliable operation and efficient panel integration
