Product Introduction

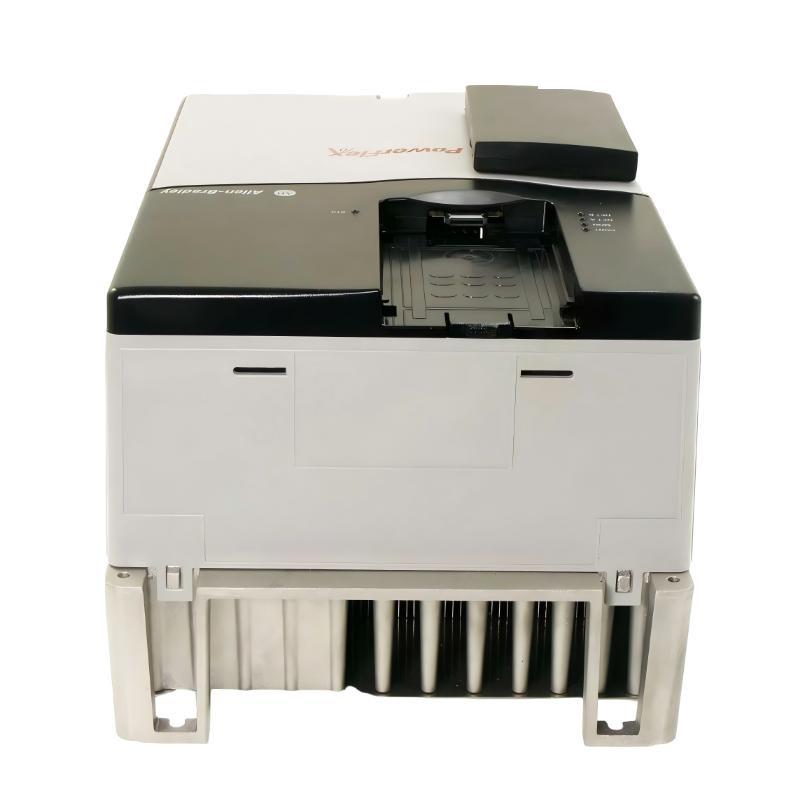

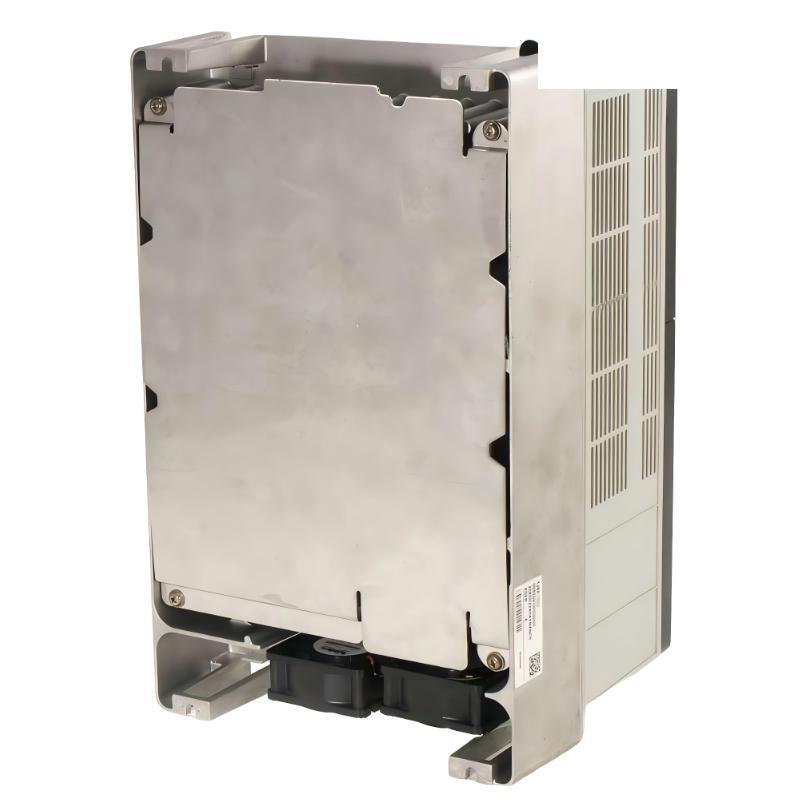

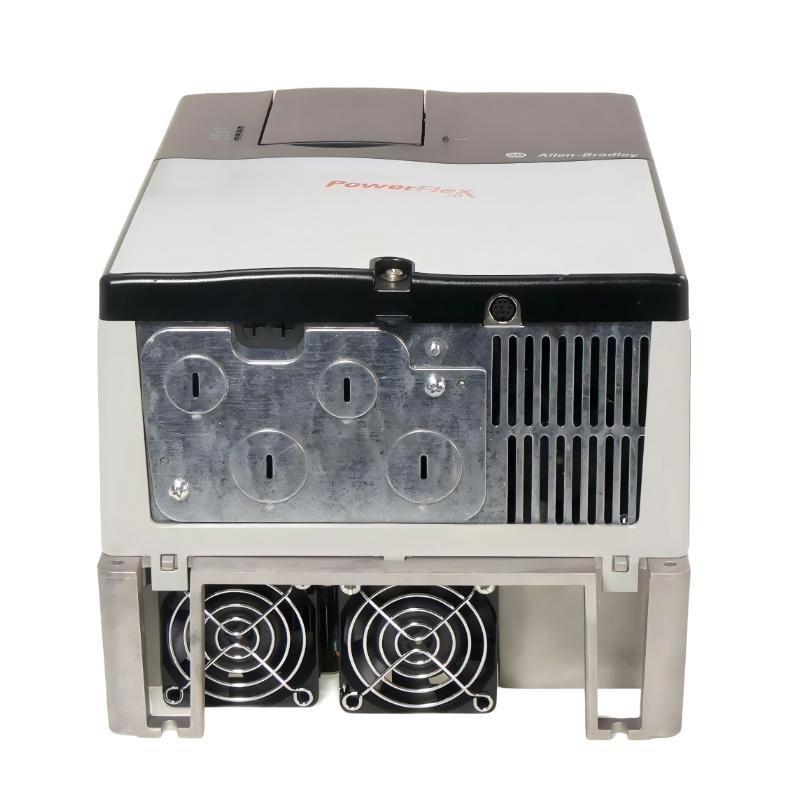

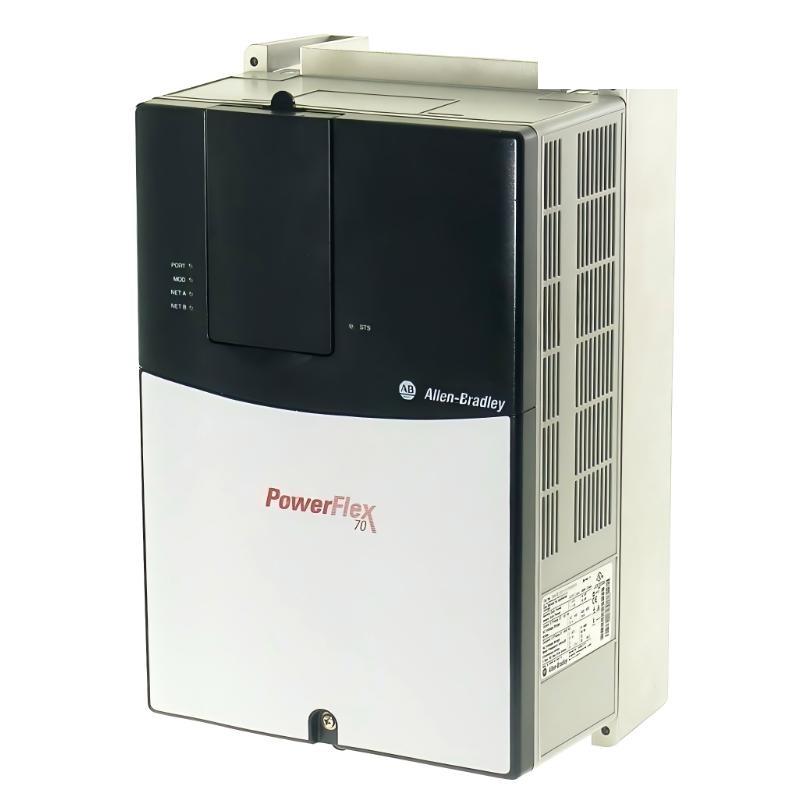

The Allen Bradley 20AD022A0AYNANC0 PowerFlex 70 AC Drive is a high-performance variable frequency drive designed for industrial motor control applications. It provides precise speed and torque control for three-phase AC motors, enabling energy-efficient operation and optimized performance in automated systems.
This drive supports normal duty operation of 15 HP and heavy duty operation of 10 HP, making it versatile for a wide range of pumps, fans, conveyors, and machine tools. Featuring an IGBT-based design and panel mount enclosure, the PowerFlex 70 ensures reliable operation, fast dynamic response, and robust performance under varying load conditions. Its IP20/NEMA Type 1 housing allows for straightforward installation in control panels while maintaining safety and durability.
Product Specifications
| Parameter | Specification |
|---|---|
| Drive Type | AC Variable Frequency Drive |
| Model Number | 20AD022A0AYNANC0 |
| Voltage | 480V AC, 3-Phase |
| Current Rating | 22 Amps |
| Horsepower (Normal Duty) | 15 HP |
| Horsepower (Heavy Duty) | 10 HP |
| Enclosure Type | Panel Mount, IP20, NEMA Type 1 |
| HIM (Human Interface Module) | Not Included |
| Brake IGBT | Installed |
| Control Method | V/Hz Control, Adjustable Parameters |
| Applications | Pumps, Fans, Conveyors, General Machine Tools |
| Dimensions | 350 x 219.9 x 179.8 mm |
| Weight | 9.25 kg |
Applications
• Industrial Automation – Provides precise motor control for production machinery, conveyors, and automated systems.
• Pumps and Fans – Optimizes energy efficiency and flow control in HVAC, water, and process systems.
• Material Handling Systems – Ensures smooth acceleration and deceleration for conveyors and lifts.
• Machinery and Equipment – Delivers reliable torque and speed control for machine tools, mixers, and extruders.
• Energy Management – Reduces power consumption and mechanical stress on motors through variable frequency control.
Advantages
• High-Performance IGBT Drive – Fast dynamic response with reliable torque control.
• Versatile Duty Ratings – 15 HP normal duty and 10 HP heavy duty for flexible industrial applications.
• Compact Panel Mount Design – Simplifies installation and integration in control panels.
• IP20/NEMA Type 1 Protection – Protects internal components in indoor industrial environments.
• Energy Efficient Operation – Optimized for reduced energy consumption and smooth motor control.
• Brake IGBT Installed – Facilitates motor braking and improved stopping performance.
