Product Introduction

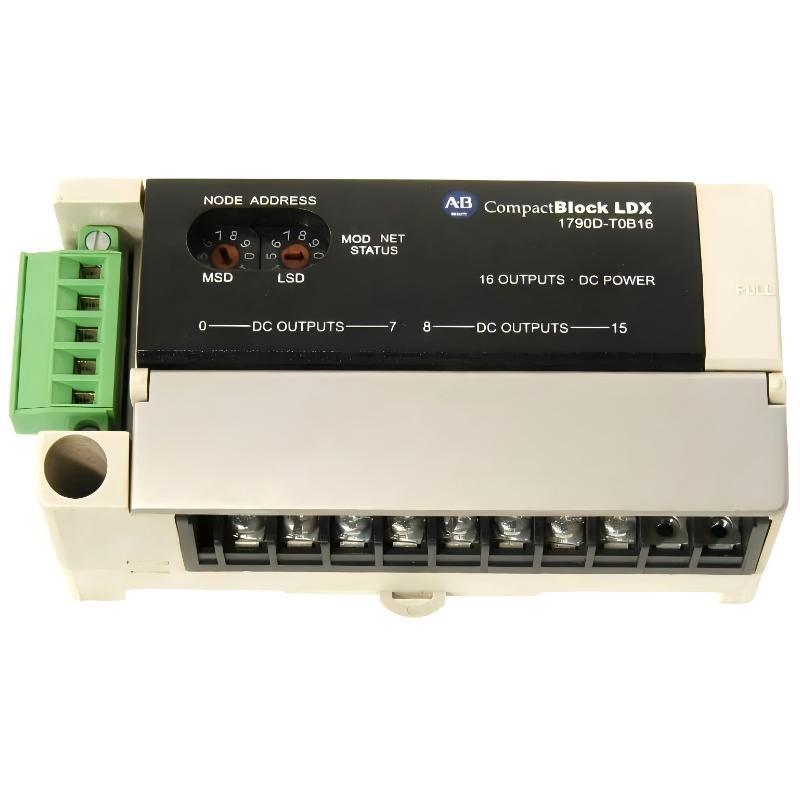

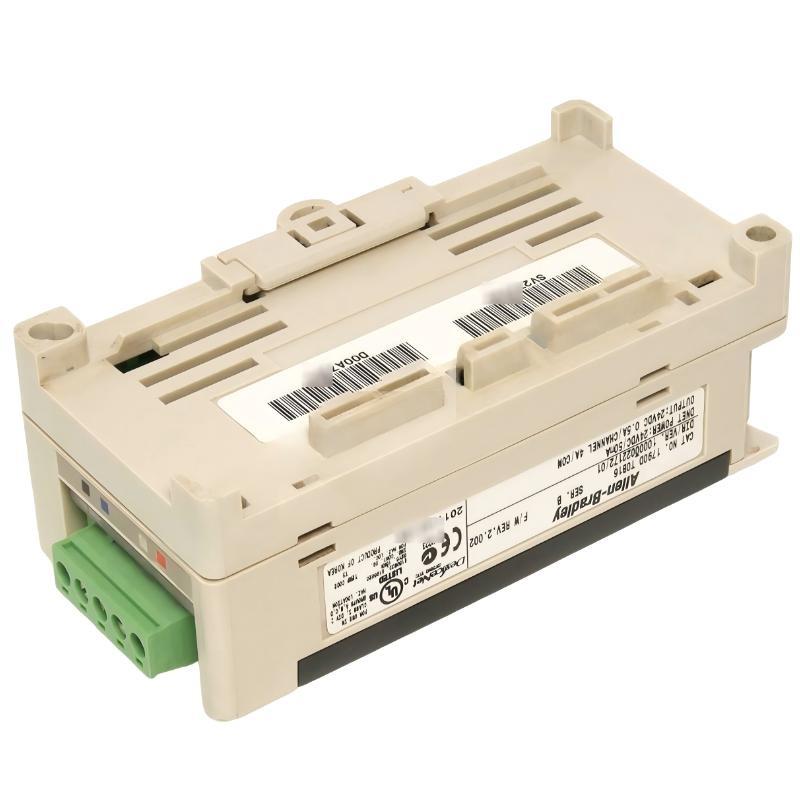

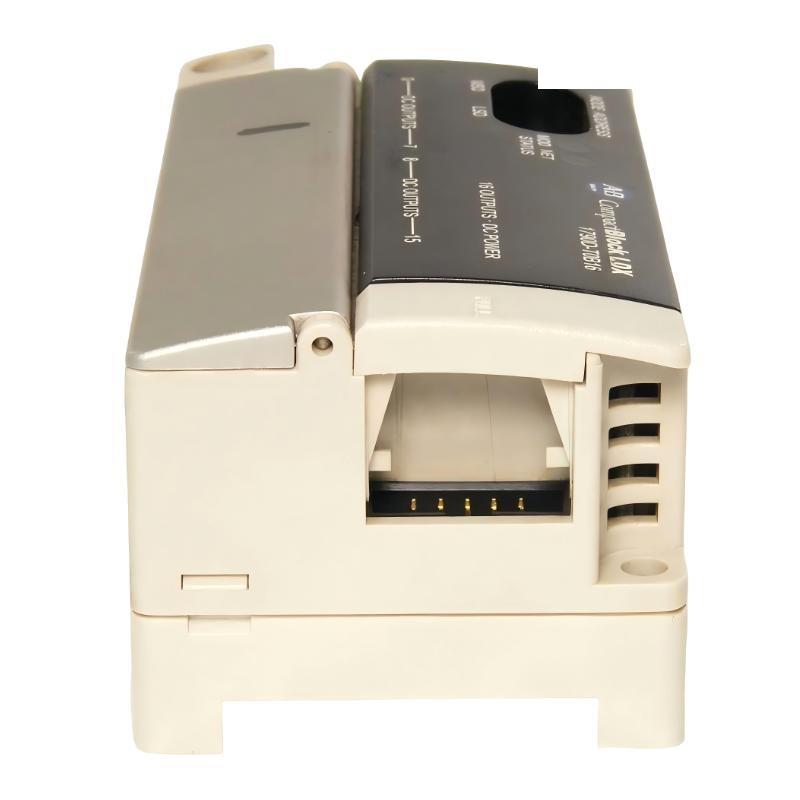

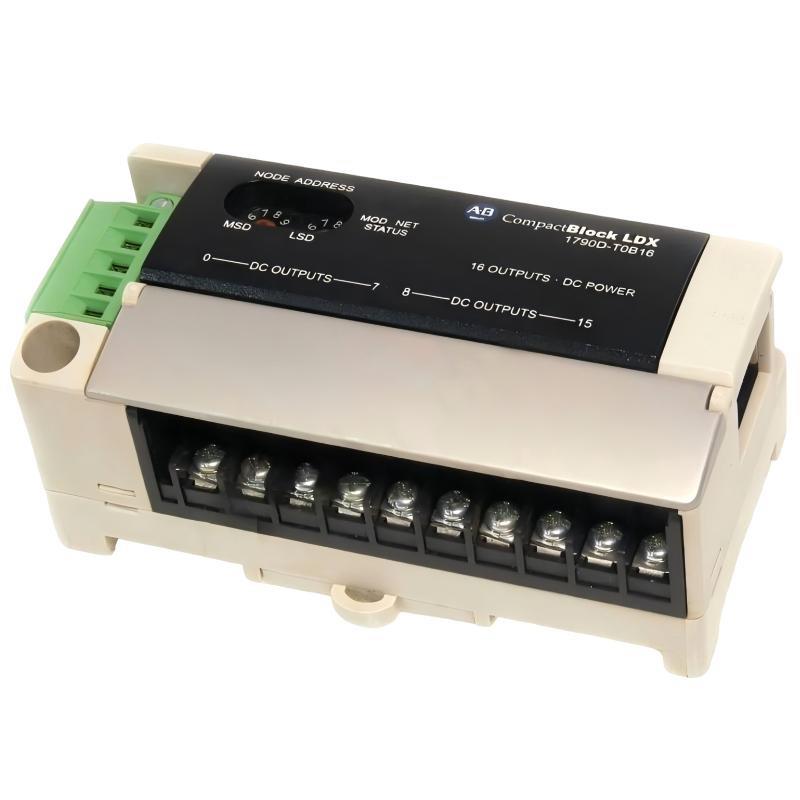

The Allen-Bradley 1790D-T0B16 CompactBlock LDX I/O Base Block Module is a compact digital output module designed for distributed industrial automation systems. Manufactured by Rockwell Automation under the Allen-Bradley brand, it is part of the CompactBlock LDX series and provides reliable control of field devices at the machine level.
This module features 16 digital output channels, each providing 24 VDC voltage and up to 100 mA of current per channel. Its open-style construction and IP20 rating allow easy installation within industrial control cabinets. The 1790D-T0B16 is ideal for applications requiring centralized control of multiple actuators, relays, or indicators in a compact space.
With its small footprint and robust design, the module simplifies field wiring and allows easy integration into distributed I/O networks for machine automation and factory control systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | Allen-Bradley 1790D-T0B16 |
| Product Type | CompactBlock LDX I/O Base Block Module |
| Digital Outputs | 16 Channels |
| Output Voltage | 24 VDC |
| Output Current per Channel | 100 mA |
| Output Type | Digital Sourcing |
| Module Style | Open Style |
| Mounting Method | Panel Mount |
| Enclosure Rating | IP20 |
| Application Environment | Industrial automation systems |
| Dimensions | 104 × 42 × 52 mm |
| Weight | 0.1 kg |
Applications
• Machine Automation Systems
Controls multiple relays, actuators, or indicator lights on automated machinery.
• Packaging and Assembly Lines
Provides output signals to operate solenoids, motors, and status indicators.
• Material Handling Systems
Manages conveyor motors, sensors, and alert devices.
• Distributed Control Networks
Serves as a field-level digital output module in decentralized I/O architectures.
• OEM Industrial Equipment
Installed in machine panels where multiple output channels are required in a compact module.
• Factory Automation Lines
Used to control actuators and indicators for automated production equipment.
Advantages
• High Output Capacity
Provides 16 independent digital output channels for multiple device control.
• Compact Design
Small footprint allows installation in limited space inside control cabinets.
• Reliable Output Control
24 VDC outputs provide stable control for low-power industrial devices.
• Open-Style Construction
Easy to mount and wire in machine panels or distributed I/O locations.
• Simplified Wiring
Integrated terminals reduce installation time and improve reliability.
• Flexible Industrial Applications
Compatible with relays, indicator lamps, solenoids, and other low-power actuators.
