Technical Overview

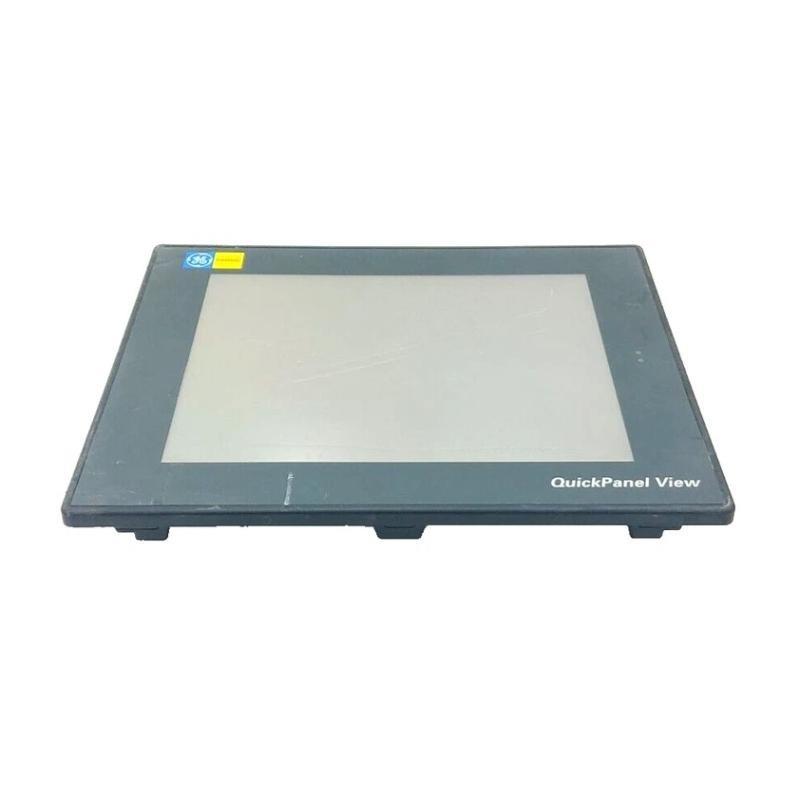

The GE IC754VGL12CTD is a 12-inch color HMI Terminal engineered for industrial visualization, equipment diagnostics, and machine-level control. As part of GE’s QuickPanel family, this unit integrates processing, display, and communication hardware into a single solid-state platform, offering dependable runtime operation in both standalone and PLC-connected environments.
Designed for industrial automation architectures, the IC754VGL12CTD provides a stable visual interface for controllers, drives, and distributed I/O systems. Its high-brightness display, robust panel-mount construction, and multi-protocol communication capabilities make it a reliable option for applications that demand continuous visibility and operator interaction.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | IC754VGL12CTD |
| Brand | GE |
| Module Type | HMI Terminal |
| Display Size | 12.1-inch TFT color display |
| Resolution | 800 × 600 (SVGA) |
| Touchscreen | Analog resistive touchscreen |
| Processor | Embedded industrial-grade CPU |
| Memory | Integrated flash + RAM for project runtime |

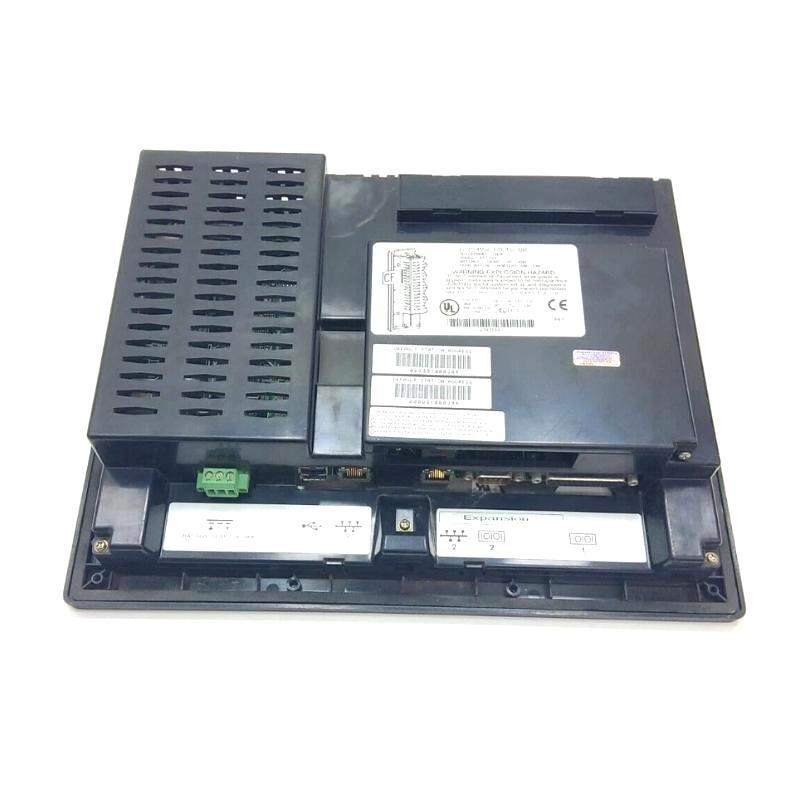

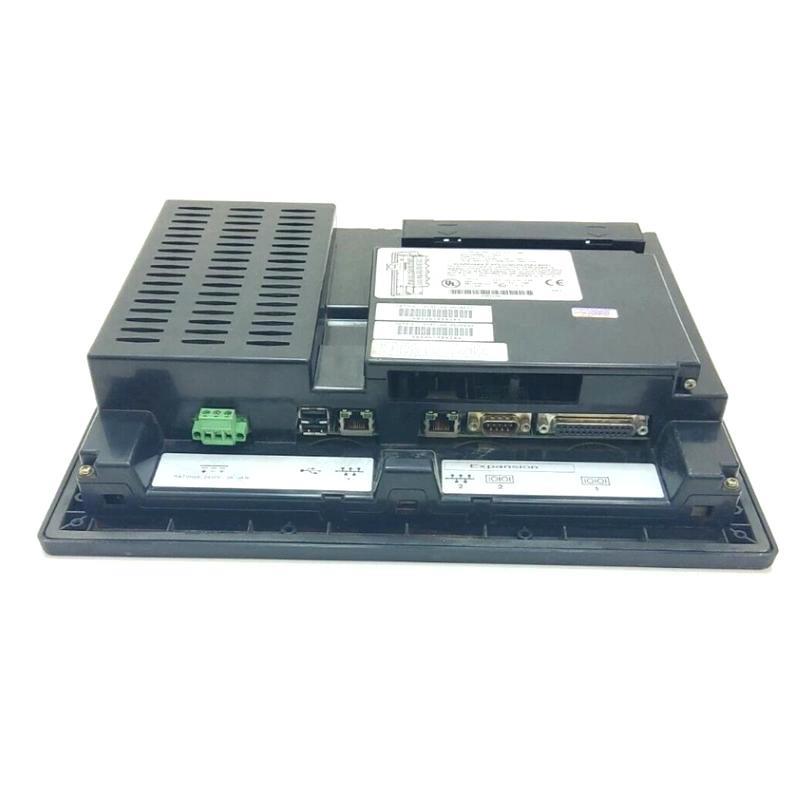

| Communication Ports | Ethernet, RS-232, RS-485, USB Host/Device |
| Power Supply | 24 VDC |
| Operating Temperature | 0°C to +50°C |
| Protection | Industrial front-panel sealing for panel-mount applications |
| Dimensions (H × W × D) | ≈ 260 mm × 330 mm × 70 mm |
| Weight | ≈ 3.0 kg |
| Mounting Method | Panel-mounted with gasket seal |
Applications / Use Scenarios
-
Supervisory interfaces for factory machinery and processing equipment
-
Local operator interface for GE PLC systems (RX3i, VersaMax, legacy 90-30)
-
Distributed HMI nodes in SCADA architectures
-
OEM machine control panels requiring compact integrated visualization
-
Production lines where stable 24/7 HMI operation is required
-
Energy, water treatment, and utility control systems
Advantages / Engineering Benefits
-
Integrated solid-state architecture means fewer failure points and consistent runtime performance
-
SVGA 12-inch touchscreen for detailed operational graphics and alarms
-
Flexible communication options supporting mixed PLC environments
-
Fanless cooling design increases long-term reliability
-
Rugged bezel ensures durability when mounted in vibration-prone panels
-
Simplified program deployment using Ethernet or USB interfaces
-
Stable operation during brownouts or voltage disturbances when paired with clean 24 VDC power
