Product Overview

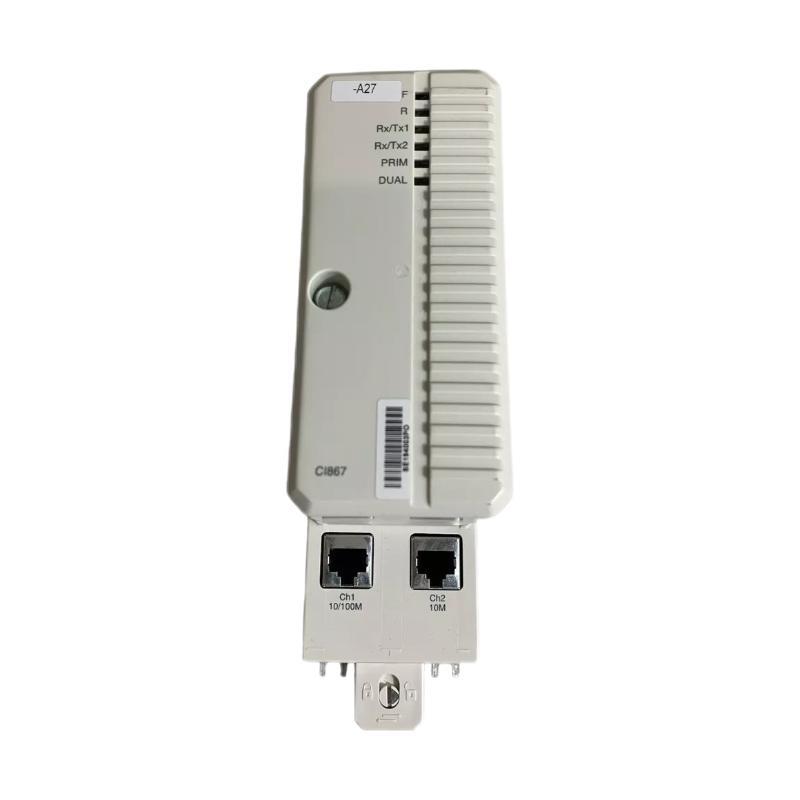

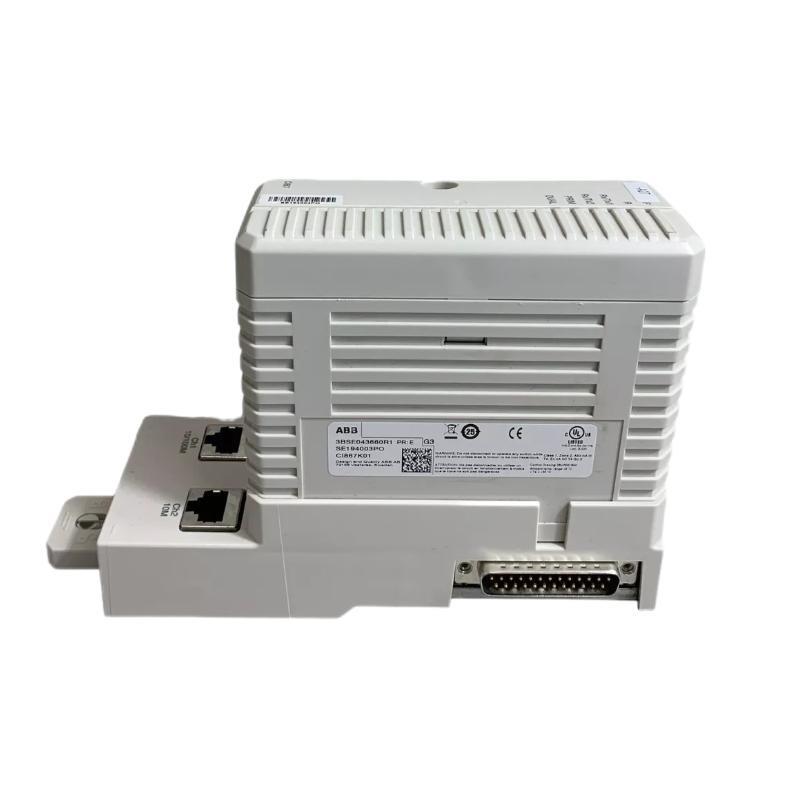

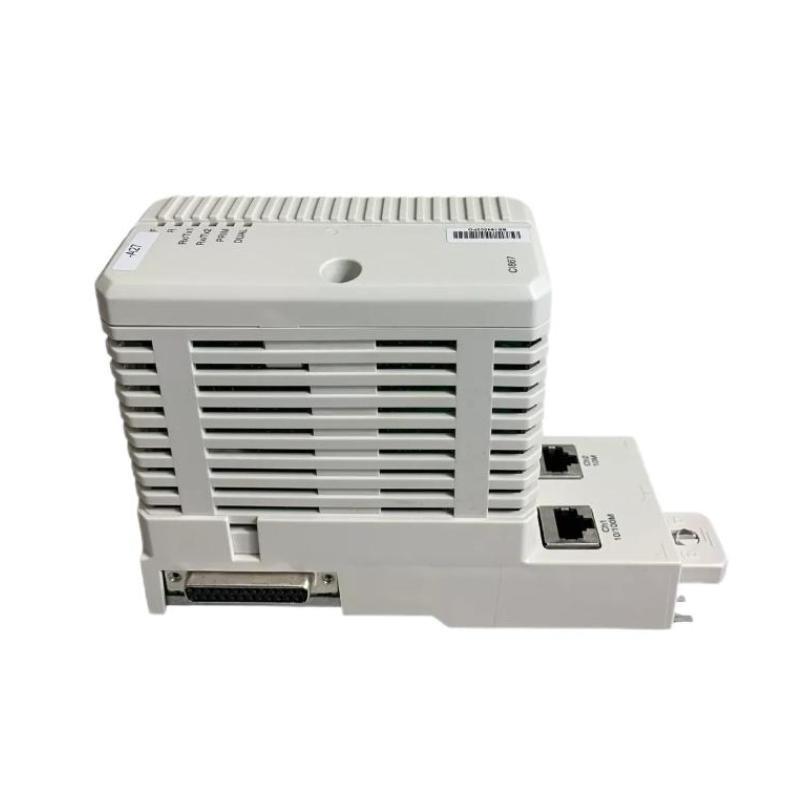

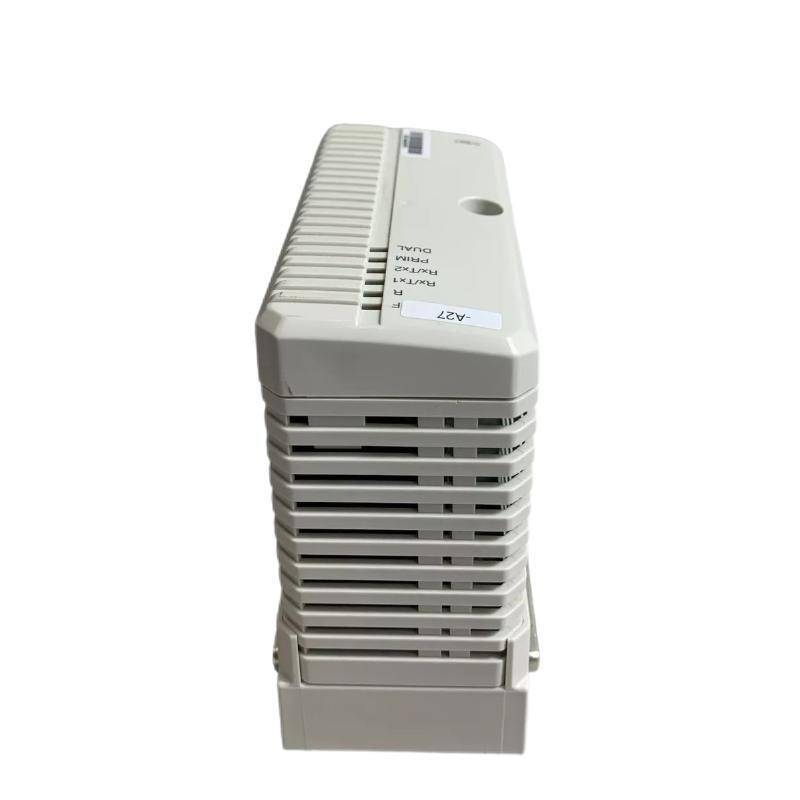

The ABB CI867 U3BSE043660R1 is a TCP/IP interface module designed to facilitate high-speed communication between ABB automation devices and Ethernet-based networks. It is optimized for the ABB AC 800M controller family and S800 I/O systems, enabling seamless data exchange via standard TCP/IP protocols. This interface supports reliable, deterministic, and secure data transmission critical for modern industrial automation.
The CI867 module acts as a gateway for data packets, ensuring efficient communication with other control system components, HMIs, SCADA systems, and third-party devices. It supports multiple simultaneous connections and offers advanced diagnostic capabilities to maintain communication integrity.
Key Features
-
High-speed TCP/IP communication interface
-
Compatible with ABB AC 800M controllers and S800 I/O systems
-
Supports multiple simultaneous TCP connections
-
Integrated diagnostics for communication status and errors
-
Secure data transmission with built-in firewall capabilities
-
Supports DHCP and static IP addressing
-
Easy configuration via ABB engineering tools
-
Rugged design for industrial environments
-
Supports standard Ethernet protocols including Modbus TCP
Technical Specifications
| Parameter | Specification |
|---|---|
| Communication Protocol | TCP/IP, Modbus TCP |
| Number of TCP Connections | Up to 8 simultaneous connections |
| Data Rate | 10/100 Mbps Ethernet |
| Network Interface | RJ45, 10/100Base-T Ethernet port |
| IP Addressing | Static IP and DHCP support |
| Power Supply | Powered via AC 800M backplane |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 185 x 59 x 127.5mm |
| Weight | 0.7 kg |
| Mounting | DIN rail or rack-mounted in S800 I/O chassis |
| Certifications | CE, UL, cUL, RoHS |
Product Advantages
-
High-speed Ethernet Communication: Supports 10/100 Mbps for fast data transfer.
-
Multiple Connections: Can handle up to 8 TCP connections simultaneously, ideal for complex networks.
-
Flexible IP Configuration: Supports both DHCP and static IP addressing for easy network integration.
-
Robust Diagnostics: Built-in tools to monitor network status and troubleshoot communication issues.
-
Security: Includes firewall features to protect against unauthorized access.
-
Seamless Integration: Fully compatible with ABB AC 800M controllers and S800 I/O systems for cohesive automation solutions.
-
Easy Configuration: Can be configured with ABB’s familiar engineering software tools, reducing setup time.
Industry Applications
-
Process automation in chemical and petrochemical plants
-
Power generation control systems
-
Water and wastewater treatment facilities
-
Manufacturing and assembly line automation
-
Oil & gas monitoring and control
-
Building management systems (BMS)
-
Infrastructure and utilities automation
-
Any Ethernet-based industrial communication networks
Frequently Asked Questions (FAQ)
-
Q: What communication protocols does the CI867 support?
A: It supports TCP/IP and Modbus TCP protocols. -
Q: How many simultaneous TCP connections can the module handle?
A: Up to 8 simultaneous TCP connections. -
Q: Can the IP address be assigned dynamically?
A: Yes, the module supports DHCP as well as static IP addressing. -
Q: What is the physical size of the CI867 module?
A: Dimensions are 185 x 59 x 127.5mm. -
Q: Is the module compatible with ABB AC 800M controllers?
A: Yes, it is fully compatible and designed for AC 800M and S800 I/O systems. -
Q: Does the module provide any network security features?
A: Yes, it includes firewall capabilities to protect the network. -
Q: How is the module powered?
A: It is powered via the AC 800M backplane or S800 I/O rack. -
Q: What is the operating temperature range?
A: The module operates reliably between -25°C and +60°C. -
Q: Can the module be mounted on a DIN rail?
A: Yes, it supports DIN rail and rack mounting within the S800 I/O chassis. -
Q: Is the module suitable for hazardous environments?
A: It is designed for industrial environments; however, specific hazardous area certifications should be verified per application.
