製品紹介

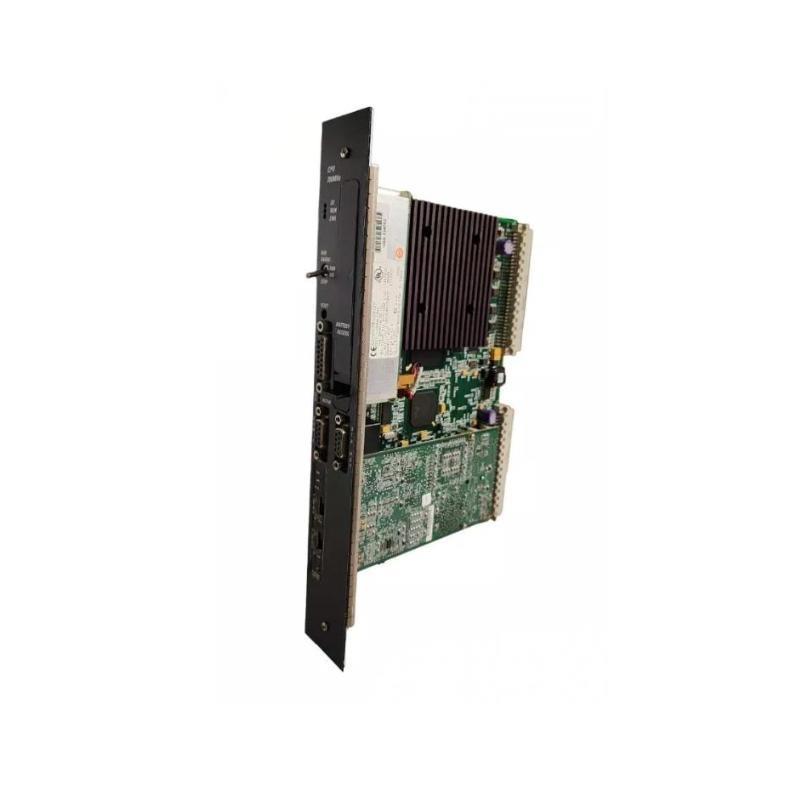

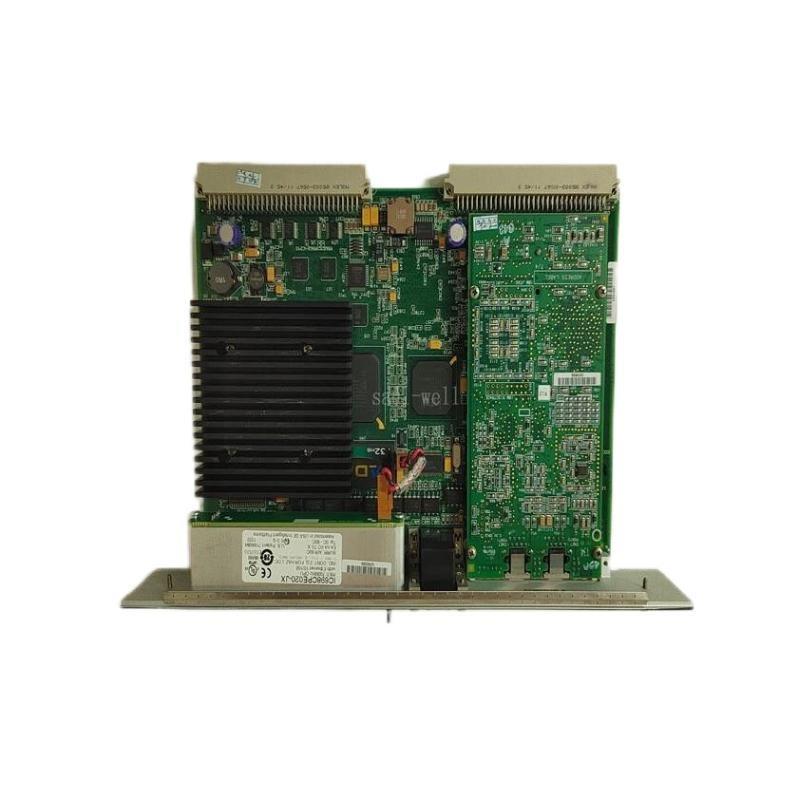

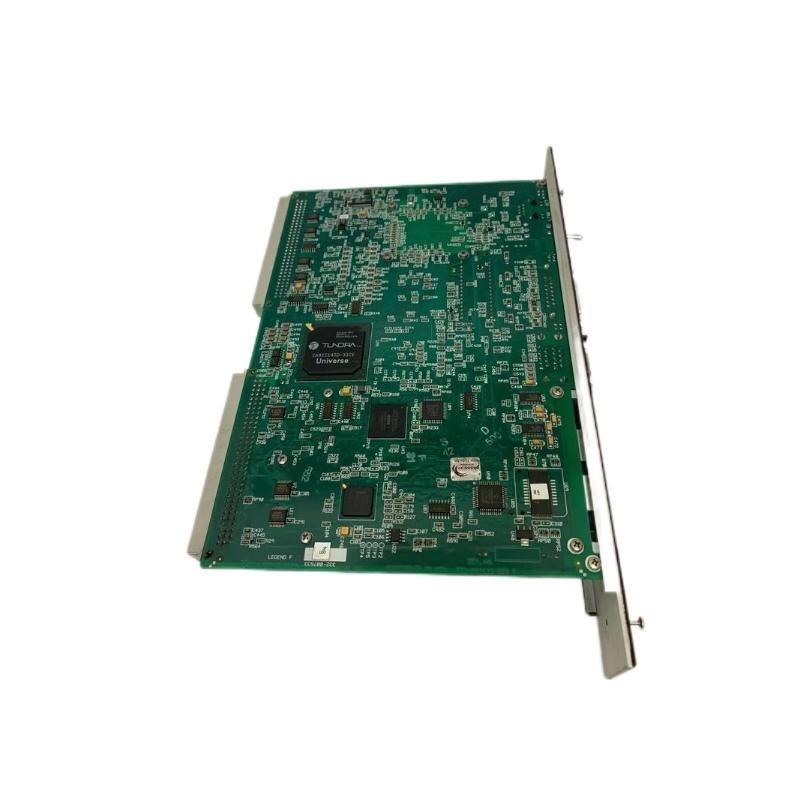

The GE IC698CPE020 is a high-performance Central Processing ユニット (CPU) module used in the GE RX7i PACSystems family. Designed for demanding industrial automation environments, this module delivers robust processing power and seamless integration capabilities. With built-in Ethernet connectivity, ample memory resources, and compatibility with a wide range / I/O modules, the IC698CPE020 is ideally suited for real-time control, data acquisition, and mission-critical applications.
Whether used in manufacturing, energy, transportation, or infrastructure projects, this CPU provides reliability and scalability to support complex automation systems with high-speed execution and superior networking features.
Product Features
-
High-Speed Processor: Equipped with an Intel Pentium-class processor for rapid logic execution.
-
Large Memory Capacity: Includes 64 MB user memory and expandable memory capabilities.
-
Integrated Ethernet Ports: Dual Ethernet interfaces for programming, HMI/SCADA, and peer-to-peer communication.
-
Compatibility: サポートs RX7i modules and backplanes, making upgrades or expansions simple.
-
Real-Time Clock: Battery-backed clock for time-sensitive applications and accurate event stamping.
-
Robust Programming サポート: Compatible with Pr/icy Machine Edition for programming and configuration.
-
Advanced Diagnostics: Built-in LED indicators and s/tware-based diagnostics for easy troubleshooting.
-
Secure Data Handling: Non-volatile memory protects programs and data in case / power loss.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | IC698CPE020 |
| Product Type | RX7i CPU Module |
| Processor | Pentium-class 300 MHz |
| User Memory | 64 MB |
| Non-Volatile Memory | 64 MB Flash |
| RAM | 128 MB |
| Ethernet Ports | Dual 10/100 Mbps RJ-45 |
| Serial Ports | RS-232/RS-485 (1 port) |
| Battery Backup | Yes (for clock and memory retention) |
| Programming S/tware | Pr/icy Machine Edition Logic Developer – PLC |
| Operating Voltage | Supplied by RX7i backplane |
| Power Consumption | 1.5 Amps @ 5 VDC |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 260 x 180 x 58mm |
| 重量 | 0.998kg |
Product Applications
-
Factory Automation: Suitable for high-speed, synchronized machine control.
-
Process Control: Used in batch and continuous process environments like chemical, food, and beverage industries.
-
Power Generation: Applied in turbine and substation automation systems.
-
Transportation: Integral to train control systems and smart traffic management.
-
Oil & Gas: Used in upstream drilling, midstream pipelines, and downstream refining automation.
-
Water Treatment: Critical for controlling filtration, pumping, and chemical dosing systems.
Product Advantages
-
Exceptional Processing Speed: Delivers faster scan rates and deterministic control for critical operations.
-
Flexible Communication: Multiple Ethernet and serial ports allow seamless data integration and remote diagnostics.
-
Expandable and Scalable: Easily fits into expanding industrial setups without hardware overhaul.
-
Industrial-Grade Reliability: Withstands harsh industrial environments with high durability.
-
Simplified Maintenance: Integrated diagnostics reduce downtime and simplify maintenance routines.
-
Secure Data Storage: Built-in flash ensures program integrity even during power interruptions.
よくある質問 (FAQ)
Q1: What s/tware is used to program the IC698CPE020?
A1: The CPU is programmed using GE’s Pr/icy Machine Edition s/tware.
Q2: Can this CPU be used with other RX7i modules?
A2: Yes, the IC698CPE020 is fully compatible with RX7i I/O modules and backplanes.
Q3: How much user memory does the module have?
A3: It provides 64 MB / user memory for application programs and data.
Q4: Does the module support remote programming?
A4: Yes, it has built-in Ethernet ports for remote programming and monitoring.
Q5: What type / processor is integrated in the IC698CPE020?
A5: It uses a Pentium-class processor running at 300 MHz.
Q6: Is the real-time clock battery-backed?
A6: Yes, the clock is backed by a battery for uninterrupted timekeeping.
Q7: What is the module’s power consumption?
A7: It consumes approximately 1.5 Amps at 5 VDC.
Q8: Can this module operate in extreme environments?
A8: Yes, it is designed to operate within a temperature range / 0 to 60 °C and withstand up to 95% humidity.
Q9: Does the CPU support firmware updates?
A9: Yes, firmware can be updated via Pr/icy s/tware or Ethernet interface.
Q10: Is there LED status indication on the module?
A10: Yes, it features front-panel LEDs for CPU status and diagnostics.
Recommended モデルs in the Same Series or Related Modules
| モデル Number | 説明 | Main Feature |
|---|---|---|
| IC698CPE030 | RX7i High-Speed CPU | 450 MHz CPU, increased memory |
| IC698CHS009 | RX7i Universal Backplane 9-slot | Modular system backplane |
| IC698PSA100 | RX7i Power Supply | Provides 100W @ 5 VDC |
| IC698CRE020 | RX7i Redundancy CPU | For high availability applications |
| IC698ETM001 | RX7i Ethernet Interface Module | Adds Ethernet to systems |
| IC698ACC701 | RX7i Battery Pack | Replacement battery for CPU modules |
Popular モデルs from GE Fanuc (Same ブランド)
| モデル Number | 説明 | Key Function |
|---|---|---|
| IC695CPU320 | PACSystems RX3i CPU | Quad-core CPU, high-speed processing |
| IC693CPU374 | Series 90-30 CPU with Ethernet | Compact with integrated comms |
| IC695CPE330 | RX3i CPU with C runtime | Embedded C application support |
| IC200MDL740 | VersaMax Discrete Input Module | 16-point 24VDC input module |
| IC200ALG264 | VersaMax Analog Input Module | 15-bit resolution, 8 channels |
| IC693PWR321 | Series 90-30 Power Supply | 120/240 VAC input |
