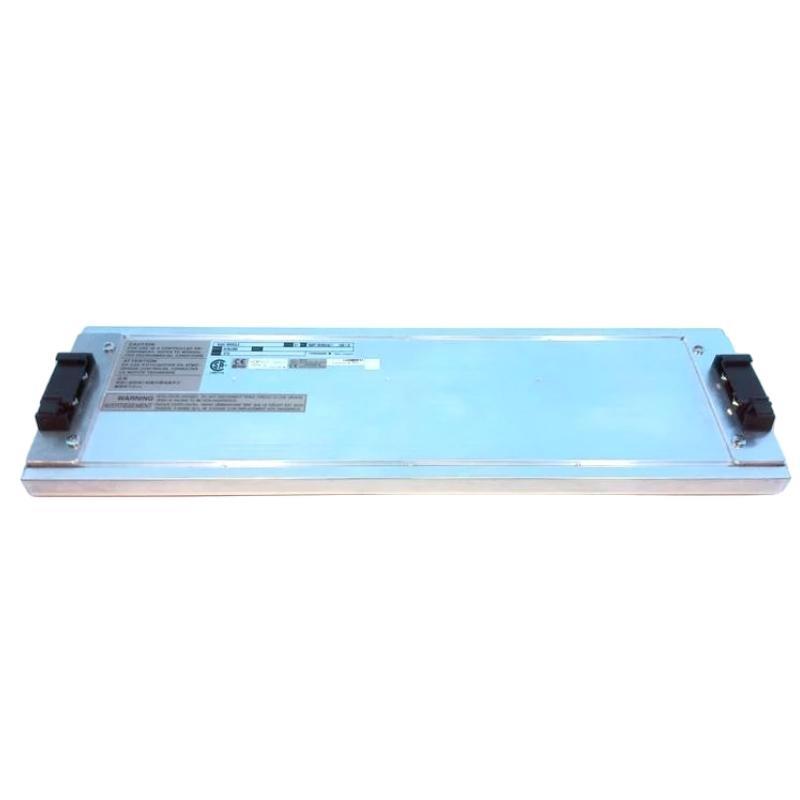

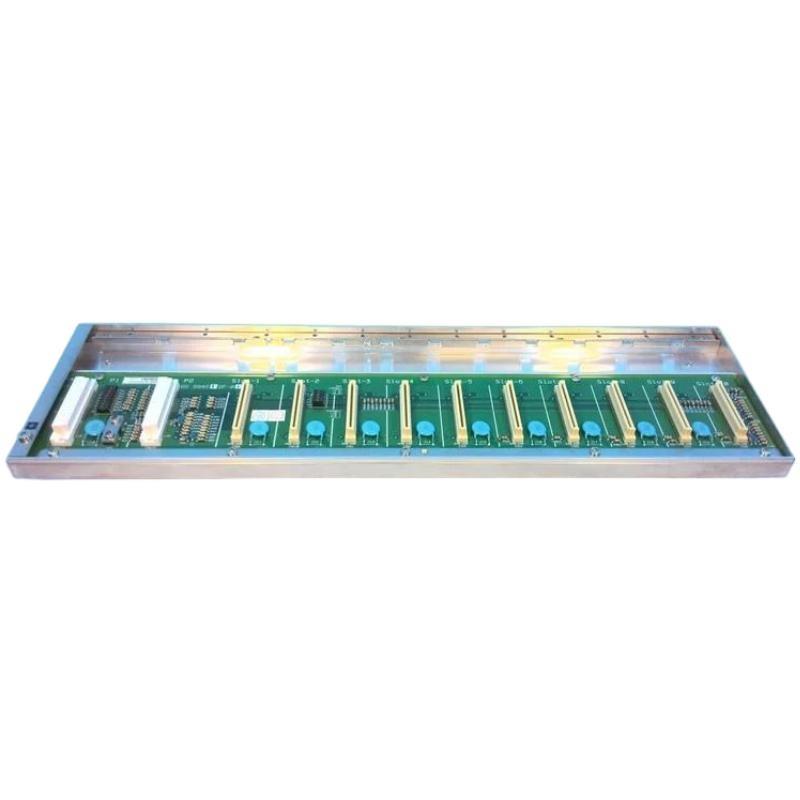

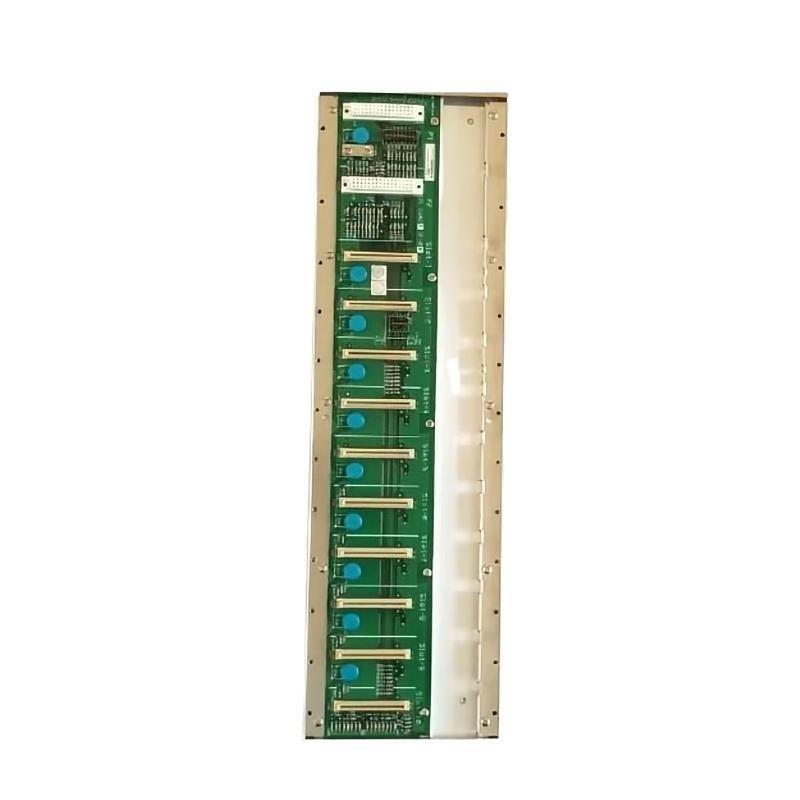

The Yokogawa NFBU200-S10 Base Module (Long) is a high-capacity base 台 designed for the installation and operation / multiple I/O modules in Yokogawa’s distributed control systems (DCS) and safety instrumented systems (SIS). Its long-form factor provides ample space for a higher number / I/O modules, allowing system designers to integrate multiple signal types, including analog, digital, pulse, and temperature inputs, in a single cabinet or panel.
This base module ensures secure mechanical support, precise electrical connections, and reliable communication between modules and the system backplane. It is engineered for demanding industrial environments, /fering resistance to vibration, shock, temperature fluctuations, and electrical noise. The NFBU200-S10 enables streamlined wiring, easy maintenance, and flexible system expansion, making it an essential component for large-scale process automation projects.
製品仕様
| Parameter | Details |
|---|---|
| モデル | NFBU200-S10 Base Module (Long) |
| Type | Base 台 for multiple I/O module installation |
| System Compatibility | Yokogawa CENTUM VP, ProSafe-RS |
| サポートed Modules | Analog Input, Analog Output, Digital Input, Digital Output, Pulse Input, RTD, TC/mV |
| Module Slots | Up to 4–6 modules depending on configuration |
| Power Supply Interface | 24 V DC via system backplane |
| Electrical Isolation | Optical/electrical isolation at module level; grounding via base |
| Mounting Method | DIN rail or cabinet mounting |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Vibration Resistance | 10–57 Hz, 0.075 mm amplitude; 57–150 Hz, 1.0 G |
| Shock Resistance | 10 G, 11 ms |
| Dimensions (W × H × D) | 440 x 131 x 42.3 mm |
| 重量 | 1 kg |
| Material | Flame-retardant, high-strength engineering plastic |
| Cooling Method | Natural air convection |
| Certifications | CE, RoHS, UL, CSA, ATEX (depending on configuration) |
Product Applications
The NFBU200-S10 Base Module (Long) is used in large-scale industrial automation applications, where reliability, expandability, and multi-signal integration are essential:
-
Oil & Gas Refineries: サポートs multiple I/O modules for monitoring and control / complex processes.
-
Chemical & Petrochemical Plants: Enables integration / analog, digital, and temperature signals in a single base 台.
-
Power Generation Facilities: Provides a high-capacity platform for turbine, boiler, and generator monitoring.
-
Pharmaceutical Manufacturing: Centralizes I/O modules for precise environmental and process monitoring.
-
Water Treatment & Utilities: Facilitates reliable control and data acquisition across multiple process points.
-
Steel & Metal Processing: サポートs multiple thermal and process signals in a single compact cabinet footprint.
Product Advantages
-
High-Capacity Design – Long base accommodates more I/O modules, reducing the number / base 台s required.
-
Flexible System Integration – Compatible with various Yokogawa I/O modules for mixed signal applications.
-
Robust Performance – Resistant to vibration, shock, and industrial environmental factors.
-
Ease / Installation – DIN-rail and cabinet mounting ensures fast, reliable installation.
-
Scalable and Expandable – サポートs additional modules for future system expansion.
-
Enhanced Safety Integration – Suitable for ProSafe-RS SIS configurations, meeting stringent safety requirements.
-
Reduced Maintenance – Simplified wiring and secure module retention minimize downtime.
-
Global Compliance – Meets international industrial and safety standards for reliable deployment worldwide.
FAQ
-
How many I/O modules can be mounted on the NFBU200-S10?
Typically 4–6 modules depending on module type and spacing. -
What module types are supported?
Analog Input/Output, Digital Input/Output, Pulse Input, RTD Input, TC/mV Input modules. -
Does the base module provide electrical isolation?
Isolation is implemented at the module level, with the base providing secure grounding. -
Can the module be used in hazardous areas?
Yes, with proper certification (e.g., ATEX), it is suitable for hazardous zones. -
Is hot-swapping / modules supported?
Yes, individual modules can be replaced without removing the base, depending on system configuration. -
How is the base module mounted?
It supports DIN rail and cabinet mounting for flexible installation. -
What power supply does it require?
Standard operation uses 24 V DC supplied through the system backplane. -
Does it provide any diagnostic or protective features?
The base ensures secure module retention and grounding; over-voltage and short-circuit protection is handled at module level. -
Can it integrate both analog and digital modules simultaneously?
Yes, the NFBU200-S10 is designed for mixed module integration. -
What is the cooling method for the base module?
Natural air convection is sufficient for typical operating conditions.
Recommended Related モデルs (Same Series or Family)
| モデル Number | 説明 |
|---|---|
| NFBU050-S10 | Base Module (Short) standard version |
| NFBU050-S15 | Base Module (Short) advanced version |
| NFBU100-L10 | Base Module (Long) standard version |
| NFBU100-L15 | Base Module (Long, reinforced type) |
| NFBU250-L20 | High-capacity Long Base Module with redundancy |
| NFBU300-S30 | Compact Short Base Module for high-density I/O |
Popular Yokogawa モデルs
| モデル Number | 説明 |
|---|---|
| NFAI841-S00 | Analog Input Module |
| NFAT141-S01 | TC/mV Input Module |
| NFAR181-S50 | RTD Input Module |
| NFAP135-S00 | Pulse Input Module |
| AAI143-S50 | High-Speed Analog Input Module |
| ADV151-P00 | Digital Output Module |
