製品紹介

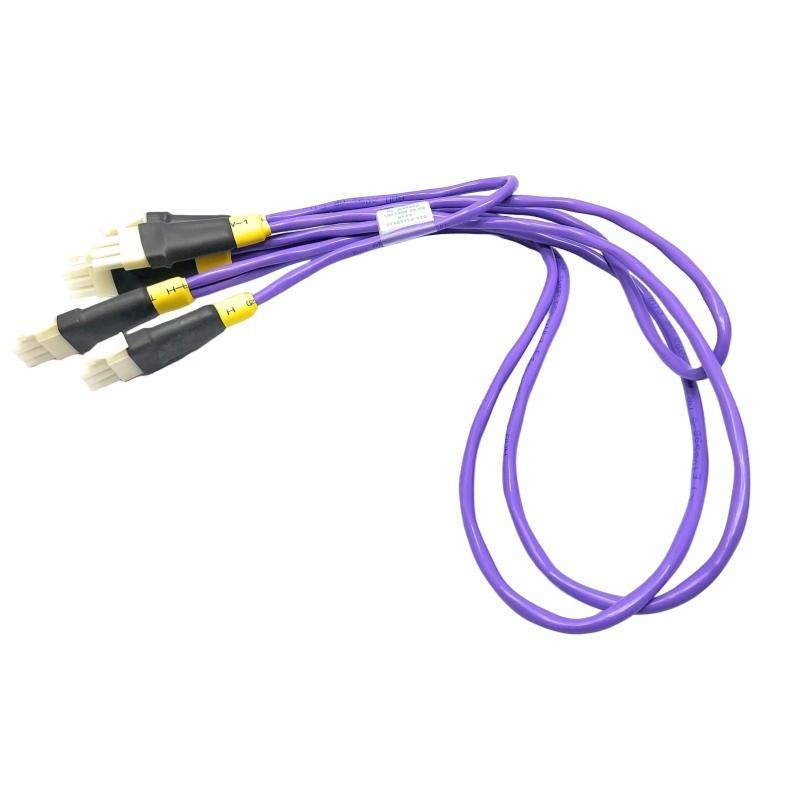

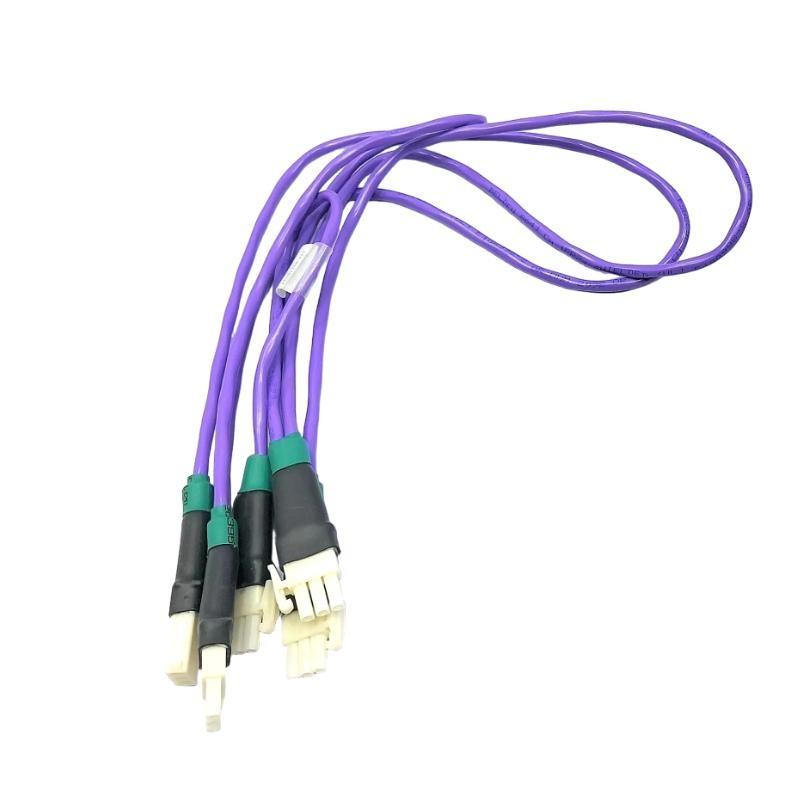

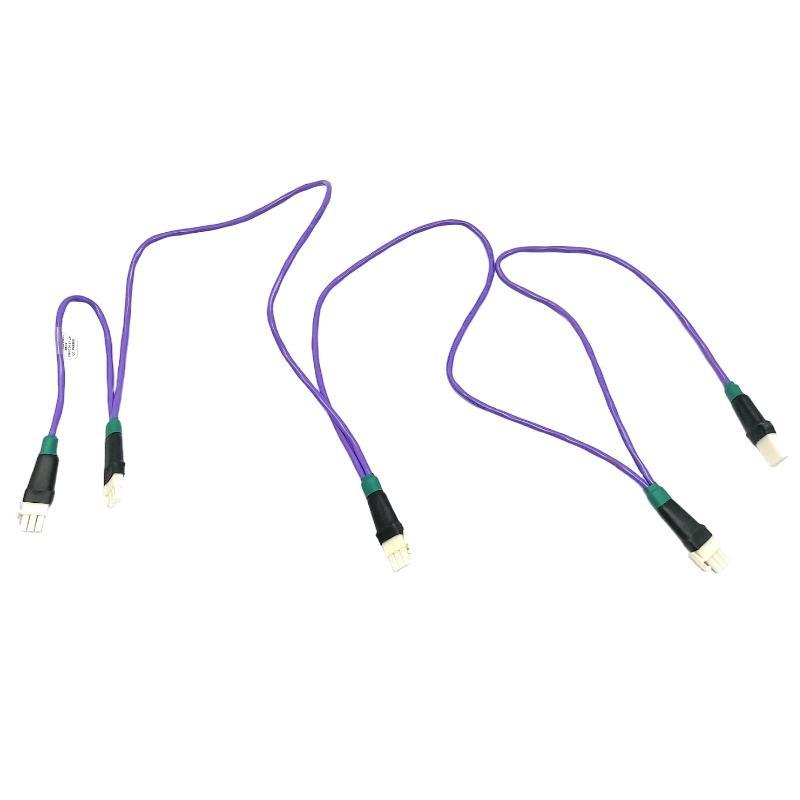

The Honeywell 51202329-412 Violet Drop Cable is a high-performance communication and control cable, engineered specifically for use in Honeywell’s industrial automation systems. Recognized for its reliability and superior signal transmission capabilities, this drop cable is an integral component in the Honeywell TDC 3000 system, ensuring robust connectivity between I/O modules and control networks.
Manufactured with precision and compliance to industrial-grade standards, the 51202329-412 is identified by its violet jacket—designed for easy identification during system installation and maintenance. The cable’s rugged construction ensures high resistance to mechanical stress, chemical exposure, and electromagnetic interference, making it ideal for harsh industrial environments.
製品仕様
| Parameter | Details |
|---|---|
| モデル | 51202329-412 |
| Product Type | Violet Drop Cable |
| メーカー | Honeywell |
| Color | Violet (Purple) |
| Cable Type | Twisted Pair, Shielded |
| Conductor Material | Tinned Copper |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Jacket Material | Thermoplastic or Industrial-grade PVC |
| Nominal Voltage | 300V |
| Operating Temperature | -40°C to +85°C |
| Impedance | 150 ohms ±10% |
| Shielding | Foil + Braid shielding for EMI protection |
| Flame Retardant | Yes, UL rated |
| Application | Honeywell TDC 3000, control I/O interfaces |
| Drop Cable | 3 Drop |
| Outer Diameter | 7.2 mm |
| Package 重量 | 3 kg |
| Certifications | UL, CSA, CE |
Applications
The Honeywell 51202329-412 Violet Drop Cable is widely utilized in the following industrial and automation sectors:
-
Distributed Control Systems (DCS): Especially in Honeywell TDC 3000 architecture for secure and stable data transmission between process controllers and remote I/O devices.
-
Industrial Automation Networks: Ensures reliable communication in noisy industrial environments where shielding is critical.
-
Power Plants and Refineries: Used in highly sensitive and hazardous areas due to its flame retardant and EMI-shielding properties.
-
Manufacturing Plants: For automation control and sensor communication applications.
-
Chemical Processing ユニットs: Withstands exposure to oils, chemicals, and temperature fluctuations.
Product Advantages
-
High EMI Resistance: Dual-shielded design with foil and braid provides excellent protection from electromagnetic and radio frequency interference.
-
Durable Construction: Resistant to mechanical abrasion, bending, and chemical exposure, ideal for industrial installations.
-
Easy Identification: Violet-colored outer jacket enables fast and easy cable routing and identification during maintenance.
-
Flexible Installation: Small diameter and bend radius /fer greater flexibility in tight spaces.
-
System Compatibility: Designed specifically for seamless integration with Honeywell TDC 3000 and other Honeywell process automation systems.
-
Safety Compliant: Flame-retardant and rated for safe operation in challenging industrial conditions.
よくある質問 (FAQ)
1. What systems is the Honeywell 51202329-412 cable compatible with?
This cable is primarily used with Honeywell TDC 3000 DCS systems but may be adapted for similar industrial automation setups.
2. What is the color / the cable jacket?
The cable is violet (purple), allowing quick identification during installation and maintenance.
3. Is the cable shielded?
Yes, it is both foil and braid shielded for maximum EMI protection.
4. What is the operating temperature range?
The cable operates between -40°C and +85°C, suitable for most industrial environments.
5. Is this cable flame retardant?
Yes, it complies with UL flame-retardant standards, making it suitable for safety-critical areas.
6. Can the cable be used outdoors?
While it’s designed primarily for indoor use in industrial environments, it can be used in covered outdoor locations with suitable protection.
7. Is the cable suitable for both analog and digital signal transmission?
Yes, it is designed for high-integrity signal transmission and supports both analog and digital communication depending on system configuration.
8. What kind / conductors are used in the cable?
The conductors are made from tinned copper, providing excellent conductivity and corrosion resistance.
9. Can the cable be used in retr/it projects or only new installations?
It is ideal for both new installations and retr/it projects, /fering backward compatibility and ease / integration with existing Honeywell systems.
10. Can this cable be used with non-Honeywell systems?
Yes, if the electrical and mechanical parameters match, it can be used with compatible third-party systems.
Related or Compatible モデルs (Same Series or Application)
| モデル | 説明 |
|---|---|
| 51202329-001 | Honeywell Drop Cable, Standard Grey Jacket |
| 51201420-100 | TDC 3000 Network Cable, Enhanced EMI Shielding |
| 51202329-113 | Violet Drop Cable, High Temperature Variant |
| 51309586-100 | Redundant Ethernet Drop Cable, Industrial Grade |
| 51400990-100 | ControlNet Shielded Cable, Honeywell Series |
| 51309150-175 | Remote I/O Drop Cable, Flexible Application |
Popular モデルs from Honeywell (High-Demand 製品)
| モデル | 説明 |
|---|---|
| CC-PDIL01 | Pulse Input Module, Process Manager Series |
| TC-CCR013 | Control Processor Card, C300 Controller |
| FC-SDO-0824 | Digital Output Module, Safety Manager |
| 51401437-100 | Fiber Optic Cable, Fault Tolerant Ethernet |
| MU-TD0D12 | Digital Output Module, TDC 3000 Series |
| CC-TCF901 | Fieldbus Interface Module, Experion PKS C300 |
