製品紹介

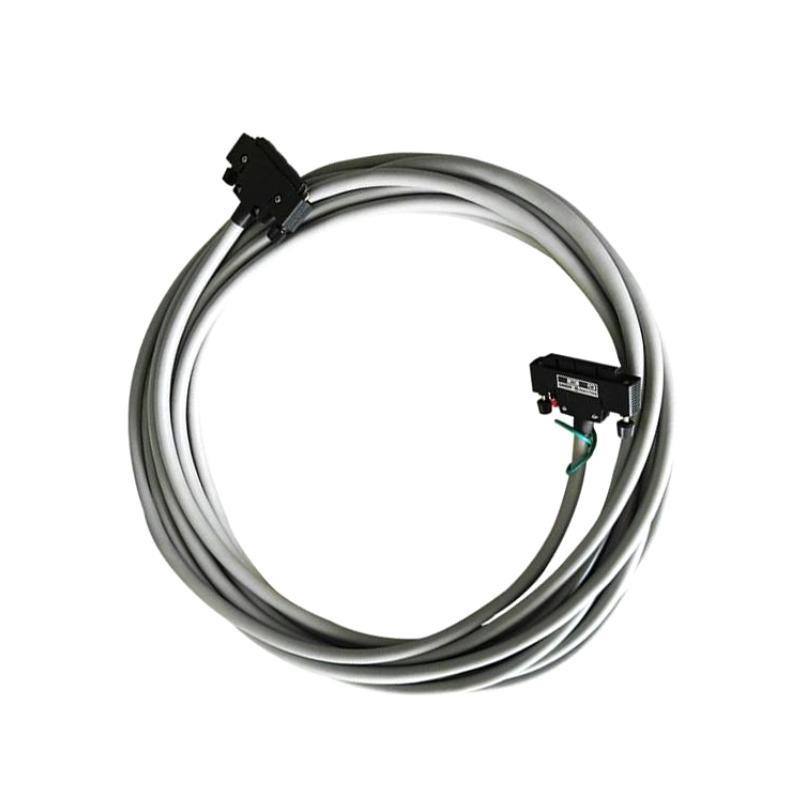

The Yokogawa KS1-10*B Signal Cable is a high-quality, shielded signal transmission cable developed specifically for integration with Yokogawa’s process automation systems. This model is part / the KS1 series, known for its reliable signal integrity, flexible construction, and resistance to electromagnetic interference (EMI).
With 10 individually insulated conductors, the KS1-10*B is designed for transmitting analog and digital control signals in Distributed Control Systems (DCS), field instruments, and various process control environments. It is particularly well-suited for use in plants where equipment is distributed across long distances, and consistent, noise-free signal transmission is required.
The outer jacket and inner insulation materials ensure robust performance in industrial environments with elevated electrical noise and potential mechanical stress.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | KS1-10*B |
| Cable Type | Multicore Shielded Signal Cable |
| Number / Cores | 10 conductors |
| Conductor Type | Stranded tinned copper |
| Conductor Size | 0.5 mm² |
| Insulation Material | Heat-resistant PVC |
| Outer Jacket Material | Flame-retardant PVC |
| Shielding | Aluminium foil with drain wire |
| Voltage Rating | 300V (AC/DC) |
| Temperature Range | -15°C to +70°C |
| Cable Diameter | 7.8 mm |
| Bend Radius (Minimum) | 5 x OD (~39 mm) |
| Cable Length | up to 10 meters |
| Package 重量 | 2 kg |
| Color Coding | Standard industrial color code |
| Flame Rating | IEC 60332-1 flame retardant |
| Compliance | RoHS, CE, REACH compliant |
| Connector Type | Open-ended, suitable for termination customization |
Product Applications
The KS1-10*B cable is engineered for use in a wide variety / industrial automation and control system applications where reliable low-voltage signal transmission is essential:
-
Yokogawa CENTUM VP and ProSafe-RS DCS systems
-
Connection / field instrumentation (e.g., transmitters, analyzers)
-
Signal loops in chemical, oil & gas, and power generation industries
-
Remote I/O module wiring
-
Sensor/actuator interface cabling
-
Instrumentation panels and marshalling cabinets
-
OEM control panel manufacturing
-
Redundant safety system signal routing
Product Advantages
-
Optimized for Yokogawa Systems
Designed in alignment with Yokogawa system architectures, ensuring seamless and interference-free performance in control environments. -
High Signal Fidelity
The shielding layer and tinned copper conductors reduce signal degradation over long cable runs, maintaining data accuracy. -
Installation Flexibility
Flexible outer jacket and small bend radius allow easy routing in crowded control cabinets or conduits. -
Industrial-Grade Durability
PVC insulation and outer sheath provide resistance to oil, moisture, and flame, suitable for harsh environments. -
Standards Compliant
Meets international standards for flame retardancy, electrical safety, and environmental compliance (RoHS, CE). -
Versatile Use
Suitable for both analog and digital signal wiring across diverse industries, reducing inventory complexity.
よくある質問 (FAQ)
1. Is the KS1-10*B cable approved for use in hazardous areas?
While the cable itself is not classified for hazardous zones, it can be used in conjunction with certified junction boxes and barriers in such areas. Always consult project-specific approvals.
2. What makes this cable different from standard commercial signal cables?
KS1-10*B is purpose-built for industrial automation, /fering enhanced EMI shielding, durable jacketing, and compatibility with Yokogawa systems.
3. Can this cable be used for 24V DC control signals?
Yes, it is well-suited for 24V DC signal loops, including digital I/O and low-current relay control circuits.
4. Is the KS1-10*B suitable for outdoor installations?
It is primarily intended for indoor use. For outdoor or UV-exposed applications, additional conduit or protective tubing is recommended.
5. Can I order this cable in custom lengths or with connectors?
Yes. Cable up to 10 meters.
6. How does this cable perform near variable frequency drives (VFDs)?
Its shielding /fers good protection against VFD noise. However, for extreme noise zones, consider double-shielded or VFD-rated cables.
7. What is the maximum conductor resistance?
Typical conductor resistance is less than 39 ohms/km at 20°C, ensuring low voltage drop over typical control distances.
8. Does it support twisted pairs inside?
No, the KS1-10*B has parallel laid conductors, not twisted pairs. For differential signal transmission, twisted-pair models are available.
9. What stripping tools are recommended for this cable?
Standard insulation strippers with adjustable depth settings work well. Avoid tools that may damage inner shielding or conductor strands.
10. Is there a halogen-free version / this cable available?
Currently, KS1-10*B uses standard PVC. For applications requiring low smoke zero halogen (LSZH), alternative variants can be sourced via special order.
Related モデルs from the Same Series or Family
| モデル | 説明 | Length | Core Count | Shielding |
|---|---|---|---|---|
| KS1-6*B | 6-core signal cable for compact installations | 10 m | 6 | Yes |
| KS1-12*B | 12-core signal cable | 10 m | 12 | Yes |
| KS1-10*B-LS | LSZH version for fire-sensitive areas | 10 m | 10 | Yes |
| KS1-10*BL | Black sheath version for dark paneling | 10 m | 10 | Yes |
| KS1-10*B-XL | Extended length variant | 20 m | 10 | Yes |
| KS2-10*B | Heavier duty version with thicker jacket | 10 m | 10 | Yes (enhanced) |
Popuar Yokogawa モデルs
| モデル | カテゴリー | 説明 | Primary Use |
|---|---|---|---|
| EJX530A | Pressure Transmitter | High-performance DP transmitter | Differential pressure measurement |
| YHC4200 | Field Communicator | Universal HART communicator | Field device configuration |
| ADMAG AXR | Electromagnetic Flowmeter | Two-wire loop-powered flowmeter | Flow measurement |
| GX10 | Paperless Recorder | Compact 10-channel touchscreen recorder | Process data recording |
| UTAdvanced UT35A | Temperature Controller | High-speed digital controller | Thermal control in process systems |
| FAM3 | Remote I/O System | Modular and compact I/O station | Field signal acquisition and output |
