Product Overview

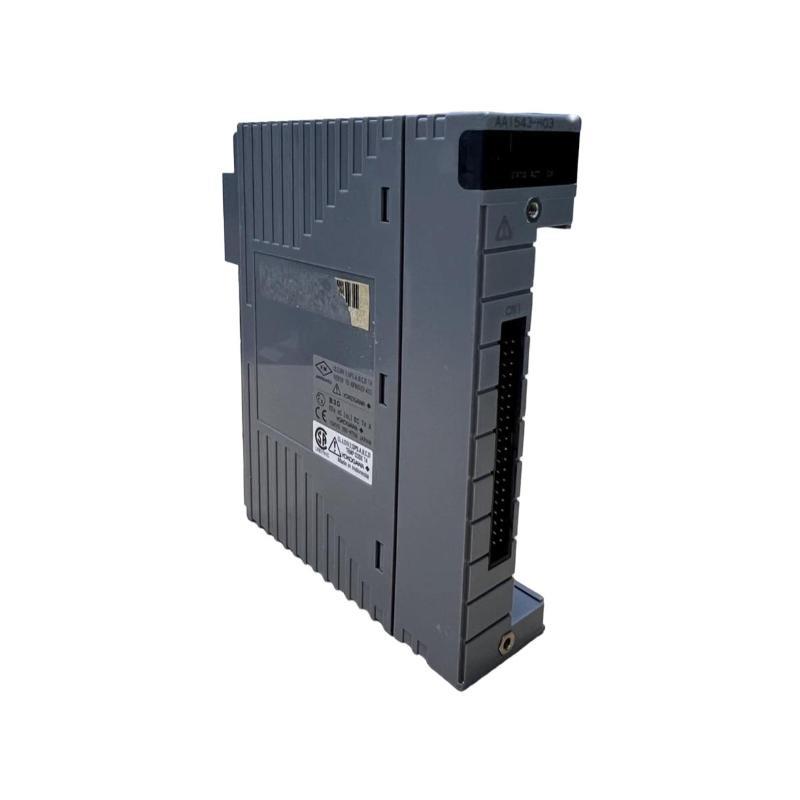

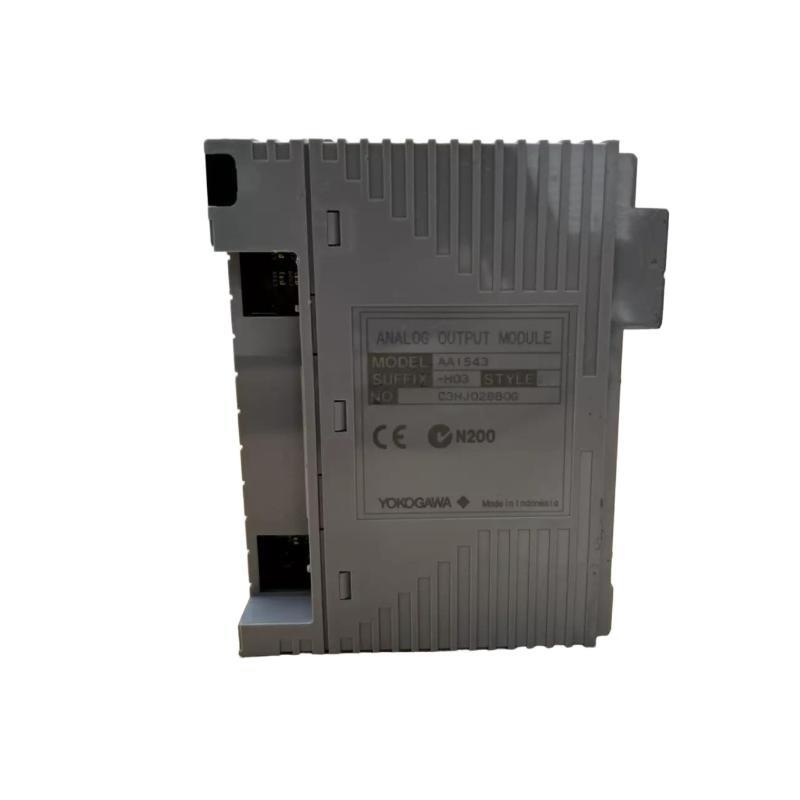

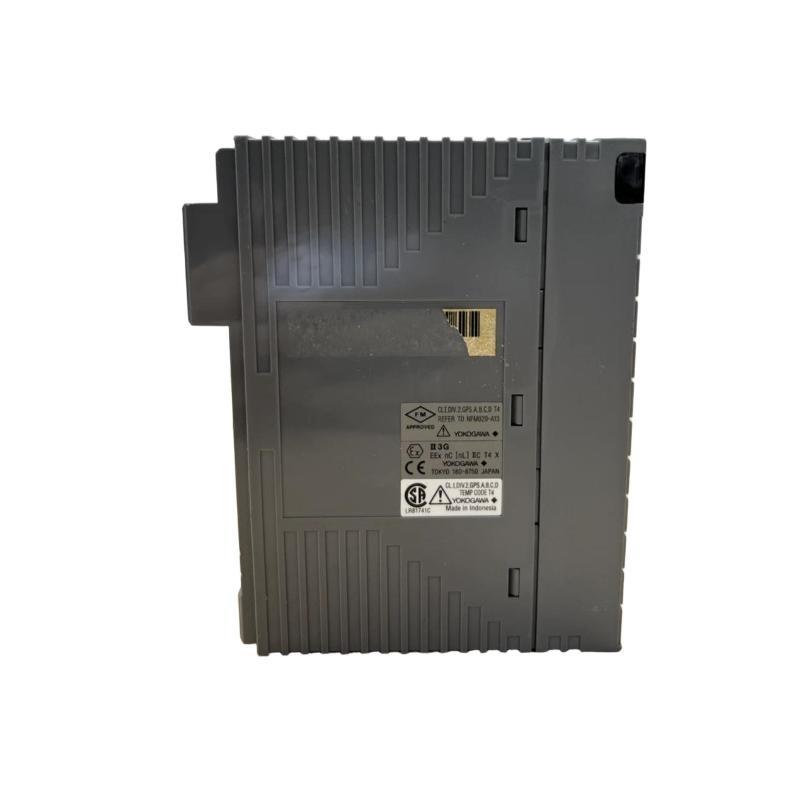

The Yokogawa AAI543-H03 Analog Output Module is a high-performance 8-channel module designed for precision analog signal transmission in demanding industrial control systems. Specifically developed for integration with Yokogawa’s CENTUM VP and ProSafe-RS systems, this module enables reliable analog control output to field devices such as actuators, control valves, and I/P converters. With built-in HART communication support and advanced diagnostics, it provides operational reliability, remote device configuration, and seamless integration in distributed control architectures.
Key Features
-
8-channel isolated analog output module
-
Signal range: 4–20 mA DC
-
HART communication enabled (pass-through and command support)
-
Channel-to-channel and channel-to-ground isolation
-
High-accuracy 12-bit or better digital-to-analog conversion
-
Hot-swappable without system interruption
-
Advanced self-diagnostic functions for fault detection
-
Designed for use in both standard DCS and Safety Instrumented Systems (SIS)
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | AAI543-H03 |
| Module Type | Analog Output Module with HART support |
| Number / Channels | 8 isolated analog output channels |
| Output Signal Type | 4–20 mA DC |
| Output Load Resistance | 600 Ω maximum |
| Output Resolution | 12-bit or higher |
| Accuracy | ±0.1% / full scale |
| HART Communication | サポートed (pass-through and command response) |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostic Features | Open circuit detection, output failure, HART error |
| Hot Swap Capability | Yes |
| Power Supply | Supplied via FIO base 台 |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 32.8 × 130 mm |
| 重量 | 0.4 kg |
| Mounting Type | Installed on FIO base 台 |
| Certifications | CE, KC, RoHS, SIL (with ProSafe-RS) |
Industry Applications
-
Distributed control systems in process plants
-
Oil & gas production and refining
-
Chemical and petrochemical manufacturing
-
Power generation systems
-
Water treatment and environmental facilities
-
Food and beverage processing
-
Safety-critical applications in conjunction with ProSafe-RS
よくある質問 (FAQ)
-
What is the function / the AAI543-H03 module?
It provides 4–20 mA analog output signals from control systems to field devices. -
How many output channels does it have?
It features 8 isolated analog output channels. -
Does this module support HART communication?
Yes, it supports both HART pass-through and command communication. -
Is the module hot-swappable?
Yes, it supports online maintenance and can be replaced without system shutdown. -
Can it be used in safety systems?
Yes, it is compatible with Yokogawa’s ProSafe-RS SIS platform. -
What is the resolution / its output signal?
It has a resolution / 12 bits or higher for precise analog control. -
What diagnostics are available?
It supports open circuit detection, output errors, and HART communication faults. -
Is the output signal range configurable?
The standard output range is 4–20 mA DC, with HART signal superimposition. -
What is the maximum load resistance?
Up to 600 Ω. -
Is it suitable for harsh industrial environments?
Yes, it is designed to operate reliably in typical plant environments with robust isolation and certifications.
Related Modules
| モデル Number | 説明 |
|---|---|
| AAI543-H00 S1 | 8-channel Analog Output Module with HART |
| AAI543-H50 | Advanced Analog Output Module with HART |
| ADV551-P00 | Analog Output Module (non-HART) |
| AAI841-H00 | 8-channel HART Analog Input Module |
| AAI143-S53 S1 | 16-channel Analog Input Module |
| AAI835-H00 | High-density Analog Input Module with HART |
