製品紹介

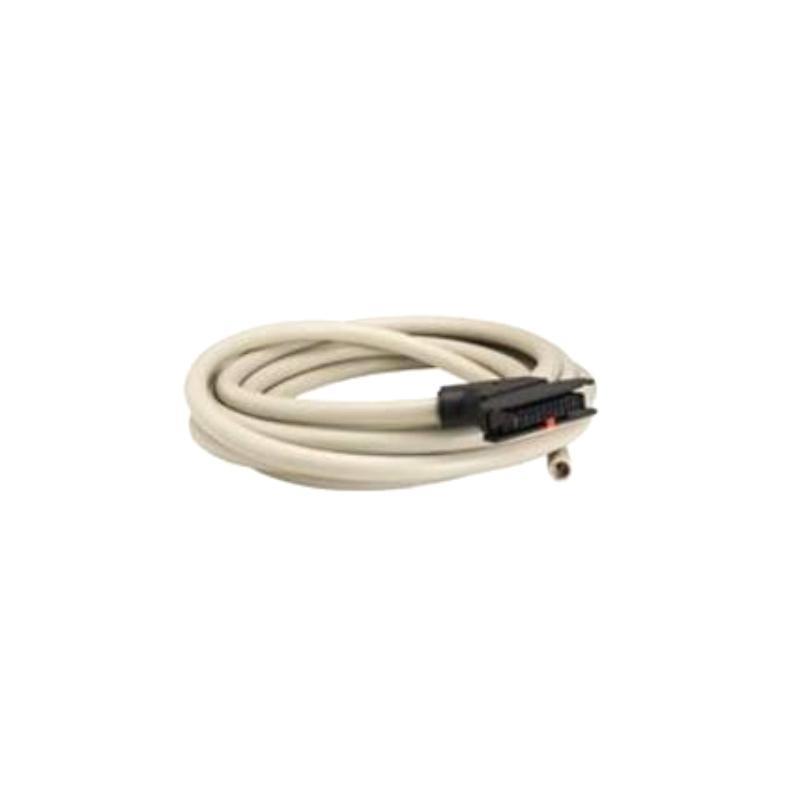

The Honeywell FS-CCI-HSE-30 is a 3 m shielded Ethernet cable designed for high-speed data transmission in industrial environments. It connects high-speed Ethernet channels / the Universal Safety Interface (USI-0001 or USI-0002) to a galvanically isolated Ethernet interface, such as an approved switch. This cable ensures reliable and efficient communication in demanding industrial settings.
製品仕様
| Parameter | Specification |
| Cable Type | Shielded Twisted Pair (STP) |
| Length | 30 meters |
| Connector Type | RJ45 |
| Cable Jacket Material | PVC (Polyvinyl Chloride) |
| Conductor Material | Copper |
| Wire Gauge | 24 AWG |
| Data Transfer Rate | Up to 1 Gbps |
| Impedance | 100 Ohms |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Bend Radius | 5 times the outer diameter / the cable |
| Compliance | TIA/EIA-568-B.2, ISO/IEC 11801, EN 50173 |
| Cable Length | 3 m |
| 重量 | 0.2 kg |
Product Applications
-
Industrial Automation: Connecting sensors, actuators, and other devices in factories and process plants.
-
Building Automation: Connecting control panels, thermostats, and other devices in smart buildings.
-
Security Systems: Connecting security cameras, alarms, and other devices in surveillance systems.
-
Data Acquisition: Connecting data loggers and other devices to sensors and measuring equipment.
Product Advantages
-
Reliable Data Transmission: Shielded, twisted-pair construction ensures consistent and reliable data transfer.
-
Fire-Resistant and Plenum-Rated: Safe for use in air handling spaces, meeting fire safety standards.
-
Durable Construction: Resistant to chemicals, oils, and abrasion, suitable for harsh industrial environments.
-
Flexible Installation: Designed for easy installation, even in tight spaces.
-
High-Speed Performance: サポートs various data protocols and communication standards for efficient operation.
Latest News Titles
-
Honeywell Introduces FS-CCI-HSE-30 for Enhanced Industrial Connectivity
-
FS-CCI-HSE-30 Cable Set Gains Popularity in Automation Applications
-
New High-Speed Ethernet Cable Released for Safety Manager Systems
-
Honeywell’s Latest Cable Set Meets Demands / Harsh Industrial Environments
-
FS-CCI-HSE-30: A Reliable Solution for Industrial Communication Needs
よくある質問 (FAQ)
-
What is the primary use / the FS-CCI-HSE-30 cable?
It connects high-speed Ethernet channels / USI modules to isolated Ethernet interfaces in industrial systems. -
Is the cable suitable for outdoor use?
While durable, it’s primarily designed for indoor industrial environments. -
Does the cable support Gigabit Ethernet?
Yes, it supports data transfer rates up to 1 Gbps. -
Can the cable be used in plenum spaces?
Yes, it’s fire-resistant and plenum-rated for safe use in air handling spaces. -
What is the bend radius / the cable?
The minimum bend radius is five times the outer diameter / the cable. -
Is the cable resistant to chemicals and abrasion?
Yes, it’s designed to withstand harsh industrial conditions. -
What standards does the cable comply with?
It complies with TIA/EIA-568-B.2, ISO/IEC 11801, and EN 50173 standards. -
What is the operating temperature range?
The cable operates between -20°C and +60°C. -
What is the storage temperature range?
It can be stored between -40°C and +80°C. -
What is the weight / the cable?
0.2 kg for the 3 meters length.
Related モデルs – Same Series / Functionality as FS-CCI-HSE-30 51506993-730
| モデル Number | 説明 | Cable Type | Typical Length | Application |
| FS-CCI-HSE-01 | Ethernet cable set for HSE interface | Shielded Twisted Pair (STP) | 1 meter | Short-distance connection for USI modules |
| FS-CCI-HSE-02 | High-speed Ethernet cable set for USI | Shielded Ethernet | 2 meters | Communication with isolated Ethernet interfaces |
| FS-CCI-HSE-05 | High-speed Ethernet cable set | Shielded Ethernet | 5 meters | Mid-range Ethernet connection in DCS systems |
| FS-CCI-HSE-10 | HSE Ethernet cable set | Shielded Ethernet | 10 meters | For standard safety manager setups |
| FS-CCI-HSE-15 | Industrial Ethernet cable | Shielded Ethernet | 15 meters | For cabinet-to-cabinet communication |
| FS-CCI-HSE-20 | Long-range HSE Ethernet cable | Shielded Ethernet | 20 meters | Long-distance industrial networking |
| FS-CCI-HSE-30 | High-speed Ethernet communication cable (current model) | Shielded Ethernet | 30 meters | For wide-range plant communication systems |
| FC-CCI-HSE-EX | Explosion-pro/ HSE communication cable | Shielded with Armored Layer | Custom lengths | Use in hazardous/explosive industrial environments |
Popular Honeywell モデルs Across 製品カテゴリー
| モデル Number | Product 説明 | カテゴリー | Key Application |
| CC-TDIL01 | Digital Input Module | I/O Module | Signal input acquisition in control systems |
| CC-PDOB01 | Digital Output Module | I/O Module | Relay and actuator control |
| MC-TDOY22 | 24V Digital Output Module | Safety I/O | Safety Manager output control |
| TC-IAH061 | Analog Input Module (HART compatible) | Analog Input | Field instrument signal monitoring |
| CC-PCF901 | Controller Fieldbus Interface | Communication Module | Connection between controller and remote I/O |
| MU-TDID12 | Isolated Digital Input Module | Redundant I/O Module | High-availability critical signal input |
| TK-PRS021 | Pressure Transmitter | Field Device | Industrial process measurement |
| HC900-C50 | Process and Safety Controller | Controller | Hybrid control for batch and continuous processes |
