製品紹介

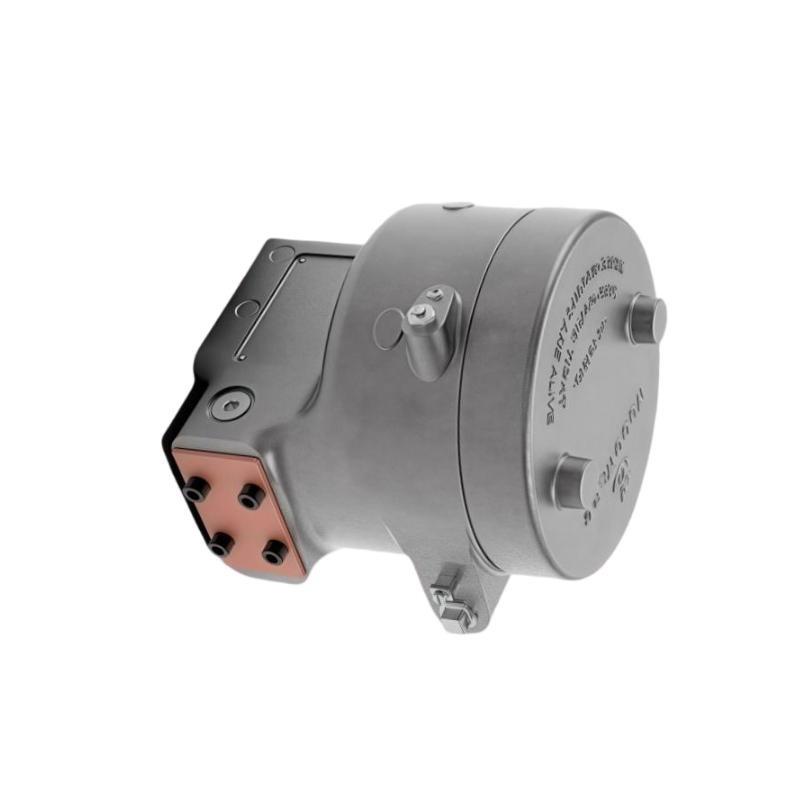

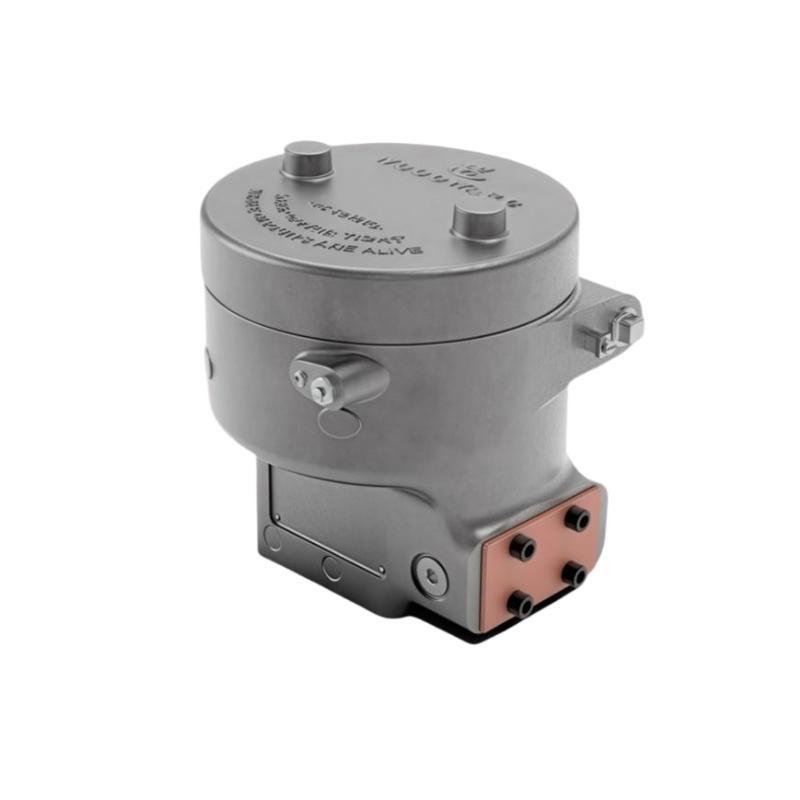

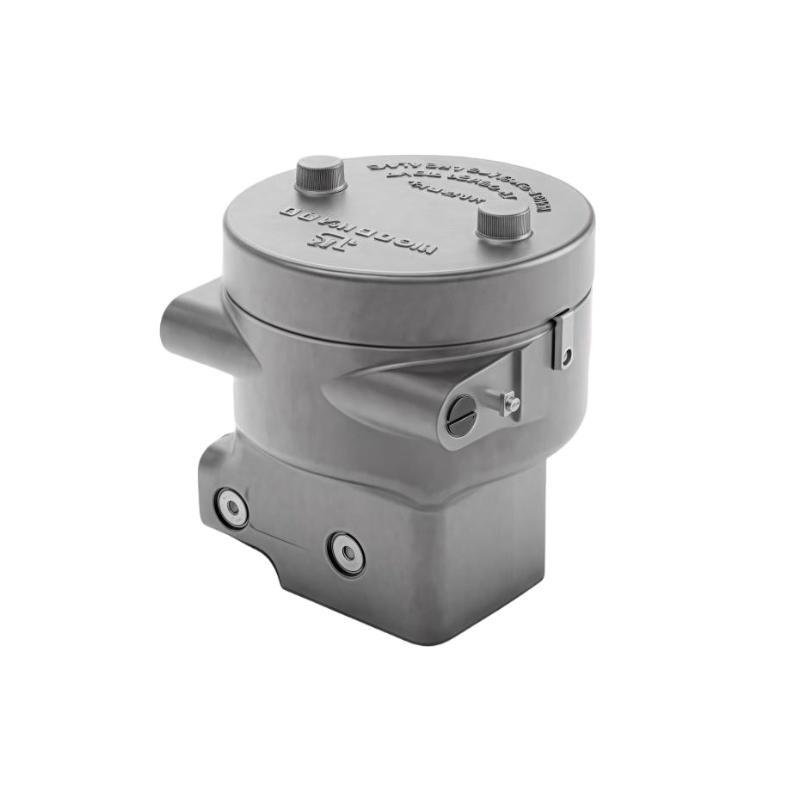

The Woodward 9907-1200 CPC-II (Current to Pressure Converter) is a high-performance electro-pneumatic transducer designed for precise valve actuator control in industrial, power generation, and turbine control applications. It translates electrical current input signals into proportional pneumatic output, enabling accurate valve positioning for optimal engine or turbine performance.
The CPC-II model is the successor to Woodward’s original CPC line, with advanced features, higher reliability, and broader compatibility with electronic control systems. Built to withstand harsh operating environments, it supports high-speed response, excellent repeatability, and flexible installation options.
This converter is typically used in conjunction with Woodward controllers such as the 505, 723, and Micronet systems, forming a core part / closed-loop turbine control architectures.
製品仕様
| Parameter | Specification |
|---|---|
| Product Name | CPC-II Current to Pressure Converter |
| モデル Number | 9907-1200 |
| Input Signal | 4–20 mA (current input) |
| Output Pressure | 0–2.0 bar (0–30 psi), configurable |
| Power Supply | 18–32 V DC |
| Control Accuracy | ±0.2% / full scale |
| Linearity & Hysteresis | < ±0.5% |
| Response Time | < 100 ms (typical) |
| Air Supply Pressure | 3.5–10 bar (50–150 psi), clean/dry air |
| Ambient Operating Temp. | -40°C to +85°C |
| Mounting Orientation | Any |
| Enclosure Material | Anodized Aluminum |
| Ingress Protection | IP65 |
| Communication Interface | Local diagnostics via connector; optional HART version |
| Dimensions (W × H × D) | 358 x 282 x 95 mm |
| 重量 | 4.45 kg |
| Certifications | CE, ATEX, CSA, UL, RoHS compliant |
Product Applications
The Woodward 9907-1200 CPC-II is designed for high-reliability applications that require the conversion / control signals into pneumatic action. It is widely used in:
-
Steam and Gas Turbine Control
For precise valve actuation in turbine governors and fuel controls. -
Process Control Systems
In oil refineries and chemical plants for pressure/flow modulation. -
Power Plants
As part / steam valve systems, controlling pressure stages with speed and accuracy. -
Compressor Control
Pneumatic valve actuation in gas compression stations and refrigeration cycles. -
Marine Propulsion Systems
For actuation in power control loops on ships and /fshore platforms. -
Industrial Engines and Boilers
Controls air, steam, or gas valves for safe and efficient operations.
Product Advantages
-
High Accuracy and Repeatability
Delivers consistent pressure output even under fluctuating conditions. -
Fast Response Time
Ensures tight control over fast-acting valves, ideal for dynamic load environments. -
Robust Construction
Built to handle vibration, temperature extremes, and contaminated environments. -
Flexible Installation
Can be mounted in any orientation and integrated with a variety / systems. -
Low Maintenance Design
Fewer moving parts and integrated diagnostics reduce service intervals. -
Global Compliance
Certified for hazardous and industrial locations across global markets.
よくある質問 (FAQ)
-
What does the CPC-II 9907-1200 do?
It converts a 4–20 mA electrical signal into a proportional pneumatic pressure signal for valve actuation. -
Can the CPC-II be used with steam or gas turbines?
Yes, it is specifically designed for use in turbine control systems for accurate valve regulation. -
Is the device suitable for hazardous environments?
Yes, it meets ATEX, UL, and CSA certifications for use in explosive or industrial settings. -
What type / control signal does it accept?
The CPC-II accepts a standard 4–20 mA current input. -
What pressure range can it output?
It provides an output pressure / up to 2.0 bar (30 psi), configurable to system needs. -
Does it work with Woodward controllers like 505 or 723?
Yes, it is fully compatible with Woodward’s governor and controller product lines. -
What type / air supply is required?
Clean, dry air with a supply pressure between 3.5–10 bar (50–150 psi). -
Can the CPC-II be mounted in any orientation?
Yes, it supports mounting in any position without affecting performance. -
Does the 台 support any communication or diagnostics?
Yes, it includes local diagnostics and can be ordered with optional HART capability. -
What is the response time / the CPC-II?
The device typically responds in less than 100 milliseconds, ensuring rapid control.
Recommended Related モデルs (Same Series or Functional Alternatives)
| モデル | モデル Number | 説明 |
|---|---|---|
| Woodward CPC-II | 9907-1201 | CPC-II with alternate calibration range |
| Woodward CPC-II | 9907-1202 | CPC-II with HART communication |
| Woodward CPC-II | 9907-1235 | High-speed variant for fast-acting turbine applications |
| Woodward CPC-I | 9907-014 | First-generation current-to-pressure converter |
| Woodward CPC-II EX | 9907-1210 | Explosion-pro/ version / CPC-II |
| Woodward CPC-D | 9907-1300 | Digital CPC with integrated diagnostics |
Recommended Popular Woodward モデルs
| モデル | モデル Number | Application |
|---|---|---|
| Woodward 2301D | 8200-1304 | Digital load-sharing and speed control |
| Woodward 505XT | 9907-202 | Steam turbine controller with touchscreen HMI |
| Woodward EasyGen 3500 | 8440-2085 | Generator controller with advanced paralleling |
| Woodward 723 Digital | 8440-2080 | Engine speed and load controller |
| Woodward 9907-1183 | 9907-1183 | Digital governor for diesel/gas engine control |
| Woodward UG-25+ | 8273-124 | Mechanical-hydraulic governor with electronic assist |
