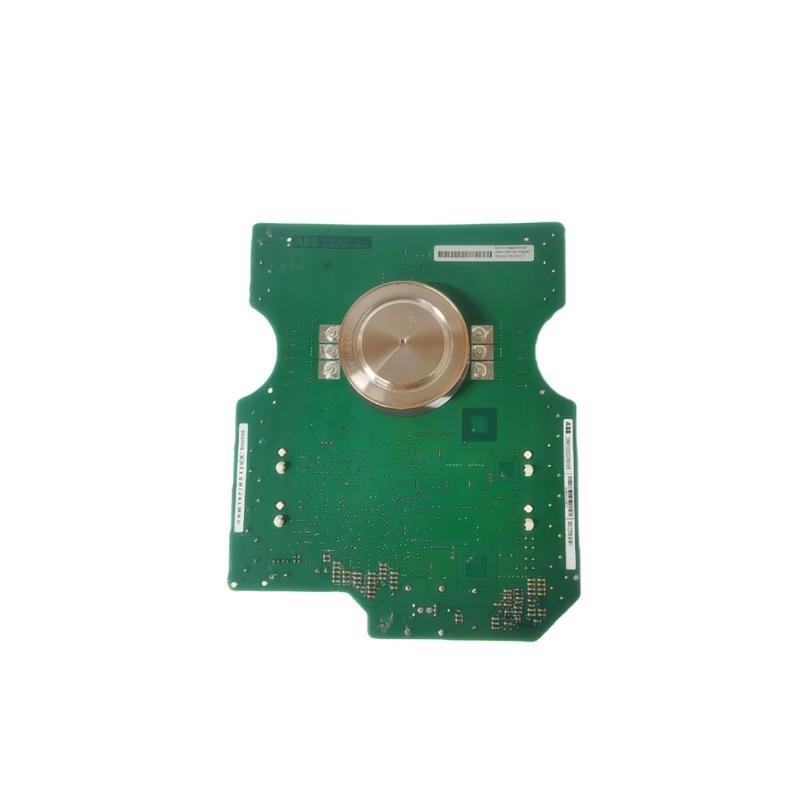

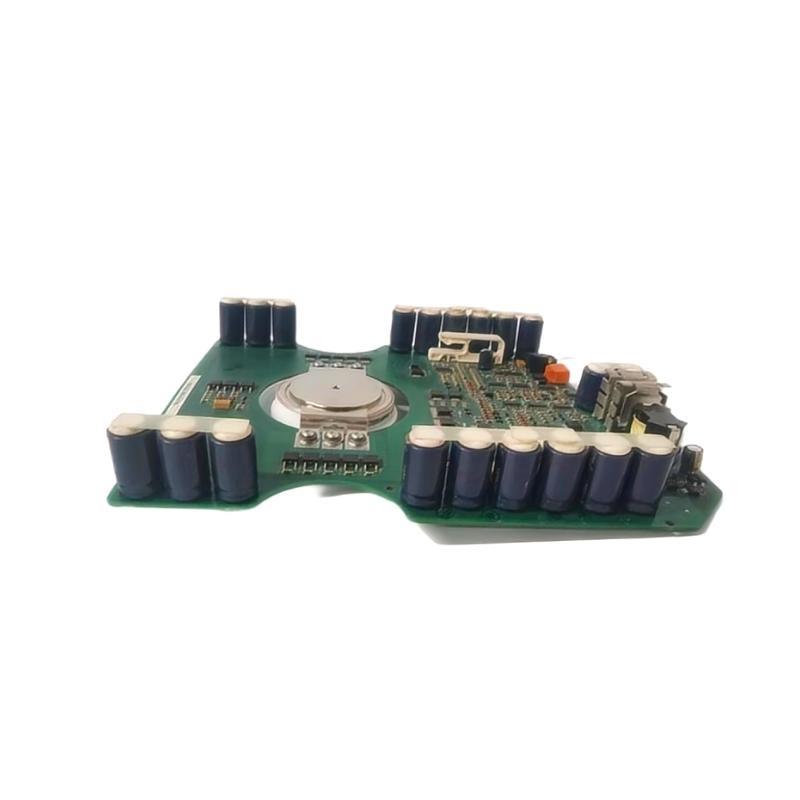

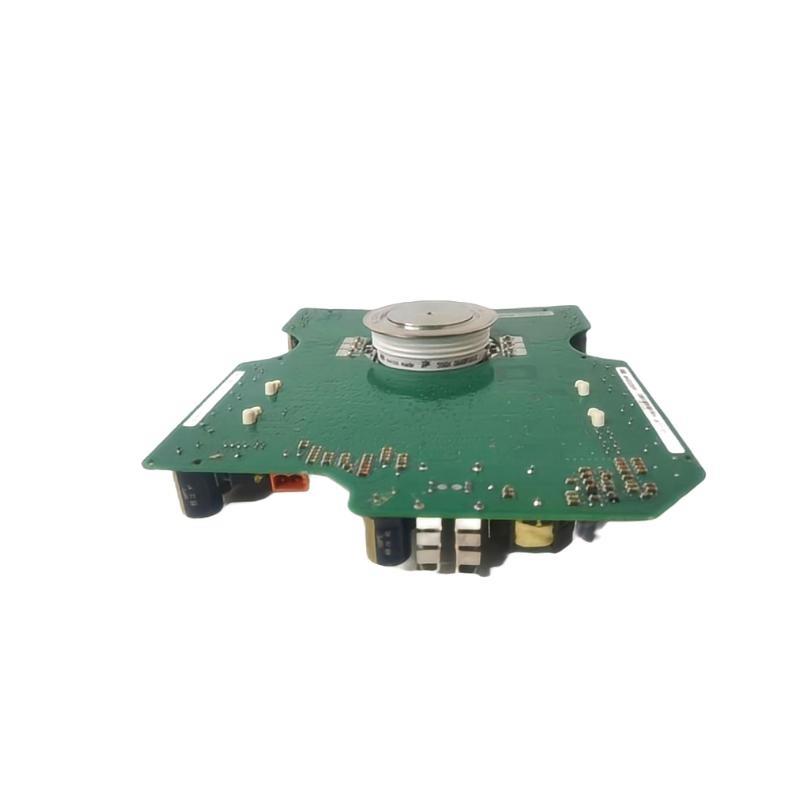

Product Overview
The ABB GVC713 A101 (5SHX0660F0002 / 3BHE022333R0101) is a highly advanced Integrated Gate-Commutated Thyristor (IGCT) module developed by ABB for use in high-power industrial and utility-scale power electronics applications. Designed to handle extreme switching capabilities and high current ratings, this IGCT module /fers unparalleled robustness, efficiency, and reliability in demanding environments.
The GVC713 A101 module is part / ABB’s IGCT platform, renowned for reducing conduction and switching losses, making it ideal for applications such as medium voltage drives, frequency converters, power transmission systems, and other high-performance power electronic converters.
製品仕様
| Parameter | Value |
|---|---|
| Product Name | GVC713 A101 IGCT Module |
| メーカー | ABB |
| 型番 | 5SHX0660F0002 / 3BHE022333R0101 |
| Type | IGCT (Integrated Gate-Commutated Thyristor) |
| Voltage Rating | 4.5 kV |
| Current Rating | 3000 A (typical) |
| Turn-Off Capability | High – fast turn-/f switching |
| Switching Frequency | Typically up to a few kHz |
| Gate Drive | Integrated Gate ユニット |
| Cooling Method | Forced air or liquid cooling (dependent on application) |
| Mounting | Press-pack |
| Housing | Fully insulated ceramic housing |
| Dimensions (L × W × H) | 190 x 140 x 38 mm |
| 重量 | 1.2 kg |
| Operational Temperature Range | -40°C to +125°C |
| Storage Temperature | -55°C to +150°C |
| Insulation Voltage | 10 kV RMS |
| Lifetime | >20 years in controlled environments |
| Compliance | RoHS, CE |
Applications
The GVC713 A101 IGCT module is widely used in high-power and high-voltage industrial systems where reliable and efficient power switching is critical. Major application areas include:
-
Medium Voltage Drives
Used in controlling large motors in industrial plants, cement mills, and mining operations. -
HVDC Systems (High Voltage Direct Current)
Deployed in long-distance power transmission systems to reduce energy loss. -
Static VAR Compensators (SVC)
Used in power grid systems to stabilize and control voltage levels. -
Traction and Rail Systems
Suitable for locomotives and electric rail systems requiring efficient power control. -
Wind and Hydro Power Converters
Ensures smooth conversion and transmission / renewable energy sources. -
Power Inverters and Converters
Integrated in systems requiring precise switching, such as UPS and energy storage.
Product Advantages
-
High Current Handling Capability
Capable / managing large amounts / current with minimal loss, making it suitable for power-dense systems. -
Integrated Gate Driver
Reduces complexity in design and improves reliability and performance / the switching mechanism. -
Fast Switching with Low Losses
Combines the benefits / both IGBT and thyristor technologies, providing fast switching speeds with lower conduction losses. -
Thermal Robustness
Wide operating temperature range and high thermal cycling capability, ensuring stability in harsh industrial conditions. -
Long Service Life
Designed for longevity with minimal maintenance in mission-critical operations. -
Mechanical Robustness
Press-pack design provides excellent resistance to mechanical shock and vibration, crucial in mobile and rail applications. -
Compact Design
Smaller footprint and lower weight than traditional thyristor-based modules with equivalent ratings.
よくある質問 (FAQ)
-
What is the rated voltage and current / the GVC713 A101 module?
The module is rated for 4.5 kV and typically handles currents around 3000 A. -
Can the module be used in renewable energy systems?
Yes, it’s widely used in wind and hydro power inverters and converters. -
Is the gate driver integrated into the module?
Yes, it features an integrated gate 台, simplifying the system design. -
What is the cooling requirement?
Depending on the application, it supports both forced air and liquid cooling. -
How is the module mounted?
It utilizes a press-pack mounting technique, which provides strong mechanical stability. -
What are the advantages / using IGCT over IGBT in high power systems?
IGCT /fers lower conduction and switching losses, and better robustness at higher power levels. -
Is this IGCT module RoHS compliant?
Yes, it meets RoHS and CE compliance standards. -
What industries commonly use this product?
Utilities, heavy industries, transportation, and renewable energy sectors. -
Can it be used in environments with high temperature fluctuations?
Absolutely. The module operates reliably in a wide temperature range (-40°C to +125°C). -
What is the expected operational lifespan / the module?
When used in optimal conditions, the module can exceed 20 years / operational life.
Related モデルs (Same Series or Functionally Similar)
| モデル | 型番 | Voltage | Current | Type |
|---|---|---|---|---|
| GVC713 A102 | 5SHX0660F0003 | 4.5 kV | 3000 A | IGCT Module |
| GCT530 A170 | 5SHX1060L0001 | 4.5 kV | 4000 A | IGCT Module |
| GTO170A120 | 5STP20H2801 | 4.5 kV | 2000 A | GTO Thyristor |
| GVC750 B103 | 5SHX1445H0001 | 6.0 kV | 3500 A | IGCT Module |
| 5SHX1060L0002 | GCT600 A170 | 4.5 kV | 4000 A | IGCT Module |
| GVC900 B101 | 5SHX2660L0001 | 6.5 kV | 4500 A | IGCT Module |
Popular ABB Modules (Same ブランド, High Demand)
| モデル | 型番 | Voltage | Current | Application |
|---|---|---|---|---|
| 5SHX1445H0001 | GVC750 B103 | 6.0 kV | 3500 A | High-Power Drives |
| 5STP20H2801 | GTO170 A120 | 4.5 kV | 2000 A | High-Speed Rail Systems |
| 5STP24N5200 | GTO Module | 5.2 kV | 2400 A | HVDC & SVC Systems |
| 5SHY4045L0002 | IGBT Module | 4.5 kV | 1800 A | Industrial Inverters |
| 5SHY3545L0010 | IGBT Module | 3.3 kV | 1500 A | Wind Turbine Converters |
| 5SDF06D6001 | Diode Module | 6.0 kV | 6000 A | Rectifier ユニットs |
