Product Overview

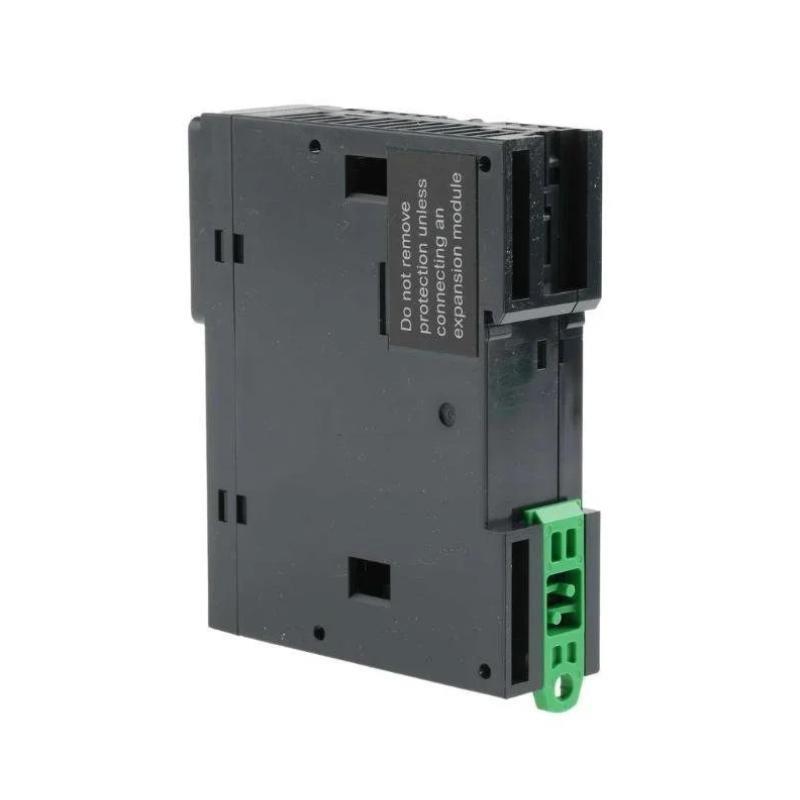

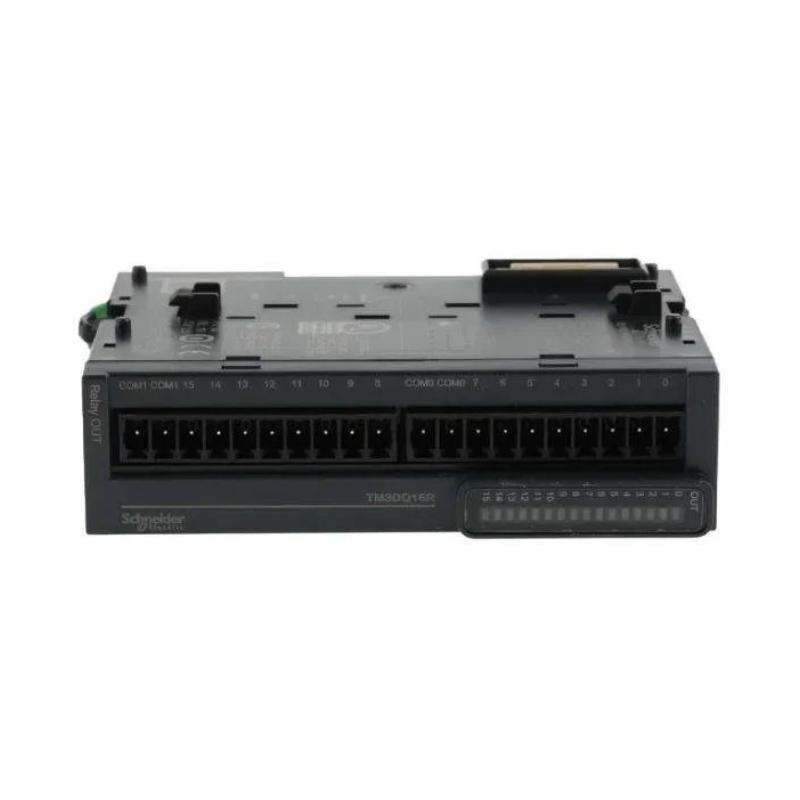

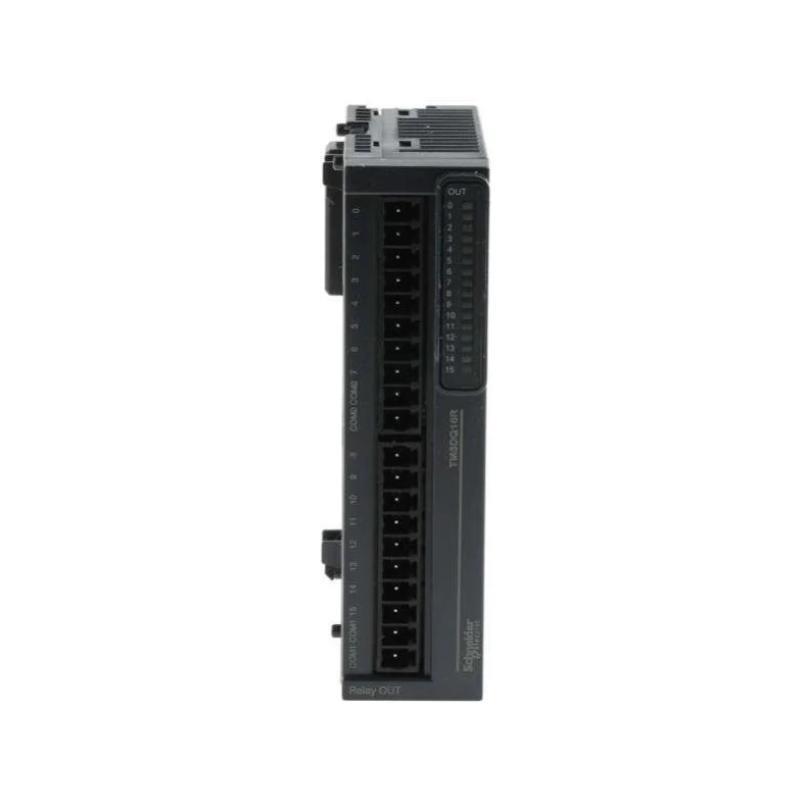

The Schneider TM3DQ16R is a high-performance discrete output module designed for use with Schneider Electric’s Modicon TM3 modular I/O platform. This module provides 16 relay outputs, /fering robust switching capabilities for AC and DC loads. Its compact size and reliable relay technology make it suitable for a wide range / automation and control applications in industrial environments.
Engineered for seamless integration with Modicon TM3 controllers and expansion modules, the TM3DQ16R enables safe and efficient control / devices such as motors, solenoids, lamps, and contactors. It is widely adopted in machinery, process control, and infrastructure applications due to its ease / wiring, high output density, and superior isolation.
Technical Specifications
| Item | Specification |
|---|---|
| モデル Number | TM3DQ16R |
| Module Type | Discrete Output Module |
| Number / Outputs | 16 |
| Output Type | Relay |
| Output Voltage Range | 5–30 V DC / 19–250 V AC |
| Output Current Rating | 2 A per channel (max), 8 A per group |
| Output Configuration | 2 groups / 8 outputs |
| Output Delay | ≤10 ms |
| Isolation Between Channels | Yes (galvanic isolation) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 90 x 84.6 x 27.4mm |
| 重量 | 0.145 kg |
| Mounting Type | DIN rail |
| Protection Rating | IP20 |
| Power Dissipation | ≤4.5 W |
| Certifications | CE, UL, cUL, RoHS, EAC |
| Connection Type | Removable spring or screw terminals |
Industry Applications
-
Industrial Automation Systems
-
Conveyor Control Systems
-
Building Management Systems
-
Water and Wastewater Facilities
-
Packaging Machinery
-
HVAC Systems
-
Material Handling
-
Lighting Control
Key Advantages
-
High Channel Density: Offers 16 relay outputs in a compact DIN rail module for space-efficient installations.
-
Versatile Switching: Capable / handling both AC and DC loads, making it ideal for mixed-signal environments.
-
Isolated Outputs: Ensures safety and reliability through galvanic isolation between output groups.
-
Plug-and-Play Integration: Fully compatible with Modicon TM3 controllers and expansion 台s.
-
Maintenance Friendly: Removable terminal blocks simplify wiring and module replacement.
-
DIN Rail Mounting: Facilitates easy installation in standard control cabinets.
-
Wide Voltage サポート: Can switch voltages from 5 V DC up to 250 V AC.
-
Industrial Grade Reliability: Designed to perform under demanding industrial operating conditions.
よくある質問 (FAQ)
-
How many outputs does the TM3DQ16R provide?
It provides 16 discrete relay outputs. -
What is the maximum current per output channel?
Each output supports up to 2 A; each group can handle up to 8 A. -
Can the module switch both AC and DC voltages?
Yes, it supports both DC (5–30 V) and AC (19–250 V) outputs. -
Is this module compatible with other TM3 modules?
Yes, it seamlessly integrates with other TM3 I/O and controller modules. -
What type / outputs are used?
The TM3DQ16R uses electromechanical relay contacts. -
What is the typical response time for the outputs?
The response time is typically less than or equal to 10 milliseconds. -
Is there galvanic isolation between outputs?
Yes, the module provides galvanic isolation between output groups. -
What mounting method is supported?
It is designed for DIN rail mounting. -
What is the protection rating?
It has an IP20 rating for use in enclosed control panels. -
Are the terminals screw-type or spring-loaded?
Both removable spring and screw terminals are available depending on the version.
Recommended Related モデルs
| モデル Number | 説明 |
|---|---|
| TM3DQ16TK | 16-channel Transistor Output Module |
| TM3DI16 | 16-channel Digital Input Module |
| TM3DM24R | 12 DI + 8 Relay DO Mixed I/O Module |
| TM3DO8G | 8-channel Digital Output Module (Transistor) |
| TM3AI8 | 8-channel Analog Input Module |
| TM3AO2 | 2-channel Analog Output Module |
Popular モデルs
| モデル Number | Product Name |
|---|---|
| TM3CPU | TM3 CPU Base Controller |
| TM3DI8 | 8-point Digital Input Module |
| TM3DQ8 | 8-point Digital Output Relay Module |
| TM3AI4 | 4-point Analog Input Module |
| TM3DQ16R | 16-point Relay Output Module |
| TM3DM24RG | 12 DI + 8 Relay DO Mixed I/O Module with Green LEDs |
